Pigtail Integrated InGaAs PIN
Photodiode Array
PIPA Series
Product Description

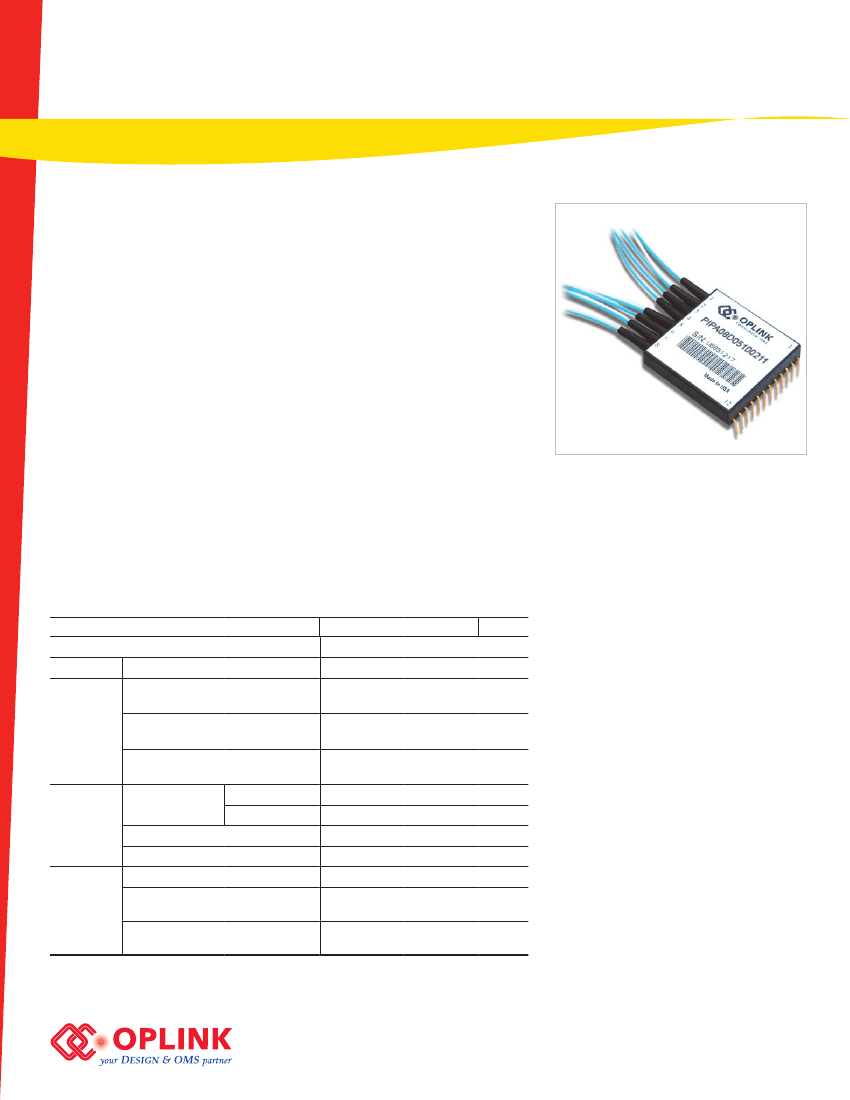

Oplink’s Pigtail Integrated Photodiode Array (PIPA) is a compact, multi-channel
power-monitoring device. It increases module design flexibility and efficiency
by significantly reducing the number of assembly components and facilitating
fiber management.
Easily mounted on a PCB, Oplink’s standard 12/14-pin package provides pow-
er monitoring for up to ten channels. Applications include DWDM chan-
nel power monitoring, optical network switching/protection monitoring, re-
configurable optical add/drop multiplexers, and gain/attenuation monitoring in
amplifier systems.
Oplink can provide customized designs to meet specialized feature applica-
tions. Also, Oplink offers modular assemblies that integrate other components
to form a full function module or subsystem.
Performance Specificationns
Parameters
Specification
Unit
Features
Operating Wavelength Range
Optical
Return Loss (exclude connector)
Responsivity (relative to nominal
power at input port)
Monitoring
Responsivity Temperature Depen-
dence (@1310nm or 1550nm)
Responsivity Polarization Depen-
dence
PD Dark Current
(@ 70°C, -5V bias)
Reverse Voltage
Forward Current
Input Optical Power
Conditions
Operating Temperature Range
(<85%RH, Non-condensing)
(<85%RH, Non-condensing)
Notes:
1) Excluding connectors.
1260~1360
>40
>0.75
<0.2
<0.1
<10
<2.5
<20
<10
<4
1510~1610
mm
dB
Standard, 12/14-pin package easily
mounted on a PCB
4, 8 and 10 channel configurations
Wide operating wavelength range
Low dark current
High temperature stability
>0.8
A/W
dB
dB
nA
nA
V
mA
dBm
°C
°C
0.5G Bandwidth
2.0G Bandwidth
Applications
PD
DWDM channel monitoring
Optical network switch/protection
monitoring
Re-configurable optical add/drop
multiplexers
Gain/attenuation monitoring in
amplifier systems
EDFAs and Raman amplifiers
-5 to +70
-40 to -85
Storage Temperature Range
S0062 - R01. 20100707
Pigtail Integrated InGaAs PIN Photodiode Array
PIPA Series

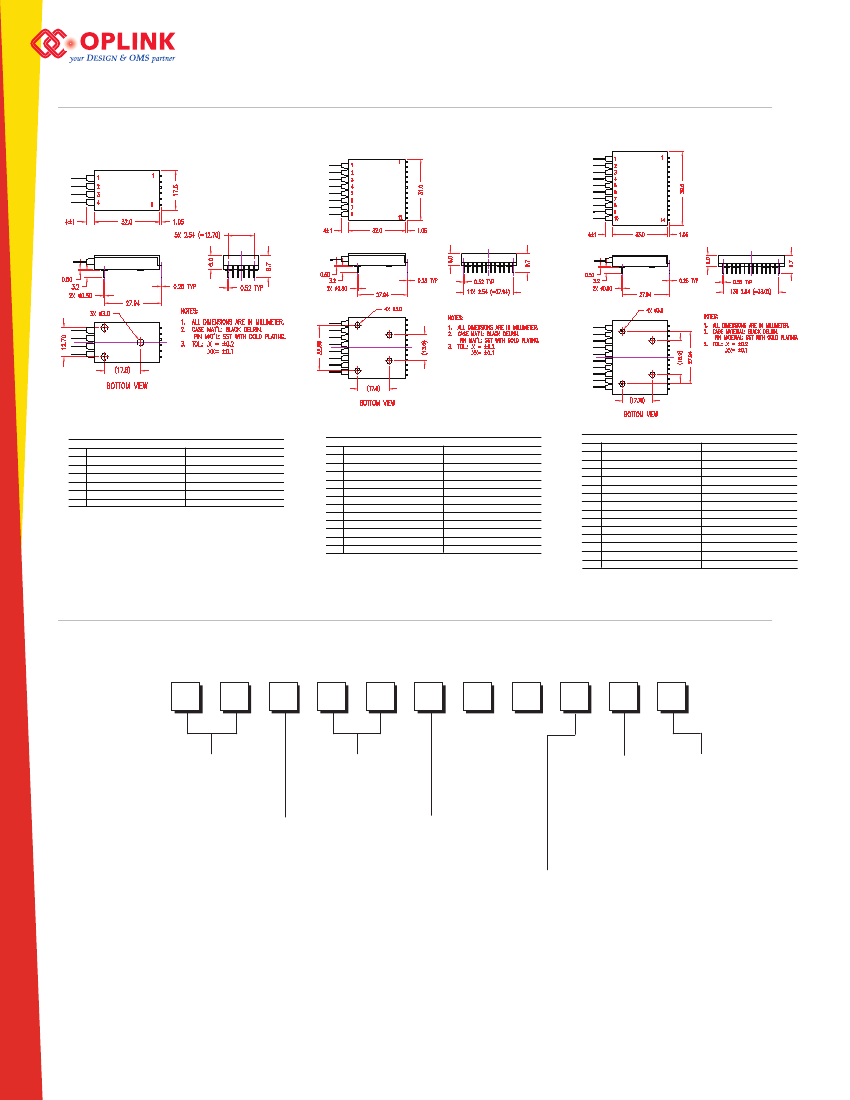

Mechanical Drawing / Package Dimensions (dimension in mm)
1) 4-ch PIPA
2) 8-ch PIPA
3) 10-ch PIPA
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Electrical Pin Assignment
Pin#: Common Cathode Assignment
Pin1: Common Cathode for Ch1 & 2
Pin2: Anode Ch1
Pin3: Anode Ch2
Pin4: Common Cathode for Ch3 & 4
Pin5: Anode Ch3
Pin6: Anode Ch4
Common Anode Assignment
Common Anode for Ch1 & 2
Cathode Ch1
Cathode Ch2
Common Anode for Ch3 & 4
Cathode Ch3
Cathode Ch4
Electrical Pin Assignment
Pin#: Common Cathode Assignment
Pin1: Common Cathode for Ch1 & 2
Pin2: Anode Ch1
Pin3: Anode Ch2
Pin4: Common Cathode for Ch3 & 4
Pin5: Anode Ch3
Pin6: Anode Ch4
Pin7: Anode Ch5
Pin8: Common Cathode for Ch5 & 6
Pin9: Anode Ch6
Pin10: Anode Ch7
Pin11: Common Cathode for Ch7 & 8
Pin12: Anode Ch8
Common Anode Assignment
Common Anode for Ch1 & 2
Cathode Ch1
Cathode Ch2
Common Anode for Ch3 & 4
Cathode Ch3
Cathode Ch4
Cathode Ch5
Common Anode for Ch5 & 6
Cathode Ch6
Cathode Ch7
Common Anode for Ch7 & 8
Cathode Ch8
Electrical Pin Assignment
Pin#: Common Cathode Assignment
Pin1: Common Cathode for Ch1 to 4
Pin2: Anode Ch1
Pin3: Anode Ch2
Pin4: Anode Ch3
Pin5: Anode Ch4
Pin6: Anode Ch5
Pin7: Common Cathode for Ch5 to 8
Pin8: Anode Ch6
Pin9: Anode Ch7
Pin10: Anode Ch8
Pin11: Anode Ch9
Pin12: Common Cathode for Ch9 & 10
Pin13: Anode Ch10
Pin 14: Not connected
Common Anode Assignment
Common Anode for Ch1 to 4
Cathode Ch1
Cathode Ch2
Cathode Ch3
Cathode Ch4
Cathode Ch5
Common Anode for Ch5 to 8
Cathode Ch6
Cathode Ch7
Cathode Ch8
Cathode Ch9
Common Anode for Ch9 & 10
Cathode Ch10
Not connected
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
PIPA
0
0
No. of Channal
4 channels= 04
8 channels= 08
10 channels= 10
Bandwidth
0.5G= 05
2.0G= 20
Fiber Length
0.5meter= H
1.0meter= 1
1.5meter= 5
2.0meter= 2
Connector
Type
None = 1
FC/PC=2
FC/SPC=3
FC/APC=4
SC/PC=5
SC/SPC=6
SC/APC=7
ST=8
LC=9
MU=A
Wavelength
1310nm= 3
C+L band= E
1310/1550nm= D
Package Type
Common Anode= 1
Common Cathode= 2
Fiber Type
SMF-28 250µm =1
SMF-28 w/ 900µm loose tube =2
SMF-28 ribbonized=3
RoHS:
1. PIPA is RoHS 5 compliant (RoHS permitted Lead in solder exemption is applied).
2. Add “G” to the end of the above PN for RoHS 6 Requirement.
S0062 - R01. 20100707
