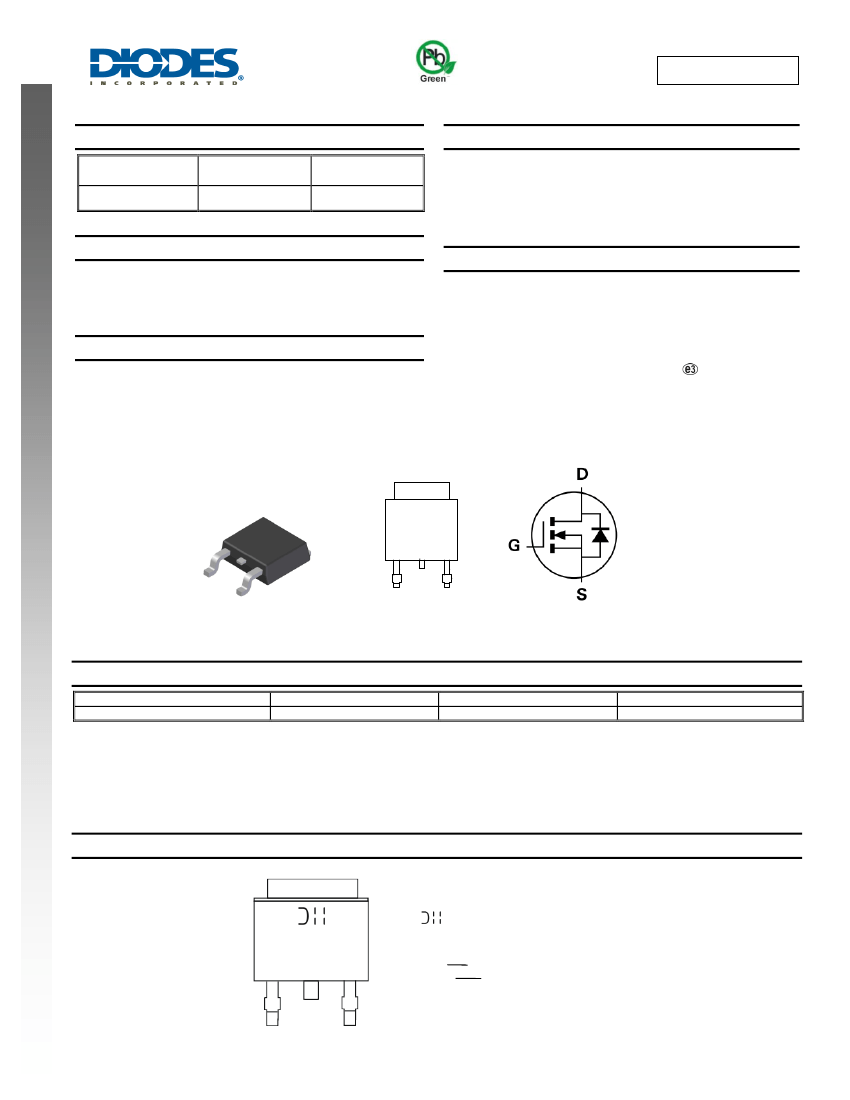

100% Unclamped Inductive Switch (UIS) Test in Production
Low Gate Input Resistance
Low Input Capacitance
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
NEW PRODUCT
NEW PRODUCT

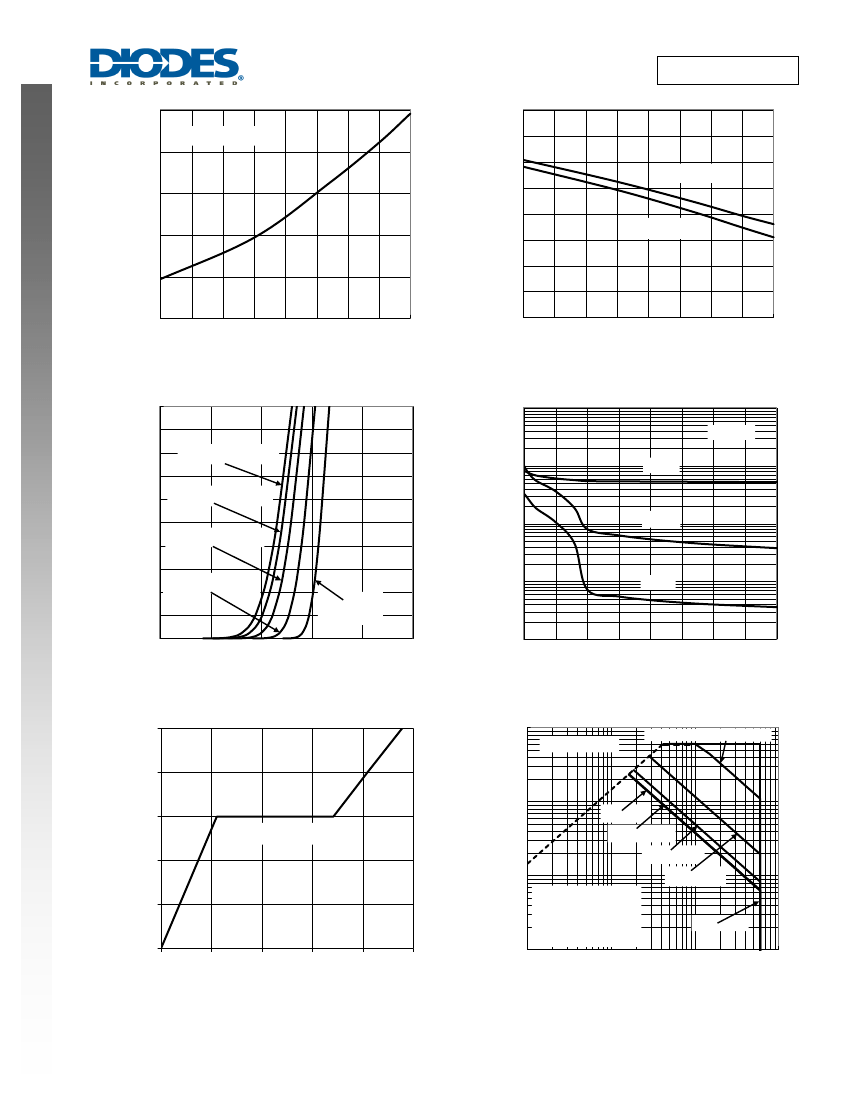

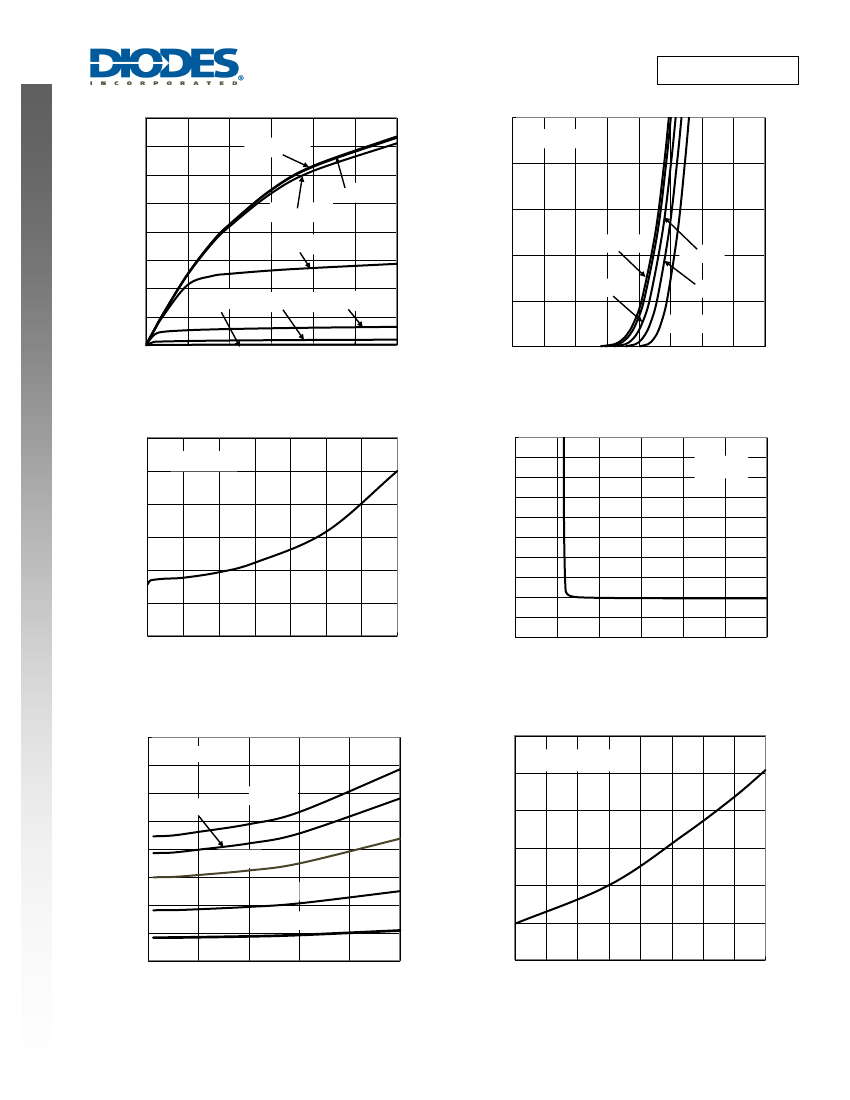

Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Mechanical Data

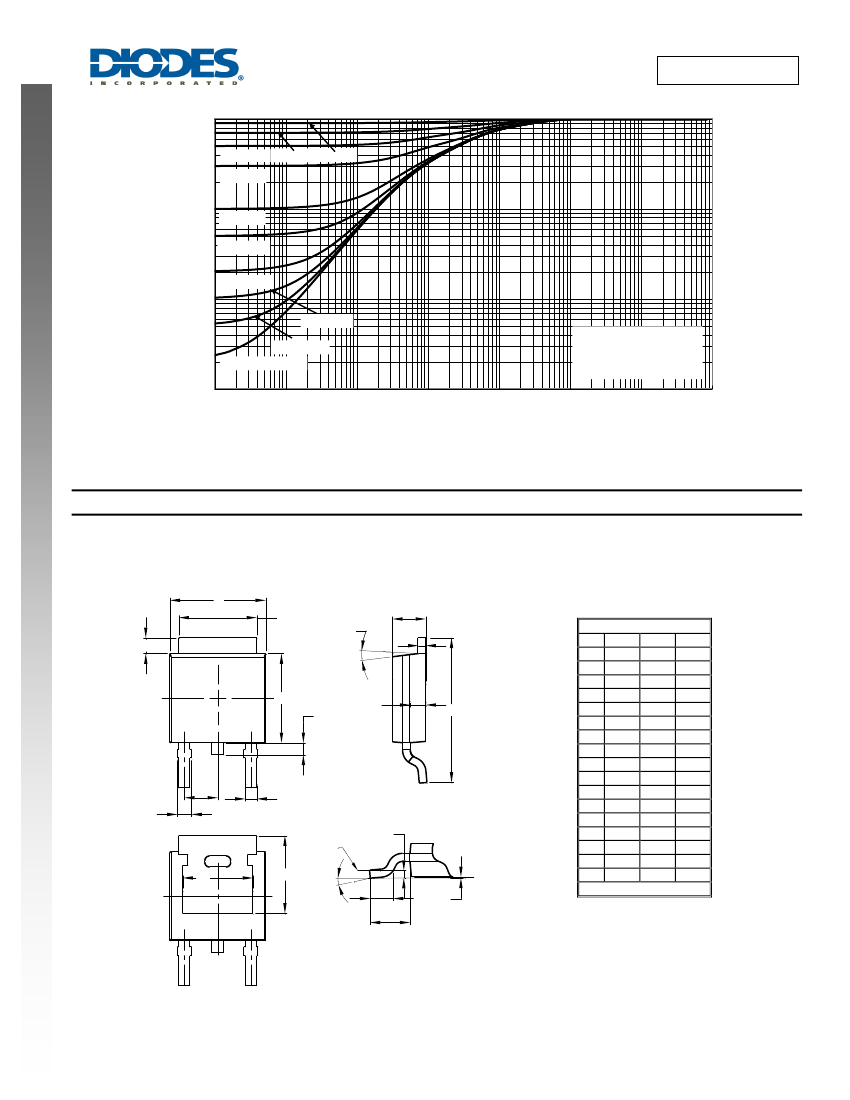

Case: TO252
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.33 grams (Approximate)
Applications
Motor Control
Backlighting
DC-DC Converters
Power Management Functions
D
TO252
D
G
Top View
S
Internal Schematic
Top View
Pin Out
Ordering Information
(Note 4)
Part Number
DMG4N60SK3-13
Notes:
Compliance
Standard
Case
TO252
Packaging
2,500/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4.
For packaging details, go to our website at http://www.diodes.com/products/packages.html.
