Product Datasheet
www.Applied-Motion.com

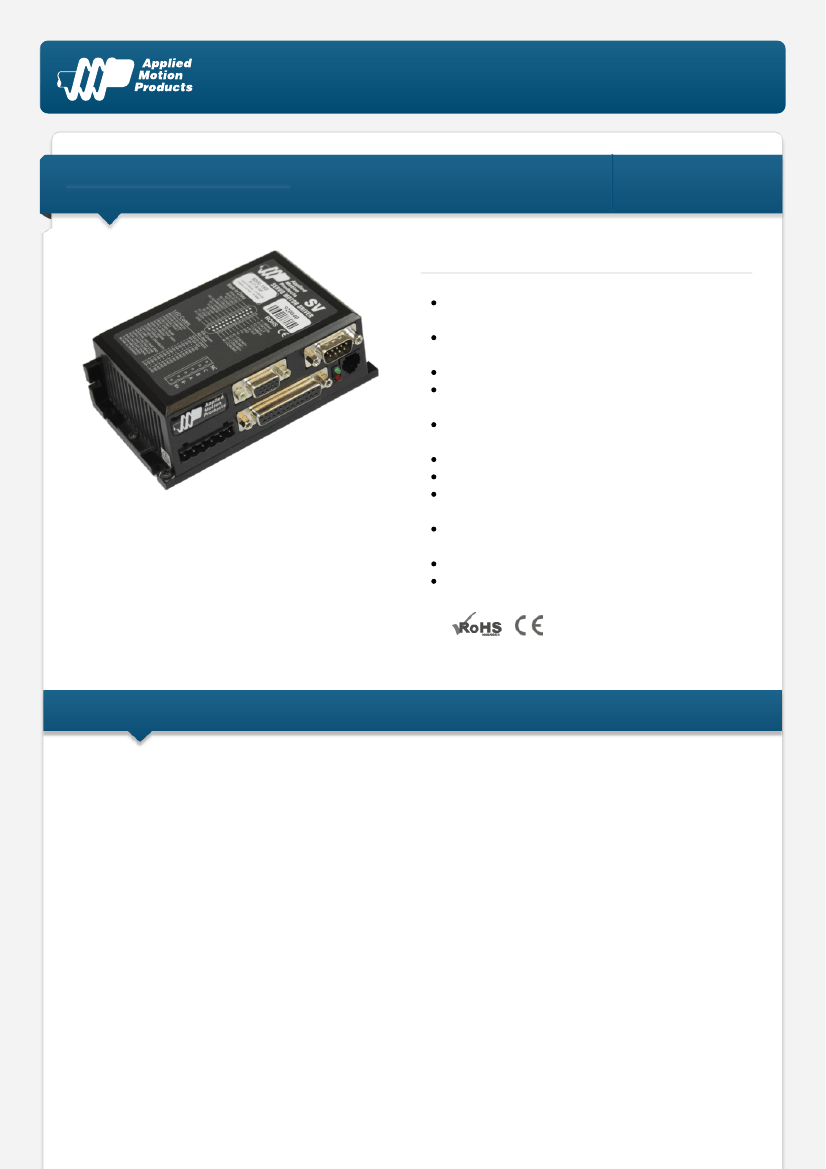

SV7-Si-AF
Si Programmable Servo Drive w/ Encoder outputs
1pc. - 606.00
50pc. - 454.50
Product Features
Programmable digital servo drive in a compact
package
DSP-based current control, sinusoidal commutation
and jerk filter
Operates from 24-80 VDC
Provides motor current up to 7.0 A rms continuous,
14.0 A rms peak
Si Programmer™ for icon-based motion control
programming
100 lines of Si program capability
Easiest-to-use motion programming tools
Buffered encoder outputs for connection to external
motion controller or other devices
8 digital inputs, 4 digital outputs, all optically
isolated
2 analog inputs, +/-10 volt range
RS-232 port for programming and communications
Description
The SV series servo drives are suitable for a wide range of motion applications. They are built around a powerful
digital signal processor coupled to an efficient MOSFET PWM amplifier. The SV drives include 12 optically isolated
I/O points plus analog inputs. A sophisticated, yet easy to tune position loop has independent digital settings for
proportional, integral and derivative gains plus velocity feedback and velocity and acceleration feedforward.
All SV drives are capable of running brushless, brushed, and linear servo motors. A timing wizard automatically
configures the encoder and commutation timing for virtually any brushless or brushed DC motor. Tuning is easy
with our Quick Tuner™ software, featuring a built-in digital oscilloscope
Downloads
Manuals:
Datasheet:
Family Datasheet:

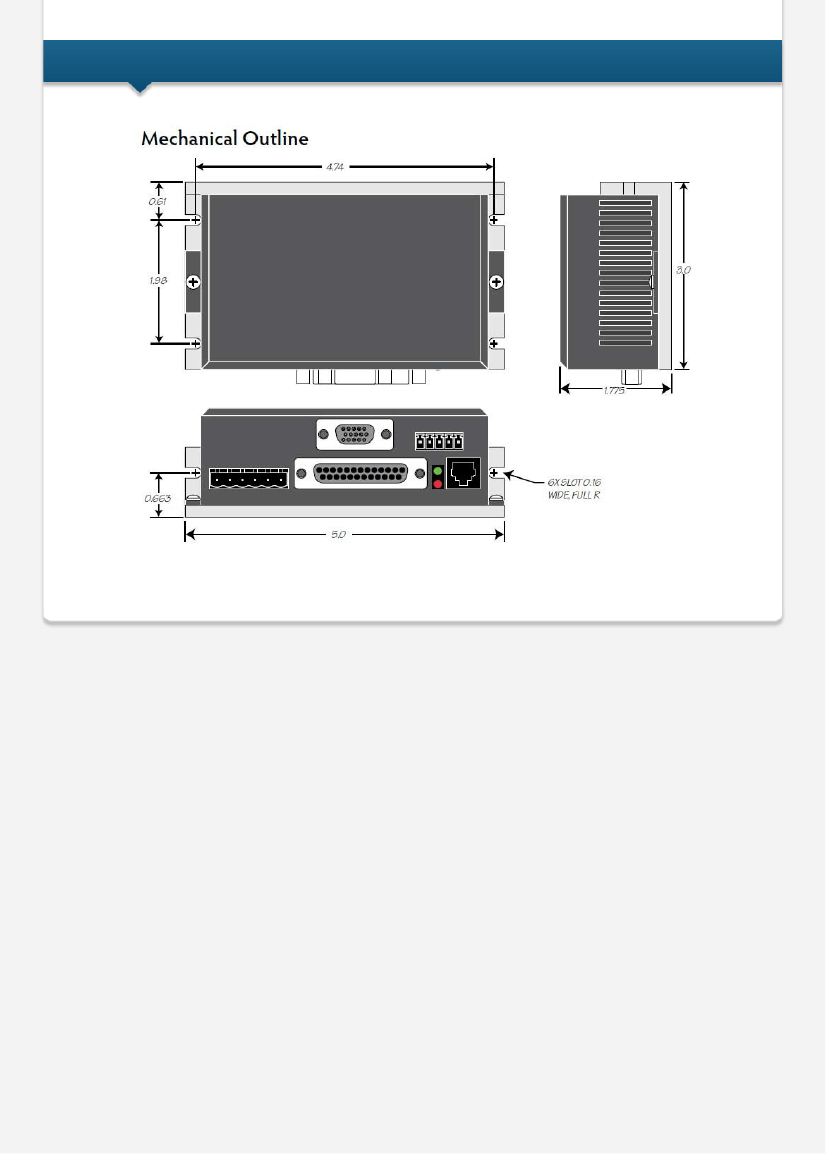

2D Drawing:
3D Drawing:
Speed-Torque Curves:
Agency Approvals:
Application Notes:
SV7_HardwareManual_920-0012.pdf
SV7-Si_QuickSetup_920-0063.pdf
http://s3.amazonaws.com/applied-motion-pdf/SV7-Si-AF.pdf
Servo-Products-Datasheet-925-0008.pdf
SV7-S-AF_simple3D.pdf
SV7_2D_Drawing.pdf
SV7-S-AE_solid.igs
SV7_speed-torque.pdf
SV7-S_Q_Si_ CE_DOC.pdf
APPN0017_Wiring-integral-holding-brakes.pdf
APPN0016_Simple-25-pin-mating-connections.pdf
APPN0015_Make-a-serial-programming-cable.pdf
Pricing
SV7-Si-AF
Part No. 5000-175
1pc.
25pc.
50pc.
100pc.
$606.00
$521.16
$454.50
Request a Quote
for 100+ piece pricing.
