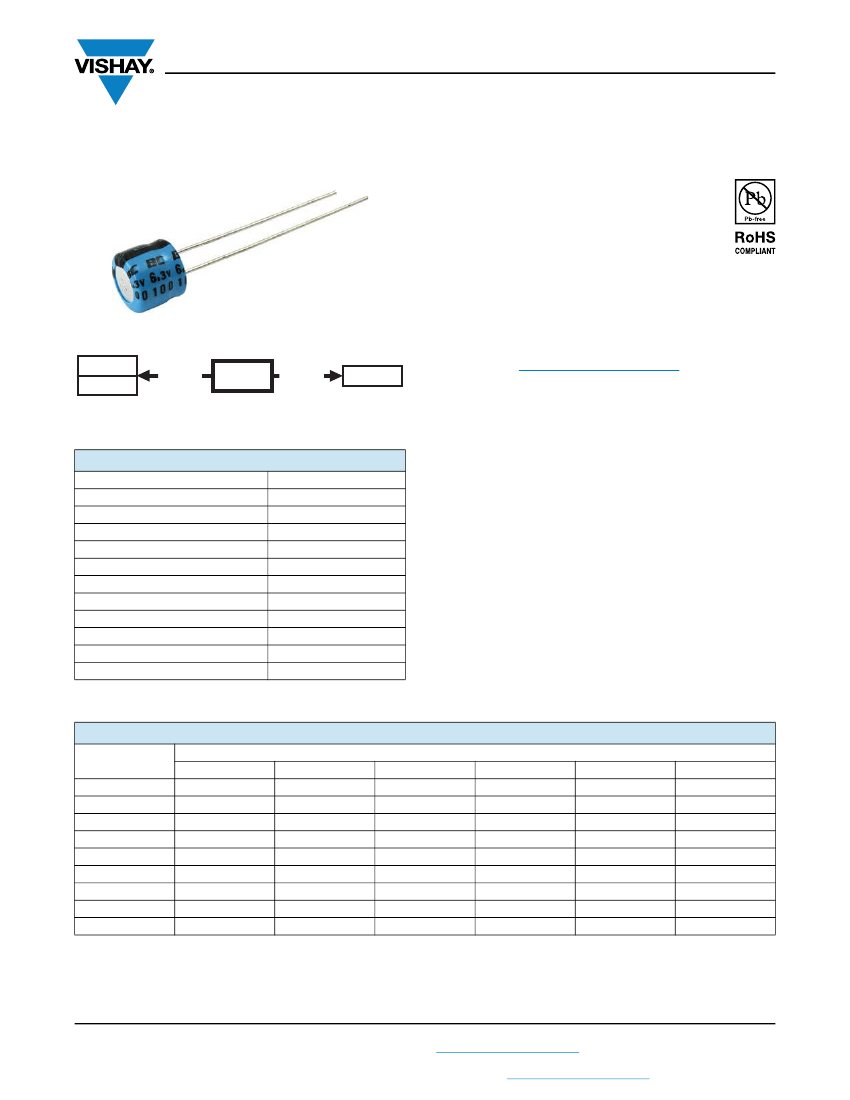

• Radial leads, cylindrical aluminum case, insulated with a
blue sleeve
• Charge and discharge proof
038 RSU
097 RLP 7
higher
CV-values
134 RLP 5
5 mm
longer life
SMD
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
153 CRV
APPLICATIONS
Fig. 1
• General purpose, industrial, automotive and audio-video
• Coupling, decoupling, smoothing, filtering and timing
• High mounting density
VALUE
4 x 5 to 6.3 x 5
1.0 μF to 100 μF
± 20 %
6.3 V to 50 V
-40 °C to +85 °C
1000 h
1500 h
40 000 h
500 h
IEC 60384-4 / EN 130300
40 / 085 / 56
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C, 1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
• Portable and mobile equipment (very small size and very
low mass), low profile equipment
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Rated voltage (in V)
• Negative terminal identification
• Code indicating factory of origin
• Name of manufacturer
• Date code, in accordance with IEC 60062
• Series number (134)
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
1.0
2.2
3.3
4.7
10
22
33
47
100
U
R
(V)
6.3
-
-
-
-
-
4x5
-
5x5
6.3 x 5
10
-
-
-
-
-
-
5x5
-
-
16
-
-
-
-
4x5
5x5
-
6.3 x 5
-
25
-
-
-
-
-
-
6.3 x 5
-
-
35
-
-
-
4x5
5x5
6.3 x 5
-
-
-
50
4x5
4x5
4x5
5x5
6.3 x 5
-
-
-
-
Revision: 14-Feb-17
Document Number: 28307
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
134 RLP 5
www.vishay.com
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
Vishay BCcomponents
L
+
-
F
± 0.5
15
min
5
min
Ød
Case Ø D = 4 mm to 6.3 mm; pitch F = 5 mm
Fig. 2 -
Form CA:
Long leads
Fig. 3 -
Form TFA:
Taped in box (ammopack)
Pitch F = 2.5 mm
Case Ø D = 4 mm to 6.3 mm
Fig. 4 -
Form TNA:
Taped in box (ammopack)
Table 1
DIMENSIONS
in millimeters
AND PACKAGING QUANTITIES
PACKAGING QUANTITIES
NOMINAL CASE SIZE
ØDxL
4x5
5x5
6.3 x 5
CASE
CODE
53
54
55
Ød
Ø D
max.
L
max.
F
FORM
CA
2000
2000
2000
FORM
TFA
2000
2000
2000
FORM
TNA
2000
2000
2 000
0.45
0.45
0.45
4.5
5.5
6.8
6.0
6.0
6.0
1.5 ± 0.5
2.0 ± 0.5
2.5 ± 0.5
Note
• For detailed tape dimensions please see
www.vishay.com/doc?28360
Revision: 14-Feb-17
Document Number: 28307
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
134 RLP 5
www.vishay.com
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 134 series
22 μF / 16 V; ± 20 %
Nominal case size: Ø 5 mm x 5 mm; form TFA
Ordering code: MAL213435229E3
Former 12NC: 2222 134 35229
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L2
tan
Z
DESCRIPTION
Rated capacitance at 120 Hz, tolerance ± 20 %
Rated RMS ripple current at 120 Hz, 85 °C
Max. leakage current after 2 min at U
R
Max. dissipation factor at 120 Hz
Max. impedance at 100 kHz
Note
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
120 Hz
(μF)
22
47
100
33
10
22
47
33
4.7
10
22
1.0
2.2
3.3
4.7
10
NOMINAL
CASE SIZE
ØDxL
(mm)
4x5
5x5
6.3 x 5
5x5
4x5
5x5
6.3 x 5
6.3 x 5
4x5
5x5
6.3 x 5
4x5
4x5
4x5
5x5
6.3 x 5
I
R
120 Hz
85 °C
(mA)
23
38
60
35
20
32
50
45
15
25
40
7.5
12
14
19
29
I
L2
2 min
(μA)
3
3
7
4
3
4
8
9
3
4
8
3
3
3
3
5
tan
120 Hz
Z
100 kHz
()
11
5.2
3.4
6.0
12
6.4
4.2
4.6
27
17
11
28
26
25
22
14
BULK
LONG LEADS
FORM
F
CA
(mm)
53229E3
1.5
53479E3
2.0
53101E3
2.5
54339E3
2.0
95105E3
1.5
55229E3
2.0
55479E3
2.5
56339E3
2.5
50478E3
1.5
50109E3
2.0
50229E3
2.5
91105E3
1.5
91225E3
1.5
51338E3
1.5
51478E3
2.0
51109E3
2.5
ORDERING CODE
MAL2134.......
TAPED
AMMOPACK
FORM
F
FORM
TFA
(mm)
TNA
33229E3
5.0
73229E3
33479E3
5.0
73479E3
33101E3
5.0
73101E3
34339E3
5.0
74339E3
95103E3
5.0
95107E3
35229E3
5.0
75229E3
35479E3
5.0
75479E3
36339E3
5.0
76339E3
30478E3
5.0
70478E3
30109E3
5.0
70109E3
30229E3
5.0
70229E3
91103E3
5.0
91107E3
91223E3
5.0
91227E3
31338E3
5.0
71338E3
31478E3
5.0
71478E3
31109E3
5.0
71109E3
6.3
10
16
25
35
50
0.24
0.24
0.24
0.20
0.16
0.16
0.16
0.14
0.12
0.12
0.12
0.10
0.10
0.10
0.10
0.10
F
(mm)
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Resistance
Equivalent series resistance (ESR)
CONDITIONS
VALUE
U
s
1.15 x U
R
U
rev
1 V
After 2 min at U
R
Calculated from tan
max.
and C
R
(see Table 2)
I
L2
0.01 C
R
x U
R
or 3 μA (whichever is greater)
ESR = tan
/2
f C
R
RIPPLE CURRENT AND USEFUL LIFE
Table 3
ENDURANCE TEST DURATION AND USEFUL LIFE
ENDURANCE AT 85 °C (h)
1000
Note
• Multiplier of useful life code: CCC205
Revision: 14-Feb-17
Document Number: 28307
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
USEFUL LIFE AT 85 °C (h)
1500
134 RLP 5
www.vishay.com
Vishay BCcomponents
3.3
I
A
I
R
3.2
3.1
3.0
CCC205
2.8
2.6
2.4
2.2
0
1.
Lifetime multiplier
2.0
1.8
0
4.
0
3.
5
1.
0
2.
1.6
1.4
1.2
1.0
0.8
0.5
0.0
20
30
50
10
15
6
.0
(1)
I
A
= Actual ripple current at 120 Hz
I
R
= Rated ripple current at 120 Hz, 85 °C
(1)
40
Useful life at 85 °C and I
R
applied: 1500 h

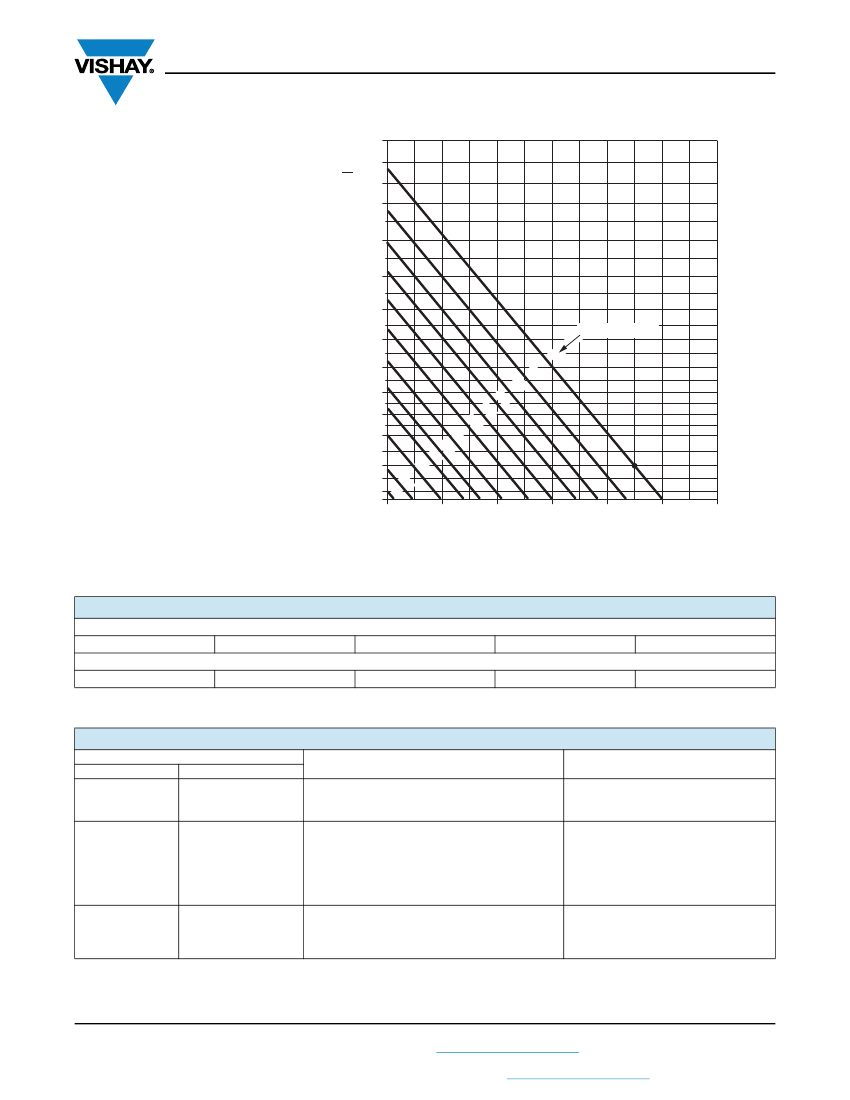

Fig. 5 - Multiplier of useful life as a function of ambient temperature and ripple current load
70
50
60
70
80
90
T
amb
(°C)
100
Table 4
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY (Hz)
50
0.60
120
1.00
400
I
R
MULTIPLIER
1.20
1.30
1.40
800
2000
Table 5
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
Endurance
REFERENCE
IEC 60384-4 /
EN 130300,
subclause 4.13
PROCEDURE
(quick reference)
T
amb
= 85 °C; U
R
applied;
1000 h
REQUIREMENTS
C/C:
± 20 %
tan
2 x spec. limit
I
L2
spec. limit
C/C:
± 50 %
tan
3 x spec. limit
Z
3 x spec. limit
I
L2
spec. limit
no short or open circuit
total failure percentage:
3 %
C/C,
tan
,
Z:
For requirements
see “Endurance test” above
I
L2
spec. limit
Useful life
CECC 30301,
subclause 1.8.1
T
amb
= 85 °C; U
R
and I
R
applied;
1500 h
Shelf life
(storage at high
temperature)
IEC 60384-4 /
EN 130300,
subclause 4.17
T
amb
= 85 °C; no voltage applied;
500 h
After test: U
R
to be applied for 30 min, 24 h to 48 h
before measurement
Statements about product lifetime are based on calculations and internal testing. They should only be interpreted as estimations. Also due to external factors, the
lifetime in the field application may deviate from the calculated lifetime. In general, nothing stated herein shall be construed as a guarantee of durability.
Revision: 14-Feb-17
Document Number: 28307
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
I received three parcels from the forum early in the morning. I want to show them off. Now you can get prizes by participating in forum activities. Come on guys!I'm quite busy, so I won't show the con...
I need to compile the altera simulation library when using modelsim simulation. I would like to ask what the source file of altera_ver is? I did not find it in C:\altera\11.0\quartus\eda\sim_lib....
[size=4]In the case of Xiaoyuan Search Questions and Zuoyebang being involved in pornography and suing each other, Baidu stated that Zuoyebang is a corporate entity with an independent brand and compl...
Why can't I open the .exe file after compiling it on the compiler and putting it on the WCE instrument? It shows as invalid WindowsCe application? Some show that the path cannot be found, components a...
I secretly look at you on QQ. I didn't talk to you, I just looked at you secretly. I secretly look at you on QQ, whether it's a night with twinkling stars or a morning with the rising sun. I secre...
A single-chip microcomputer is also called a single-chip microcontroller. It is not a chip that completes a certain logical function, but a computer system integrated into one chip. In general, a c...[Details]
introduction
With the continuous optimization of surface mount technology (SMT) and the rapid development of chip component manufacturing technology, the application of chip mounters in the el...[Details]
With the rapid development of science and technology, especially the widespread application of digital technology and various ultra-large-scale integrated circuits, electronic equipment, especially...[Details]
1. Introduction
Automobile pollution is one of the most important issues that people are most concerned about and need to solve urgently. As an important method for detecting automobile exhau...[Details]
introduction
MAX6636 is a multi-channel precision temperature monitor that can not only monitor local temperature, but also connect up to 6 diodes externally. Each channel has a programmable...[Details]
Abstract: With the development and construction of BeiDou II system, China will shift from the situation dominated by GPS to the situation dominated by BeiDou II global navigation system independen...[Details]
1 Development of LED Film and Television Lighting
1.1 The significance of developing film and television lighting
Lighting power consumption accounts for a large proportion of the total p...[Details]
Mobile phones, MP3s, tablet computers, laptops, digital cameras, handheld game consoles, navigation devices, etc., all these mobile devices are powered by mobile batteries, and the battery life is ...[Details]
introduction
Belt drive is a common transmission device used in industrial production. Its commonly used speed detection device is a photoelectric encoder installed at the rotating end of th...[Details]
1 Introduction
Fieldbus is a serial, digital, multi-point communication data bus between field equipment/instruments installed in the production process area and automatic control devices/syst...[Details]
Today, fleet management innovation has made great progress. Whether trucks, buses, taxis or other means of transportation, wireless satellite positioning systems are used to enable dispatchers to u...[Details]
"Multimeter" is the abbreviation of multimeter, which is an indispensable tool in our electronic production. The advantages of multimeter are that it has many uses, a wide range, an...[Details]
(1) Open circuit voltage of the battery
(2) Internal resistance of the battery
(3) Battery operating voltage
(4) Charging voltage
Charging voltage refers to the voltage applied ...[Details]
With the tense global energy situation and the improvement of human environmental protection awareness, the research and development of power batteries is in full swing around the world. At present...[Details]
At present, products in the field of monitoring generally focus on the field level, that is, the client/server (C/S) model is adopted, the purpose of which is to ensure the stability and reliability o...[Details]
Talking
京公网安备 11010802033920号
EEWORLD
