40.0MHZCFPT-9006-3A0.3PPM0TO70 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 40.0MHZCFPT-9006-3A0.3PPM0TO70

40.0MHZCFPT-9006-3A0.3PPM0TO70: DescriptionIC,CRYSTAL OSCILLATOR,1-CHANNEL,1.25MHZ-40MHZ,LLCC,10PIN,CERAMIC; CategoryPassive components oscillator; File Size202KB，3 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

40.0MHZCFPT-9006-3A0.3PPM0TO70 Overview

IC,CRYSTAL OSCILLATOR,1-CHANNEL,1.25MHZ-40MHZ,LLCC,10PIN,CERAMIC

40.0MHZCFPT-9006-3A0.3PPM0TO70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	114332558
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	10
Maximum operating frequency	40 MHz
Minimum operating frequency	1.25 MHz
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
Encapsulate equivalent code	LCC10/12,.2X.28
power supply	3.3 V
Certification status	Not Qualified
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

IQD Frequency Products

Incorporating IQD FOQ GmbH

ISSUE 13; April 2013 - RoHS 2011/65/EU

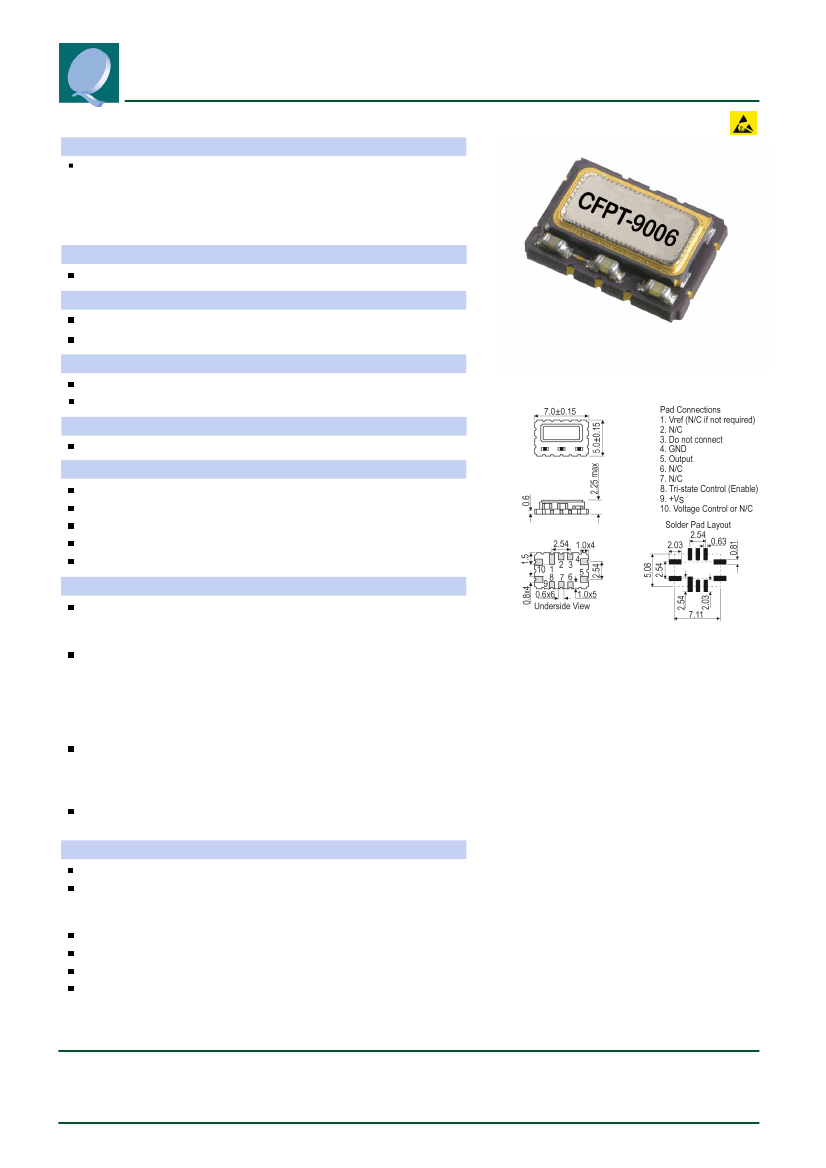

Description

TCXO Specification

Model:

CFPT-9006

Sub 1ppm performance TCXO manufactured for us by Rakon utilising

their Pluto™ ASIC technology, a single chip oscillator and analogue

compensation circuit operating over an extended temperature range.

Its ability to function down to a supply voltage of 2.4V and low power

consumption make it particularly suitable for mobile applications.

Frequency Range

Frequency

Supply Voltage

1.250 to 40.000MHz

Voltage

Frequency Tolerance

Output Compatibility & Load

3.3V ±10%

±1.0ppm

Output Compatibility

Drive Capability

Frequency Stabilities

HCMOS

15pF

Outline (mm)

Frequency Stability

Operating Temperature Ranges

±0.30ppm

0 to 50°C

0 to 70°C

-20 to 70°C

-30 to 75°C

-40 to 85°C

Electrical Parameters

Supply Current:

1+Frequency(MHz)*Supply(V)*{Load(pF)+15}*10–3 mA

e.g. 20MHz, 3.3V, 15pF

≈

2mA

Optional reference voltage output on pad 1, suitable for

potentiometer supply or DAC reference:

1. No output (standard option)

2. 2.2V for min Vs>2.4V

3. 2.7V for min Vs>3.0V

Maximum load current (mA) = Vref/10

For manual frequency adjustment connect an external 50kΩ

potentiometer between pad 1 (Reference Voltage) and pad 4 (GND)

with wiper connected to pad 10 (Voltage Control). Please specify

reference voltage as part of the ordering code.

Note: Supply Voltages in the range 2.4V to 6.0V are available, please

contact an IQD Sales Office

Frequency Adjustment

Pulling

±10ppm min (See note 1)

Standard Voltage Control Ranges:

Without Reference Voltage Vs=3.3V 1.65V±1.0V

With Reference Voltage Vs=0V to Vref

Linearity: 1% max

Input Impedance: 100kΩ min

Modulation Bandwidth: 2kHz min

A. Ageing Adjustment:

≥±5ppm,

frequency

≤20MHz

≥±7ppm,

frequency >20MHz

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: +49 (0)7264 9145-0

Printed on 17 Apr 13 10:07

France: +33 (0)5 34 50 91 18

USA: +1 (0)408.273.4530

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 3
