LFXTAL016651REEL

Description
Parallel - Fundamental Quartz Crystal, 10MHz Nom
CategoryPassive components    Crystal/resonator
File Size615KB,1 Pages
ManufacturerIQD Frequency Products
Environmental Compliance
Download Datasheet Parametric View All

LFXTAL016651REEL Overview

Parallel - Fundamental Quartz Crystal, 10MHz Nom

LFXTAL016651REEL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8339883377
package instructionSMD, 2 PIN
Reach Compliance Codecompliant
Other featuresTR
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.005%
frequency tolerance50 ppm
load capacitance20 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency10 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL7.5XB5.2XH1.4 (mm)/L0.295XB0.205XH0.055 (inch)
Series resistance60 Ω
surface mountYES

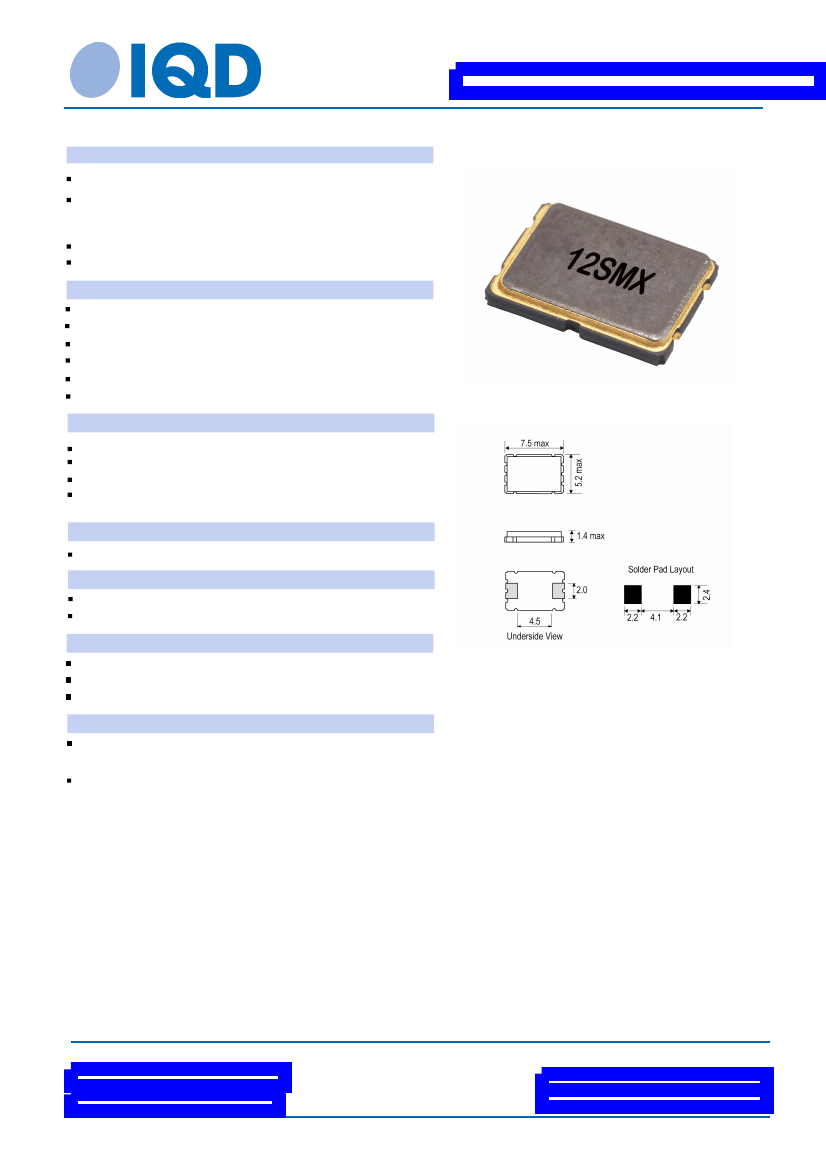

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL016651Reel
Customer Part:
Description
Standard 7 x 5mm SMD crystal
2 pad (ceramic lid)
A ceramic package with a resin sealed ceramic lid,
hermetically sealed. 2 pad device.
Model
12SMX-A
Model Issue number
14
Frequency Parameters
Frequency
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
10.0MHz
±50.00ppm
±50.00ppm
-10.00 to 60.00°C
Fundamental
±5ppm per year max
Outline (mm)
Load Capacitance
Shunt Capacitance
Drive Level
ESR
Environmental Parameters
20.00pF
7pF max
100µW max
60.00Ω max
Storage Temperature Range: -40 to 125°C
Manufacturing Details
RoHS Terminations
RoHS Reflow Temp
Compliance
NiAu
260degC 10s
RoHS Status (2015/863/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
USA: +1.760.318.2824
Printed on 6 Jun 22 16:18 using Part Data Sheet V1.0019
