RF AMPLIFIER

MODEL

BXMP1046

Features

Low Noise Figure: 2.0 dB Typical

High IP3: +38 dBm Typical

High Output Power: +24 dBm Typical

Environmental Screening Available

Available as:

BXMP1046, SMA Connectorized Housing

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ....... +59 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +54 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +38 dBm (Typ.)

Specifications

CHARACTERISTICS

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta=25º C

500 - 2700 MHz

28.0

+25

-47

1.6:1

2.0

+12

300

MIN/MAX

Ta=-40º C to +85º C

500 - 2700 MHz

25.75 / 28

+24.5 Min.

-42 Max.

1.7:1 Max.

2.5 Max.

+12

330 Max.

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +150 ºC

DC Voltage .......................................................... +14 Volts

Continuous RF Input Power .................................. +27 dBm

Short Term RF Input Power .............. 1 Watt (1 Minute Max.)

Maximum Peak Power ..................... 2 Watts (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

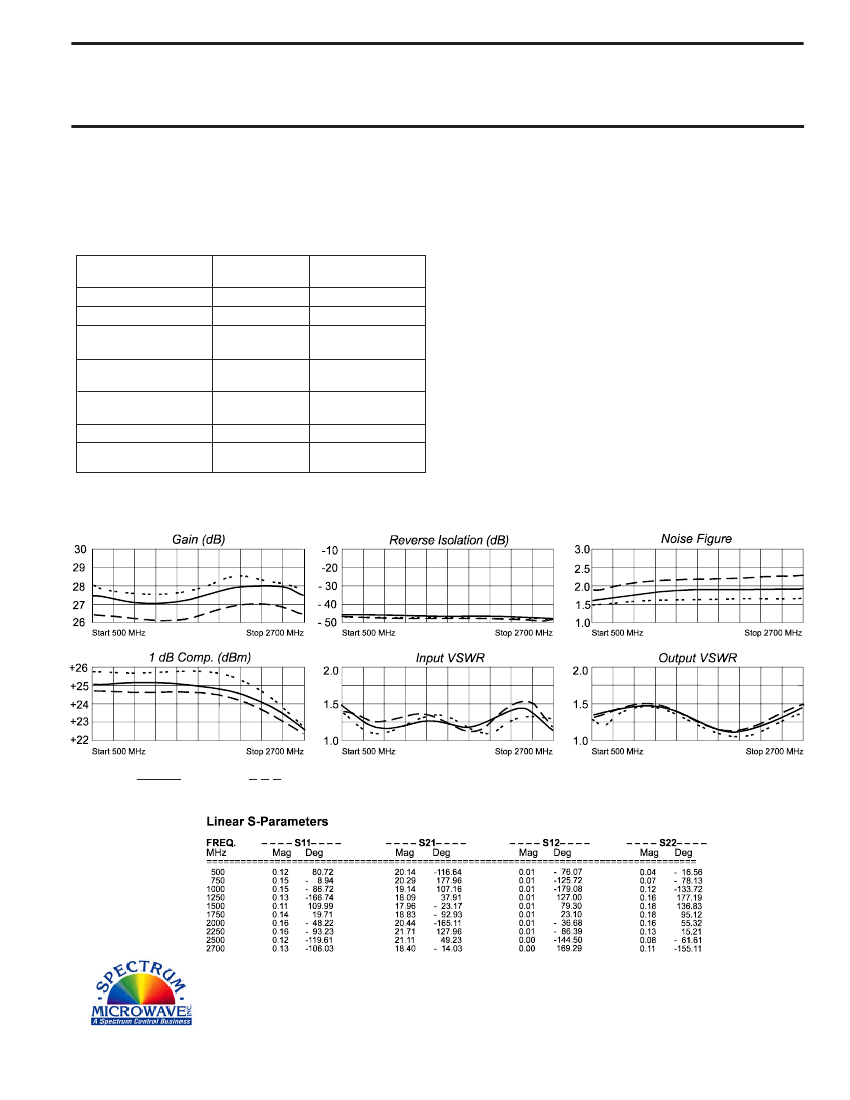

Typical Performance Data

Legend

+25 ºC

+85ºC - - - - - -40 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

11/24/10

www.SpectrumMicrowave.com
