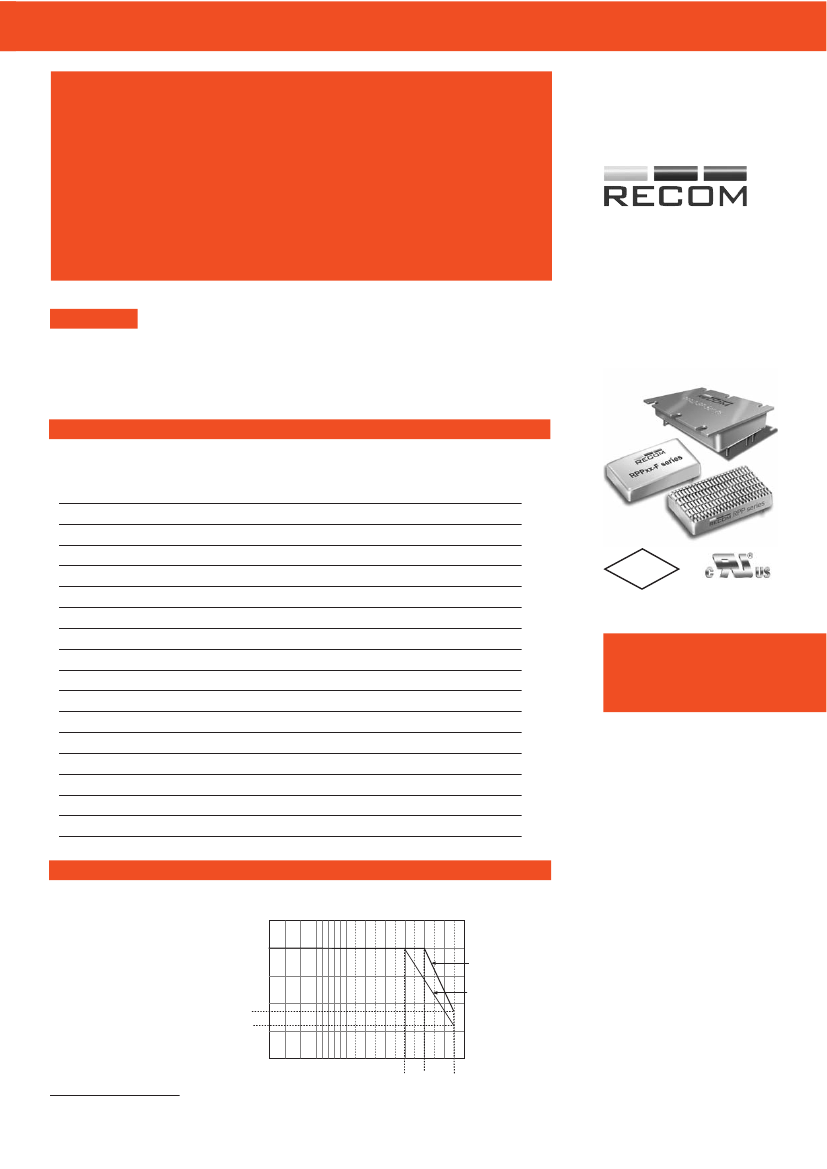

The RPP30-W series 4:1 input range DC/DC converters are ideal for high end industrial
applications and COTS Military applications where a very wide operating temperature
range of -45°C to +120°C is required. The converters are also optionally available with a
-55°C start-up temperature. Although the case size is compact, the converter contains a
built-in filter EN55022 Class B / FCC Level B without the need for any external components.
The RPP30-W is available in three case styles: the high operating temperature ribbed case,
the low profile flat case and the baseplate case for high vibration or bulkhead-mounting
applications. They are UL-60950-1 certified.
30 Watt
4:1 Single
&
Dual Output
Selection Guide
24V and 48V 4:1 Input Types
Part Number
Input
Range
VDC
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
9-36
9-36
9-36
18-75
18-75
18-75
Output
Voltage
VDC
3.3
5
12
15
24
3.3
5
12
15
24
±12
±15
±24
±12
±15
±24
Output
Current
mA
8400
6000
2500
2000
1250
9000
6000
2500
2000
1250
±1250
±1000
±625
±1250
±1000
±625
Input
(1)
Current
mA
57/1326
62/1397
27/1420
31/1436
31/1436
46/704
38/710
15/727
19/718
19/718
32/1453
30/1436
30/1436
18/727
20/718
20/718
Efficiency
(2)
(Typ.)
87.1%
89.5%
88.0%
89.7%
89.7%
87.6%
89.7%
87.8%
89.3%
89.3%
89.2%
87.2%
87.2%
87.5%
89.1%
89.1%
Max
(3)
Ambient
Temp
85°C
89°C
85°C
90°C
90°C
84°C
90°C
85°C
89°C
89°C
89°C
85°C
85°C
85°C
89°C
89°C
none = Standard Ribbed Case
-B = Baseplate Case
-F = Flat Case
-L = Low Temp (-55°C) Ribbed Case
-M = Low Temp (-55°C) Baseplate Case
-T = Low Temp (-55°C) Flat Case
add “1” before suffix for neg. CTRL logic
e.g. -1, -1B, -1F, etc.
SUFFIX INFORMATION
2002/95/EC
6/6
RPP30-243.3SW
RPP30-2405SW
RPP30-2412SW
RPP30-2415SW
RPP30-2424SW
RPP30-483.3SW
RPP30-4805SW
RPP30-4812SW
RPP30-4815SW
RPP30-4824SW
RPP30-2412DW
RPP30-2415DW
RPP30-2424DW
RPP30-4812DW
RPP30-4815DW
RPP30-4824DW
RoHS
UL-60950-1 Certified
E224736
RPP30-W
** add suffixes for case, temperature or CTRL logic options.
Derating Graph (Ambient Temperature)
RPP30-4805SW
Output Power (%)
125
100
75
40
29 25
0
-45 -25 -10 0
50 60 70
100
105
50
Natural Convection
Vertical
Horizontal
* ICE Technology
ICE (Innovation in Converter Excellence)
uses state-of-the-art techniques to
minimise internal power dissipation and
to increase the internal temperature
limits to extend the ambient operating
temperature range to the maximum.
Refer to Application Notes
PP-19
Derating graphs are valid only for
the shown part number.
Please contact Technical Support
for more information:
info@recom-development.att
80 90
Ambient Temperature Range (°C)
www.recom-international.com
REV: 2/2011
POWERLINE+
DC/DC-Converter
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Input Voltage Range
Under Voltage Lockout
RPP30-S_DW
Series
24V nominal input
48V nominal input
24V input DC-DC ON (min.)
DC-DC OFF (max.)
48V input DC-DC ON (min.)
DC-DC OFF (max.)
9-36VDC
18-75VDC
8.5VDC
8VDC
17.5VDC
17VDC
Common Mode EMC Filter
5V/ms max
24V Input
48V Input
nominal Vin and full load
nominal Vin and constant resistor load
Logic High
lofic Low
Nominal input
50VDC
100VDC
30mAp-p
2ms typ., 5ms max.
Open or 3.0V < Vr < 5.5V
Short or 0V < Vr < 1.2V
2mA typ.
30W max.
50% Load and nominal Vin
Single Output only
±1.5%
±5%
0%
low line, high line at full load
10% to 100% full load
Dual Outputs only
3.3V, 5V
All others
±0.3%
±0.5%
3% typ./ 5% max.
80mVp-p typ.
27mV-60mVp-p max
±0.04%/°C max.
25% load step change
% of full load at nominal Vin
800µs
120% typ.
hiccup, automatic recovery
Converter shutdown if Vout > Vout nominal +20%
Rated at 2250VDC/1 minute, Flash tested at 3000VDC/1 second
10MΩ min.
3000pF max.
300kHz ± 30kHz
Ambient, Free Convection
-55°C Version
-45°C to +90°C max (without derating)
-45°C to +105°C max (with derating)
-55°C to +90°C (without derating)
+120°C
-55°C to +125°C
Ribbed Case: Vertical
Ribbed Case: Horizontal
internal thermistor
7.3°C/Watt
10°C/Watt
5% to 95% RH
Aluminium
Silicone (UL94-V0)
Ribbed Case
Flat Case
Basrplate Case
REV: 2/2011
39g
34g
43g
www.recom-electronic.com
Input Filter
Input Voltage Variation dv/dt (Complies with ETS300 132 part 4.4)
Input Surge Voltage (100 ms max.)
Input Reflected Ripple
Start Up Time
Remote ON/OFF
(4)
Remote OFF input current
Output Power
Output Voltage Accuracy
Voltage Adjustability
Minimum Load
Line Regulation
Load Regulation
Cross Regulation (10% <> 100% Load)
Ripple and Noise (20MHz bandwith limited)
(measured with 1µF capacitor across outputs)
Temperature Coefficient
Transient Response
Over Load Protection
Short Circuit Protection
Output Over Voltage Protection (refer to block diagram in Application Notes)
Isolation Voltage
Isolation Resistance
Isolation Capacitance (refer to block diagram in Application Notes)
Operating Frequency
Operating Temperature Range
RPP30-W
Maximum Case Temperature
Storage Temperature Range
Over Temperature Protection (refer to block diagram in Application Notes)
Thermal Impedance
(Natural convection)
Relative Humidity
Case Material
Weight
(7)
Potting Material
PP-20
POWERLINE+
DC/DC-Converter
Specifications
(typical at nominal input and 25°C unless otherwise noted)
Packing Quantity
Safety Standards
Thermal Cycling
Vibration
Conducted Emissions
Radiated Emissions
ESD
Radiated Immunity
Fast Transient
(5)
Surge
(5)
Conducted Immunity
MTBF calculated according to BELLCORE TR-NWT-000332
(6)
RPP30-S_DW
Series
Ribbed and Flat Case
Baseplate Case
4 pcs per Tube
Single Packed
certified UL-60950-1, 1st Edition
complies with MIL-STD-810F
10-55Hz, 12G, 30 Min. along X, Y and Z
EN55022
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Class B
Class B
Perf. Criteria B
Perf. Criteria A
Perf. Criteria B
Perf. Criteria B
Perf. Criteria A
2195 x 10
3
hours
Notes :
1. Typical values at nominal input voltage and no load/full load.
2. Typical values at nominal input voltage and full load.
3. Typical values at nominal input voltage and full load in vertical orientation and with Eurocard-sized PCB ground planes to assist in heat dissipation.
For horizontal orientation, reduce the maximum temperatures by 10°C.
4. The ON/OFF pin voltage is referenced to negative input. The pin is pulled high internally.
ON/OFF control is standard with positive logic: e.g. RPP30-2405SW, RPP30-4805DW-B.
Add “1” before the suffix for negative logic: e.g. RPP30-2405SW-1, RPP30-4805DW-1B.
Positive logic: 0= OFF, 1 = ON. The converter will be ON if the CTRL is left open.
Negative logic: 1 = OFF, 0 = ON. The converter will be OFF if the CTRL is left open.
5. Requires an external 100µF low ESR capacitor to meet EN61000-4-4 and EN61000-4-5
6. Case l: 50% Stress, Temperature at 50°C (Ground Benign).
7. To ensure a good all-round electrical contact, the baseplate is pressed firmly into place within the aluminium housing.The hydraulic press can leave
tooling marks and deformations to both the housing and baseplate. The case is anodised aluminium, so there will be natural variations in the case
colour and the aluminium is not scratch resistant. Any resultant marks, scratches and colour varations are cosmetic only and do not affect the
operation or performance of the converters.
RPP30-W
External Output Trimming
-Vout
Trim Up
Trim
Trim Down
+Vout
10k
W
Trimpot
10k
W
Trimpot
-Vout
Trim
10k
W
Trimpot
+Vout
www.recom-international.com
REV: 2/2011
PP-21
POWERLINE+
DC/DC-Converter
Typical Characteristics
RPP30-S_DW
Series
Efficiency VS Input Voltage
92
91
90
89
88
87
86
85
84
83
82
RPP30-4805SW
Efficiency (%)
36
40
48
52 56
60
Input Voltage (V)
64
68
72

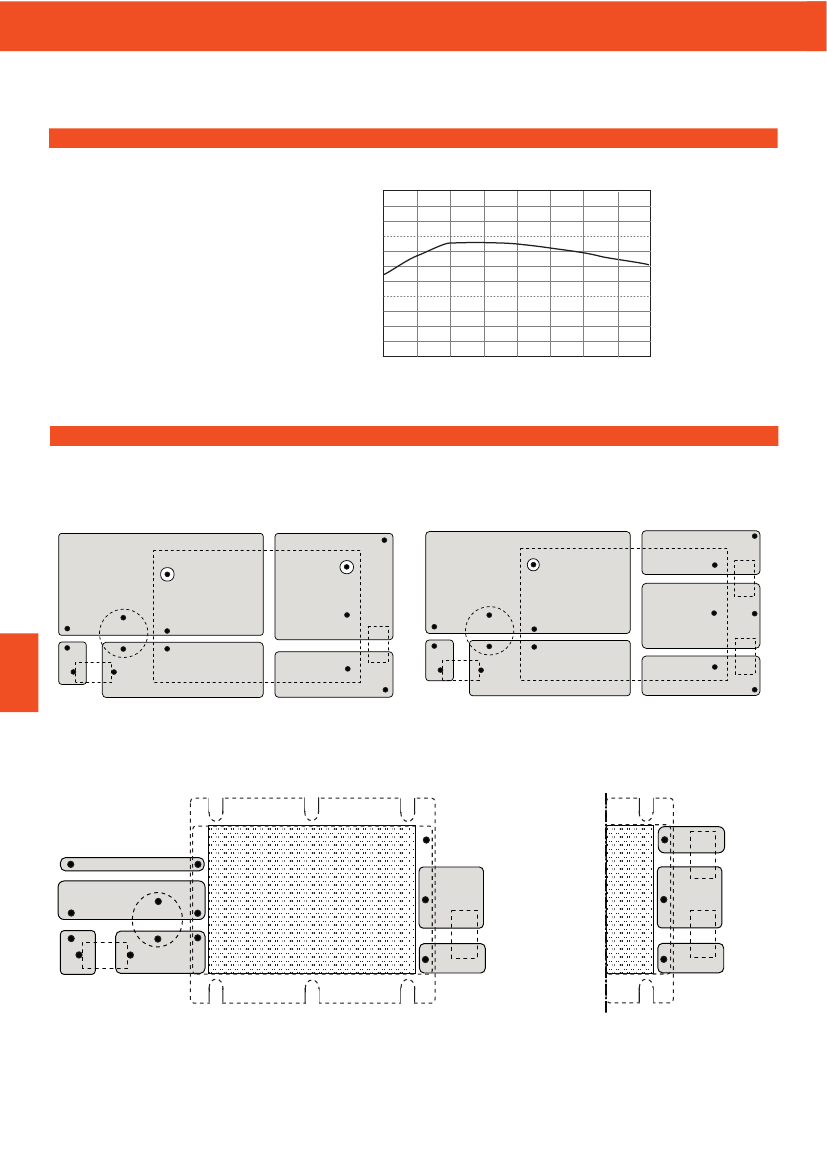

Recommended PCB Layout
Single Output
Dual Output
C2
C1
RPP30-W
C2
C1
C3
Fuse
Fuse
Top View
Top View
Baseplate Case- suggested PCB layout
Single Output
Dual Output
C2
C1
No tracks
in this area
(42 x 30mm)
C3
C3
Fuse
Top View
Input Fuse is recommended, but optional. Recommended fuse rating = double maximum input current, time delay type.
Input Capacitor, C1, is required to meet EN61000 Surge and Fast Transient, otherwise it is not required for normal operation.
Output Capacitors C2/C3 are recommended, but not required for normal operation. Typical capacitor values are 1µF MLCC
To ensure optimum thermal performance, use large areas of copper on the PCB to assist with heat dissipation and mount the converter vertically.
