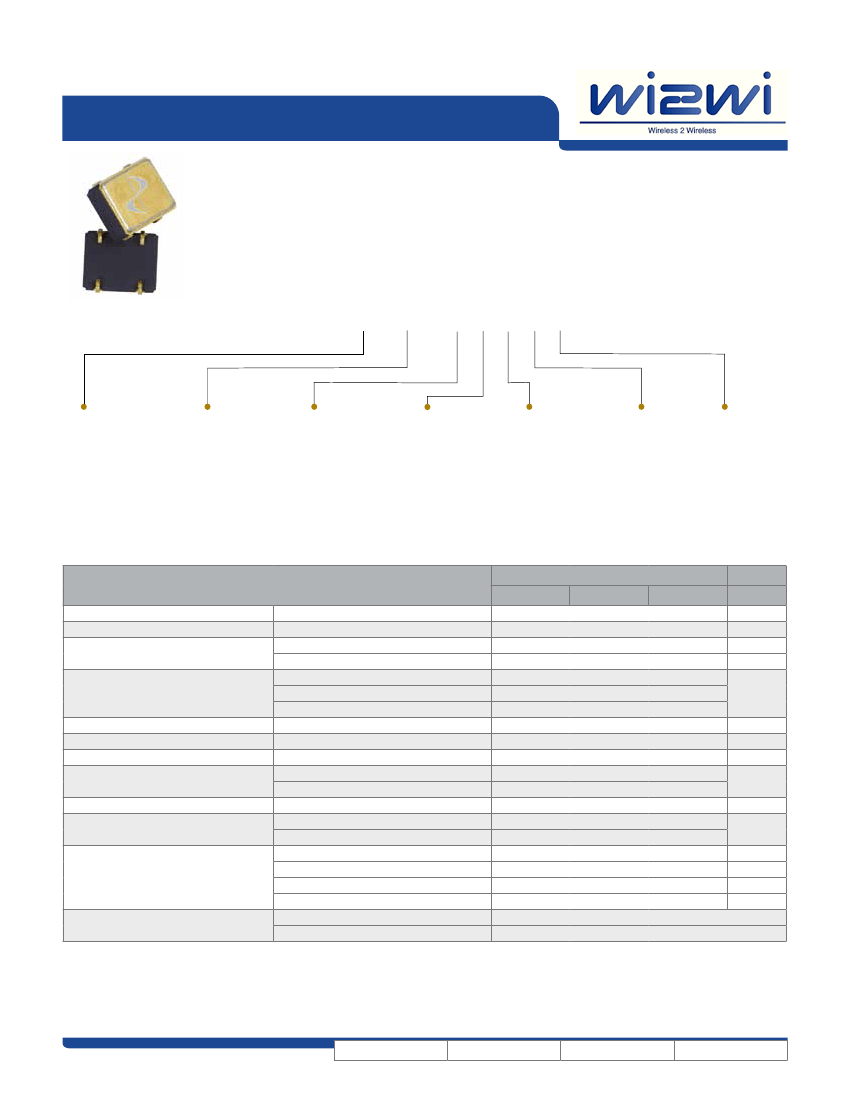

DL4-Series Specifications
8.89L x 7.37W x 4.32H (mm)
Wi2Wi’s
DL4-Series
provides precision timing in a hermetically sealed package. This rugged
ceramic package is designed for extreme environmental/temperature conditions like down-hole
drilling. Contact factory for availability of other frequencies. Wi2Wi provides quick-turn sampling
for your proto-typing needs, mass production capability, and competitive pricing.
ex)
DL4—T—25000X—O—B—B—3—G—X
*
* - for standard or assigned for customization.
ENABLE
T
= Tri-State
N
= No Connect
FREQUENCY
00500X-99999X
=
0.5000 MHz –
40.000 MHz
OUTPUT
O
= LVCMOS
FREQUENCY
STABILITY
A
= ±250 ppm
B
= ±300 ppm
C
= ±500 ppm
OPERATING
TEMPERATURE
A
= -20 to +150°C
B
= -20 to +180°C
C
= -20 to +200°C
D
= -55 to +150°C
E
= -55 to +180°C
F
= -55 to +200°C
SUPPLY
VOLTAGE
2
= 2.5
F
= 3.0
3
= 3.3
PACKAGE
OPTION
J
= J-Lead
G
= Gull Wing
X
= Thru Hole
Parameter
Frequency Range
Frequency Stability
*1
Temperature Range
*1
Supply Current (Maximum)
Output
Load
Duty Cycle (at 50% Vcc)
Rise/Fall Times (Maximum)
(10% to 90%)
Start up Time (Maximum)
Output Voltage Levels
*1
Supply Voltage
*1
(±10%)
3.3
3.0
2.5
*2
Units
V
MHz
ppm
°C
°C
mA
All Causes (Maximum )
Operating
Storage
0.500000 to 9.999999 MHz
10.000000 to 23.999999 MHz
24.000000 to 40.000000 MHz
0.500000 to 9.999999
10.000000 to 40.000000
High (Minimum)
Low (Maximum)
High (See below) or Open
Low (See below)
*3
High Value (Minimum)
Low Value (Maximum)
*3
Shock
Vibration
Pin 1 (Tri-State) (Option)
Environmental Specifications
0.500000 to 40.0000
Per Option
Per Option
-55 to +200
T.B.D.
15
20
LVCMOS
15pF
40% to 60% (45% to 55% option)
500
8
10
90
10
Enable
Disable
80
20
36,000g / 0.3mS / 1/2 Sine
10 to 2000Hz / 40g
nS
mS
% Vcc
% Vcc
% Vcc
*1 - Not all Frequency/Temperature/Voltage combinations are available.
*2 - Inclusive of Tolerance @25°C, Operating Temperature, Supply Voltage, Load and 1st Year Aging.
*3 - Internal crystal oscillation halted.
REV:
NA
SIZE:
A
CAGE:
0S4G1
1
of
3
DL4-Series
8.89 x 7.37 x 4.32
(mm)

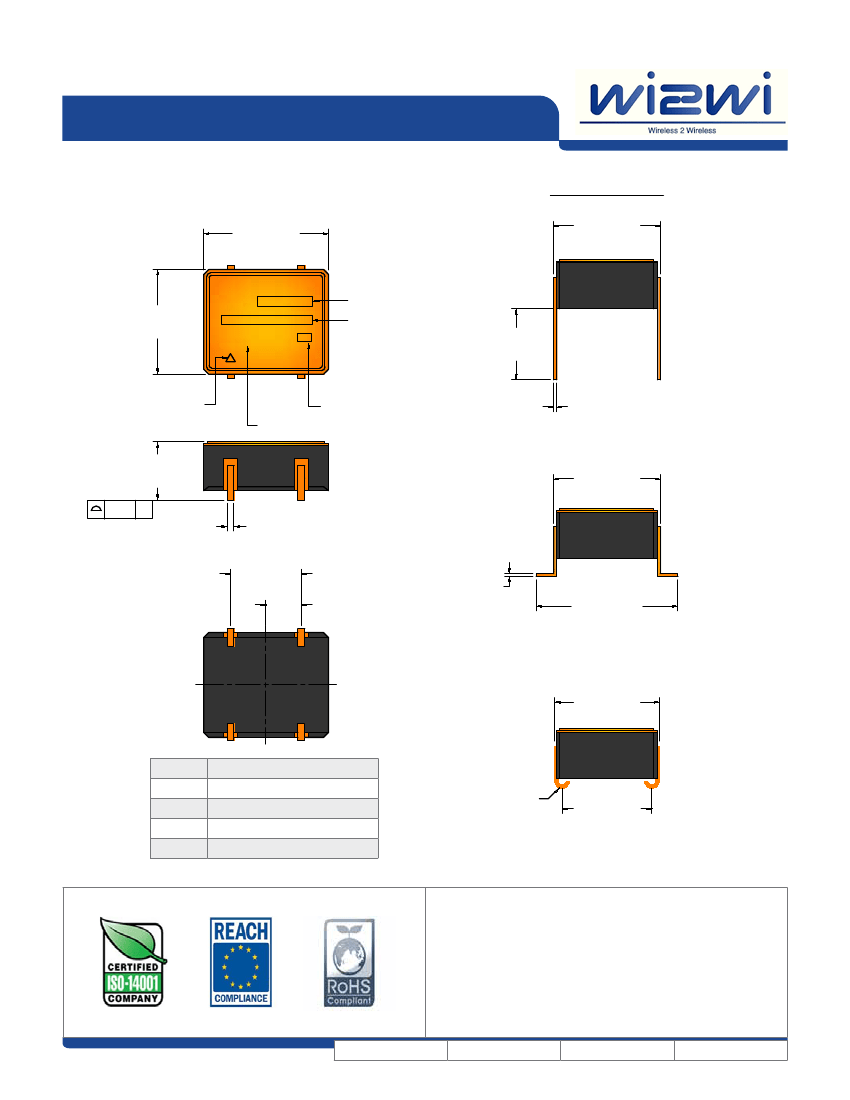

PA C K A G E D I M E N S I O N S
.350 ±.005
[8.89 ±.13]
4
3
Tolerance: ±.008 [.20mm] (Unless otherwise specified)
Package Options
.315 Max
[8.00 Max]
Thru Hole
(X Option)
.200
[5.08]
.010 Typ
[.25 Typ]
Top View:
.290 ±.005
[7.37 ±.13]
PDI
YYWW
2
FKA number
Frequency
ESD Symbol
for Pin 1
.170 Max
[4.32 Max]
.004
C
Traceability Code
Date Code
.315 Max
[8.00 Max]
.018 ±.003
[.46 ±.08]
.200 ±.008
[5.08 ±.20]
.010 Typ
[.25 Typ]
Gull Wing
(G Option)
Seating Plane
.100
[2.54]
.400 Typ
[10.16 Typ]
Bottom View:
.315 Max
[8.00 Max]
J Lead
(J Option)
.030 R
[.76 R]
PIN
1
2
3
4
CONNECTION
Tri-State or No Connect
Ground/Case
Output
Supply Voltage
.240 ±.006
[6.10 ±.15]
Leads:
Electro Au, 11.8 to 40.0 µinches (.30 to 1.0 µm) over Electro Ni, 50 to 350 µinches (1.27 to 8.89 µm)
NOTES:
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 8/24/15.
REV:
NA
SIZE:
A
CAGE:
0S4G1
2
of
3
DL4-Series
8.89 x 7.37 x 4.32
(mm)

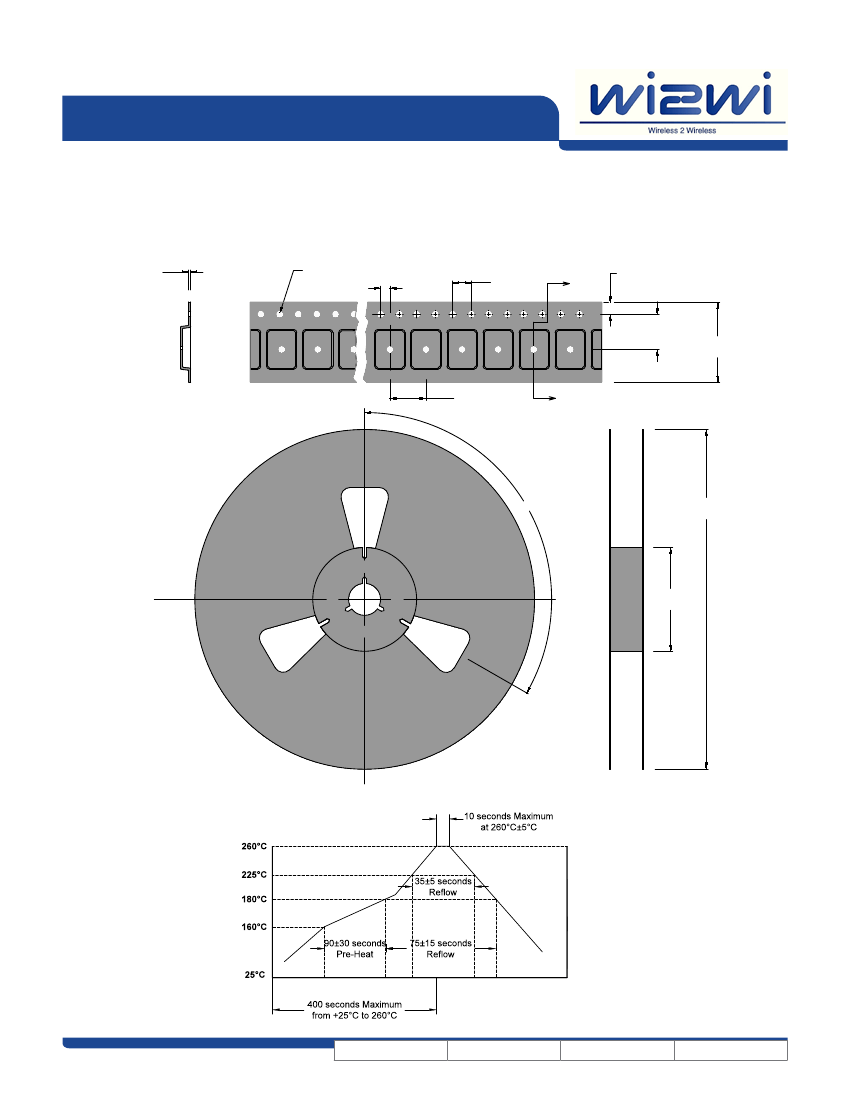

1.
Material: Black Conductive Polystyrene or equivalent.
Tape and Reel for
J-Lead
and
Gull Wing
only.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008.
3.
Camber in compliance with EIA 481.
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.079
[2.00]
.157 Typ.
[4.00 Typ.]
A
.069
[1.75]
.453
[11.50]
.945 ±.012
[24.00 ±.30]
Section A-A
.630 Typ.
[16.00 Typ.]
A
120°
Ø13.000
[Ø330.00]
3.94
[100.00]
REV:
NA
SIZE:
A
CAGE:
0S4G1
3
of
3
