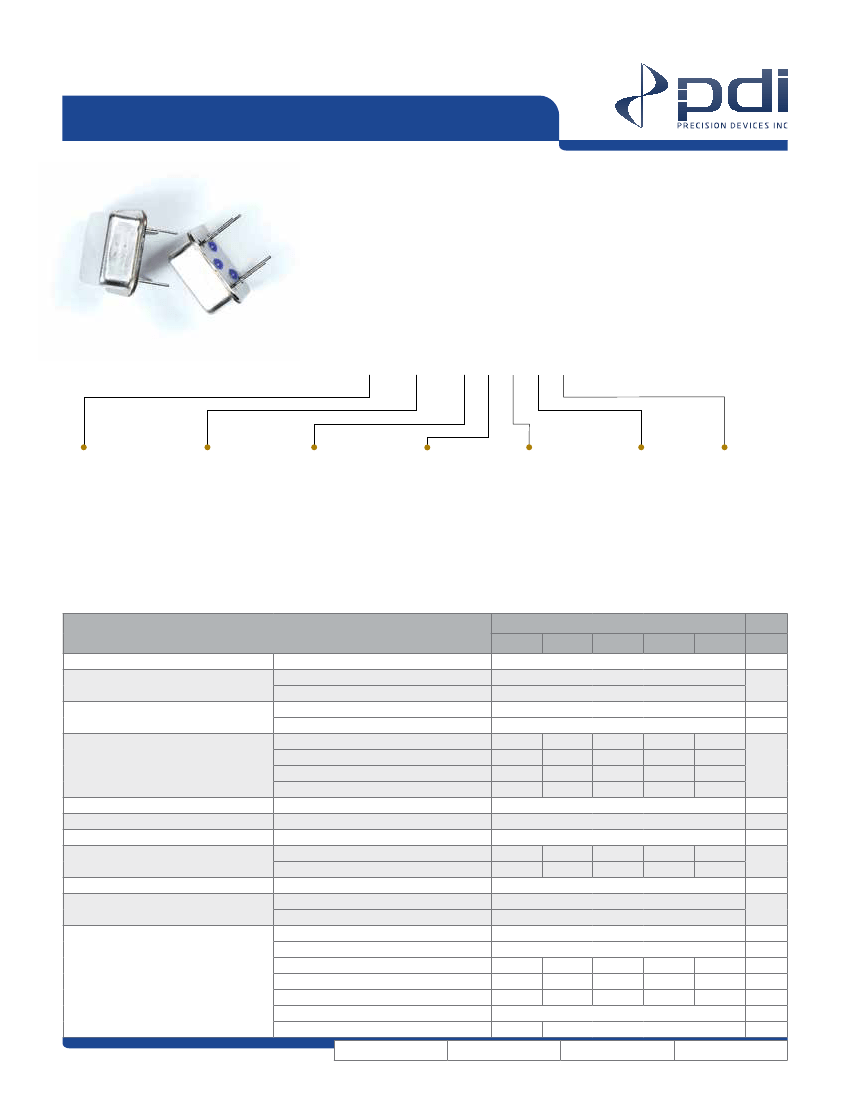

O08-Series Specifications
13.20L x 13.20W x 5.59H (mm)
PDI Model
O08-Series
provides precision timing in a hermetically sealed
Dip8 package, and is available in both standard and custom frequencies
and configurations. PDI provides quick-turn sampling for your proto-typing
needs, mass production capability, and competitive pricing.
ex)
O08—T—25000X—C—B—B—2—R—X
*
ENABLE
T
= Tri-State
N
= No/Connect
FREQUENCY
01000X-99999X
=
1.000 MHz –
99.999 MHz
C10000-C16000
=
100.000 MHz –
166.000 MHz
OUTPUT
C
= TTL/CMOS
O
= LVCMOS
W
= Sinewave
FREQUENCY
STABILITY
B
= +/-25
(Temp A & B)
C
= +/-50
D
= +/-100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
E
= -55 to +125°C
S
= Special
SUPPLY
VOLTAGE
1
= 1.8
2
= 2.5
F
= 3.0
3
= 3.3
5
= 5.0
PACKAGE
G
= Surface
Mount Gull Wing
R
= Tape & Reel
S-Z
= Special
Circumstances
X
= Thru Hole
*(X) for standard or assigned for custimization.
Parameter
Frequency Range
*1
Supply Voltage
*1
Volts (±10%)
5.0
*2
Units
1.8
V
MHz
ppm
°C
°C
10
12
15
25
mA
3.3
3.0
2.5
Frequency Stability
*1
Temperature Range
*1
Supply Current (Maximum)
Output
Load (Maximum)
Duty Cycle (at 50 % Vcc)
Rise/Fall Times (Maximum)
Start up Time (Maximum)
Logic Levels
All Causes (Maximum )
Aging (Maximum per year at + 25°C)
*3
Operating
Storage
1.000000 to 23.999999 MHz
24.000000 to 49.999999 MHz
50.000000 to 69.999999 MHz
70.000000 to 166.000000 MHz
20
30
40
60
Rise Time (10 % to 90 % Vcc)
Fall Time (90 % to 10 % Vcc)
High (Minimum)
Low (Maximum)
High (See below) or Open
Low (See below)
*4
High Value (Minimum)
Low vValue (Maximum)
*4
Disable Current (Maximum)
*4
Enable Delay Time (Maximum)
Disable Delay Time (Maximum)
REV:
NA
SIZE:
A
10
10
Pin 1 (Tri-State) (Option)
80
20
50
100
1.000000 to 166.000000
Per Option
±5
Per Option
- 55 to +125
15
15
15
20
20
20
30
30
30
45
45
45
Per Option
15pF/5 TTL gates
40 to 60% (45 to 55% option)
8
8
7
8
8
7
10
90
10
Enable
Disable
80
80
80
20
20
20
10
10
10
10
150
CAGE:
A
6
6
ns
ms
% Vcc
80
20
10
% Vcc
% Vcc
uA
ms
ns
1
of
2

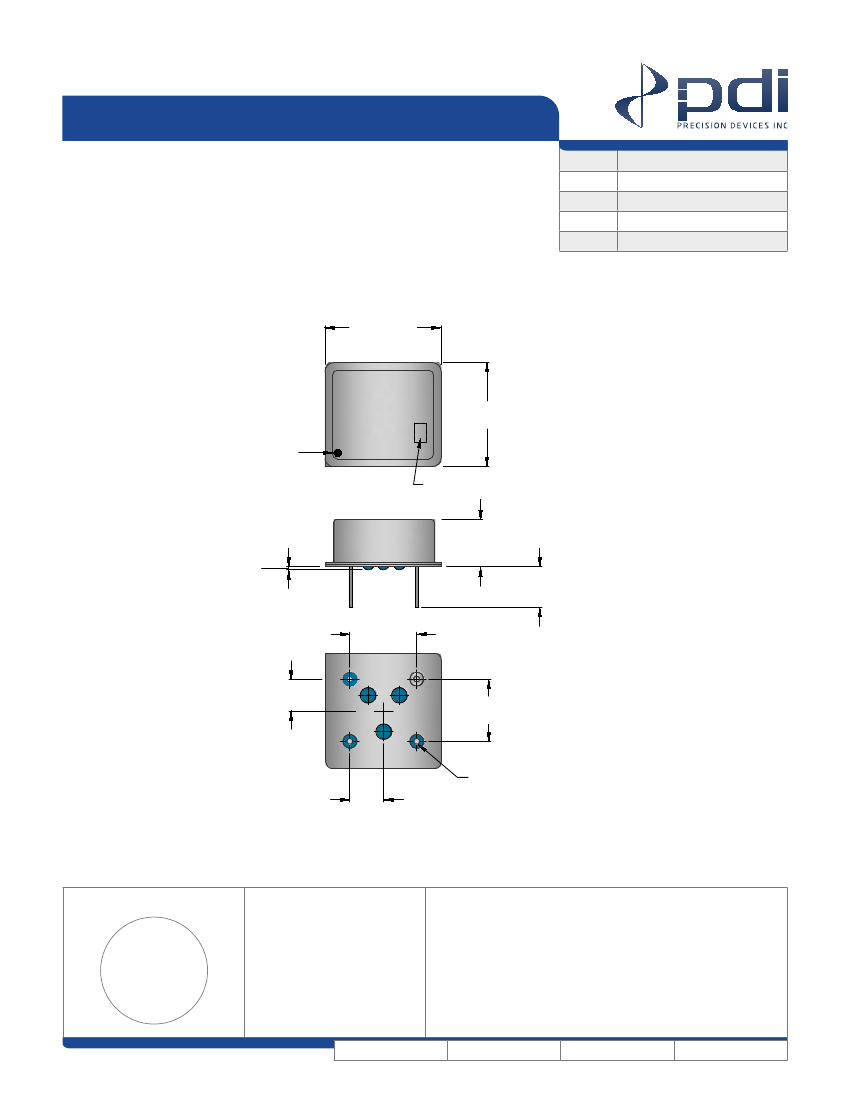

O08-Series
13.20 x 13.20 x 5.59
(mm)
PDI Model
O08-Series
provides precision timing in a hermetically sealed
Dip8 package, and is available in both standard and custom frequencies
and configurations. PDI provides quick-turn sampling for your proto-typing
needs, mass production capability, and competitive pricing.
PIN
1
2
3
4
CONNECTION
Tri-State or No Connect
Ground/Case
Output
Supply Voltage
.520 Max.
[13.20 Max.]
PDI FKA
Frequency
Date Code
Pin #1 I.D.
Traceability Code
.520 Max.
[13.20 Max.]
.027
[0.70]
.220 Max.
[5.59 Max.]
.268 Max.
[6.81 Max.]
.300±.008
[7.62±.20]
#1
#4
.300±.008
[7.62±.20]
.150
[3.81]
.150
[3.81]
#8
#5
.018ر.001
[.46ر.025]
(4 Places)
GR
EE
N
P
ROD
U
Compliant
EU 2002/95/EC
e
c
,
i
s
i
o
n
D
e
v
i
c
e
s
RoHS
*1
Not all Frequency/Temperature/
Voltage combinations are available.
*2
Inclusive of calibration at + 25 °C,
operating temperature range, input
voltage variation, load variation,
aging, shock, and vibration.
*3
Even though aging is specified in
‘All Causes’, see *2 this is a refinement
to the ‘All Causes’ parameter.
*4
Internal crystal oscillation halted.
REV:
NA
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Not all Frequency/Temperature combinations are available.
Decimal
XXX = ± .008, XX = ± .020
Metric
[XXX = ± .20], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/13.
