SHEET 1 OF 1
n
14.90
[.587 in]
n
19.00
n
22.00
[.866 in]
[.748 in]

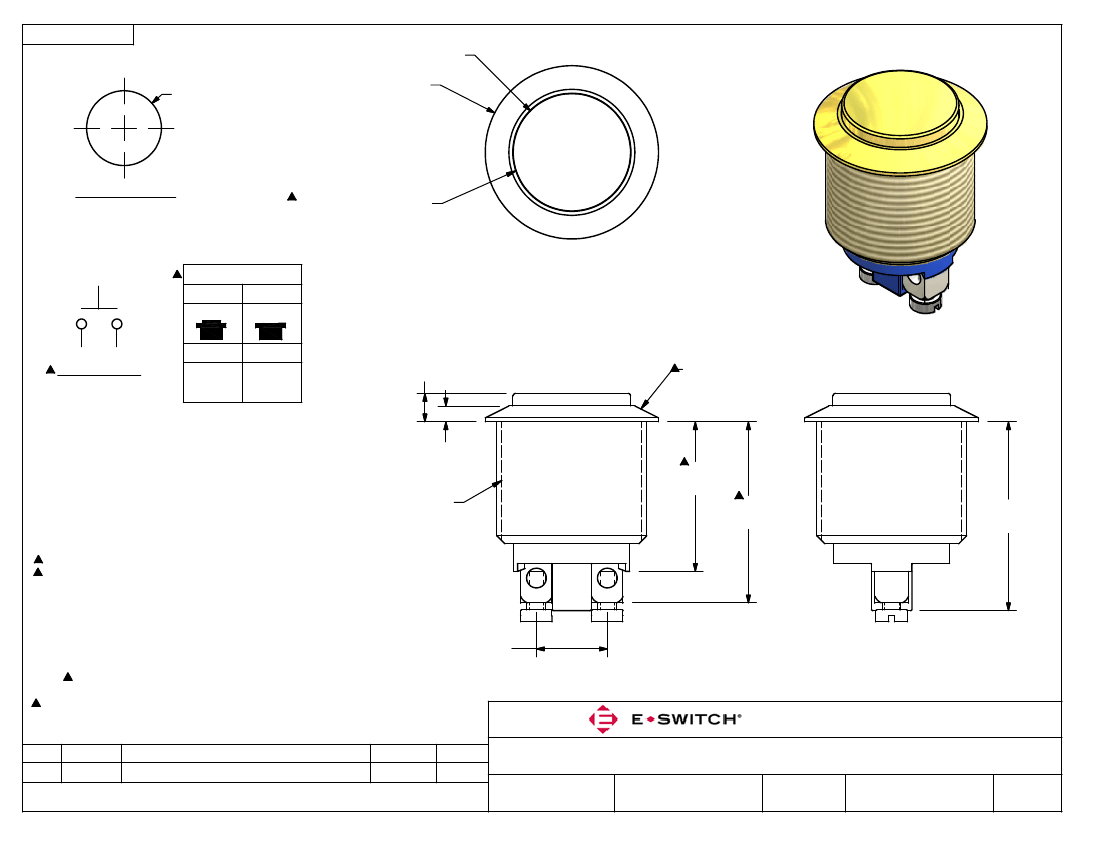

PANEL MOUNTING
MAX. PANEL THICKNESS 8.0mm
RAISED FLAT ACTUATOR
GOLD FINISH
SWITCH FUNCTION
POS. 1
1
2
OFF
CIRCUIT: SPST
OPEN
(ON)
1-2
3.60
[.142 in]
BODY FINISH
GOLD
POS. 2
(ON) = MOMENTARY
2.00
[.079 in]
NOTE:
M19x1.0
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X = ± 0.4
X.XX = ± 0.25
3. TERMINAL NOS. FOR REF. ONLY
4. FUNCTION: SPST
5. RATING: 2A @ 48VDC
6. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
7. INSULATION RESISTANCE: 1,000MΩ @ 500VDC
8. DIELECTRIC STRENGTH: 2,000VAC MIN. FOR 1 MINUTE
1
9. ELECTRICAL LIFE: 200,000 CYCLES
10. CONTACT MATERIAL: SILVER PLATED COPPER
9.00
11. OPERATING TEMPERATURE: -20°C TO 55°C
[.354 in]
12. INGRESS PROTECTION: IP65
13. DENOTES CRITICAL PARAMETER
14. 2002/95/EC (ROHS) COMPLIANT
15. HARDWARE INCLUDED: HEX NUT AND O-RING (NOT SHOWN)
19.00
`
.50
[.748
`
.020
in]
23.00
`
.50
[.906
`
.020
in]
24.00
`
.50
[.945
`
.020
in]
2
2
B
REV
20339
PCR NO
CORRECT TEMP RATING AND CONVERT
DESCRIPTION
12/15/11
DATE
BMA
BY
TITLE
SCALE
PV1H640GG
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/13/2011
DR
BMA
52-PV1H640GG
DWG
REV
B
