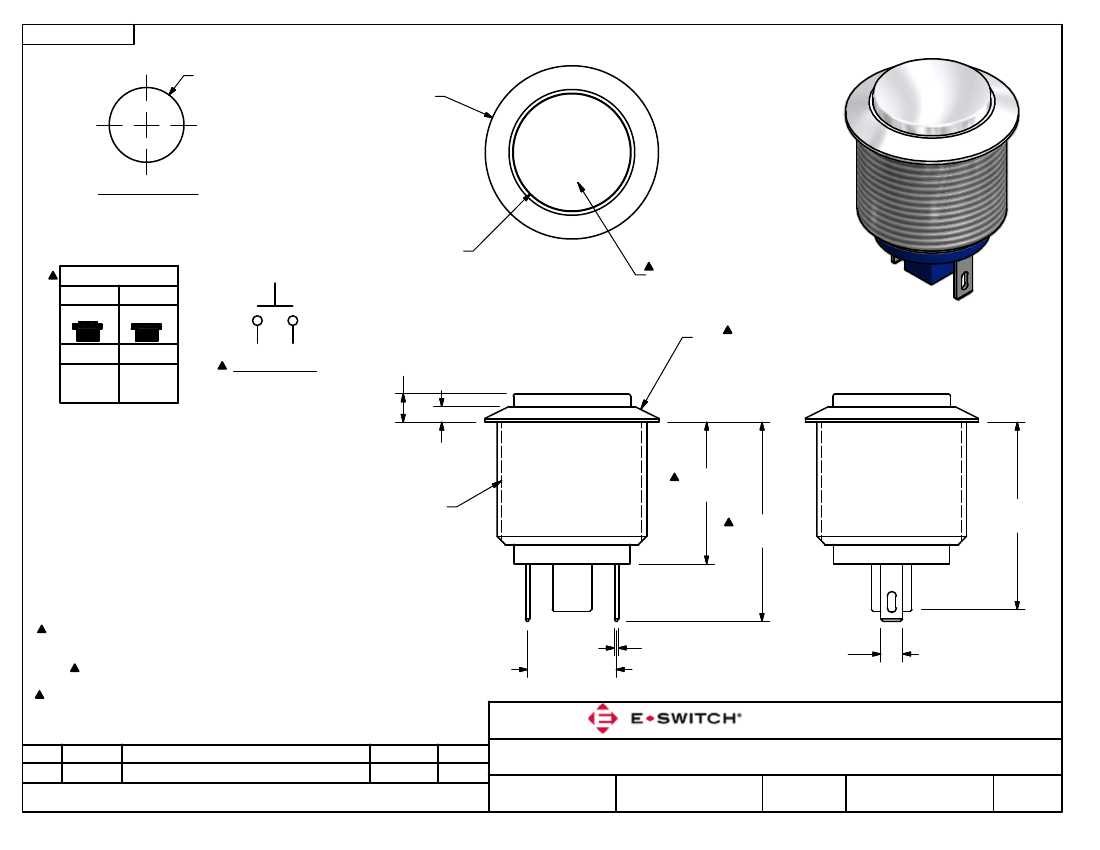

SHEET 1 OF 1
19.00
[.748 in]
22.00
[.866 in]
PANEL MOUNTING
MAX. PANEL THICKNESS 8.0mm
14.90
[.587 in]
SWITCH FUNCTION
POS. 1
POS. 2
1
OFF
OPEN
(ON)
CIRCUIT: SPST
1-2
2
3.60
.50
[.142
.020
in]
RAISED FLAT ACTUATOR
POLISHED STAINLESS STEEL
BODY FINISH
POLISHED STAINLESS STEEL
(ON) = MOMENTARY
2.00
[.079 in]
NOTE:
M19x1.0
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X = 0.4
X.XX = 0.25
3. TERMINAL NOS. FOR REF. ONLY
4. RATING: 2A @ 48VDC
5. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
6. INSULATION RESISTANCE: 1,000M @ 500VDC
7. DIELECTRIC STRENGTH: 2,000VAC MIN. FOR 1 MINUTE
8. ELECTRICAL LIFE: 200,000 CYCLES
9. CONTACT MATERIAL: GOLD
10. OPERATING TEMPERATURE: -20 C TO 55 C
11. INGRESS PROTECTION: IP65
12.
DENOTES CRITICAL PARAMETER
13. 2002/95/EC (ROHS) COMPLIANT
14. HARDWARE INCLUDED: HEX NUT AND O-RING (NOT SHOWN)
18.0
1.0
[.71
.04
in]
25.3
1.0
[.996
.04
in]
23.8
.5
[.937
.02
in]
1
2
.50
[.020 in]
2.80
[.110 in]
2
11.30
[.445 in]
A
REV
21927
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
7/24/15
DATE
MW
BY
TITLE
SCALE
PV1H240SSG
2:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
7/24/2015
DR
DWG
REV
MW
52-PV1H240SSG
A
