52-PV1H240BB_15: DescriptionALL DIMENSIONS IN MM [INCH]; File Size192KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV1H240BB_15 Overview

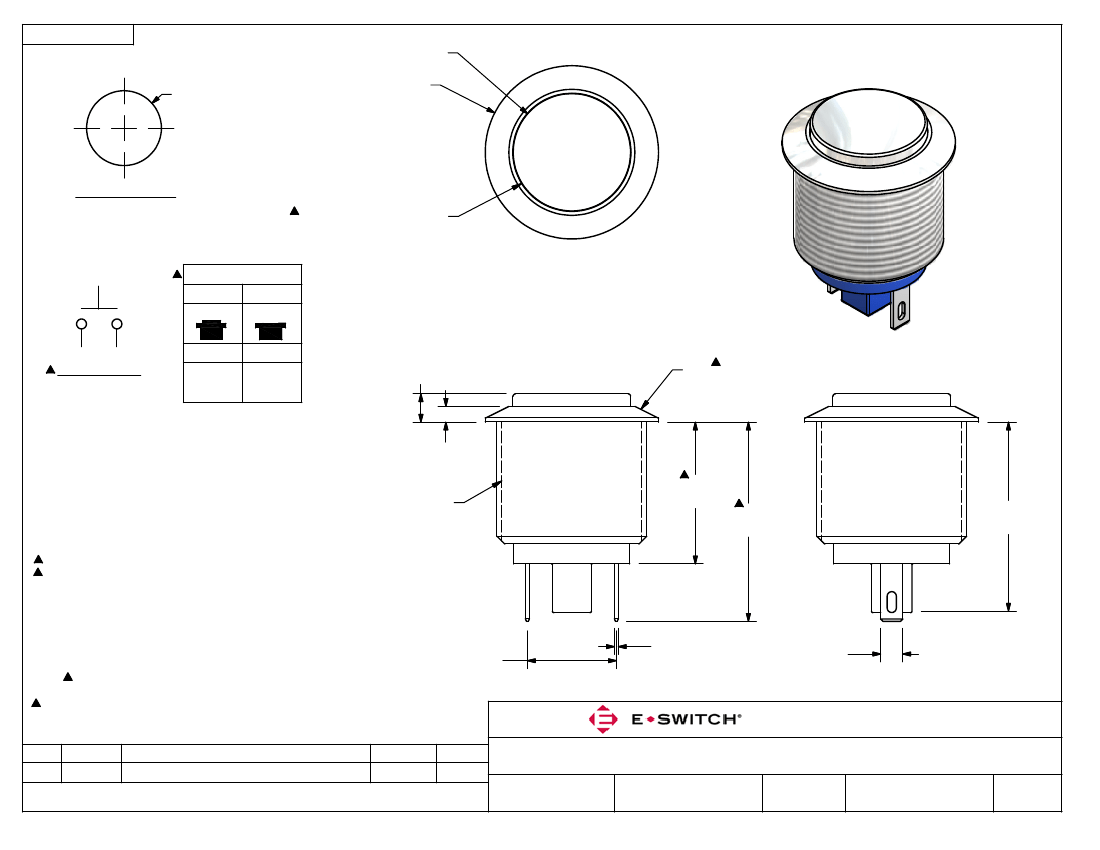

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

14.90

[.587 in]

19.00

22.00

[.866 in]

[.748 in]

PANEL MOUNTING

MAX. PANEL THICKNESS 8.0mm

RAISED FLAT ACTUATOR

BRUSHED STAINLESS STEEL

SWITCH FUNCTION

POS. 1

OFF

CIRCUIT: SPST

OPEN

(ON)

1-2

3.60

.50

[.142

.020

in]

BODY FINISH

BRUSHED STAINLESS STEEL

POS. 2

(ON) = MOMENTARY

2.00

[.079 in]

NOTE:

M19x1.0

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X = ± 0.4

X.XX = ± 0.25

3. TERMINAL NOS. FOR REF. ONLY

4. FUNCTION: SPST

5. RATING: 2A @ 48VDC

6. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC

7. INSULATION RESISTANCE: 1,000MΩ @ 500VDC

8. DIELECTRIC STRENGTH: 2,000VAC MIN. FOR 1 MINUTE

9. ELECTRICAL LIFE: 200,000 CYCLES

10. CONTACT MATERIAL: SILVER PLATED COPPER

11. OPERATING TEMPERATURE: -20°C TO 55°C

11.30

12. INGRESS PROTECTION: IP65

[.445 in]

13. DENOTES CRITICAL PARAMETER

14. 2002/95/EC (ROHS) COMPLIANT

15. HARDWARE INCLUDED: HEX NUT AND O-RING (NOT SHOWN)

18.00

.50

[.709

.020

in]

25.30

.50

[.996

.020

in]

24.00

.50

[.945

.020

in]

.50

[.020 in]

2.80

[.110 in]

REV

20339

PCR NO

CORRECT TEMP RATING AND CONVERT

DESCRIPTION

12/14/11

DATE

BMA

TITLE

SCALE

PV1H240BB

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

12/14/2011

BMA

52-PV1H240BB

DWG

REV
