General Purpose Thick Film Chip Resistor
CR Series
0.1% TO 5%, TCR ±100 TO ±200
SIZE: 0402/0603/0805/1206
RoHs Compliant
Product Specification –March 04, 2021 V.20
GENERAL PURPOSE THICK FILM CHIP RESISTOR
CR Series
DS-ENG-001
1.
SCOPE
1.1
This specification specifies fixed thick film chip resistor (referred to as resistor
hereinafter) for use in electronic equipment. In case there are discrepancies in
specifications between this specification and the Customer’s specifications, the latter
shall precede.
The products are tested and passed based on the test conditions and methods defined
in AEC-Q200.
Page:
2 of 21
1.2
2.

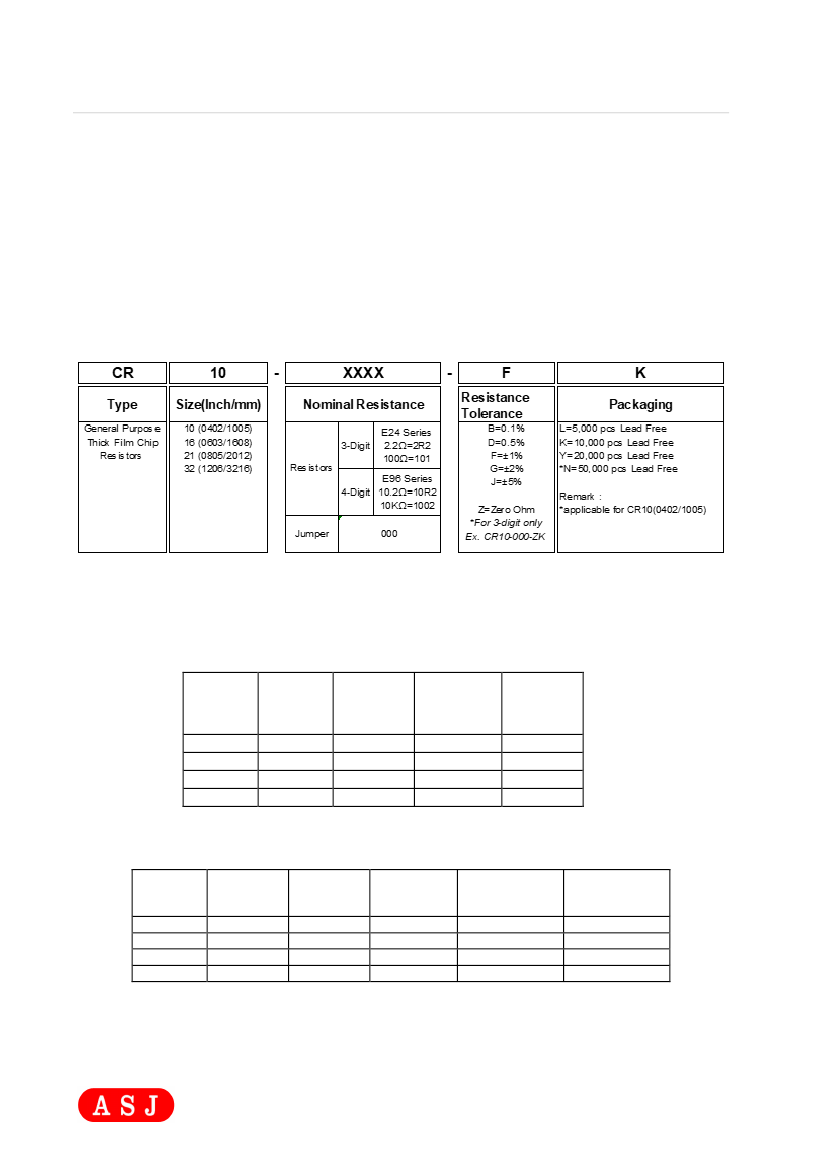

PART NUMBERING SYSTEM
Part Numbering is made in accordance with the following system:
3.
RATING
3.1
Rated Power
3.1.1
Zero Ohm Jumper Rated Power
Rated
Current
Z(±5%)
CR10
CR16
CR21
CR32
1A
2A
2A
2A
Rated
Current
F(±1%)
1.5A
2A
2.5A
3.5A
JUMPER
Resistance
Value
Z(±5%)
JUMPER
Resistance
Value
F(±1%)
< 35m
< 35m
< 35m
< 35m
< 50mΩ
< 50mΩ
< 50mΩ
< 50mΩ
3.1.2
Resistor Rated Power
Rated Power
Maximum
Working
Voltage
50V
75V
150V
200V
Maximum
Overload
Voltage
100V
150V
300V
400V
Maximum
Intermittent
Overload Voltage
100V
100V
300V
400V
Dielectric
Withstanding
Voltage
300V
300V
500V
500V
CR10
CR16
CR21
CR32
1/16W
1/10W
1/8W
1/4W
Product Specification
Towards Excellence in
Quality,
Service & Innovation
GENERAL PURPOSE THICK FILM CHIP RESISTOR
CR Series
DS-ENG-001
3.2
Page:
3 of 21
Power Derating Characteristics
Rated Power shall be the load power corresponding to nominal wattage suitable for
continuous use at 70C ambient temperatures. In case the ambient temperature
exceeds 70C, reduce the load power in accordance with Derating curve in Fig. 1.
Fig.1 Power Derating Characteristics
3.3
Standard Atmospheric Condition
Unless otherwise specified, the standard range of atmospheric conditions for making
measurements and tests is as follows:
Ambient Temperature = + 5C to +35C
Relative Humidity
Air Pressure
= < 85% RH
= 86 kPa to 106kPa
If there may be any doubt about the results, measurement shall be made within the
following limits:
Ambient Temperature = 20
2C
Relative Humidity
Air Pressure
3.4
3.4
3.6
3.7
3.8
3.9
= 60 to 70% RH
= 86 kPa to 106kPa
Operating Temperature Range
-55C to +155C
Storage Temperature Range
Flammability Rating
-5C to + 40C / < 85% RH
Tested in accordance to UL-94, V-0
Level 1
Moisture Sensitivity Level Rating:
Product Assurance ASJ resistor shall warranty 24 months from the date of shipment.
ASJ resistors are RoHS compliance in accordance to RoHS Directive.
Product Specification
Towards Excellence in
Quality,
Service & Innovation
GENERAL PURPOSE THICK FILM CHIP RESISTOR
CR Series
DS-ENG-001
3.10 Resistance, Resistance Tolerance and Temperature Coefficient of Resistance.
Type
Rated
Power
At 70°C
Max.
Working
Voltage
Max.
Overload
Voltage
Resistance Range
T.C.R.
(ppm/°C)
B (±0.1%)
E-24
、
E-96
D (±0.5%)
E-24
、
E-96
F (±1%)
E-24
、
E-96
JUMPER
Rated Current
G (±2%), J (±5%) E-24 Z (±5%)
F (±1%)
JUMPER
Resistance
Value
Z (±5%) F (±1%)
Page:
4 of 21
CR10
(0402)
CR16
(0603
CR21
(0805)
CR32
(1206)
±100
1/16W
50V
100V
±200
±100
1/10W
75V
150V
±200
±100
1/8W
150V
300V
±200
±100
1/4W
200V
400V
±200
Operating Temperature Range
100Ω≦R<1MΩ
------
100Ω≦R<1MΩ
------
100Ω≦R<1MΩ
------
10Ω
≦
R<1MΩ
3Ω
≦
R<10Ω
10Ω≦R<1MΩ
1Ω≦R<10Ω
10Ω≦R<1MΩ
1Ω≦R<10Ω
10Ω≦R<1MΩ
1Ω≦R<10Ω
10Ω≦R<1MΩ
1Ω≦R<10Ω
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<10MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<10MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<10MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<10MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<22MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<22MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<22MΩ
10Ω≦R<1MΩ
1Ω≦R<10Ω
1MΩ≦R<22MΩ
2A
3.5A
2A
2.5A
1A
2A
1A
1.5A
50mΩ
MAX
50mΩ
MAX
50mΩ
MAX
50mΩ
MAX
35mΩ
MAX
35mΩ
MAX
35mΩ
MAX
35mΩ
MAX
-55℃ ~ +155℃
3.11
Rated Voltage
The rated voltage is calculated from the rated power and nominal resistance by the
following formula:
= √.
Where E : Rated Voltage (V)
P : Rated Power (W)
R : Nominal Resistance ()
In case the value calculated by the formula exceeds the maximum working voltage given
in Section 3.1.2, the maximum working voltage in Section 3.1.2 shall be regarded as the
rated voltage.
3.12
All product, product specifications and data are subject to change without notice to
improve reliability, function or design or otherwise.
Product Specification
Towards Excellence in
Quality,
Service & Innovation
GENERAL PURPOSE THICK FILM CHIP RESISTOR
CR Series
DS-ENG-001
4.

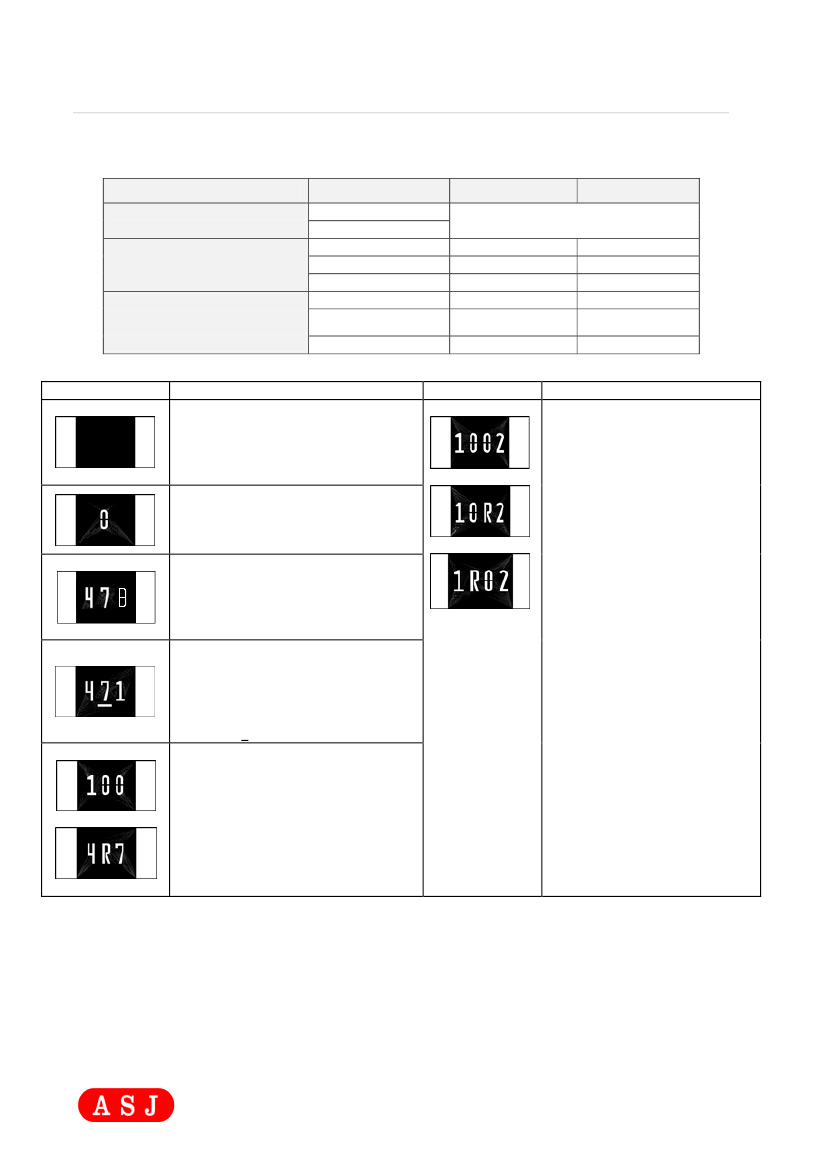

MARKING ON PRODUCT
The nominal resistance shall be marked on the surface of each resistor
Type
Sizes:
CR10(0402)
Size:
CR16(0603)
Sizes:
CR21(0805)、CR32(1206)
Resistance Range
All
Jumper=0Ω
<1Ω
≥1Ω
Jumper=0Ω
<1Ω
≥1Ω
Jumper=0Ω
Marking
No Marking
- CR10
Description
Tolerance≤1%
Tolerance＞1%
No Marking
3-digits Marking
3-digits Marking
1-digits Marking
4-digits Marking
4-digits Marking
1-digits Marking
Marking
3-digits Marking
3-digits Marking
1-digit Marking
4-digits Marking
3-digits Marking
1-digit Marking
Page:
5 of 21
The marking is expressed by “0”
- CR16
- CR21
- CR32
Tolerance: ≥1Ω
E-96, ±0.1%, 0.5%, 1%
EIA-96 marking
- CR16(Standard Marking)
- Marking 47B = 3.01KΩ
Tolerance: ≥1Ω ,E-24, 1%
- CR16(Standard Marking)
- If the resistance is not in E-96 series and
in E-24 series ,the marking is expressed by
one short bar under marking letter
- Marking 471 = 470Ω
Tolerance: ≥1Ω , E-24, 2%, 5%
- CR16
- CR21
- CR32
- Marking 100 = 10Ω
- Marking 4R7 = 4.7Ω
Description
Tolerance: ≥1Ω
E-96, ±0.1%, 0.5%, 1%
- CR16(Special
request)
- CR21
- CR32
- Marking 1002 = 10KΩ
- Marking 10R2 = 10.2Ω
- Marking 1R02 = 1.02Ω
Product Specification
