MO1602ID4-C0K-33E0-0074250000E datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MO1602ID4-C0K-33E0-0074250000E

MO1602ID4-C0K-33E0-0074250000E: DescriptionLVCMOS Output Clock Oscillator, 74.25MHz Nom,; CategoryPassive components oscillator; File Size946KB，13 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric View All

MO1602ID4-C0K-33E0-0074250000E Overview

LVCMOS Output Clock Oscillator, 74.25MHz Nom,

MO1602ID4-C0K-33E0-0074250000E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7203774671
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION; TR
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	74.25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.75mm
longest rise time	2 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

MO1602

Low Power, Standard Frequency Oscillator

Features



Applications



52 standard frequencies between 3.57 MHz and 77.76 MHz

100% pin-to-pin drop-in replacement to quartz-based XO

Excellent total frequency stability as low as ±20 ppm

Operating temperature from -40°C to +85°C.

For +125°C and/or -55°C options, refer to MO1618, MO8918

Low power consumption of +3.5 mA typical at 20 MHz, +1.8V

Standby mode for longer battery life

startup time of 5 ms

LVCMOS/HCMOS compatible output

Industry-standard packages: 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2,

7.0 x 5.0 mm x mm

Instant samples with Time Machine II and field programmable

oscillators

RoHS and REACH compliant, Pb-free, Halogen-free and

Antimony-free

For AEC-Q100 oscillators, refer to MO8924 and MO8925

Ideal for DSC, DVC, DVR, IP CAM, Tablets, e-Books, SSD,

GPON, EPON, etc

Ideal for high-speed serial protocols such as: USB, SATA, SAS,

Firewire, 100M / 1G / 10G Ethernet, etc





Fast



Electrical Specifications

Table 1. Electrical Characteristics

All Min and Max limits are specified over temperature and rated operating voltage with 15 pF output load unless otherwise stated. Typical values are

at +25°C and nominal supply voltage.

Parameters

Symbol

Min.

Typ.

Max.

Unit

Condition

Frequency Range

Output Frequency Range

52 standard frequencies between

3.57 MHz and 77.76 MHz

-20

Frequency Stability

F_stab

-25

-50

-20

-40

–

+20

+25

MHz

Refer to Table 13 for the exact list of supported frequencies

Frequency Stability and Aging

ppm

Inclusive of initial tolerance at +25°C, 1st year aging at +25°C,

and variations over operating temperature, rated power supply

voltage and load.

–

+50

ppm

Operating Temperature Range

–

+70

°C

Operating Temperature Range

T_use

Extended Commercial

Industrial

–

+85

°C

Supply Voltage and Current Consumption

+1.62

+1.8

+1.98

+2.25

+2.5

+2.75

+2.52

+2.7

+2.97

+2.25

–

+2.8

+3.0

+3.3

–

+3.8

+3.7

+3.5

–

+2.1

+1.1

+0.2

–

1.0

1.3

–

+3.08

+3.3

+3.63

+4.5

+4.2

+4.1

+4.2

+4.0

+4.3

+2.5

+1.3

2.0

2.5

2.0

–

μA

Vdd

No load condition, f = 20 MHz, Vdd = +2.8V to +3.3V

No load condition, f = 20 MHz, Vdd = +2.5V

No load condition, f = 20 MHz, Vdd = +1.8V

Vdd = +2.5V to +3.3V, OE = GND, Output in high-Z state

Vdd = +1.8V, OE = GND, Output in high-Z state

= GND, Vdd = +2.8V to +3.3V, Output is weakly pulled down

= GND, Vdd = +2.5V, Output is weakly pulled down

= GND, Vdd = +1.8V, Output is weakly pulled down

Supply Voltage

Vdd

Contact KDS for +1.5V support

Current Consumption

Idd

–

OE Disable Current

I_OD

Standby Current

I_std

LVCMOS Output Characteristics

Duty Cycle

Rise/Fall Time

Tr, Tf

–

Output High Voltage

VOH

90%

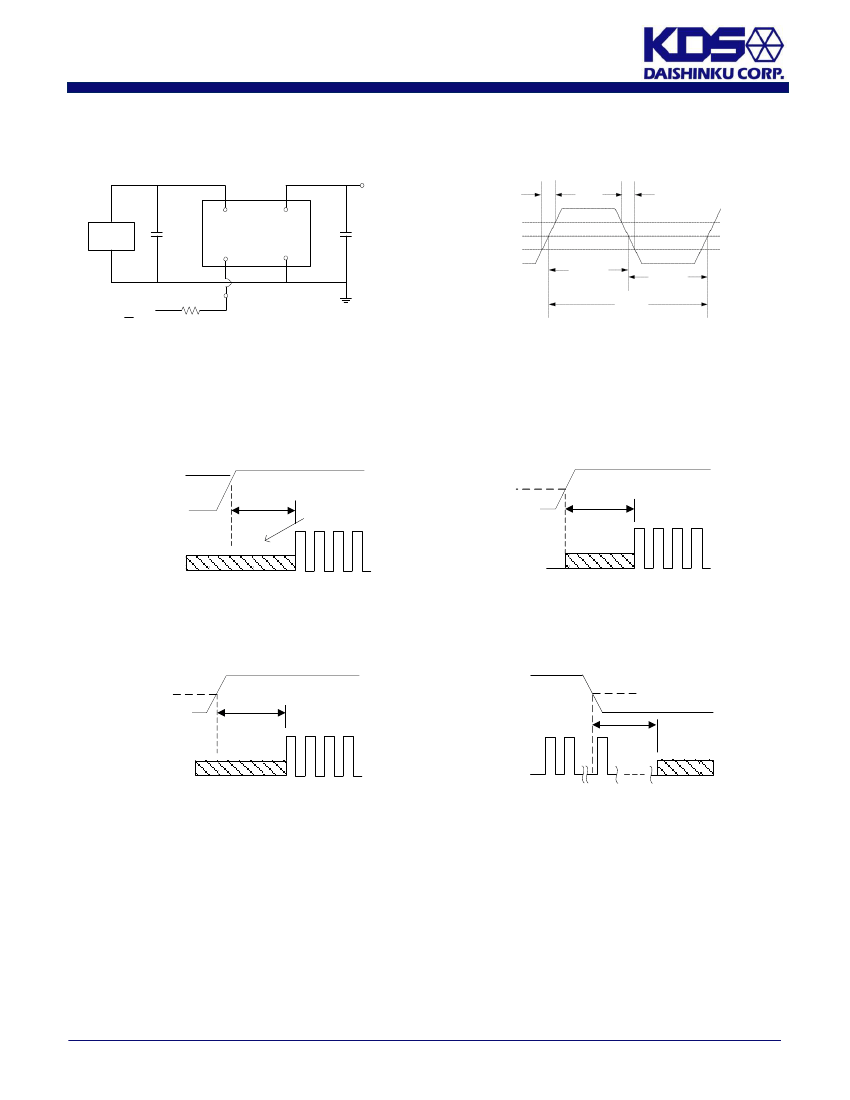

All Vdds. See Duty Cycle definition in Figure 3 and Footnote 6

Vdd = +2.5V, +2.8V, +3.0V or +3.3V, 20% - 80%

Vdd =+1.8V, 20% - 80%

Vdd = +2.25V - +3.63V, 20% - 80%

IOH = -4.0 mA (Vdd = +3.0V or +3.3V)

IOH = -3.0 mA (Vdd = +2.8V and Vdd = +2.5V)

IOH = -2.0 mA (Vdd = +1.8V)

IOL = +4.0 mA (Vdd = +3.0V or +3.3V)

IOL = +3.0 mA (Vdd = +2.8V and Vdd = +2.5V)

IOL = +2.0 mA (Vdd = +1.8V)

+81-79-426-3211

www.kds.info

Revised June 18, 2015

Output Low Voltage

VOL

–

10%

Vdd

Daishinku Corp.

Rev. 1.02

1389 Shinzaike, Hiraoka-cho, Kakogawa, Hyogo 675-0194 Japan

Recommended Resources

Dual power supply circuit

It is a 20 to 200ns analog delay circuit divided into 10 steps.

STK1039 power amplifier circuit diagram

Sensor bridge differential voltage input amplifier circuit

Liquid level optical detection circuit

555 Schmitt trigger used in shaping conversion circuit

Single power supply to dual power supply: Dear experts: I am working on a design that uses 2 lithium batteries for power supply. I need to replace the power supply with a positive and negative dual power supply. This is my idea. I hope you ca...; leid333 Power technology

How to read circuit diagrams Recommended resources 5. Understanding mobile phone circuit diagrams: [align=center][size=5]How to read circuit diagrams Recommended resources V. [color=rgb(0, 0, 0)][backcolor=rgb(237, 235, 235)][font=微软雅黑]Understand mobile phone circuit diagrams[/font][/backcolor][/co...; tiankai001 Download Centre

Quote: Short message control. Just use TEXT mode. /******************************Short message command******************************************* // AT+CSMS Select message serviceAT +CSMS=0 // SMS AT command...; uyue MCU

AVR MCU Hardware and Software Design Tutorial -ppt.rar: [i=s]This post was last edited by paulhyde on 2014-9-15 03:00[/i]...; liu5013 Electronics Design Contest

What does a "hardware test engineer" mainly do? What are the prospects for development?: I applied for this position in a communications company, but I don't know much about the specific work of this position. If anyone knows, please tell me about it. Thank you in advance!...; pxy94 MCU

USB2.0 and USB3.0 protocol standards: Seeing that a forum member had posted about USB data transmission, I posted the USB protocol standard I have on hand as a supplement.All are official English versions...; wstt FPGA/CPLD
