Product Datasheet
www.Applied-Motion.com
34VL020

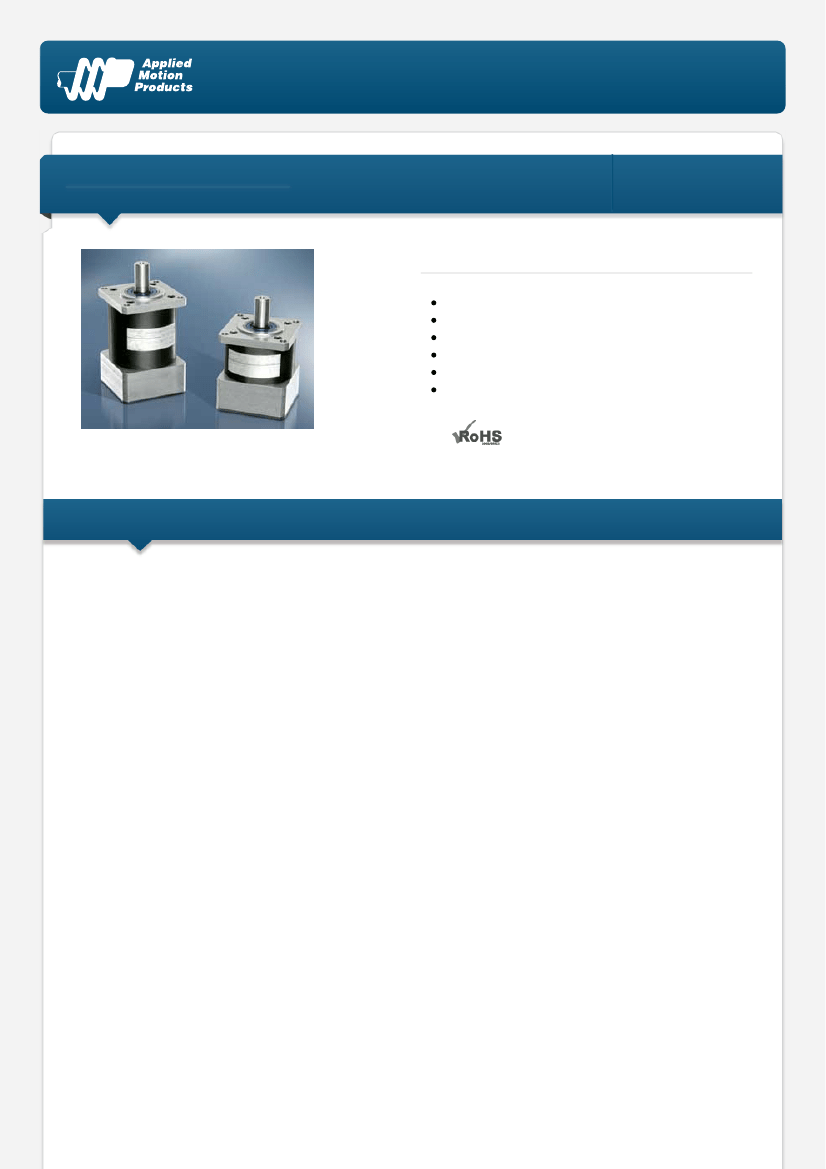

NEMA 34 Planetary Gearhead
1pc. - 796.00
50pc. - 796.00
Product Features
True planetary design
Compact design
Sealed ball bearings
Heat treated gears
High efficiency design
AGMA gear quality
Description
The 34VL020 planetary gearhead offers true planetary performance at an excellent price. High strength, heated
treated gears provide for efficient transmission of torque and accurate speed matching.
Additional mounting hardware is required to mount this gearhead to any of the following motors:
Stepper motors HT34-504, HT34-505, and HT34-506. Servo motors M0750-102-5-000, M0750-152-5-000, M0600-
102-5-000, M0600-152-5-000, and all N series NEMA 34 servo motors with model format of Nxxx-xxx-C-xxx.
Please note that the charge for the adaptor is $150 and lead time will be 2-4 weeks.
Additional hardware is also required for the HT34-487, HT34-490, and HT34-497 stepper motors, which will extend
the lead time to 2-4 weeks. An additional charge will apply for any VL series gearhead chosen for use with one of
these motors.
Specifications
Frame Size:
Ratio:
Torque, Nominal:
Torque, Max Accel:
Length:
Weight:
Input Speed:
Backlash:
Low Backlash:
IP Rating:
Service Life:
Efficiency:
Inertia:
Notes:
NEMA 34
20:1
830 in-lb
1046 in-lb
4.26 inches
5.0 lbs
5000 rpm max
16
0
IP54
> 10,000 hours
85%
3.611E-03 oz-in-sec
2
# All torque ratings are based upon 3,000 rpm nominal input speed and 10,000
hours minimum service life. # E-Stop torque rating is limited to 1,000 occurrences. #
Gearhead length based on NEMA motor mounting. # Efficiency rated at 3,000 rpm
input speed at Nominal Rated Torque. # Gearhead inertia values shown include
pinion, clamp, and sleeve, and are for standard NEMA mounting.
Downloads
Datasheet:
3D Drawing:
http://s3.amazonaws.com/applied-motion-pdf/34VL020.pdf
34VL-2STG.igs
Pricing
1pc.
25pc.
50pc.
100pc.
Request a Quote
for 100+ piece pricing.
