CRYSTAL CLOCK OSCILLATORS
CMOS
Data Sheet 0016C
Rev. E
HA-A1420 Series
Description
The
HA-A1420 Series
of quartz crystal oscillators provide enable/disable 3-state CMOS compatible signals
for bus connected systems. Supplying Pin 1 of the HA-A1420 units with a logic “1" or open enables its
output. In the disabled mode, output pin presents a high impedance to the load. All units are resistance
welded in an all metal package, offering RFI shielding, and are designed to survive standard wave soldering
operations without damage. Insulated standoffs to enhance board cleaning are standard.
Features
• Wide frequency range– 1.0MHz to 80.0MHz
• User specified tolerance available
• Will withstand vapor phase temperatures of 253°C
for 4 minutes maximum
• Space-saving alternative to discrete component
oscillators
• High shock resistance, to 3000g
• All metal, resistance weld, hermetically sealed
package
Electrical Connection
Pin
1
4
5
8
Connection
Enable Input
Grd & Case
Output
V
DD
• 3.3 Volt operation
• Low Jitter
• High Q Crystal actively tuned oscillator circuit
• Power supply decoupling internal
• No internal PLL avoids cascading PLL problems
• Low power consumption
• Gold plated leads - Solder dipped leads available
upon request

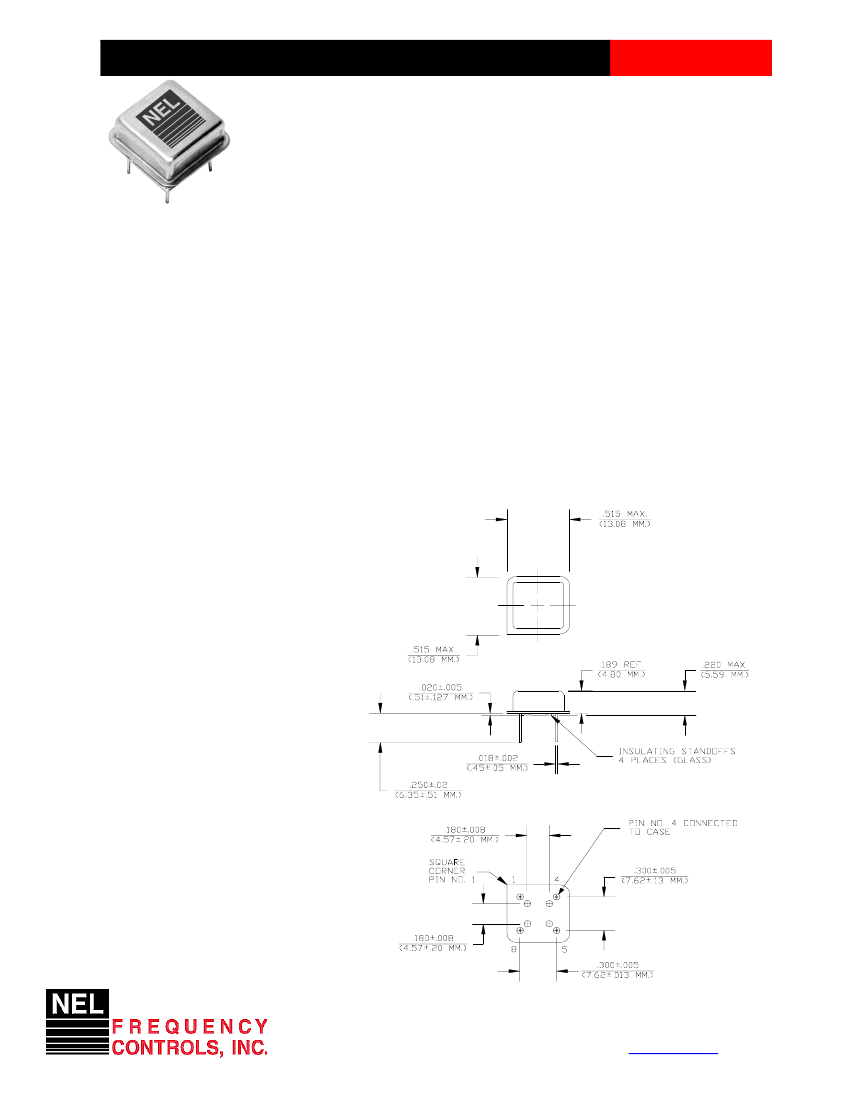

Dimensions are in inches and (MM)
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL CLOCK OSCILLATORS
HA-A1420 Series
CMOS
Continued
Data Sheet 0016C
Rev. E
Operating Conditions and Output Characteristics
Electrical Characteristics
Parameter
Frequency
Duty Cycle
Logic 0
Logic 1
Rise & Fall Time
Tpz
Enable/Disable
Logic High Voltage
Enable/Disable
Logic Low Voltage
Jitter, RMS
(2)
Frequency Stability
(1)
Symbol
-----
-----
V
OL
V
OH
tr,tf
-----
-----
-----
-----
dF/F
Conditions
-----
@ V
DD
/2
@ 600µA
@ 600µA
10-90%
-----
-----
-----
-----
Overall conditions including:
voltage, calibration, temp.,
10 yr aging, shock, vibration
Min
1.0MHz
45/55%
-----
V
DD
-0.2V
-----
-----
2.0V
-----
-----
-100ppm
Typical
-----
-----
-----
-----
-----
-----
-----
-----
-----
-----
Max
80.0MHz
55/45%
0.2V
-----
8 ns
25 ns
-----
0.8V
5 psec
+100ppm
General Characteristics
Parameter
Supply Voltage
Supply Current
Output current
Operating temperature
Storage temperature
Power Dissipation
Lead temperature
Load
Start-up time
Symbol
V
DD
I
DD
I
O
T
A
T
S
P
D
T
L
----
t
S
Conditions
-----
No Load
-----
-----
-----
-----
Soldering, 10 sec.
-----
-----
Min
3.135V
0.0 mA
0.0 mA
0°C
-55°C
-----
-----
-----
-----
Typical
3.3V
-----
-----
-----
-----
-----
-----
-----
2 ms
Max
3.465V
40mA
±16.0 mA
70°C
125°C
138 mW
300°C
15pf
10 ms
Environmental and Mechanical Characteristics
Mechanical Shock
Thermal Shock
Vibration
Soldering Condition
Hermetic Seal
Per MIL-STD-202, Method 213, Condition E
Per MIL-STD-833, Method 1011, Condition A
0.060" double amplitude 10 Hz to 55 Hz, 35g’s 55Hz to 2000 Hz
300°C for 10 seconds
Leak rate less than 1 x 10
-8
atm.cc/sec of helium
Footnotes:
1) Standard frequency stability (±20,±25,±50ppm & others available)
2) Jitter performance is frequency dependent. Please contact factory for full characterization.
Test Load:
Creating a Part Number
HA - A142X - FREQ
Package Code
HA Leaded 4 pin (8 pin)
SA Leaded 4 pin (8 pin) SMD
Gull Wing
Input Voltage
Code Specification
A
3.3V
5V
Tolerance/Performance
0 ±100ppm 0-70°C
1 ±50ppm 0-70°C
7 ±25ppm 0-70°C
9 Customer Specific
A ±20ppm 0-70°C
B ±50ppm -40 to +85°C
C ±100ppm -40 to +85°C
