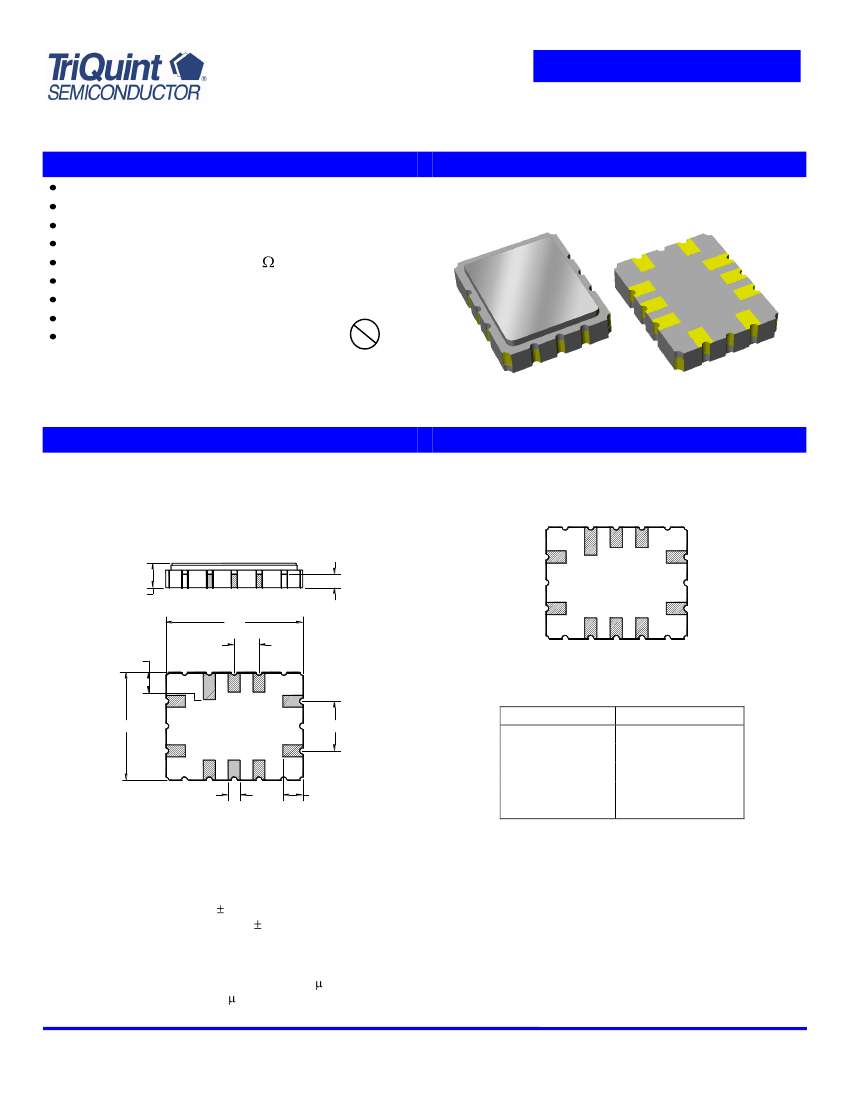

All target specifications are based on TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Relative to Insertion Loss at center frequency
5. Describes the maximum peak to adjacent valley variation over the passband (not including roll-off)
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual Matching values may vary due to PCB layout and parasitics
150nH
9
4
22nH
1,2,3,5
6,7,8,10
50
50
Single-ended
Input
50
50
Single-ended
Output
Subject to change or obsolescence without notice
Rev A
07/10 TriQuint Semiconductor, Inc.
Page 2 of 5
Data Sheet
Part Number 856929
140 MHz SAW Filter

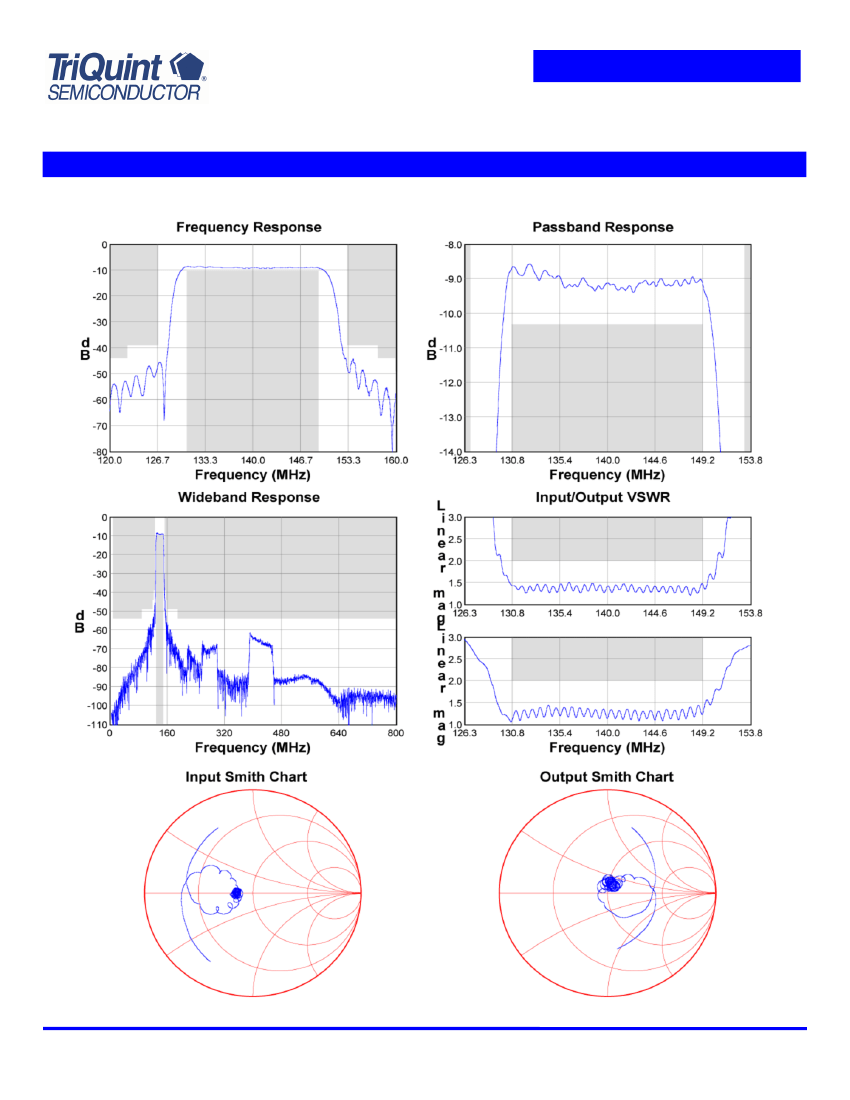

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
07/10 TriQuint Semiconductor, Inc.
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
150nH
9
4
22nH
1,2,3,5
6,7,8,10
Part Number 856929
140 MHz SAW Filter

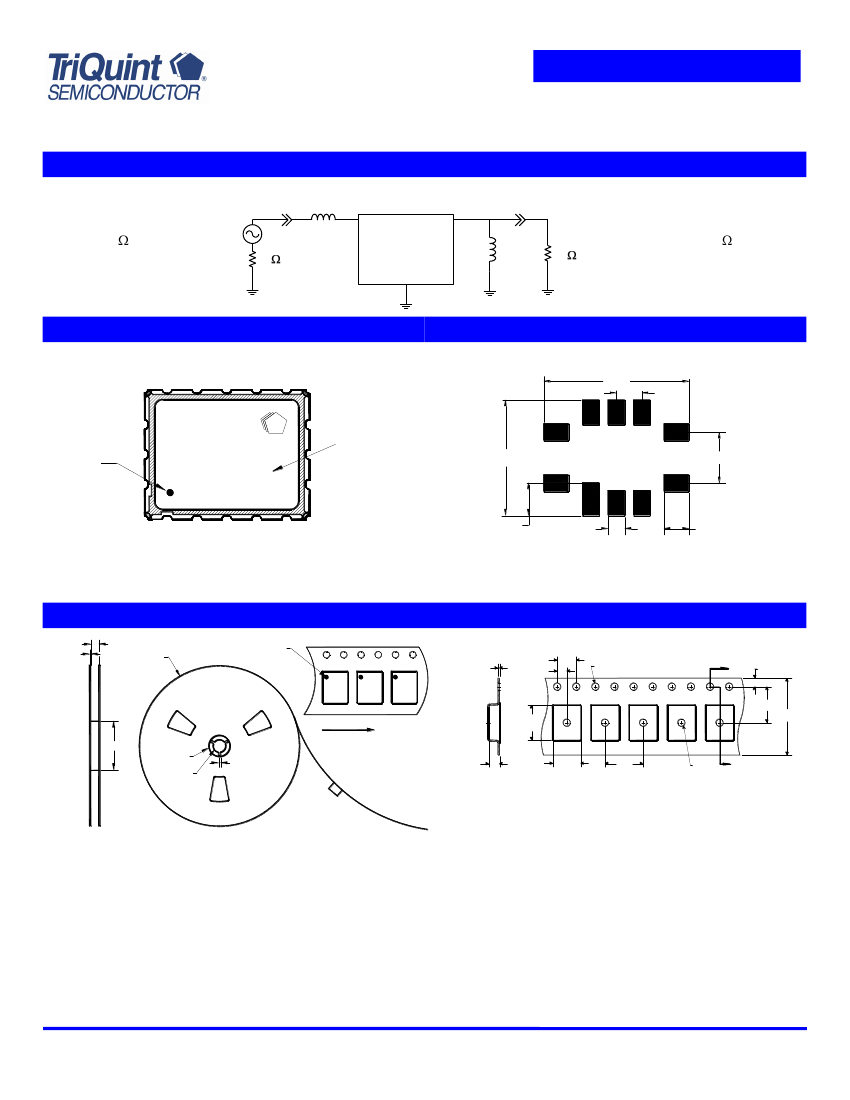

Matching Schematics
50
Single-ended
Input
50
50
50
Single-ended
Output
Marking
PCB Footprint
7.20
1.27
Pad 1
ID dot
TriQuint
856929
JJJYHH
Date code
5.70
2.54
1.60
0.80
1.20
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
16.8
2.7
Ø330
ID dot
0.3
4.0
2.0
Ø1.5
A
1.75
7.5
7.3
16.0
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.2
Section A-A
5.8
8.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 3000 units/reel
Subject to change or obsolescence without notice
Rev A
07/10 TriQuint Semiconductor, Inc.
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
Part Number 856929
140 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
-30
-40
-
Maximum
+80
+85
+10
Unit
C
C
dBm
o
o
Important Notes
Warnings
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
