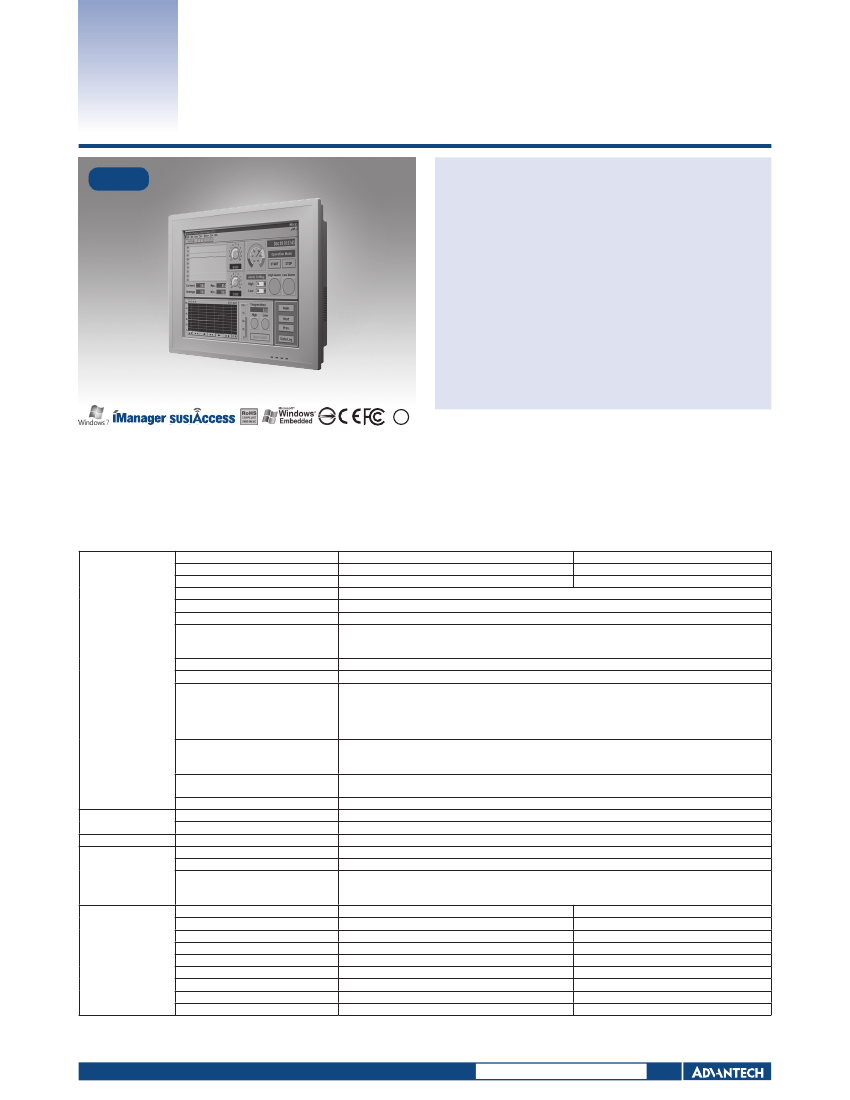

PPC-6170A
PPC-6150A
NEW
17"/ 15" Panel PC with Intel
®
Core™ i3 / i5 /
Celeron
®
Processor and 4 additional GbE ports
Features
Intel
®
Core™ i5 and i7 + Intel QM77 PCH
1X DDR3/DDR3L SODIMM support to 8 GB
Multiple expansion slots including one PCI + one PCIe x1, two PCI (optional)
and two PCIe x1 (optional)
Optional second HDD, supports Intel RAID
One isolated RS-232/422/485 port; (selectedin the BIOS)
One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
Dual GbE, supports Intel AMT8.0 , four additional GbE (Intel i350) for
Machine Vision
Supports iManager, SUSIAccess and Embedded Software APIs
C
UL
®
US
Introduction
The PPC-6170 is a Panel PC with an Intel Core i5/i7 processor, and a 17" color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity,
and four additional GbE ports, which is ideal design for machine vision markets. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion
slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.
Specifications
Intel
Frequency
L3 Cache
Chipset
Memory
Storage 1
Storage 2
Network1 (LAN1, LAN2)
Network2 (LAN3, LAN4, LAN5, LAN6)
I/O ports
Expansion Slots
Core i5-3610ME (Duo core)
Core i7-3612QE (Quad core)
2.7 GHz
2.1 GHz
4M
6M
Intel QM77
1 x 204-pin SODIMM, DDR3 (1600 MHz) / DDRL (1333 MHz), supports up to 8 GB
1 x 2.5" SATA bay
Either one
- Second 2.5" SATA bay (Intel RAID supported, optional)
- Slim type 8X or above DVD +/- RW (optional)
2 x Gigabit Ethernet connectors, Intel AMT supported (GbE1- Intel 82579LM, GbE2 – Intel 82583V)
4 x Gigabit Ethernet connectors, Intel i350
- (2+4) x Gigabit Ethernet
- 2 x COM ports, 1 x isolated RS-232/422/485,
- 1 x D-SUB VGA port
1 x RS232
- 1 x HDMI
- 1 x GPIO/RS-232 (8 channels, TTL level); by pin header
- 1 x Line-out, 1 x Mic-in, 2 x 1W speaker
- 3 x USB3.0 + 2 x USB2.0 ports
Either:
- one PCI + one PCIe x1 (standard)
- two PCIe x 1 (optional)
- two PCI (optional)
Processor System
Additional Expansion
Physical
Characteristics
OS Support
Power Supply
FAN
Dimensions
Weight
OS Support
Output Rating
Input Voltage
Power Consumption
Model
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance(cd/m2)
Contrast Ratio
Backlight Lifetime
LCD Display
1 x Full-size mini PCIe (Supports mSATA)
1 x half-size mini PCIe
Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C)
442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47")
7.5Kg (16.52lb)
Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit
150 W (max.)
100 - 240V
AC
, 50/60Hz, 4-2A
With Core i5-3610ME is 65W
With Core i3-3120ME is 55W
(Burn-in test 7.0 in Windows 7 32-bit)
PPC-6170A
PPC-6150A
17" TFT LCD (LED Backlight)
15" TFT LCD (LED Backlight)
1280 x 1024
1024 x 768
262K
262K
0.264 x 0.264
0.297 x 0.297
85 (left), 85 (right), 80 (up), 80 (down)
80 (left), 80 (right), 70 (up), 70 (down)
350
350
1,000
700
50, 000 hrs (typical)
50, 000 hrs (typical)
Online Download
www.advantech.com/products
All product specifications are subject to change without notice
Last updated : 19-Mar-2014

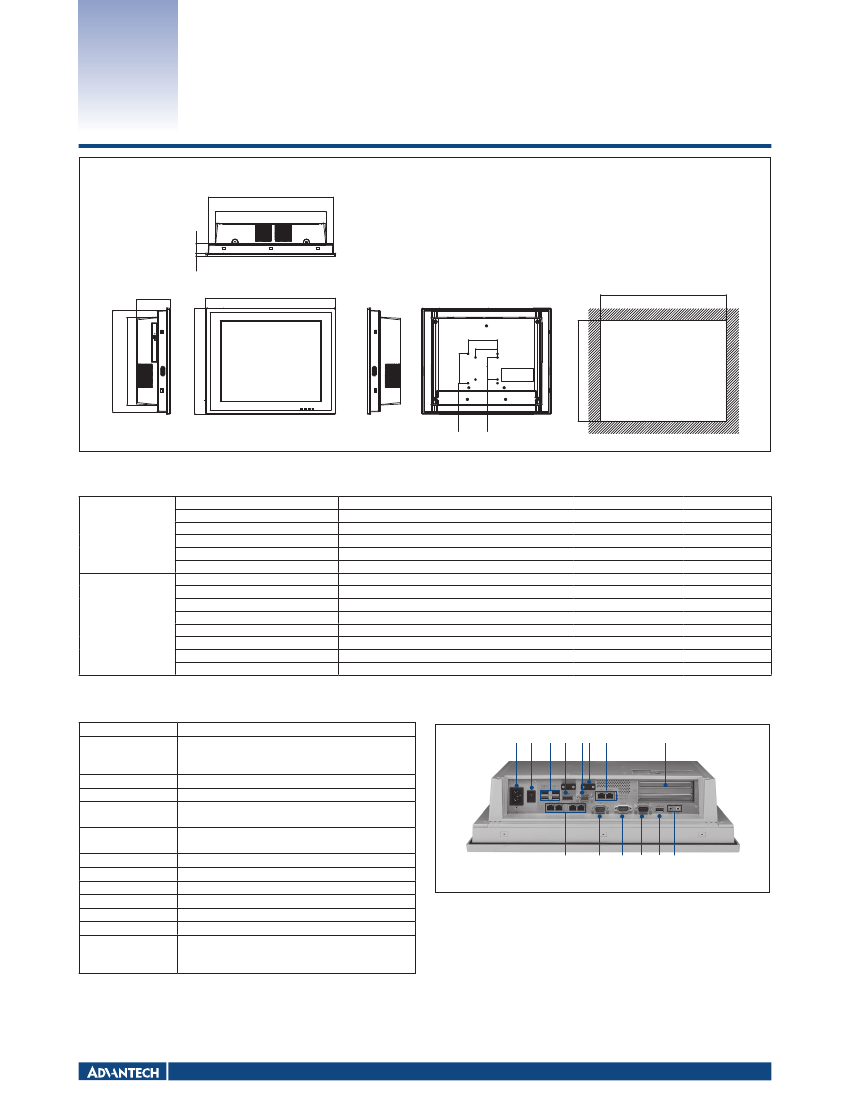

PPC-6170A / PPC-6150A
425.1
377.8
31.5
12.0
113.5
442.0
Max. depth for VESA mounting screws is 7.5 (mm)
427
100.0
75.0
345.1
298.9
362.0
100.0
75.0
347
CUT
OUT
106.0
Specifications (Cont.)
Touchscreen
Touch Type
Resolution
Light Transmission
Controller
Software Driver Support
Durability (Touches)
Operating Temperature
Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety
Front Panel Protection
Analog Resistive 5-wire
2048 x 2048
81+/-3%
RS-232 interface (COM5), USB interface is available as an option
Windows 7, XP
36 million
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
10 ~ 95% @ 40°C (non-condensing)
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Operating Random Vibration Test 5~500Hz, 1Grms, follows IEC 60068-2-64
BSMI, CE, FCC Class A
CB, CCC, BSMI, UL
IP65 compliant
Environment
Ordering Information
Part No.
PPC-6170A-Ri5AE
PPC-6150-WLANE
PPC-6150-PCIE
PPC-6150-PCIEE
PPC-6150-HDDE
PPC-6150-DVDE
PPC-174T-WL-MTE
PPC-ARM-A03
PPC-155T STAND
1702002605
1702002600
PPC-6150A-Ri5AE
Description
Intel Core i5-3610ME (2.7G) Panel PC with 17" XGA LED
backlight , 5-wire resistive T/S and 4 additional GbE ports,
w/o memory
WiFi Module with Intel 6205 support 802.11 abgn, 2T2R
Riser card support two PCI slots for PPC-6150/PPC-6170
Riser card support two PCIe x1 slots for PPC-6150/
PPC-6170
Kit to install the second 2.5" SATA HDD for PPC-6150/
PPC-6170, w/o HDD
Module with 8X SATA DVD-RW for PPC-6150/PPC-6170
Wall mount kit for PPC series
PPC ARM VESA Standard
Stand kit for PPC-6150/PPC-6170
Power cord 90D 220V EUROPEAN 250V/6A, 1.8M
Power cord UL/CSA(USA) 180D 125V/10A 1.83M
Intel Core i5-3610ME (2.7G) Panel PC with 15" XGA LED
backlight , 5-wire resistive T/S and 4 additional GbE ports,
w/o memory
I/O Placement
A
B
C
D
E F
G
H
118.5
N
M
L
K
J
I
A:
B:
C:
D:
E:
F:
G:
AC Inlet
Power Switch
USB 3.0 x 2, USB 2.0 x 2
HDMI
VGA
Cable clip x 2
Gigabit Ethernet x 2
H: 2 Expansion slots
I: Line out / Mic in
J: USB 3.0 x 1
K: GPIO / RS-232 (by swapping pin header)
L: Isolated RS-232/422/485 (selected in the
BIOS)
M: RS-232 x 1
N: Gigabit Ethernet x 4 (Intel i350)
