856756_15 Overview

1575.42 MHz SAW Filter

Data Sheet

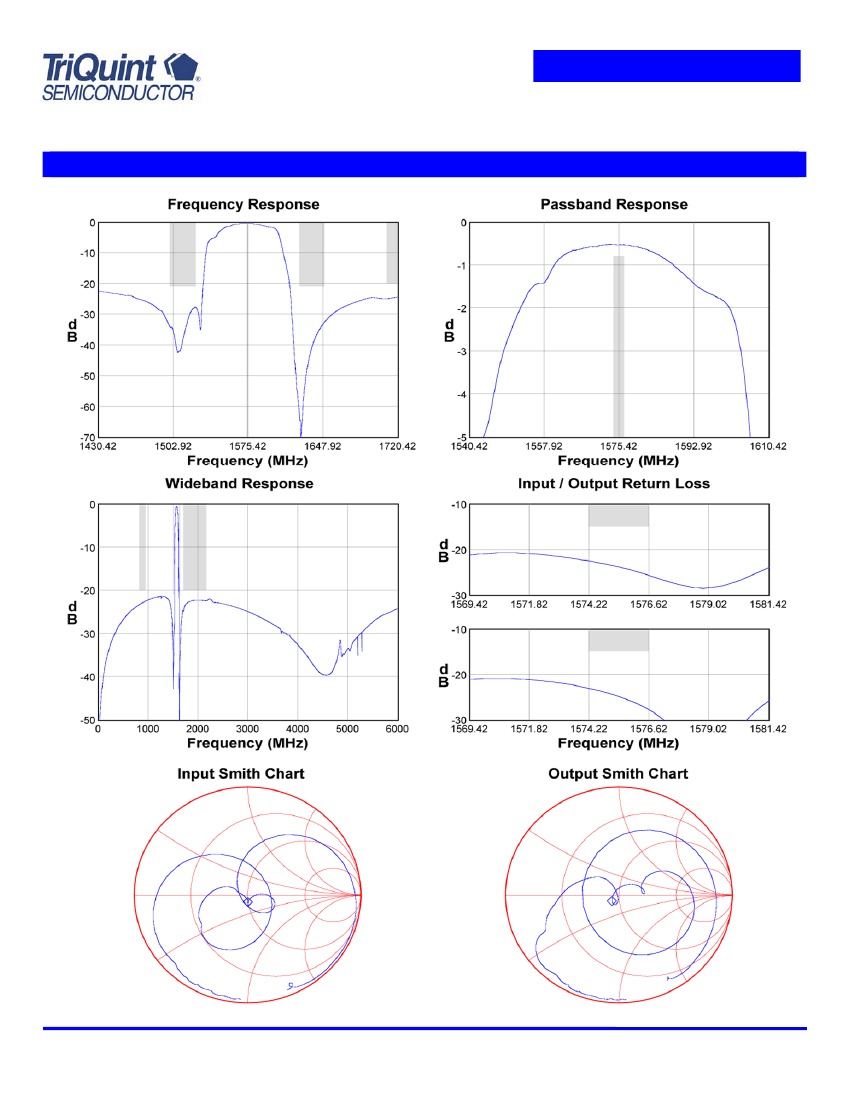

Features
Ultra low loss SAW filter for GPS applications
Usable bandwidth 2.4 MHz
Single-ended operation
Ceramic chip-scale Package (CSP)
Small Size
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb

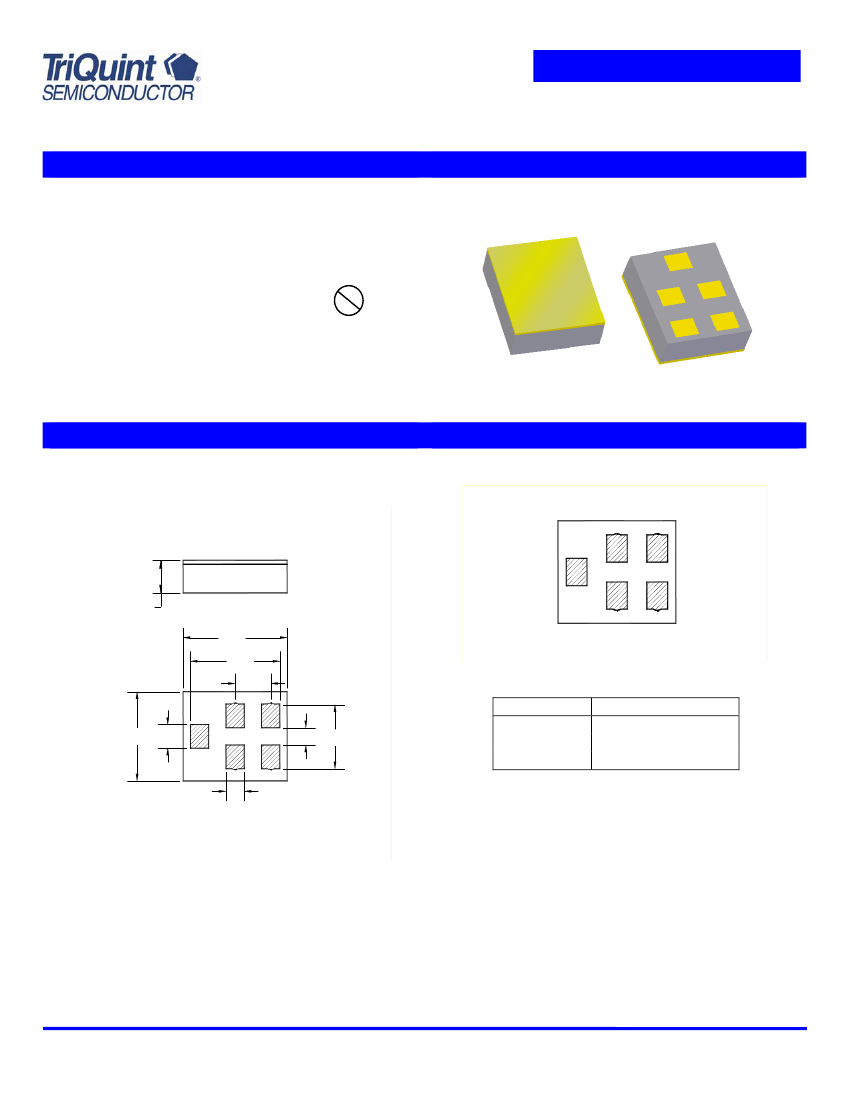

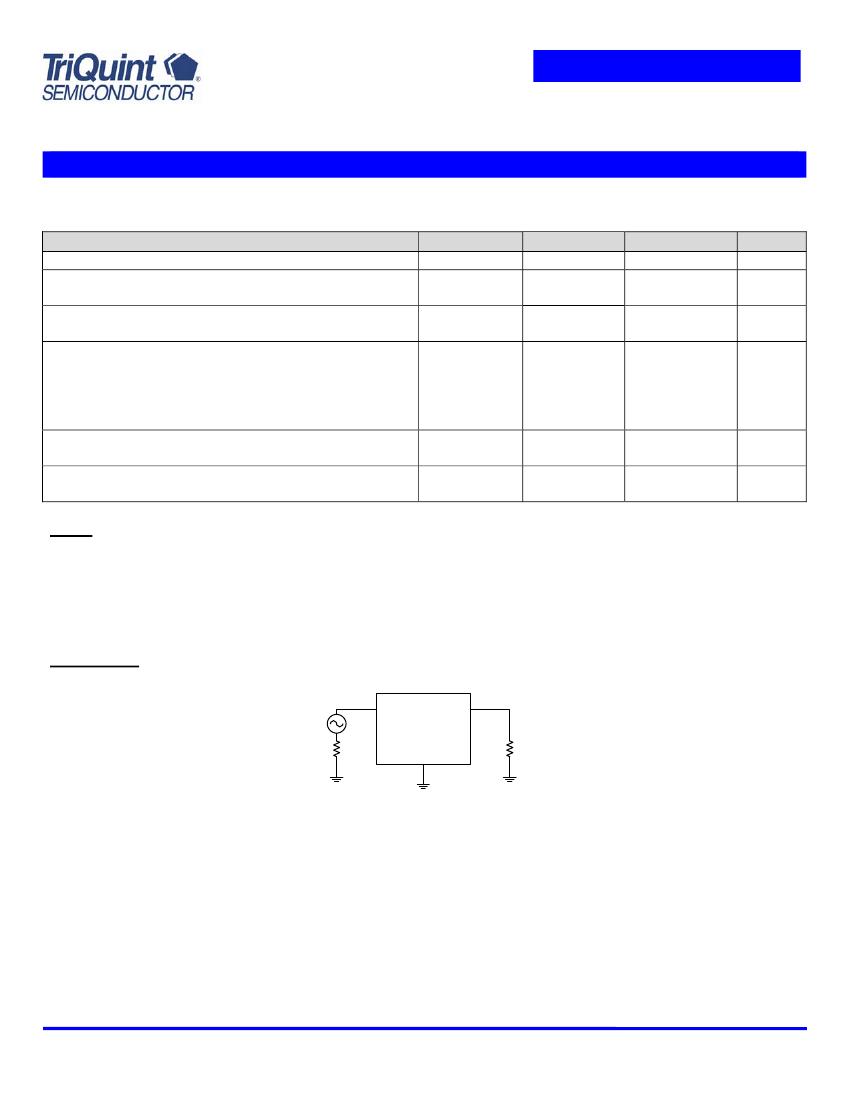

Part Number 856756
1575.42 MHz SAW Filter
Package
Surface Mount 1.40 x 1.20 x 0.46 mm
CSP-5BT

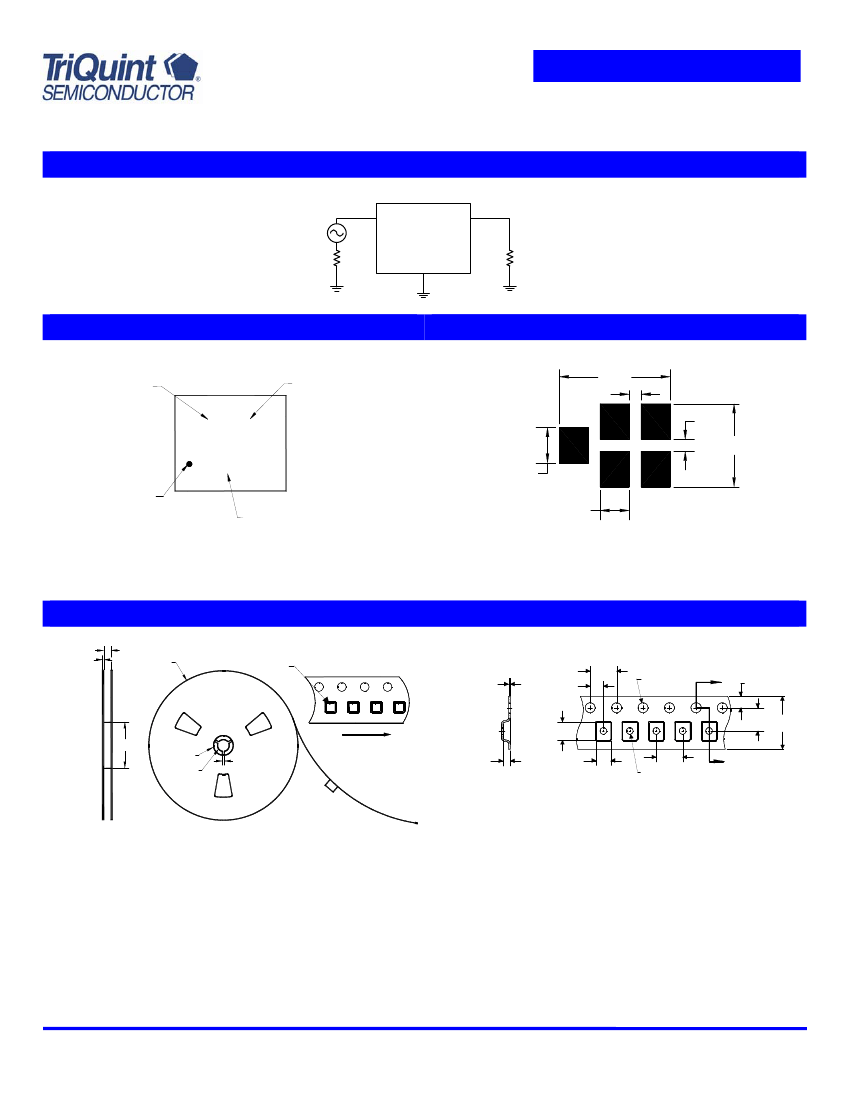

Pin Configuration
Bottom View
2
3
1
0.46 NOM.
0.50 MAX.
1.40
1.25
0.50
5
4
1.20 0.325
0.25
0.90
Pin No.
1
4
2,3,5
Description
Input
Output
Ground
0.25
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm,
over a 2 - 6μm
Ni
plating
Subject to change or obsolescence without notice
Rev A
09/08
© TriQuint Semiconductor
Page 1 of 1
