824121080 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 824121080

824121080: DescriptionUSB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Detent, Receptacle; CategoryThe connector The connector; File Size697KB，5 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

824121080 Overview

USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Detent, Receptacle

824121080 Parametric

Parameter Name	Attribute value
Objectid	304374475
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BLACK COLOUR
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.276 inch
subject depth	0.571 inch
body length	0.563 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal length	0.11 inch
Termination type	SOLDER
Total number of contacts	4

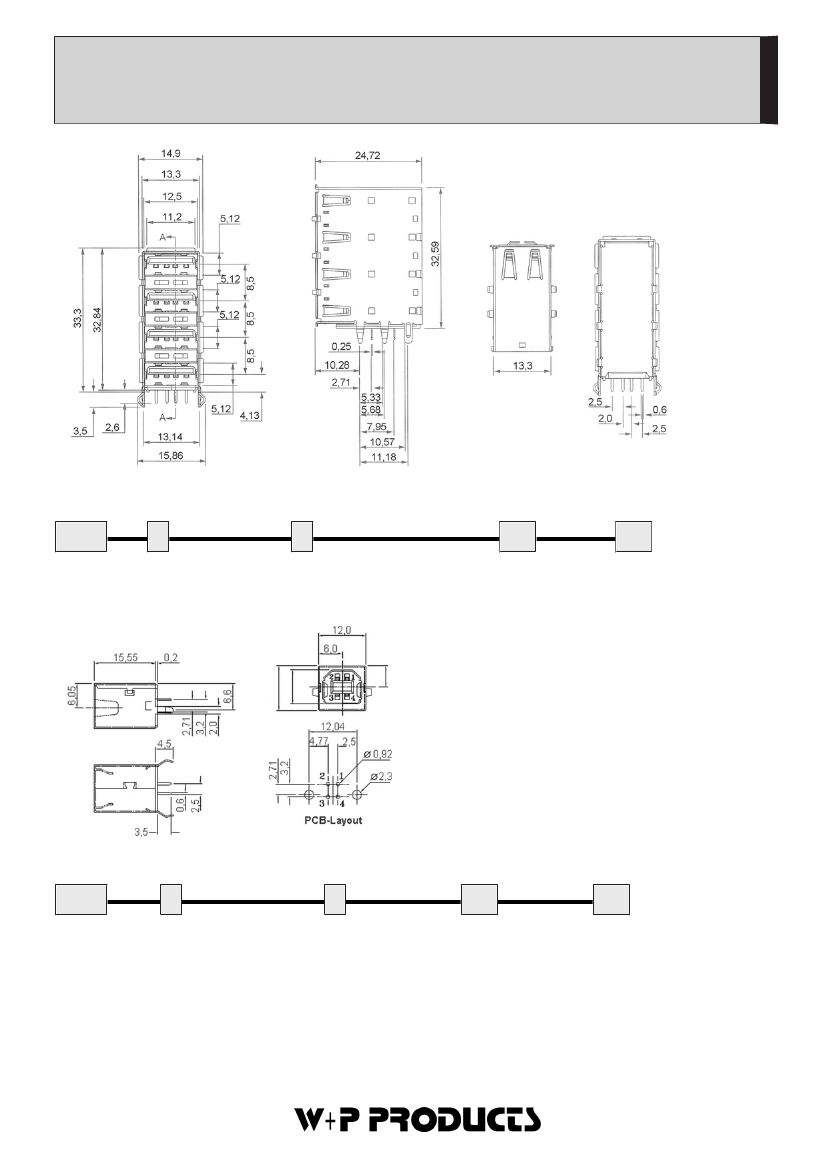

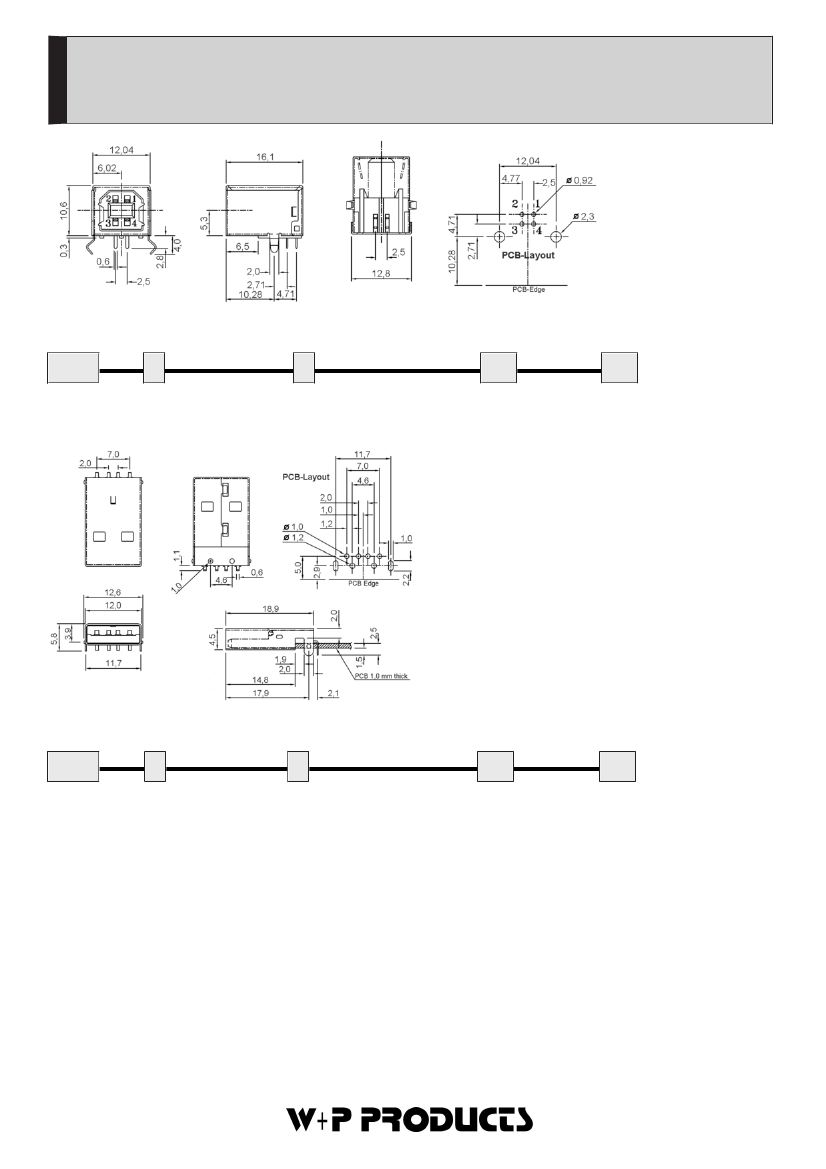

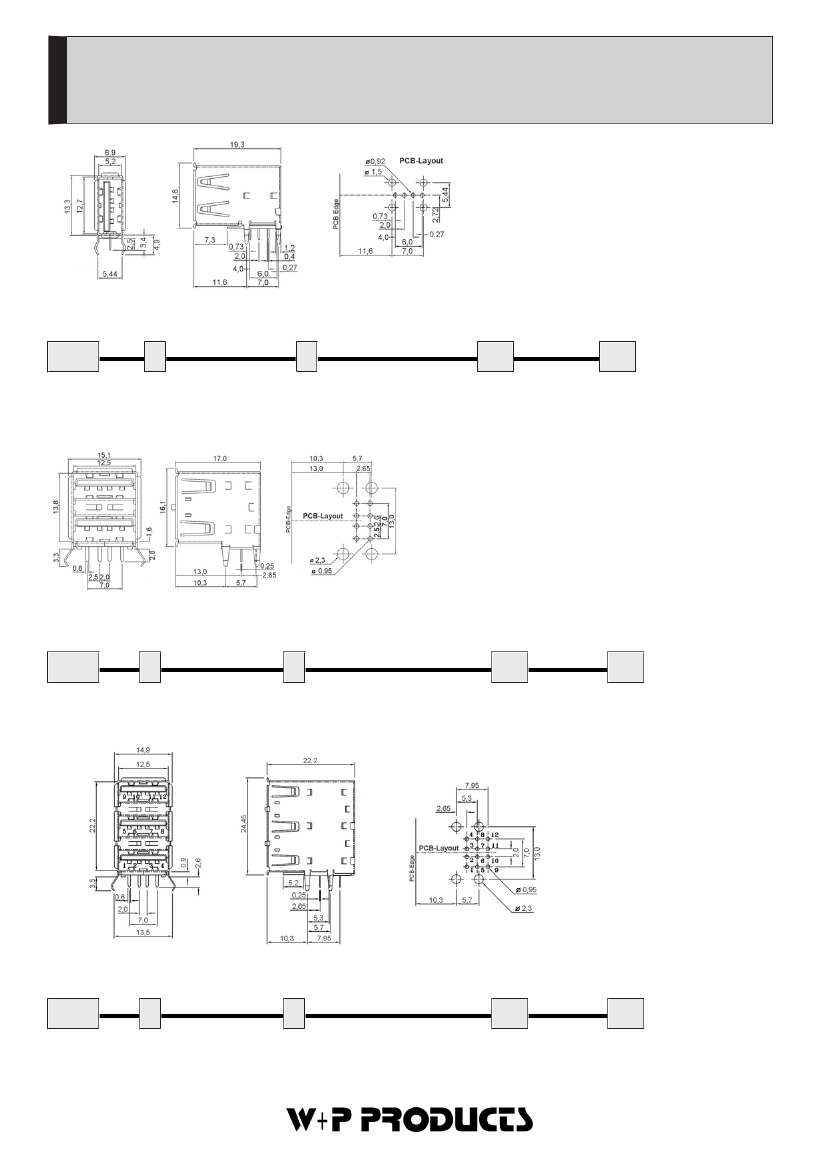

Preview

Download Datasheet

View All

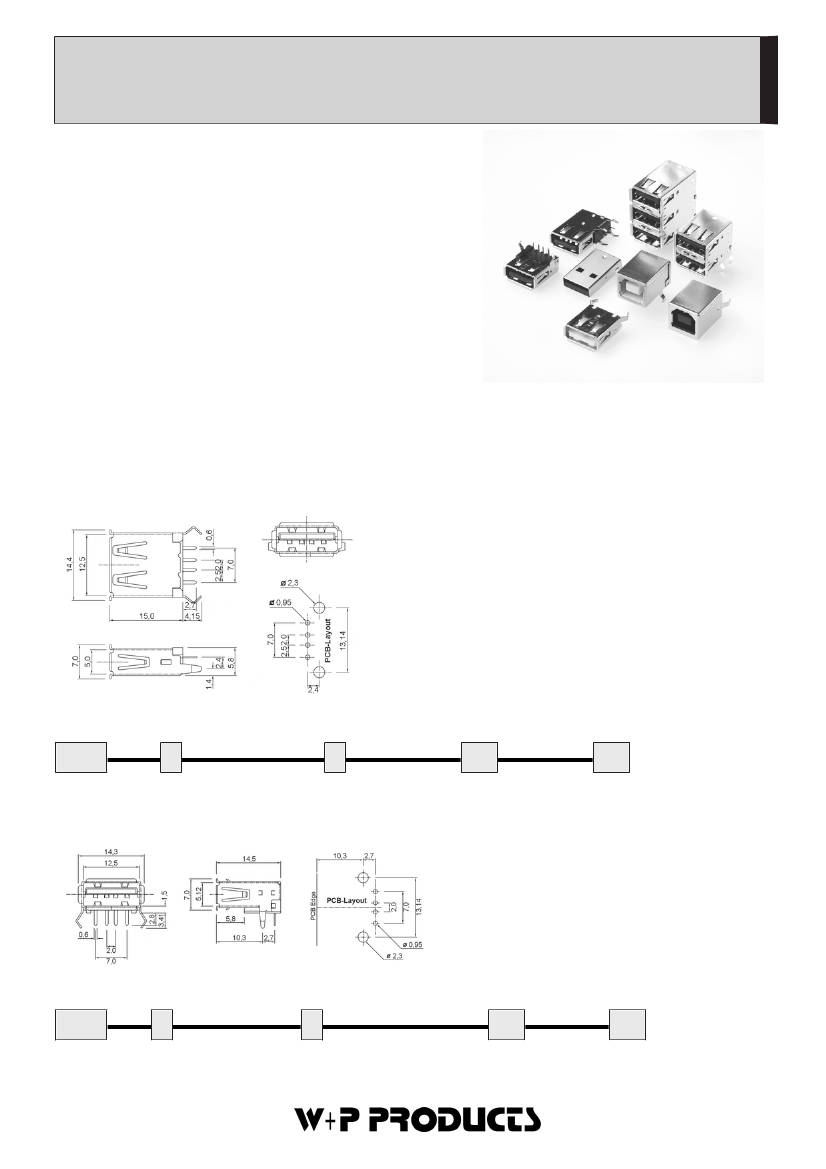

824

USB Steckverbinder

USB Connectors

Technische Daten /Technical

Data

Gehäuse

Messing, verzinnt

Shell

Tin plated brass

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Phosphorbronze

Contact Material

Phosphor bronze

Kontaktoberfläche

Gold über Nickel (siehe Optionen unten)

Contact Surface

Gold over nickel (see options below)

Oberfläche Lötanschluss

Zinn über Nickel

Plating Solder Side

Tin plated over nickel

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

Isolationswiderstand

> 5x10

Ω

Insulation Resistance

> 5x10

Ω

Spannungsfestigkeit

500V

Test Voltage

500V

Nennspannung

30V

AC/DC

Voltage Rating

30V

AC/DC

Nennstrom

Current Rating

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

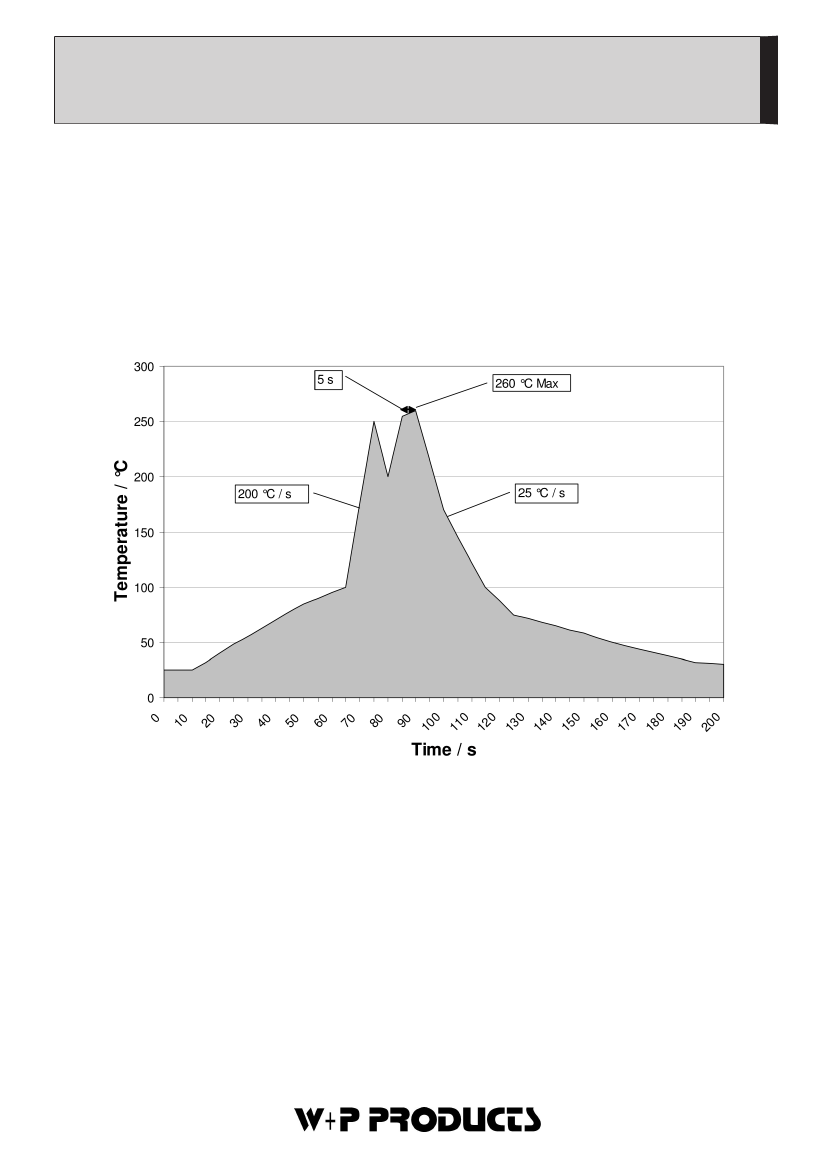

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Type

Model

Colour

Plating

824

Type A (female)

Top entry

Schwarz

Black

Beige

Ivory

Sel. Au/Sn

Sel. Au 0,75µm / Sn

Series

Type

Model

Colour

Plating

824

Type A (female)

90° gewinkelt horizontal

Horizontal, right angled

Schwarz

Black

Beige

Ivory

Sel. Au/Sn

Sel. Au 0,75µm / Sn

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

824121080 Related Products

	824121080	824122060
Description	USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Detent, Receptacle	USB Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Detent, Receptacle
Objectid	304374475	304374476
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	BLACK COLOUR	IVORY COLOUR
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	0.276 inch	0.276 inch
subject depth	0.571 inch	0.571 inch
body length	0.563 inch	0.563 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	USB CONNECTOR	USB CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ
Contact style	USB, SER A FLAT	USB, SER A FLAT
Dielectric withstand voltage	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC
Installation option 1	DETENT	DETENT
Installation option 2	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of ports	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	BRASS	BRASS
Terminal length	0.11 inch	0.11 inch
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
