LD-LRS3601
LD-LRS
2D LASER SCANNERS
Online data sheet
LD-LRS3601 | LD-LRS
2D LASER SCANNERS
A
B
C
D
E
F

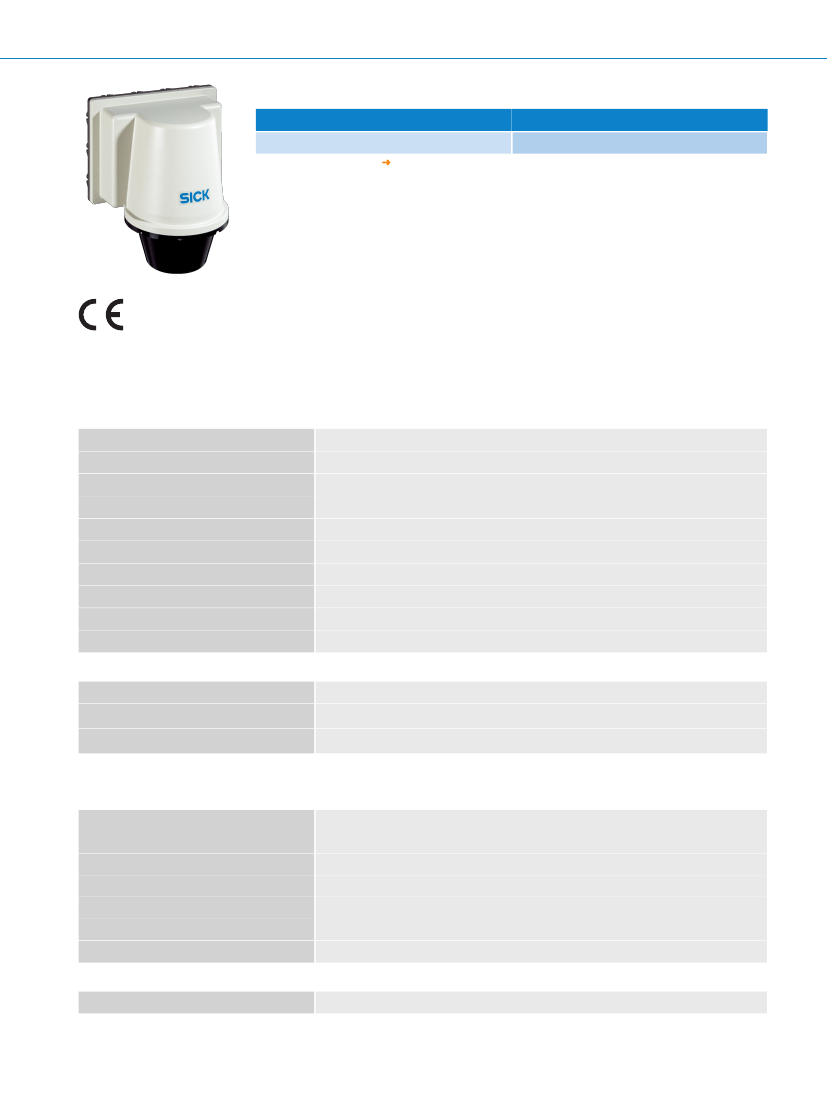

Detailed technical data
Features
Ordering information
Type
LD-LRS3601
Other models and accessories
www.sick.com/LD-LRS
Part no.
1060832
H
I
J
K
L
M
N
O
P
Q
R
S
T
Version
Field of application
Light source
Laser class
Aperture angle
Scanning frequency
Angular resolution
Heating
Operating range
Max. range with 10 % reflectivity
Long Range
Outdoor
Infrared (905 nm)
1, eye-safe (EN/IEC 60825-1)
360°
5 Hz ... 15 Hz
0.125°, 0.1875°, 0.25°, 0.375°, 0.5°, 0.75°, 1°, interlaced: 0.0625 °
Yes
2.5 m ... 250 m
80 m
Performance
Detectable object shape
Systematic error
Statistical error
1)
Almost any
± 38 mm
1)
30 mm
1)
Actual value depends on environmental conditions.
Interfaces
Serial (RS-422)
Ethernet
✔
Data transmission rate 19,200 Baud ... 115,200 Baud
✔
Data transmission rate ≤ 100 Mbit/s
Protocol TCP/IP
Switching outputs
Optical indicators
4 (digital)
0
Mechanics/electronics
Electrical connection
1 x 20-pin Harting plug
2
DETECTION AND RANGING SOLUTIONS | SICK
Online data sheet | 2016-03-19 03:20:07
Subject to change without notice
LD-LRS3601 | LD-LRS
2D LASER SCANNERS
Operating voltage
Power consumption
Housing
Housing color
Enclosure rating
Protection class
Weight
Dimensions (L x W x H)
24 V DC, ± 15 %
36 W, + 140 W heating
PU (polyurethane rigid integral foam)
Gray (RAL 7032)
IP 67
III
9.1 kg
250 mm x 350 mm x 391.1 mm
Ambient data
Ambient operating temperature
Storage temperature
–25 °C ... +50 °C
–25 °C ... +80 °C
General notes
Note on use
Not suitable for personnel protection

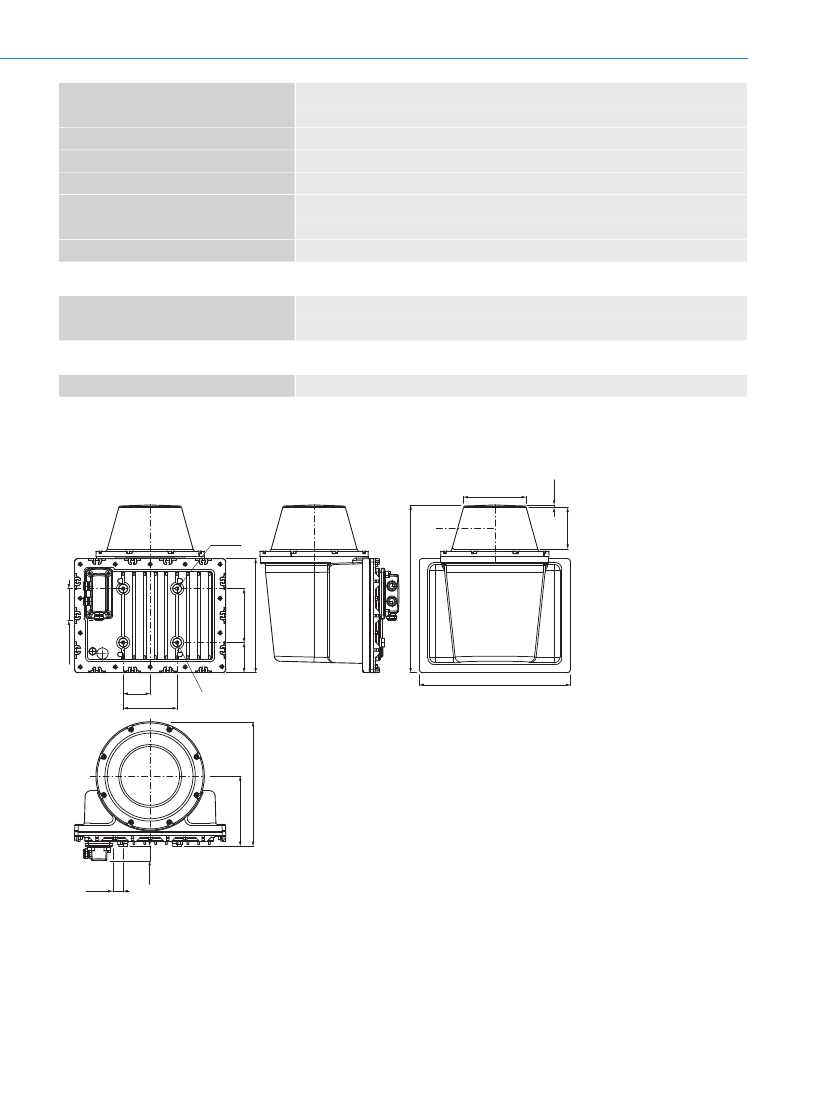

Dimensional drawing
(Dimensions in mm (inch))
2
2
1
4
125
(4.92)
264.6
(10.42)
389
(15.31)
146
(5.75)
(0.24)
6
4 x Ø 20
(0.79)
4
73.5
(2.89)
(2.75)
69.8
62.5
(2.46)
351
(13.82)
125
(4.92)
3
2
162.9
(6.41)
24.1
(0.95)
① Optical
axis
② Zero
level
③ Mounting
hole M6 threaded –9 mm deep
④ RS-232/Ethernet/Power
connection (20-pin harting connector)
2016-03-19 03:20:07 | Online data sheet
Subject to change without notice
(1.33)
33.8
4
288.5
(11.36)
DETECTION AND RANGING SOLUTIONS | SICK
96
(3.78)
3
LD-LRS3601 | LD-LRS
2D LASER SCANNERS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Operating range diagram
Scanning range in m (ft)
300
(984.25)
200
(656.17)
360°
100
(328.08)
0
–100
(–328.08)
–200
(–656.17)
–300
(–984.25)
–300
(–984.25)
–100
(–328.08)
0
100
(328.08)
300
(984.25)
Scanning range in m (ft)
Scanning range max. 250 m (820.21 ft)
Scanning range white targets
90 % remission 250 m (820.21 ft)
Scanning range for objects up to
10 % remission 120 m (393.70 ft) Extended
Scanning range for objects up to
10 % remission 80 m (262.47 ft)
Recommended accessories
Other models and accessories
www.sick.com/LD-LRS
Brief description
Type
Part no.
Test and monitoring tools
Scan finder, receiver to localize infrared scans
Scan-Finder LS-80A
6020756
4
DETECTION AND RANGING SOLUTIONS | SICK
Online data sheet | 2016-03-19 03:20:07
Subject to change without notice
Online data sheet
