354081 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 354081

354081: Description40 CONTACT(S), FEMALE, RIGHT ANGLE BOARD STACKING CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354081 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354081	-	-	View	Buy Now

354081 Overview

40 CONTACT(S), FEMALE, RIGHT ANGLE BOARD STACKING CONNECTOR, SURFACE MOUNT

354081 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Base Number Matches	1

Preview

Download Datasheet

View All

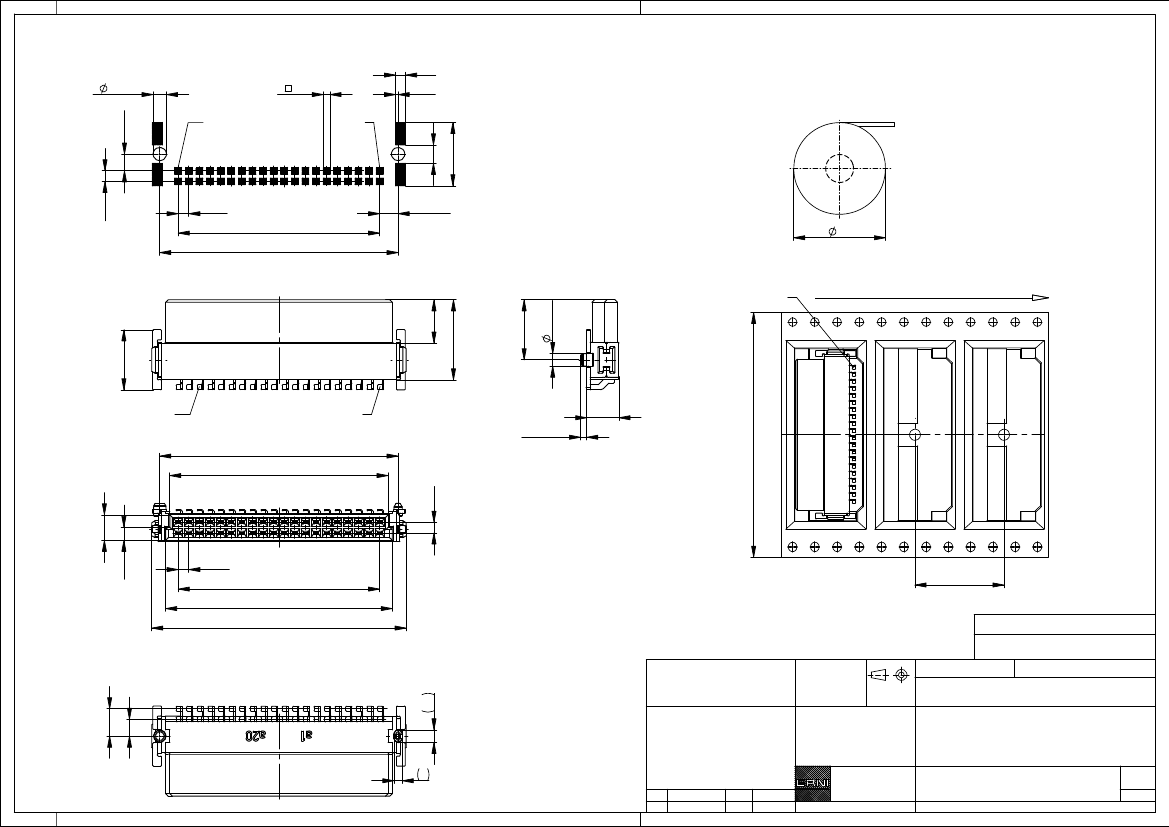

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

1,6

-0,03

±0,05

a20

0,8

1,2

0,3

7,6

2,2

Verpackt im Gurt nach DIN IEC 60286-3

Tape on Reel Packaging according to DIN IEC 60286-3

Packaging unit: 560 pcs

Verpackungseinheit: 560 Stück

1,27

19 x 1,27 = 24,13

28,55

±0,03

2,21

±0,03

330

1,5

-0,03

5,2

Abspulrichtung -

Reel off Direction

7,2

b20

0,75

-0,05

28,55

±0,03

26,15

1,27

Anforderungsstufe 1

9,6

7,2

3,85

Performance Level 1

Kontaktbereich vergoldet

3,05

Mating Area gold plating

Anschlussbereich verzinnt 4-6 µm

1,55

1,27

19 x 1,27 = 24,13

27,15

30,48

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

Coplanarity Area of Termination

≤

0,1 mm

BA7-03 - Standard Bauhöhe

type7-03 - standard assembly height

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

1,5

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

22.04.2014

Date

3,27

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federl. SMC-Q 40-SMD-BA7-03

Female SMC-Q 40-SMD-type7-03

www.ERNI.com

Class

354081

SMCQ
