FMXMC4S118HHA-23.900000M-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FMXMC4S118HHA-23.900000M-TR

FMXMC4S118HHA-23.900000M-TR: DescriptionParallel - Fundamental Quartz Crystal, 23.9MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size185KB，1 Pages; ManufacturerFrequency Management International; Environmental Compliance

Download Datasheet Parametric View All

FMXMC4S118HHA-23.900000M-TR Overview

Parallel - Fundamental Quartz Crystal, 23.9MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

FMXMC4S118HHA-23.900000M-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1313474647
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	23.9 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L4.0XB2.5XH0.8 (mm)/L0.157XB0.098XH0.031 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

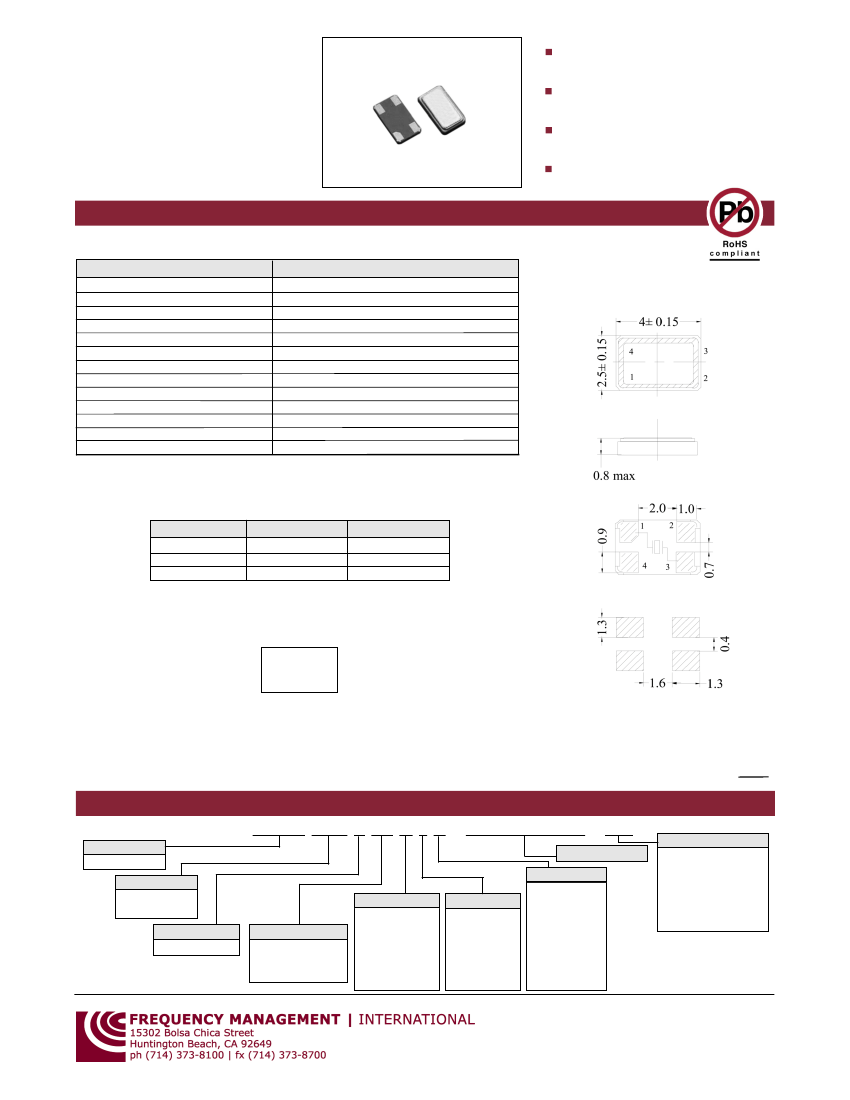

FMXMC4S

SERIES

Microprocessor Crystals

Surface Mount Ceramic Pkg.

Miniature 4-Pad / Ultra Thin

High Reliability

Tight Stability

CERAMIC SMD 4x2.5

SPECIFICATIONS

Issue 2 | 07252012

Parameter

Frequency Range

Operation Mode

Load Capacitance (CL)

Frequency Tolerance

Temperature Tolerance

Operating Temperature

Storage Temperature

Equivalent Series Resistance (ESR)

Shunt Capacitance (C0)

Drive Level

Aging @ +25°C

Insulation Resistance

Reflow Conditions

All specifications subject to change without notice.

Specification

12 - 50 MHz

See Operation Mode and ESR Table

18 pF Std, 6 - 60 pF and Series available

±30 ppm @ 25°C Std (See Cal. Tol. for Options)

±50 ppm Std (See Temp. Tol. for Options)

-10 to +60°C Std (See Temp. Range for Options)

-40 to +85°C / -55 to +125°C

See Operation Mode and ESR Table

7 pF max

10 µW typical, 300 µW max

±3 ppm typical; ±5 ppm per year max

500MΩ min at 100V

±15V

+260ºC ±10ºC for 10 sec max 2 reflows max

4x2.5 CERAMIC SMD

OPERATION MODE AND ESR TABLE

Frequency (MHz)

12.0 - 19.9

20.0 - 23.9

24.0 - 50.0

Mode

Fundamental

Max. ESR (Ohms)

STANDARD MARKING

XXX.XXXM

XXXXXXX

FMI YYWW

XXX.XXXM FREQUENCY in MHz

XXXXXXX Part Number

FMI, Date Code

Recommended Solder Pad Layout

NOTE: Standard Specifications for product indicated in

color

Dimensions:

Inches

(mm)

PART DESCRIPTION SYSTEM

MARKING: See Page 52, Format A

FMXM C4S 1 18 H J A - XX.XXXXXXM - CM

Product Family

MicroP Crystal

Package

Ceramic SMD

4x2.5mm, 4 pad

Mode

1 - Fundamental

Load Cap. (CL)

18 - Standard (pF)

00 - Series

XX - Custom (pF)

Cal. Tol. @ 25°C

D ±10 ppm

F ±20 ppm

H ±30 ppm

J ±50 ppm

K ±100 ppm

X Custom

Frequency (MHz)

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

F -30 to 60 °C

J 0 to 50 °C

X Custom

Options

TR - Tape & Reel

PD - Parameter Data

TD - Temp. Data

TG - Temp. Grading

CM - Custom Mark

BLANK - None Req’d.

Temp. Tol.

D ±10 ppm

F ±20 ppm

H ±30 ppm

J ±50 ppm

K ±100 ppm

X Custom

1-800-800-XTAL

[9825]

www.fmi-inc.com
