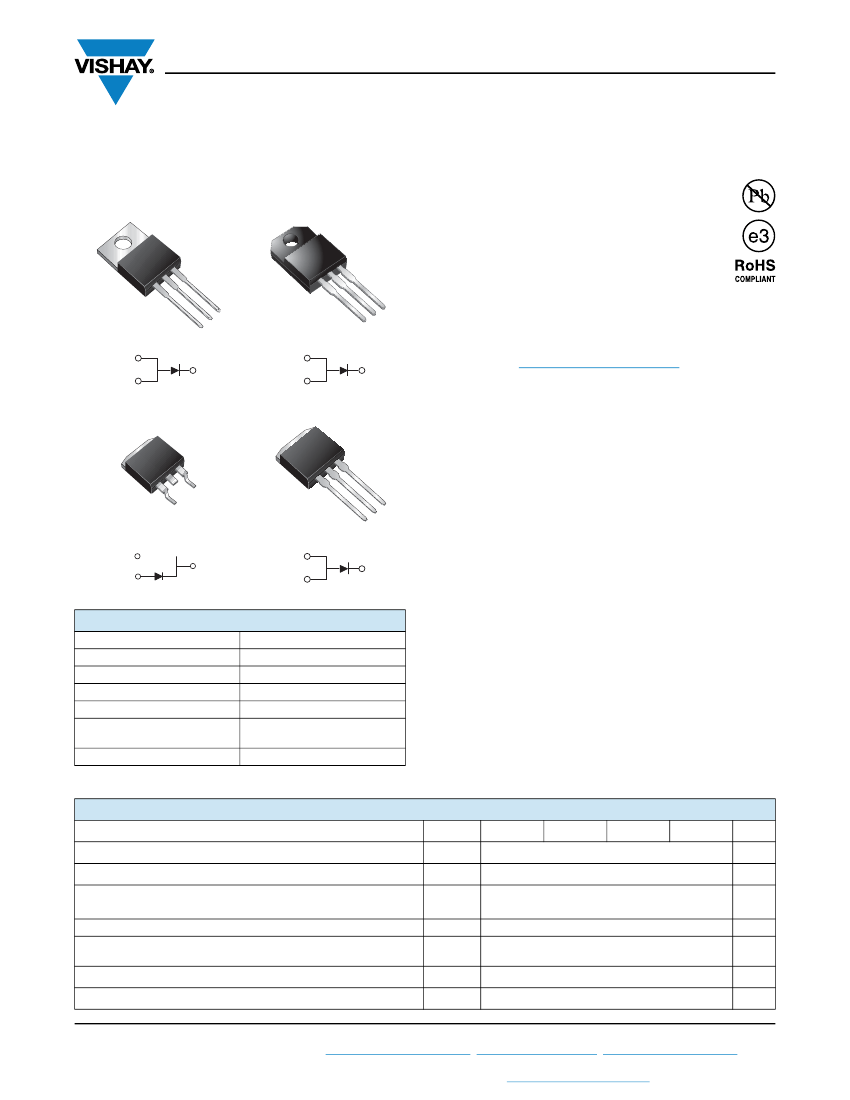

VT2080S-E3, VFT2080S-E3, VBT2080S-E3, VIT2080S-E3

www.vishay.com

Vishay General Semiconductor

Ultra Low V

= 0.46 V at I

= 5 A

Trench MOS Barrier Schottky Rectifier

TMBS

TO-220AB

ITO-220AB

FEATURES

• Trench MOS Schottky technology

• Low forward voltage drop, low power losses

• High efficiency operation

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

VT2080S

PIN 1

PIN 2

CASE

VFT2080S

PIN 1

PIN 2

• Solder bath temperature 275 °C maximum, 10 s,

per JESD 22-B106 (for TO-220AB, ITO-220AB,

and TO-262AA package)

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

PIN 3

TO-263AB

TO-262AA

TYPICAL APPLICATIONS

For use in high frequency converters, switching power

supplies, freewheeling diodes, OR-ing diode, DC/DC

converters and reverse battery protection.

VBT2080S

HEATSINK

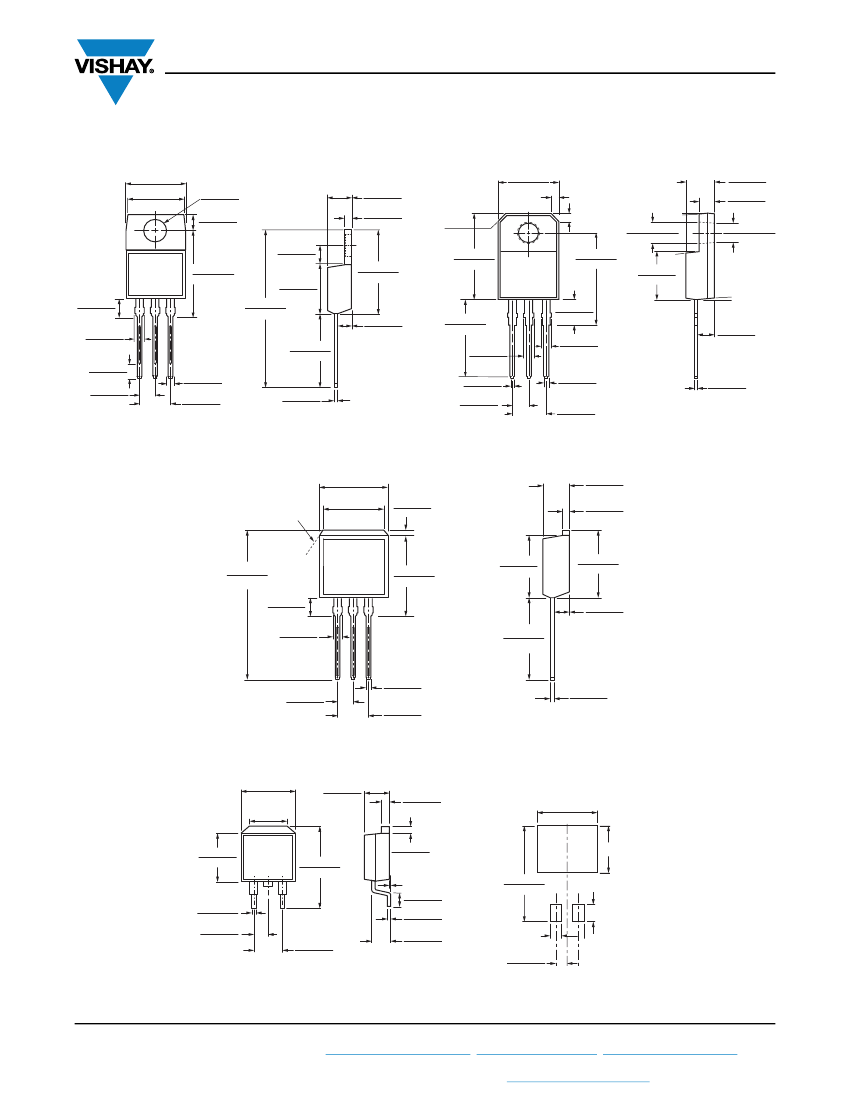

MECHANICAL DATA

VIT2080S

PIN 1

PIN 2

Case:

TO-220AB,

ITO-220AB,

TO-263AB

and

TO-262AA

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum



per

PIN 3

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 20 A

max.

Package

Diode variations

20 A

80 V

150 A

0.70 V

150 °C

TO-220AB, ITO-220AB,

TO-263AB, TO-262AA

Single die

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half

sine-wave superimposed on rated load per diode

Non-repetitive avalanche energy at T

= 25 °C, L = 60 mH

Peak repetitive reverse current at t

= 2 μs, 1 kHz,

= 38 °C ± 2 °C

Isolation voltage (ITO-220AB only) from terminal to heatsink t = 1 min

Operating junction and storage temperature range

Revision: 11-Sep-13

SYMBOL

RRM

F(AV)

FSM

RRM

, T

STG

VT2080S

VFT2080S VBT2080S

150

160

1.0

1500

-55 to +150

VIT2080S

UNIT

°C

Document Number: 89167

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
