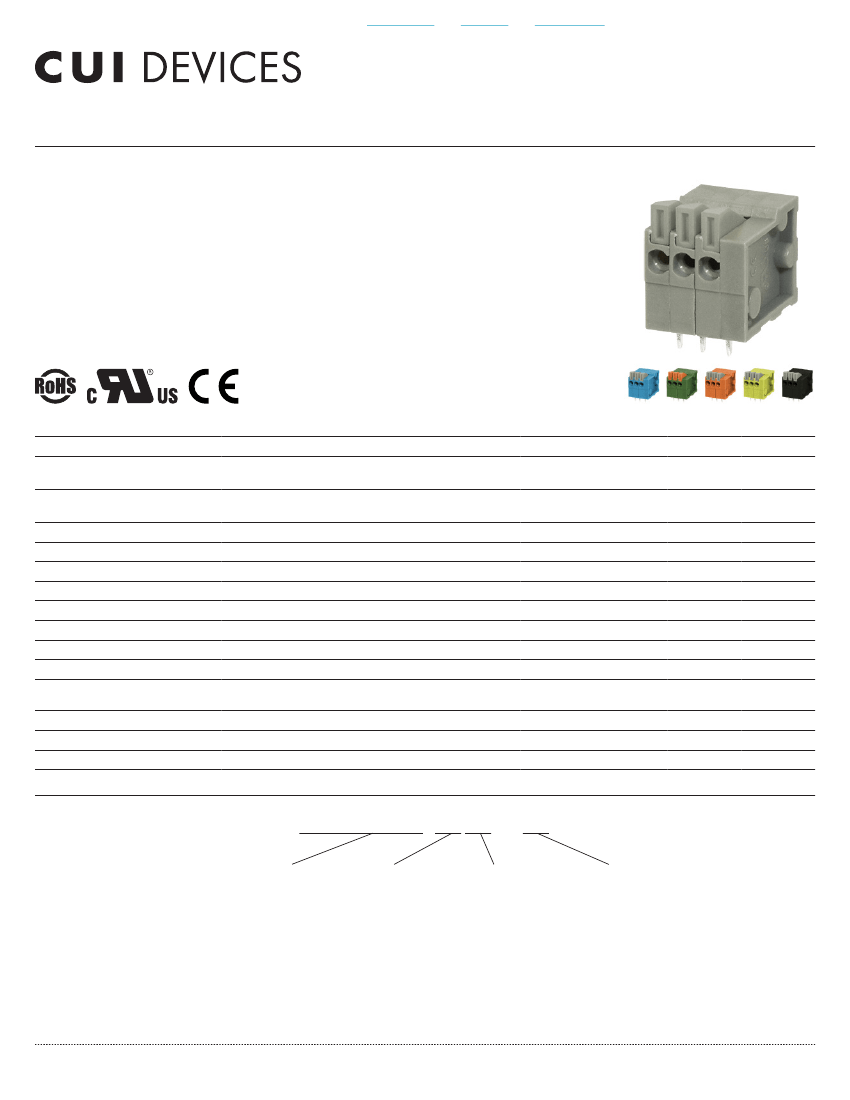

SERIES:
TBL003-254
│
DESCRIPTION:
TERMINAL BLOCK
FEATURES
• 1~24 poles
• horizontal with board
•
•
•
•
interlocking (side)
lever actuated
2.54 mm pitch
UL and CE safety approvals
SPECIFICATIONS
parameter
rated voltage (per contact)
rated current (per contact)
withstanding voltage
surge voltage
contact resistance
insulation resistance
operating temperature
safety approvals
flammability rating
RoHS
UL 1059, EN 60998-1:2004, EN 60998-2-1:2004
UL94V-0
yes
at 500 Vdc
500
-40
105
conditions/description
UL
IEC
UL
IEC
1250
2500
20
min
typ
max
150
130
2
6
units
V
V
A
A
Vac
V
mΩ
MΩ
°C
SOLDERABILITY
parameter
hand soldering
wave soldering
conditions/description
for maximum 10 seconds
for maximum 5 seconds
min
345
255
typ
350
260
max
355
265
units
°C
°C
PART NUMBER KEY
TBL003-254-
XX XX -
2XX
Base Number
No.
01
02
03
04
05
06
07
08
of Poles:
09 17
10 18
11 19
12 20
13 21
14 22
15 23
16 24
Body Color:
BE = blue
*GR = green
OR = orange
YL = yellow
GY = gray
BK = black
Push Button Color:
BE = blue
GR = green
*OR = orange
YL= yellow
GY = gray
BK = black
WT = white
*Standard housing color is green with orange push button. All other colors are subject to higher MOQ. Please inquire with CUI Devices sales for details.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
TBL003-254
│
DESCRIPTION:
TERMINAL BLOCK
date
04/20/2020│
page
2 of 3

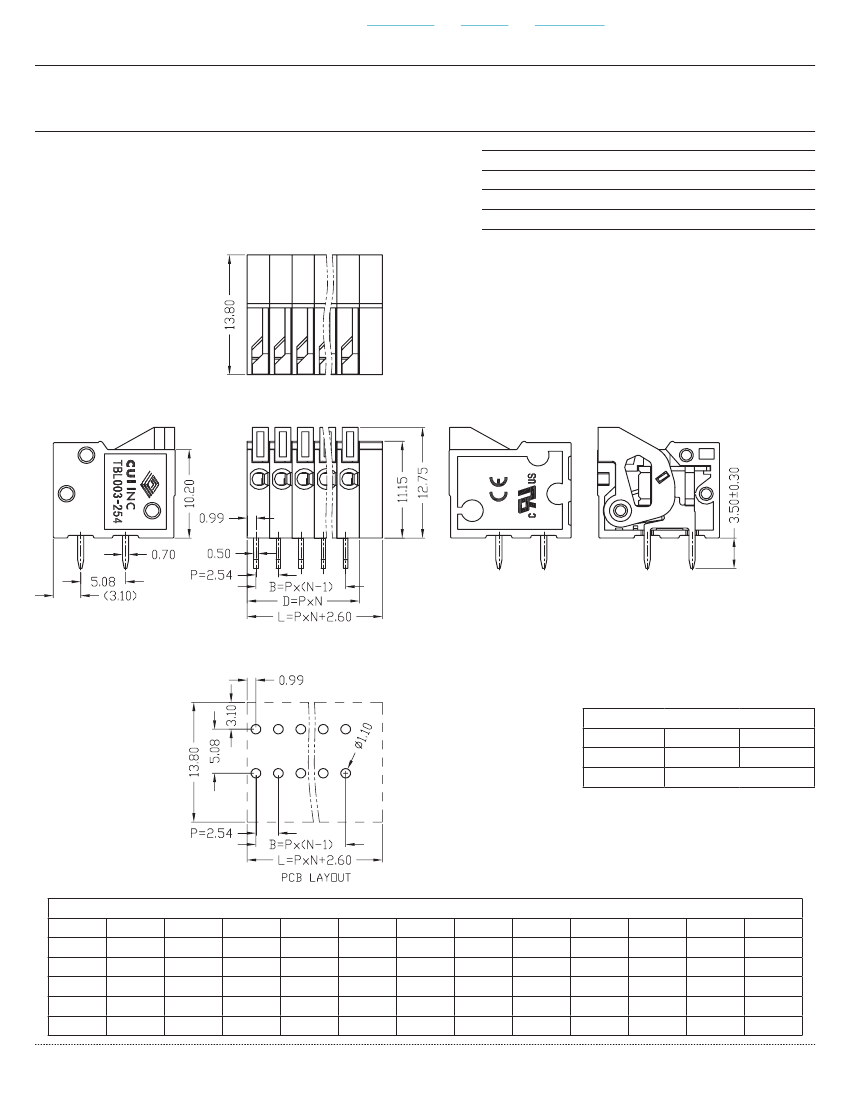

MECHANICAL DRAWING
units: mm
tolerance (per module):
X≤6.00: ±0.25 mm
6.00<X≤30.00: ±0.40 mm
unless otherwise noted
DESCRIPTION
housing
contacts
spring
MATERIAL
PA66 (UL94V-0)
copper alloy
stainless steel
tin
PLATING/COLOR
WIRE ASSEMBLY
UL
Wire Range
Strip Length
24~20 AWG
11 mm
IEC
1.0 mm
2
This series is constructed of 1 pole modules where L is the total length, P is the pitch, and N is the number of poles.
N
L
B
N
L
B
01
5.14
--
13
35.62
30.48
02
7.68
2.54
14
38.16
33.02
03
10.22
5.08
15
40.70
35.56
04
12.76
7.62
16
43.24
38.10
05
15.30
10.16
17
45.78
40.64
06
17.84
12.70
18
48.32
43.18
07
20.38
15.24
19
50.86
45.72
08
22.92
17.78
20
53.40
48.26
09
25.46
20.32
21
55.94
50.80
10
28.00
22.86
22
58.48
53.34
11
30.54
25.40
23
61.02
55.88
12
33.08
27.94
24
63.56
58.42
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
TBL003-254
│
DESCRIPTION:
TERMINAL BLOCK
date
04/20/2020│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
brand update
updated datasheet
date
04/17/2019
02/06/2020
04/20/2020
The revision history provided is for informational purposes only and is believed to be accurate.
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
effectiveness.
cuidevices.com
