34691-9201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34691-9201

34691-9201: DescriptionStac64â¢ Right Angle Header, 20 Circuits, Polarization B, Gray, Tube; CategoryThe connector The connector; File Size59KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

34691-9201 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34691-9201	-	-	View	Buy Now

34691-9201 Overview

Stac64â¢ Right Angle Header, 20 Circuits, Polarization B, Gray, Tube

34691-9201 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Board mount options	PEG
body width	0.868 inch
body length	1.34 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	60.048 N
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
reliability	COMMERCIAL
Terminal length	0.119 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	75.616 N

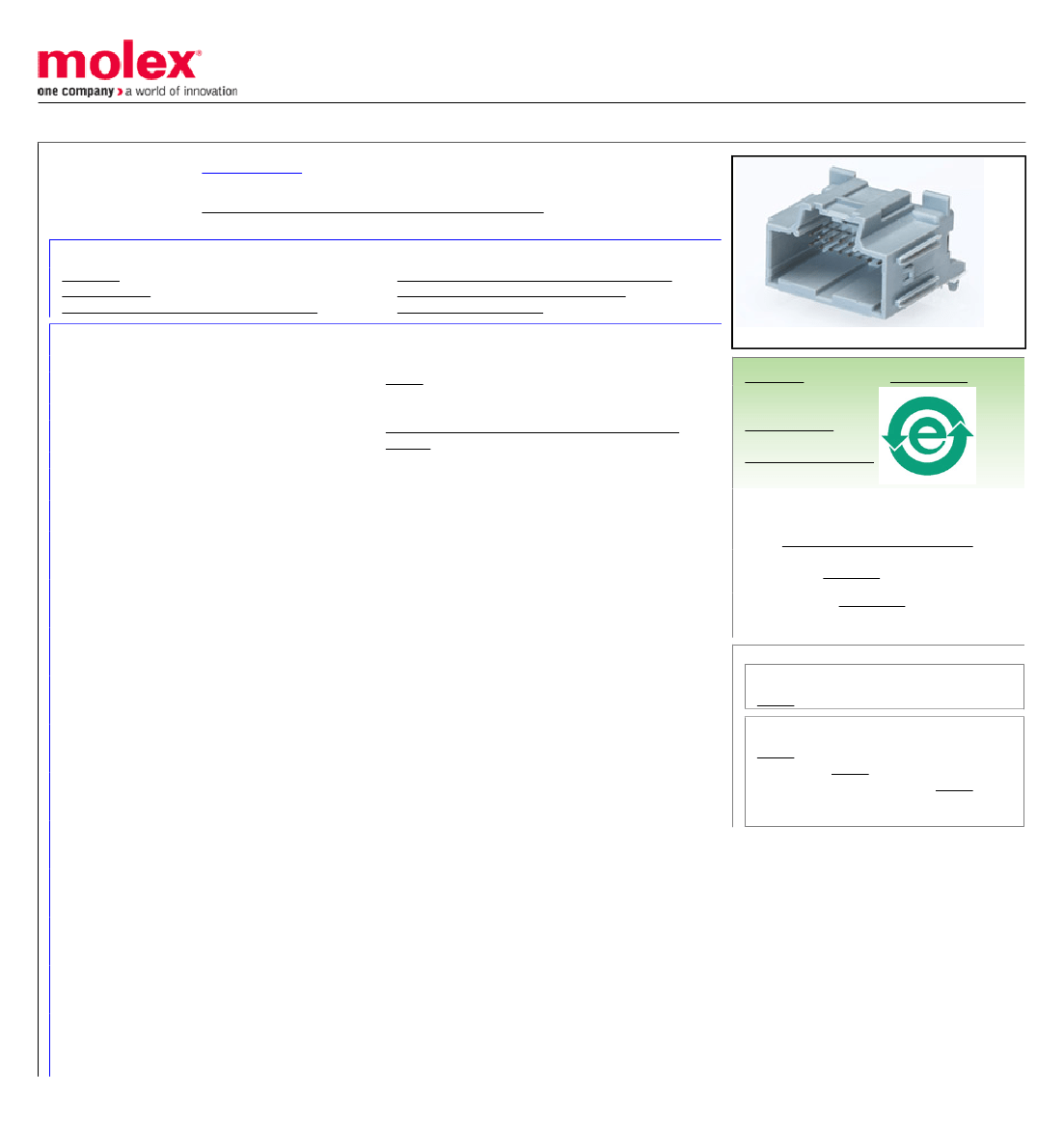

Preview

Download Datasheet

View All

This document was generated on 08/27/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

34691-9201

Active

Stac64™ Single, Multi-Pocket and Hybrid Header System

Stac64™ Right Angle Header, 20 Circuits, Polarization B, Gray, Tube

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34729-020 (PDF)

Application Specification AS-34729-020 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series

image - Reference only

PCB Headers

34691

Power, Wire-to-Board

Polarization B

Stac64™ Single, Multi-Pocket and Hybrid Header

System

987650-4561

Stac64™

883906211691

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

Comments

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Gray

None

Yes

Brass

Tin

High Temperature Thermoplastic

8.613/g

Right Angle

3.36mm

Yes

None

1.57mm

Tube

2.54mm

Yes

N/A

-40°C to +105°C

Through Hole

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

34691Series

Mates With

31408 USCAR 2.54mm (.100”) Pitch

Receptacle, 31372 5.25mm (.206") Pitch

Hybrid Receptacle Assembly, 34729

2.54mm (.100") Pitch Stac64™ Right Angle

Receptacle

Electrical

Current - Maximum per Contact

10A

Recommended Resources

Output voltage 22.5V DC booster circuit diagram

Applying 555 circuit to transform the control circuit of foot-operated spot welding machine

High reliability energy-saving lamp electronic ballast circuit diagram using IR51H420

Transistor drive circuit for ultrasonic sensor

SCR high voltage linear amplifier circuit
