384284: DescriptionMale Conn. CD128 solder Clip; File Size72KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

384284 Overview

Male Conn. CD128 solder Clip

Preview

Download Datasheet

View All

2,5

-0,2

d32

85,2

+0,2

Stecklänge / mating length

ESL

max. 13,7

11,3

+0,2

±0,1

a32

2,54

31x2,54=78,74

0,6

max. 94

3 x 2,54 (=7,62)

3,95

-0,4

E =

early mate, late break

/ voreilend

S = standard

L = late mate, early break / nacheilend

12,7

10,2

-0,2

max.12,1

2,54

XXXXXXX

Datum

ERNI

Anforderungsstufe

RC 2

6,4

-0,1

2,5

date

class

87,5

88,9

Stecklänge

mating length

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Lötanschluss 0,6x0,6mm

/ solder terminal 0,6x0,6mm

Bauart 4 / t

ype 4

+0,1

a b c d

Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

3 x 2,54 (=7,62)

+0,1

±0,1

0,05

alle Löcher/

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

2,54

5,3

±0,1

2,54

31 x 2,54 (=78,74)

88,9

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

10.12.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

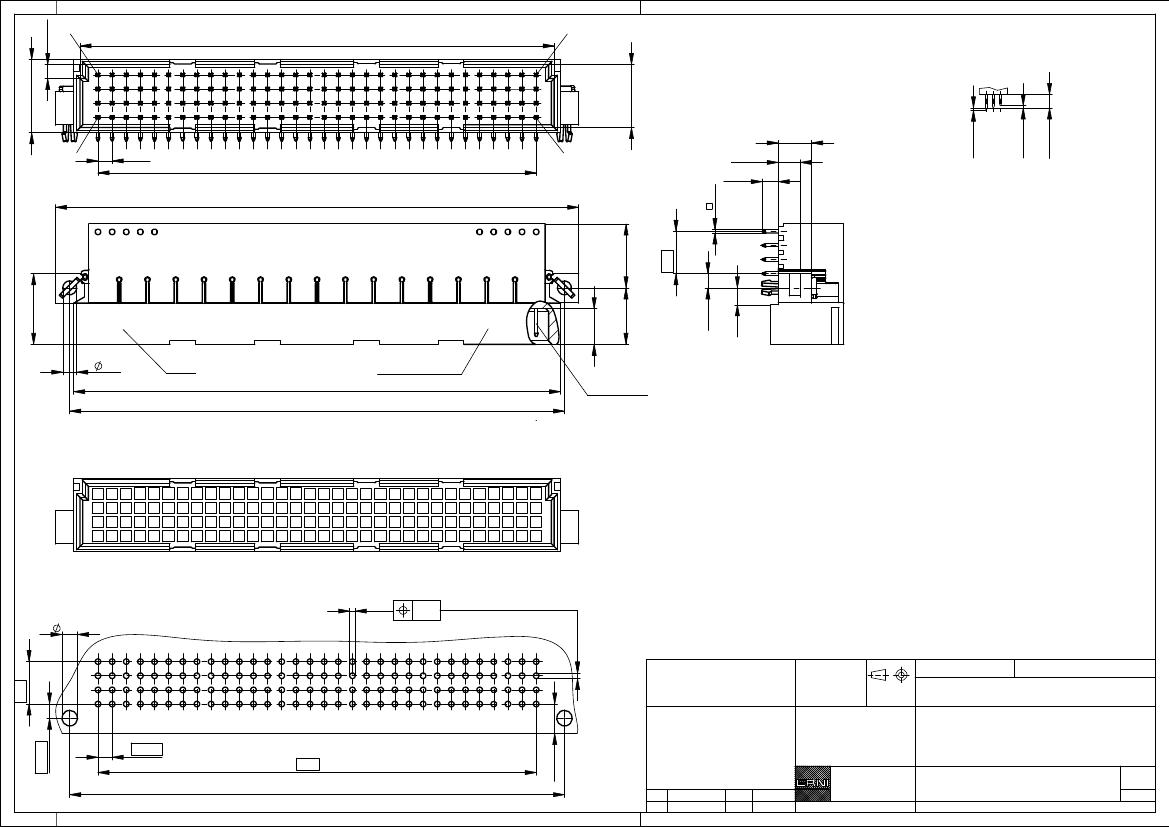

Messerleiste CD128 Löt +Clip

Male Conn. CD128 solder+Clip

www.ERNI.com

Class

384284

STVCD

4,8

±0,2

0,8

±0,1

0,8

±0,1
