5264-03: Description3 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5264-03 Overview

3 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

5264-03 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5264
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Base Number Matches	1

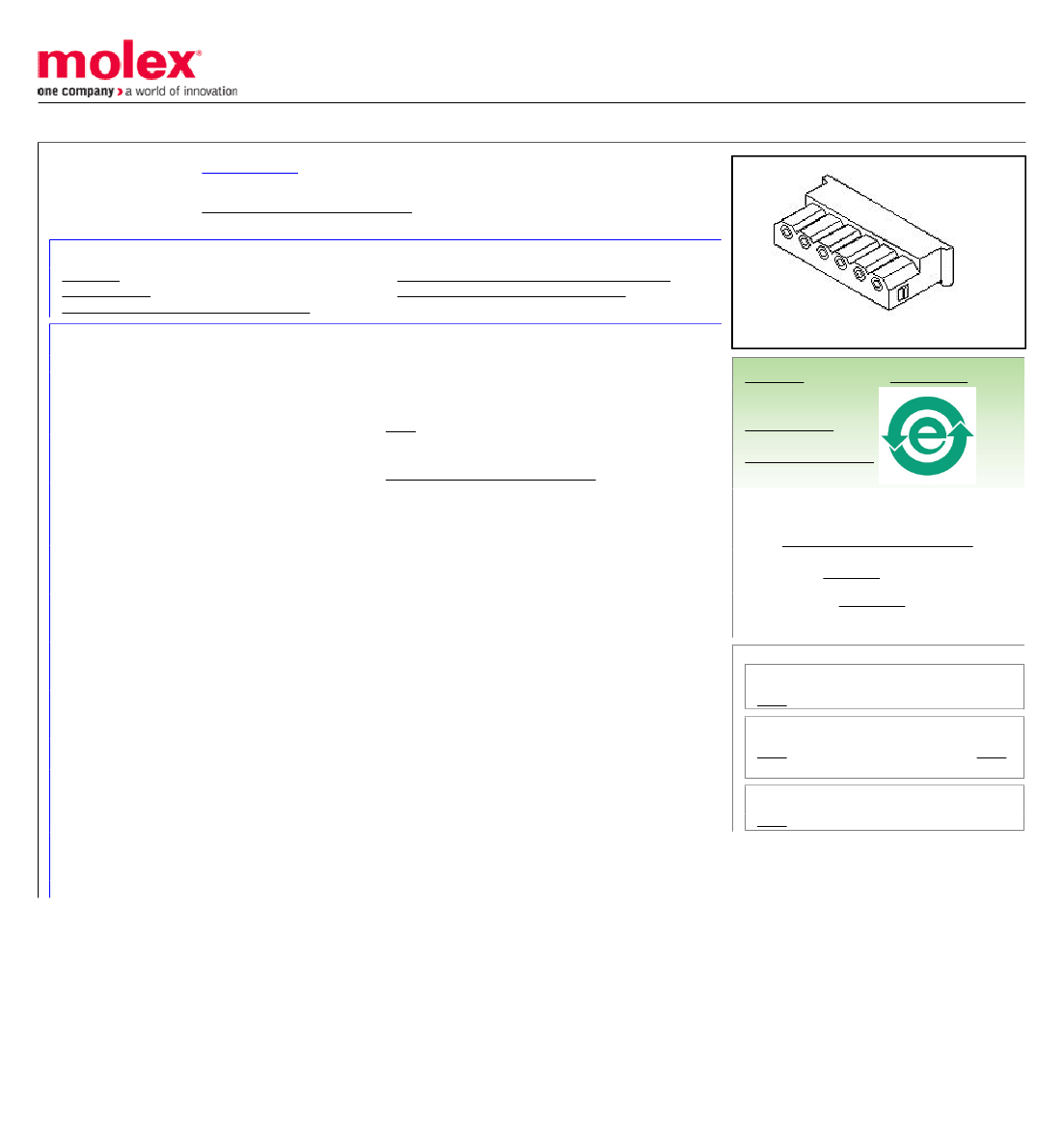

Preview

Download Datasheet

View All

This document was generated on 04/15/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

50-37-5033

Active

SPOX™ Wire-to-Board Connectors

2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 3 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5264-001 (PDF)

Packaging Specification SPK-5264-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

General

Product Family

Series

Application

MolexKits

Overview

Product Name

UPC

Crimp Housings

5264

Signal, Wire-to-Board

Yes

SPOX™ Wire-to-Board Connectors

SPOX™

800753578357

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (maximum)

Flammability

Gender

Glow-Wire Compliant

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

94V-0

Female

172.100/mg

Bag

2.50mm

Yes

-40°C to +105°C

Search Parts in this Series

5264Series

Mates With

5267 vertical shrouded PCB header, 5268

right angle shrouded PCB header

Use With

5263

Material Info

Old Part Number

5264-03

Reference - Drawing Numbers

Packaging Specification

Product Specification

SPK-5264-001

PS-5264-001, RPS-5264-001, RPS-5264-002,

RPS-5264-003, RPS-5264-004, RPS-5264-005,

RPS-5264-006

SD-5264-N

Sales Drawing

This document was generated on 04/15/2014
