F05-4000845R

Description

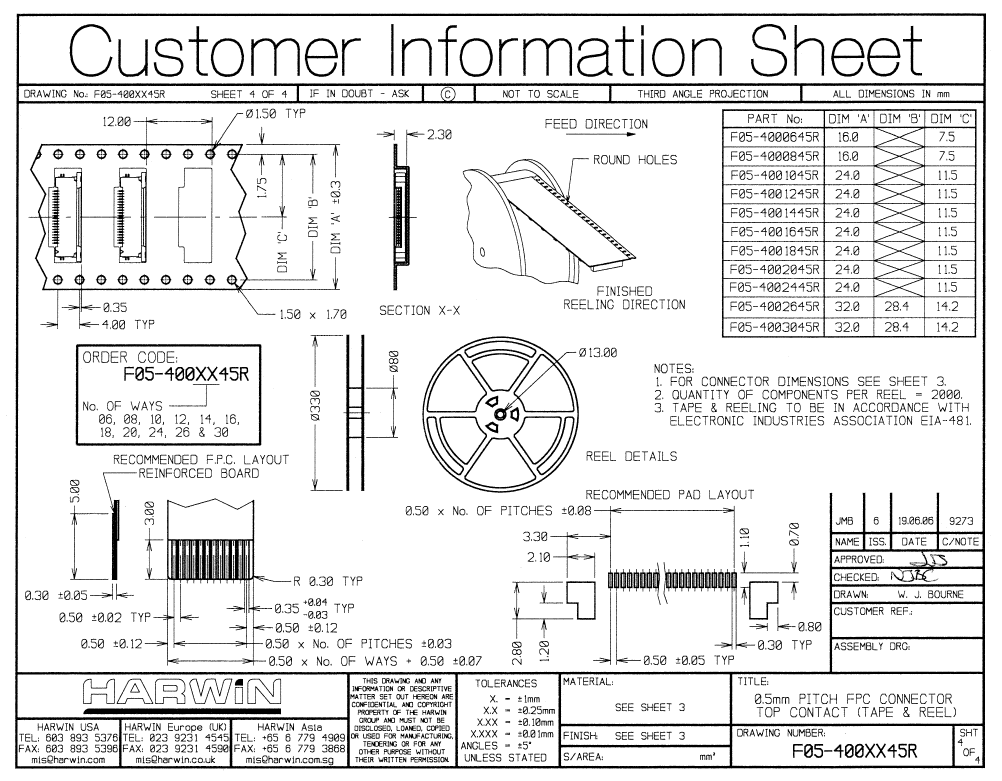

Card Edge Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal
CategoryThe connector    The connector
File Size1MB,2 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

F05-4000845R Overview

Card Edge Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal

F05-4000845R Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1737325520
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresTOP CONTACT, ZIF
body width0.079 inch
subject depth0.197 inch
body length0.405 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.02 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness4u inch
Rated current (signal)0.4 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts8
UL Flammability Code94V-0
OBSOLETE

F05-4000845R Related Products

F05-4000845R F05-4002645R
Description Card Edge Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Objectid 1737325520 1784872826
Reach Compliance Code not_compliant not_compliant
ECCN code EAR99 EAR99
Other features TOP CONTACT, ZIF TOP CONTACT
body width 0.079 inch 0.079 inch
subject depth 0.197 inch 0.197 inch
body length 0.405 inch 0.759 inch
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact to complete cooperation GOLD GOLD (4) OVER NICKEL (50)
Contact completed and terminated Gold (Au) Gold (Au)
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR
Contact resistance 40 mΩ 40 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE
DIN compliance NO NO
Dielectric withstand voltage 500VAC V 500VAC V
Durability 30 Cycles 30 Cycles
Filter function NO NO
IEC compliance NO NO
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code e4 e4
MIL compliance NO NO
Plug contact pitch 0.02 inch 0.02 inch
Mixed contacts NO NO
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 1 1
Number of rows loaded 2 1
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
Plating thickness 4u inch 4u inch
Rated current (signal) 0.4 A 0.4 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.5 mm 0.5 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 8 26
UL Flammability Code 94V-0 94V-0
