34708-4020 Overview

Stac64 4 Bay Right Angle Headers, 68 Circuits, Bay A 20 Circuit Signal Header

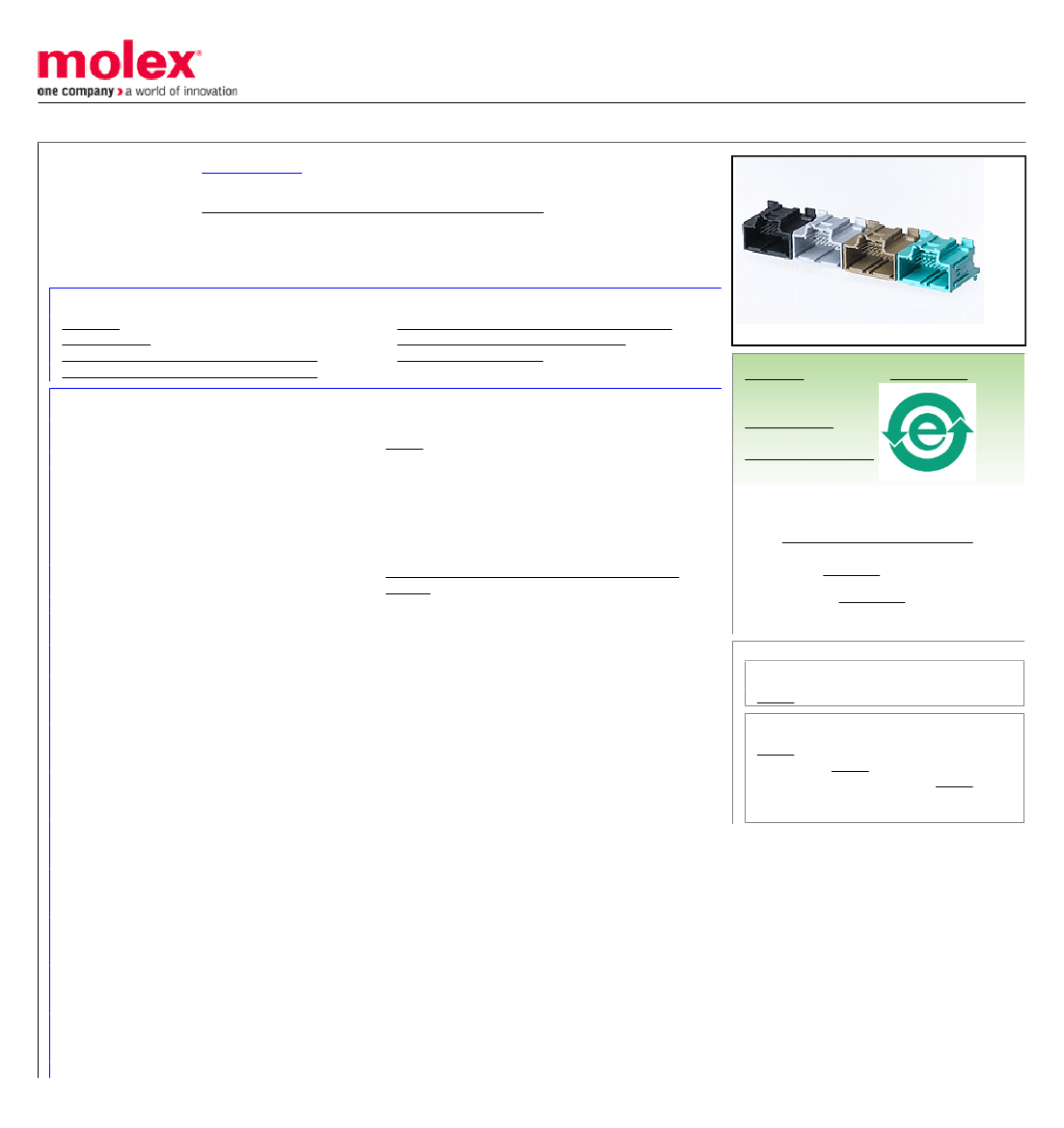

This document was generated on 09/16/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
34708-4020
Active
Stac64™ Single, Multi-Pocket and Hybrid Header System
Stac64™ 4 Bay Right Angle Headers, 52 Circuits, Bay A 16 Circuit Signal Header,
Polarization B, Gray; Bay B 8 Circuit Signal Header, Polarization B, Gray; Bay C 16
Circuit Signal Header, Polarization C, Brown; Bay D 12 Circuits Stac64™ Right Angle
Signal, Polarization C, Tray
Documents:
3D Model
Drawing (PDF)
Product Specification PS-31372-100 (PDF)
Product Specification PS-34729-020 (PDF)
Application Specification AS-34729-020 (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Comments
PCB Headers
34708
Power, Wire-to-Board
Bay A 16 Circuits Stac64™ Right Angle Signal Header,
Polarization B. Bay B 8 Circuits Stac64™ Right Angle
Signal Header, Polarization B. Bay C 16 Circuits
Stac64™ Right Angle Signal Header, Polarization
C. Bay D 12 Circuits Stac64™ Right Angle Signal,
Polarization C
Stac64™ Single, Multi-Pocket and Hybrid Header
System
987650-4561
Stac64™
884982148321
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Overview
Product Literature Order No
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
No
52
52
Brown, Gray
10
No
No
No
None
Yes
Copper Alloy
Nickel
Tin
High Temperature Thermoplastic
26.370/g
2
Right Angle
3.36mm
Yes
None
1.57mm
Tray
2.54mm
2.54mm
Yes
Search Parts in this Series
34708Series
Mates With
31408 USCAR 2.54mm (.100”) Pitch
Receptacle, 31372 5.25mm (.206") Pitch
Hybrid Receptacle Assembly, 34729
2.54mm (.100") Pitch Stac64™ Right Angle
Receptacle
