CBC20K00-030WDS2-508-1-VR

Description
Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size272KB,5 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Download Datasheet Parametric View All

CBC20K00-030WDS2-508-1-VR Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Solder Terminal,

CBC20K00-030WDS2-508-1-VR Parametric

Parameter NameAttribute value
Objectid1347827775
Reach Compliance Codecompliant
Other featuresSTANDARDS: IEC 61076-4-104; IEC 917, POLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationPALLADIUM NICKEL GOLD OVER NICKEL
Contact completed and terminatedTIN LEAD
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceYES
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberCBC20
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded5
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts30
UL Flammability Code94V-0

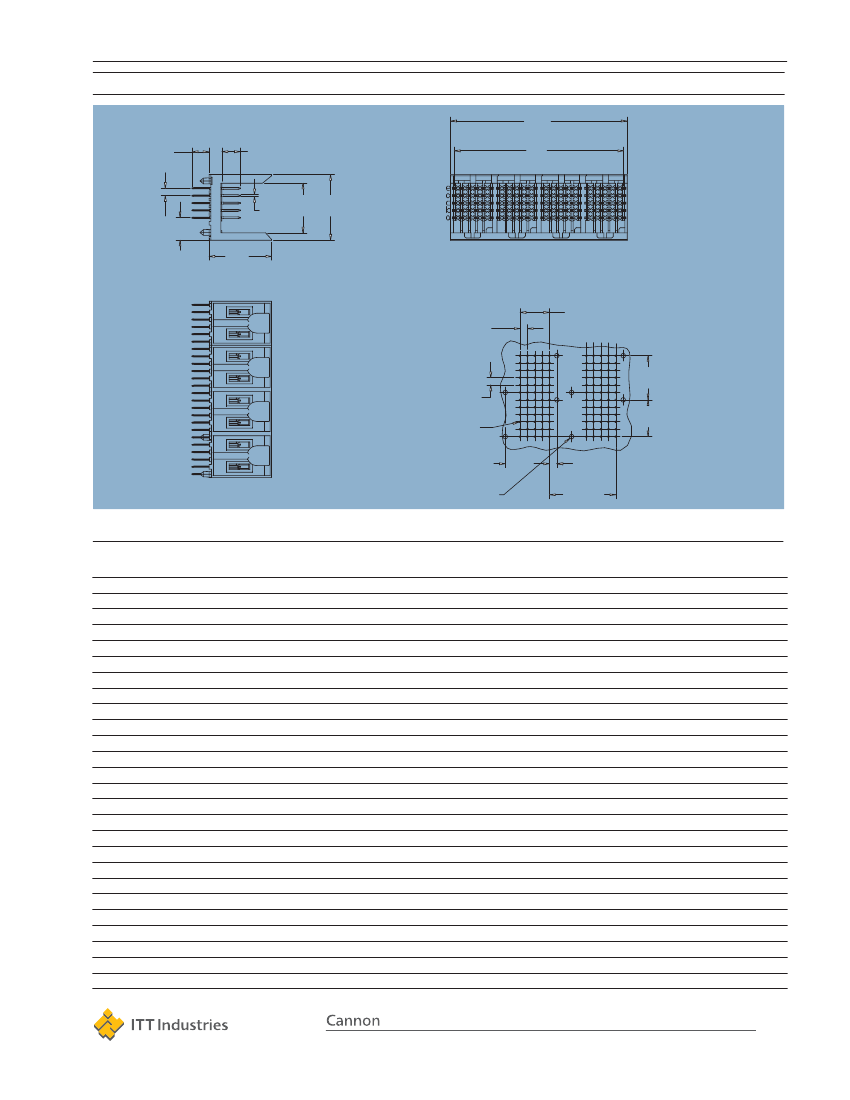

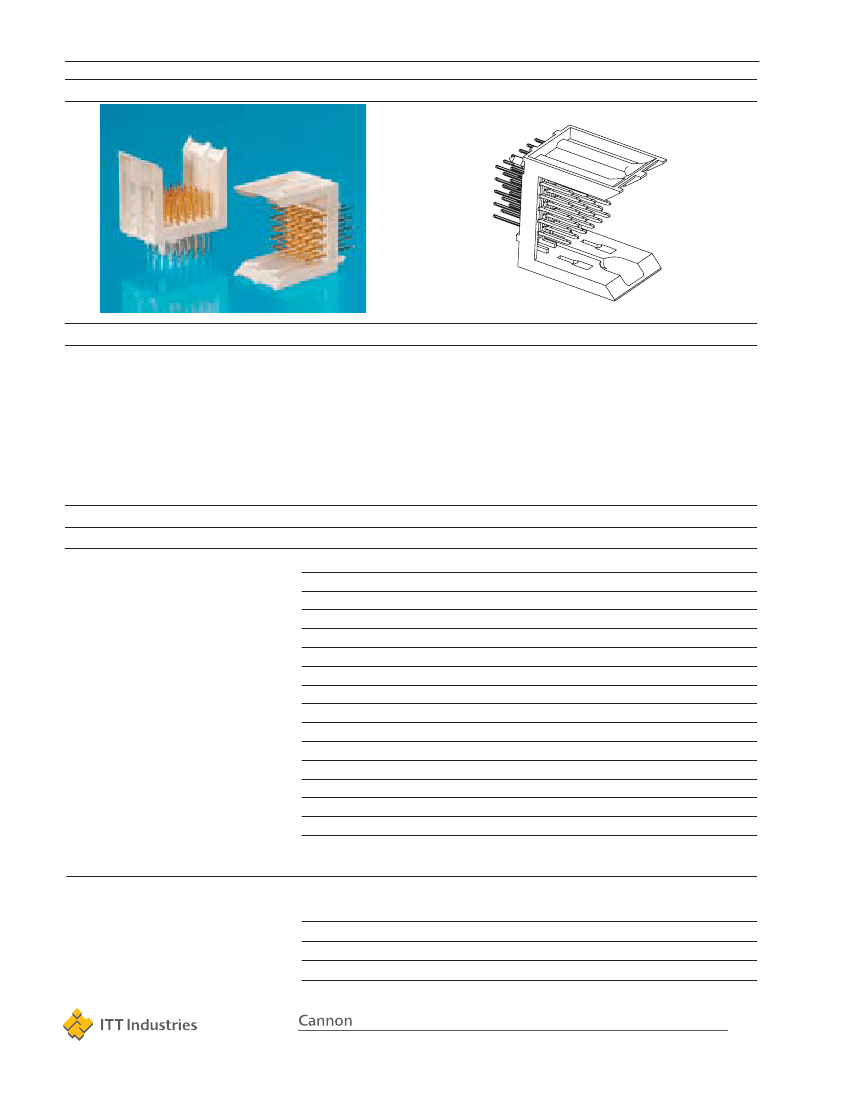

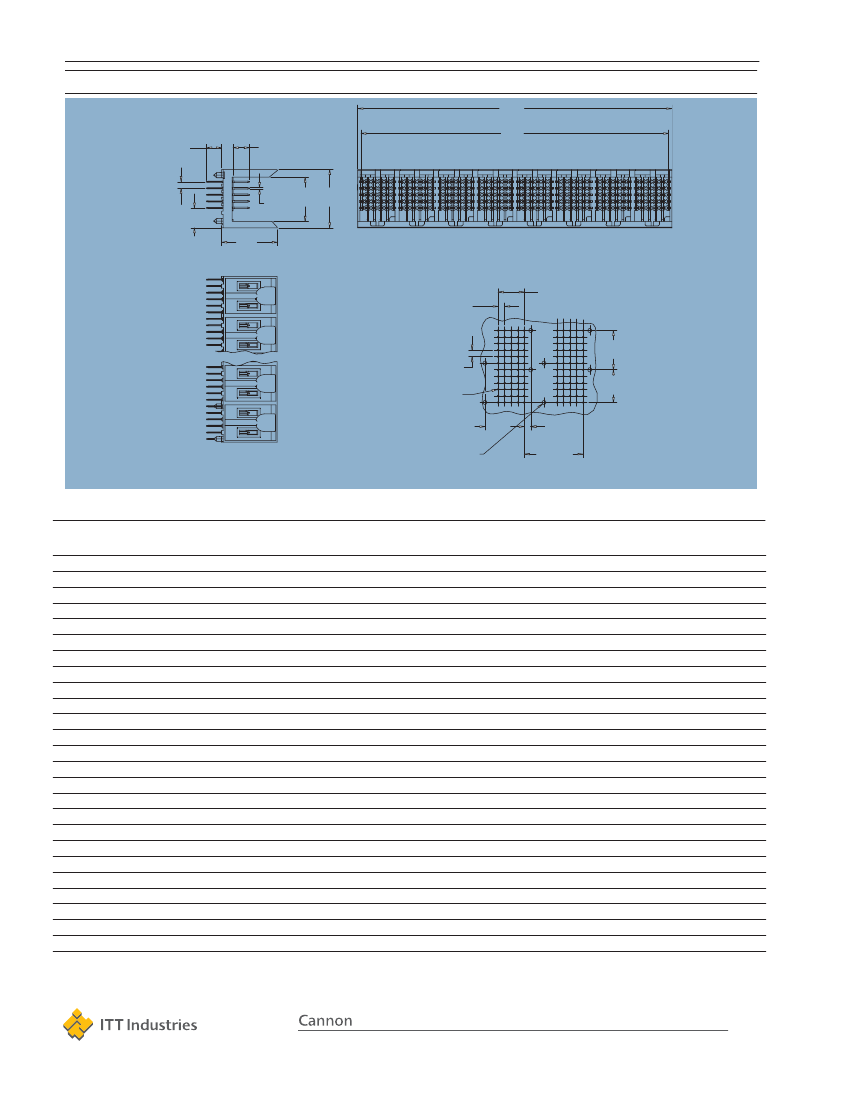

2 mm Interconnect
Male Signal Modules - Solder Termination - 5 Row
Tempus CBC 20
Features
Designed to conform with
IEC61076-4-104, EIAis64,
IEEE P896 Futurebus+,
IEEE P1596 SCI and IEC 917
metric modular order
Stackable with other TEMPUS
modules, with no loss of positions
Sequential mating provides live
insertion capability
High performance contacts, high
hertz stress, 1000 cycles minimum
Wide wall design for system tolerant
2,50 (.098) out-of-centre board insertion
High temperature materials, not
affected by reflow solder process
High I/O, 25 contacts per linear
centimetre (63 contacts per linear
inch)
Technical Data
Mechanical Data
Contact Pitch
Polarisation
Coding
Housing Material
Termination
Termination p.t.h. (solder)
Board Guiding Left to Right
Top to Bottom
Board Slot Pitch
Contact Material
Hertz Stress
Class 1
Plating
Insertion Force
Withdrawal Force
2,00 x 2,00 (.079 x .079)
By design
With coding key, see page 64
Liquid Crystal Polymer, UL94V-0 or PPS, UL94V-0
Solder tail, tin/lead plated
ø 0,60 (.024), refer to page 73
2,50 - 2,50 (.100 - .100)
1,50 - 1,50 (.060 - .060)
16,00 (.630) min.
Brass
1200 MPa (174 klbf / sq. in.)
1000 cycles minimum
Palladium Nickel plus Gold over Nickel
0,45 N (1.6 oz) max. per contact
0,15 N (0,5 oz) min. per contact
Electrical Data
1,50 A at 25°C; 1 A at 70°C
1000 Vrms
Initial: 5000MΩ; after climatic test: 1000 MΩ
45 mΩ maximum
Current Rating
Withstanding Voltage
Insulation Resistance
Contact Resistance
Dimensions are shown mm (inch)
Dimensions subject to change
32
www.ittcannon.com
