CB017C0562JBA: DescriptionCAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 25 V, 0.0047 uF, SURFACE MOUNT, 1206; CategoryPassive components; File Size861KB，20 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

CB017C0562JBA Overview

CAPACITOR, METALLIZED FILM, POLYETHYLENE NAPHTHALATE, 25 V, 0.0047 uF, SURFACE MOUNT, 1206

CB017C0562JBA Parametric

Parameter Name	Attribute value
negative deviation	5 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
positive deviation	5 %
Rated DC voltage urdc	25 V
Processing package description	CHIP, ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
Capacitor type	FILM CAPACITOR
capacitance	0.0047 µF
dielectric materials	POLYETHYLENE NAPHTHALATE
jesd_609_code	e3
Manufacturer Series	CB
Installation features	SURFACE MOUNT
packaging shape	RECTANGULAR PACKAGE
Package Size	SMT
cking_method	TR, 7 INCH
Rated AC voltage	16 V
series	CB(PEN)
size code	1206
terminal coating	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
heigh	1.15 mm
length	3.3 mm
width	1.6 mm
dditional_feature	RATED AC VOLTAGE (V): 16

Preview

Download Datasheet

View All

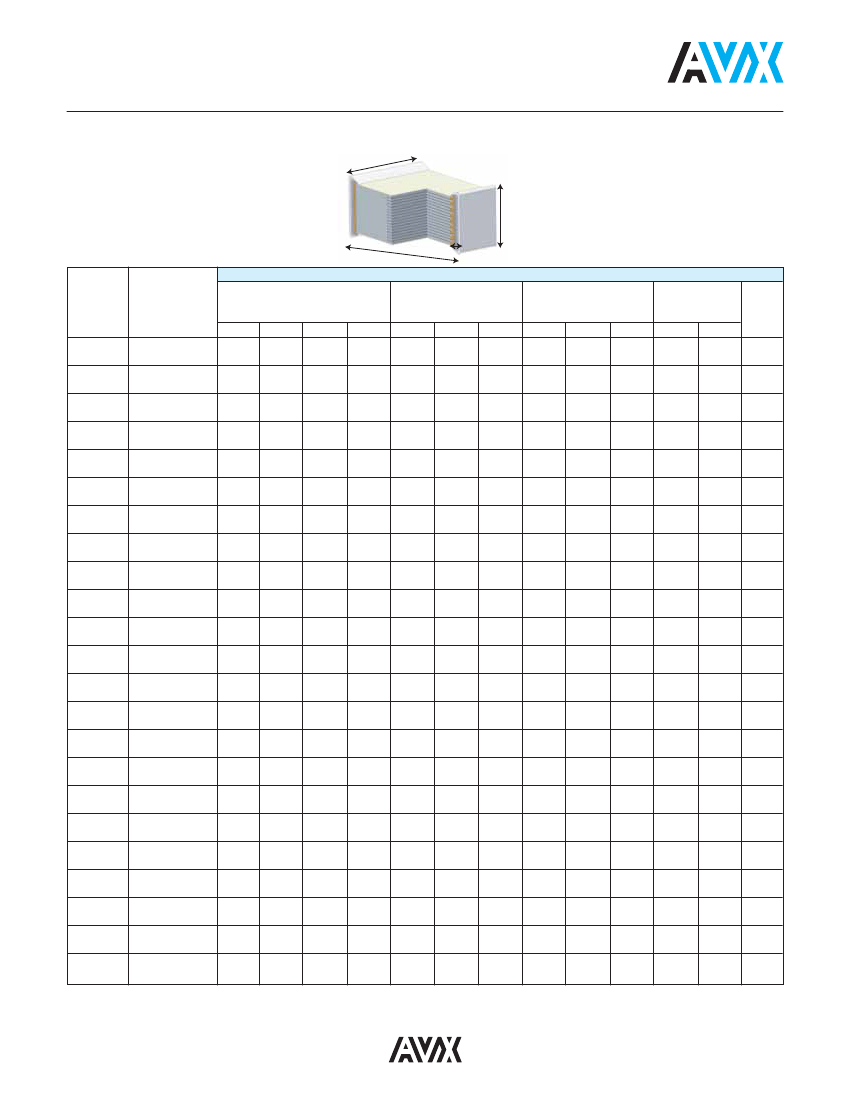

Film Chip Capacitors

PEN DIELECTRIC – CB Series

GENERAL DESCRIPTION

Film chip capacitor using a naked and stacked construction with

metallized PEN (polyethylene naphtalate).

ADVANTAGES

• Use of high temperature dielectric films make these

capacitors suitable for IR or vapor phase reflow processes.

This chip is built without specific encapsulation.

• The intrinsic elasticity of the dielectric film allows an

excellent compatibility of the capacitor with all types of

material for printed circuit boards.

• The self-healing property of film technology results to a

safety open failure mode and better overall reliability.

• Excellent thermal shock resistance.

• Low dissipation factor ESR & ESL.

• No piezoelectric effect.

• Available in tape and reel suitable for automatic placement.

• Non-polar construction.

APPLICATIONS

General purpose function in low voltage applications where

miniaturization and SMD is required. Typical applications

would be:

• Automotive (Airbag, Fuel injection calculator...)

• Telecom (Public switching systems, modems, telephone

set, cordless, mobile)

• Industrial (SMPS, Power convertor module...)

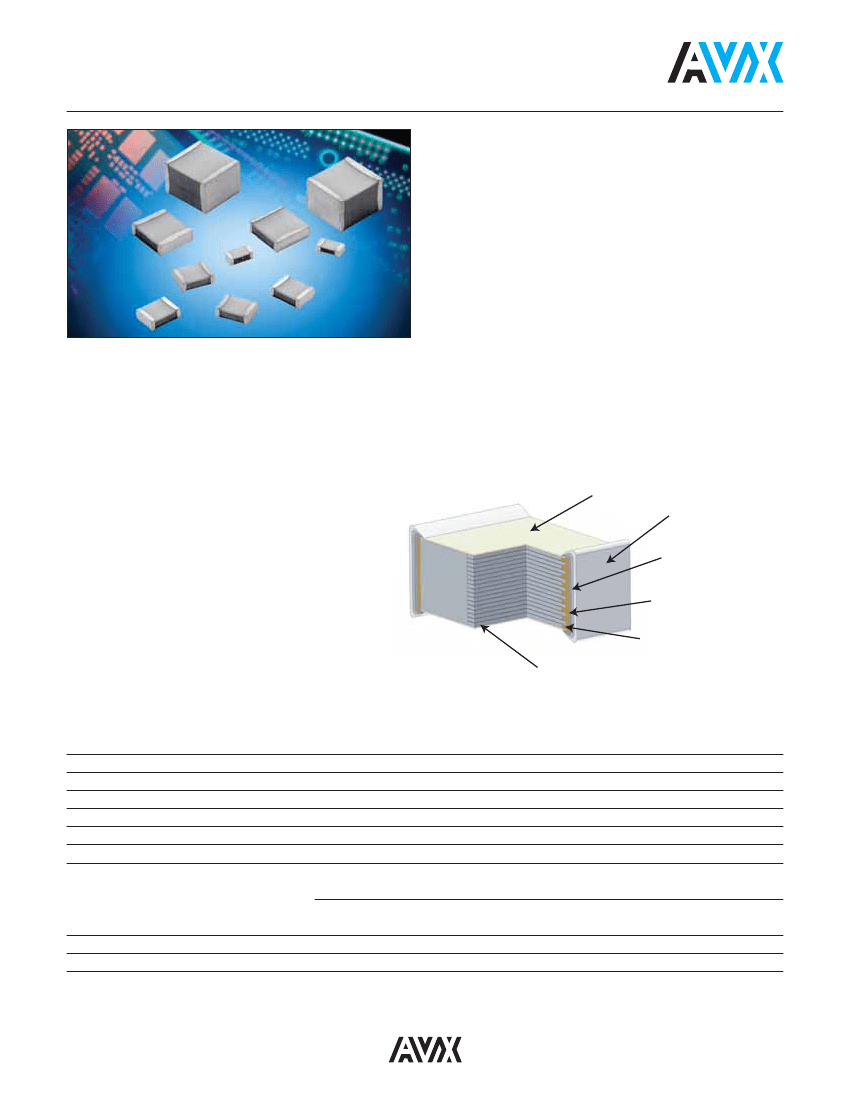

Outer Layer

Termination Plating :

100% matte Sn

Ni Barrier Under

Termination

Silver Epoxy

Resin

Brass

Active Layers : PEN dielectric

PERFORMANCE CHARACTERISTICS

Climatic Category

Capacitance Range

Tolerance on C

Nominal Voltages

Test Voltage

Soldering methods

Tangent of Loss Angle at 1kHz (DF)

Insulation resistance minimum : IR

55/125/56

1nF to 4.7μF

±5%, ±10%

25Vdc to 630Vdc

1.4Vr 2 sec. at 25°C

IR or vapor phase reflow (not suitable for wave soldering)

< 100 x 10

-4

for C ≤ 0.33μF IR > 1000 MΩ at 20°C for 1 min. charge at 10Vdc

for VR < 100Vdc and 100Vdc for VR ≥ 100Vdc

for C > 0.33μF IR C > 400 sec. at 20°C for 1 min. charge at 10Vdc

for VR < 100Vdc and 100Vdc for VR ≥ 100Vdc

-55°C to 125°C with voltage derating of 1.25%/°C between 105°C and 125°C

For high frequency A.C. application please check with AVX

Temperature range

A.C. applications
