Dielectric Laboratories Inc. (DLI) is your global partner for application specific
microwave and millimeter-wave components serving customers in fiber-
optic, wireless, medical, transportation, semiconductor, avionics and military
markets. With 30 years of experience, you can turn to DLI with confidence for
your high frequency Single-Layer Capacitor, Multi-Layer Capacitor, Resonator,
Filter and custom thin film component solutions.
Our products include a broad range of High Q Multi-Layer Capacitors and a
unique range of broadband blocking capacitors. These products can be cus-
tomized to meet specific design targets - please discuss your needs with our
Sales and Applications Team.
We are committed to serving you and we thank you for your business!
Dielectric Laboratories Inc.
2777 Route 20 East
Cazenovia, New York
13035-9433
phone 315.655.8710
fax 315.655.0445
sales@dilabs.com
or
europesales@dilabs.com
or
chinasales@dilabs.com
or
asiasales@dilabs.com
web www.dilabs.com
QUALITY SYSTEM
ISO 9001:2000
CERTIFIED
ENVIRONMENTAL
SYSTEM ISO 14001:2000
CERTIFIED
RoHS Compliance Statement
Dielectric Laboratories, Inc. is a leading supplier to the electronic components
market and is fully committed to offering products supporting Restriction of
Hazardous Substances (RoHS) directive 2002/95/E. All of our dielectric
formulations are RoHS compliant and we offer a broad range of capacitors
with RoHS compliant terminations. DLI complies with the requirements of the
individual customer and will maintain product offerings that meet the demands
of our industry.
Quality and Environmental Policy
DLI's reputation for quality and environmental responsibility is based on a
commitment to not only meet our customer's requirements, but to exceed
their expectations. The entire organization, beginning with top management,
strives to achieve excellence in designing, manufacturing and delivering
capacitors, build-to-print thin film products and proprietary thin film compo-
nents for high frequency applications, while maintaining safe and healthy work-
ing conditions. Furthermore, DLI commits to achieve these goals in an environ-
mentally responsible manner through our commitment to comply with environ-
mental regulations and to implement pollution prevention initiatives. DLI strives
to continually improve the effectiveness of our Quality and Environmental
Management System through the establishment and monitoring of objectives
and targets.
2
15676 DieLabs.qxp
2/10/06
1:47 PM
Page 3
Laboratories
High Q Multi-Layer and Broadband
Blocking Capacitors
C04
0.040” x 0.020”
0.1-10pF
Ultra Low ESR
200V Max
Filters,
Synthesizers
VCOs
~30GHz
Page 4
C06
0.060” x 0.030”
0.1-100pF
Max WVDC
250V
Amplifiers
Filters
~20GHz
Pages 4, 10
&
11
C08
0.080” x 0.050”
0.1-100pF
Ultra Low ESR
1000V Max
Power Amps
C11
0.055” x 0.055”
0.1-100pF
Max WVDC
250V
Power Amps
C17
0.110” x 0.110”
0.1-1000pF
Max WVDC
1000V
Power Amps

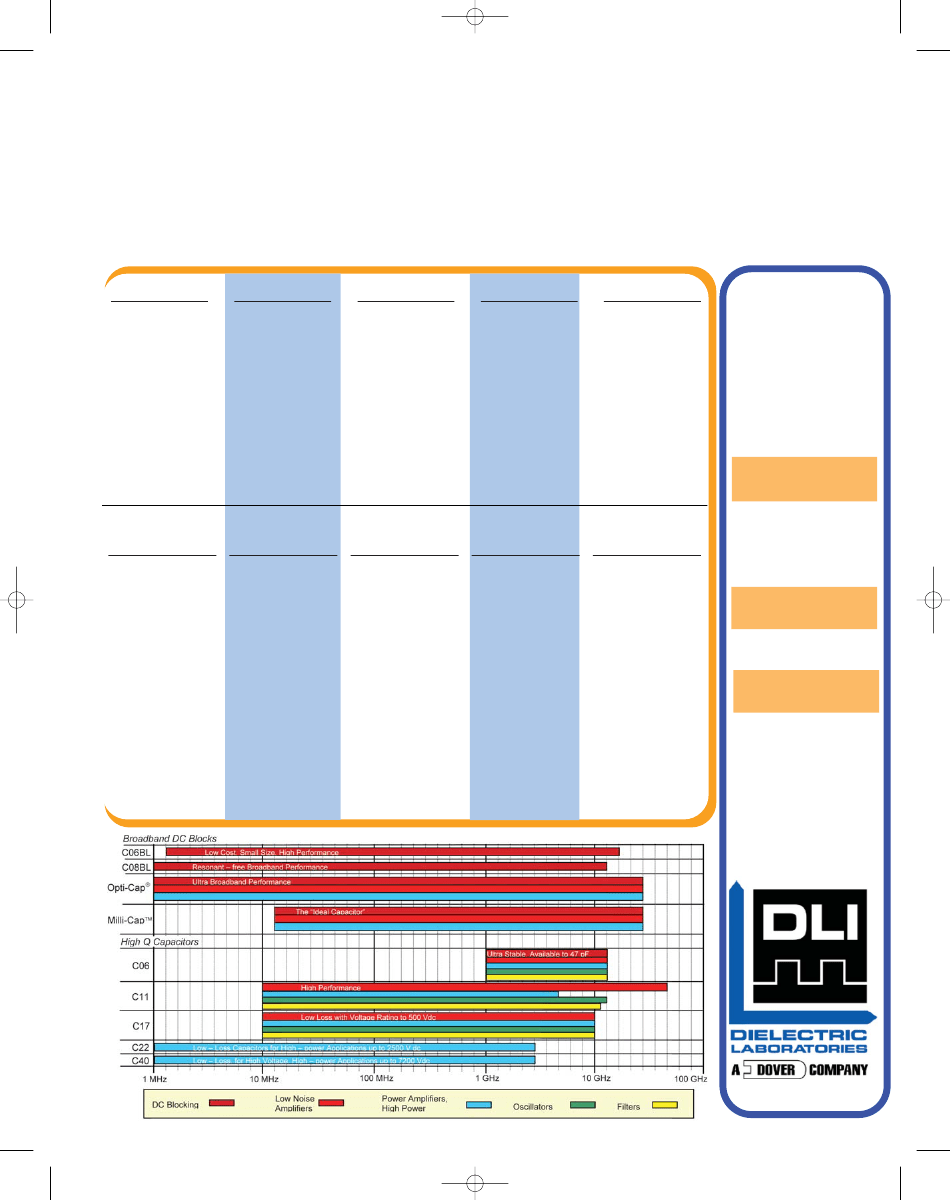

Table of
Contents
~10GHz
Pages 5
&
9
~10GHz
Pages 5, 12
&
13
~10GHz
Pages 14
&
15
Company
Overview
Table of
Contents,
Spectrum
Chart
What’s New?
General
Information
Global Support
2
C22
0.220” x 0.245”
1-2700pF
Max WVDC
2500V
MRI
RF-High Power
C40
0.380” x 0.380”
1-5100pF
Max WVDC
7200V
MRI
RF-High Power
Broadband
DC Blocks
C04/C06/C08
Broadband DC
Blocks.
0402, 0603 and
0805 EIA case
size.
1MHz-20GHz for
C08 (2400pF)
2MHz-30GHz for
C06 (850pF)
5MHz - 30GHz for
C04 (120 pF)
Page 20
Opti-Cap®
0402/0603
Ultra broadband
capacitor.
Resonant free
Milli-Cap®
P21/P42/P02/P62
Surface Mount
(SMD) Millimeter-
Wave Capacitor.
Ideal for
Matching filters
& SONET
applications
3
4
6
23
DC blocking from
10kHz to 40 GHz
~3GHz
~200MHz
20MHz-40GHz
Pages 16 and 17
Pages 18 and 19
Page 21
Page 22
3
15676 DieLabs.qxp
2/10/06
1:47 PM
Page 4
What’s New
In our continuing efforts to provide our customers around the world with the products that make their
products better, we have recently introduced several new material systems and case sizes to our already
comprehensive product lines.

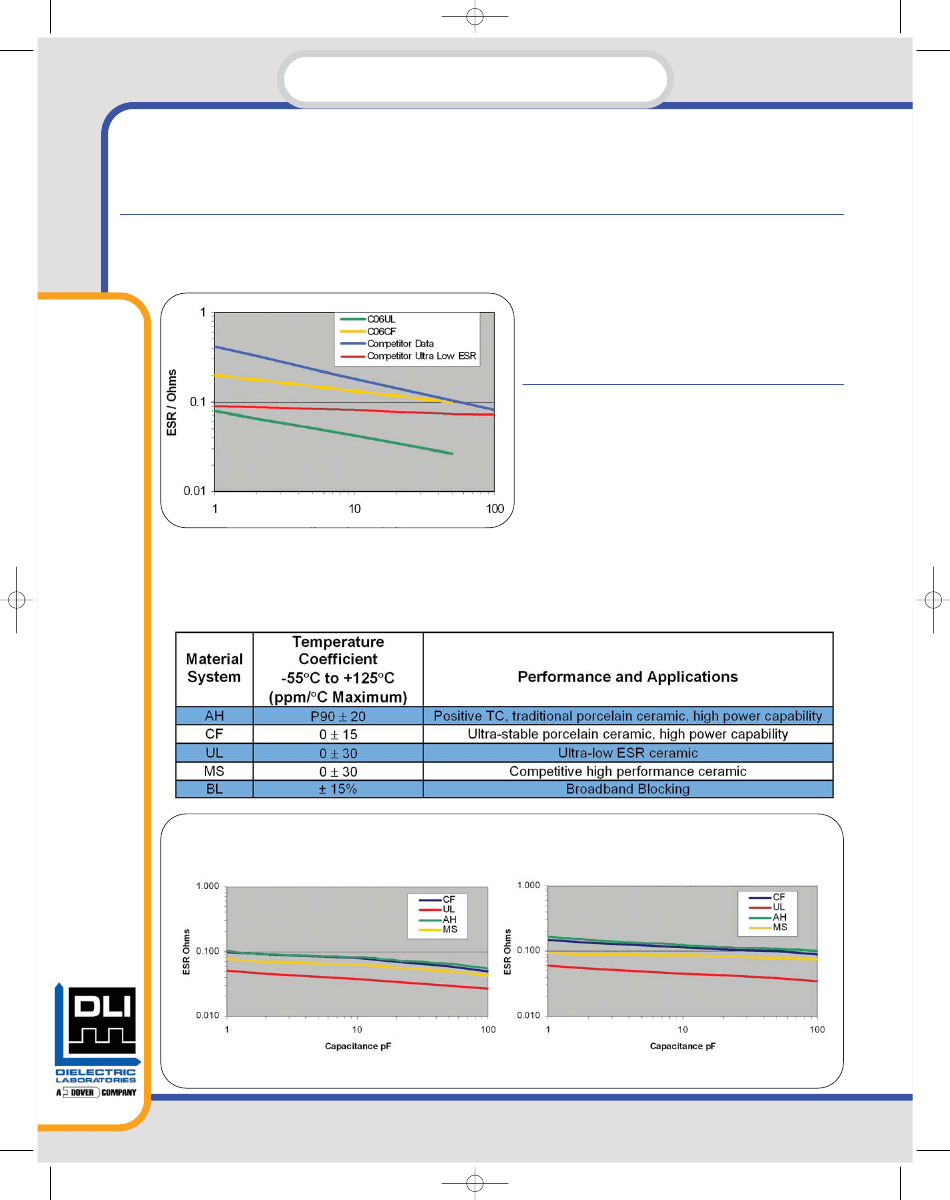

Ultra-Low ESR Material System - UL
A newly crafted, world standard for high Q capacitors, the UL material system is available in C04 (0402),
C06 (0603), C08 (0805), C11 (0505), and C17 (1111) case sizes. As the 1GHz data in the graph below
indicates, the UL system offers the design engineer options not seen before. UL not only provides ESR
advantage when compared to DLI’s workhorse
materials systems CF and AH, but also when
compared to competitors’ standard and “ultra-
low ESR” offerings.
New High Q Material System - MS
A very stable, higher Q material system that
provides excellent, low loss performance in
commercial systems below 3 GHz range is
available in C06 (0603), C08 (0805), C11
(0505), and C17 (1111) case sizes. This mate-
rial system is suitable for many applications
where economical, high performance is
Capacitance in pF
required. See the graph below that compares
C11 ESR results for the MS material system to DLI’s other material systems at 1 and 2 GHz. The
MS system is available in extended capacitance value ranges (see tables on appropriate case
size pages).
Dielectric Laboratories
Comparison of Material Systems
ESR vs Capacitance at 1GHz
for Different Dielectrics
ESR vs Capacitance at 2GHz
for Different Dielectrics
4
www.dilabs.com
15676 DieLabs.qxp
2/10/06
1:47 PM
Page 5
What’s New
C04 0402 Case Size
DLI has added an 0402 case size, high Q product line available in the UL material system. C04
products are only offered in the RoHS compliant ‘S’ termination system (see table on page 6).
Dielectric Laboratories
C08 0805 Case Size
DLI has added an 0805 case size, high Q product line to its highly successful C08 Broadband
Blocking capacitors. This case size is available in UL and MS systems and their RoHS compliant
termination systems. For more information about the new C08 high Q product line, see page 9.

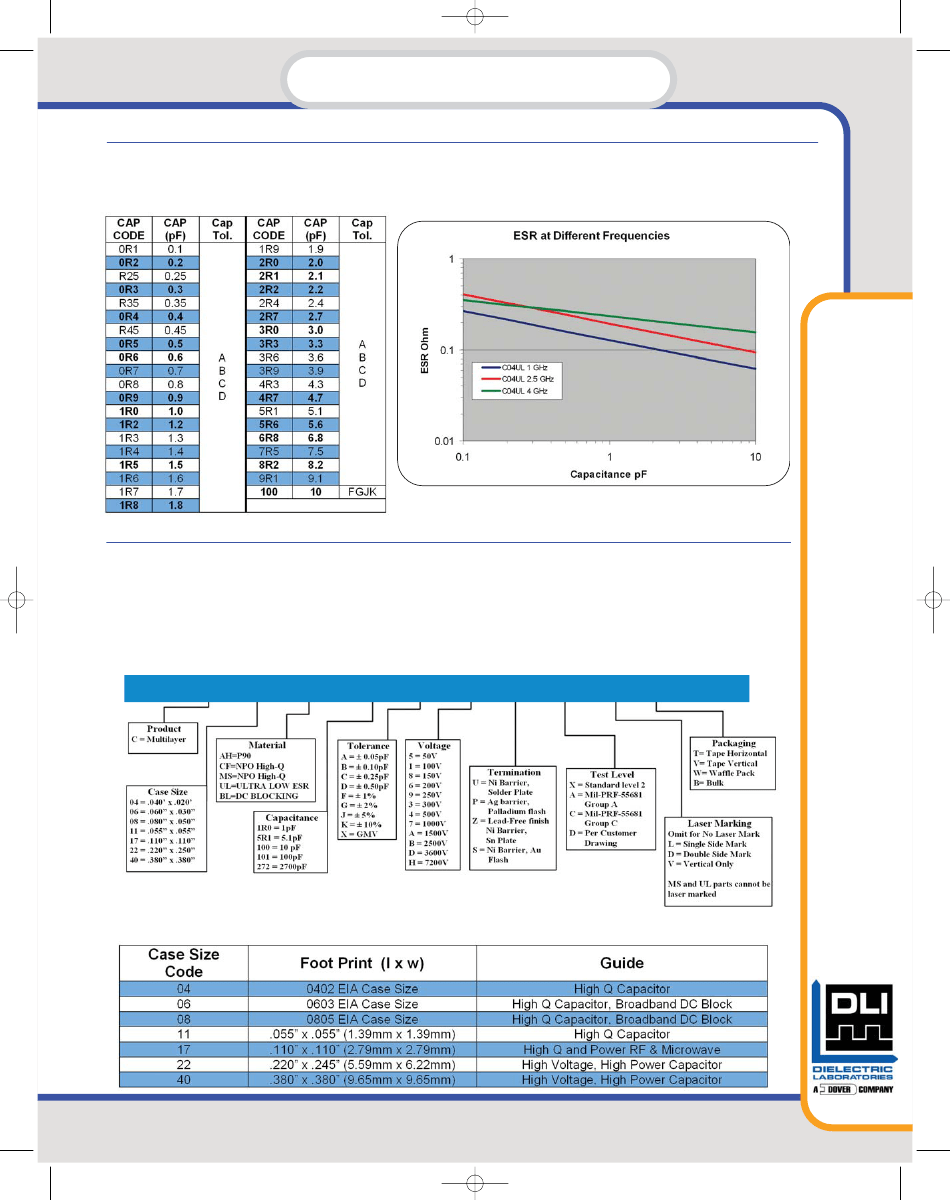

Multilayer Capacitor Part Number Identification
C
17
AH
100
J
4
U
X
-
T
Capacitor Case Size Code
www.dilabs.com
5
