MUL200V271M25X35 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> MUL200V271M25X35

MUL200V271M25X35: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size299KB，2 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

MUL200V271M25X35 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, ROHS COMPLIANT

MUL200V271M25X35 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1086284625
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	270 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	2 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	1150 mA
surface mount	NO
Delta tangent	0.14
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

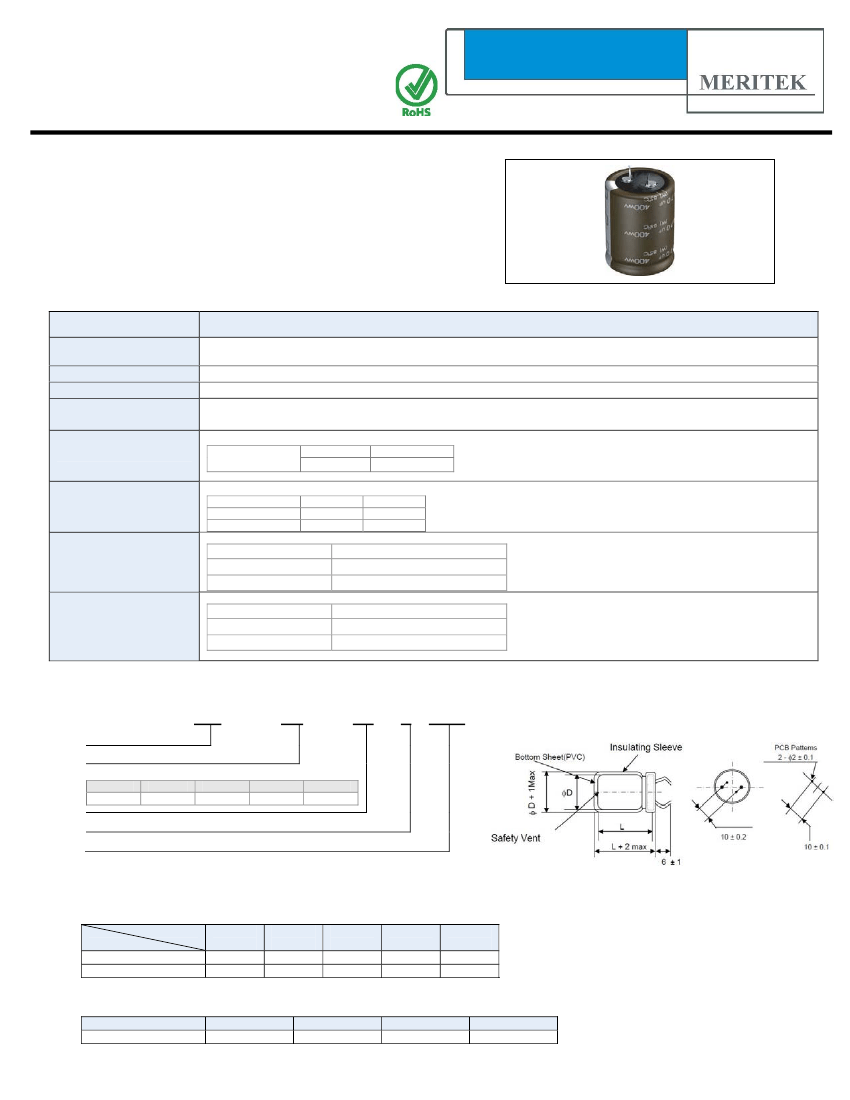

Snap-In Aluminum

Electrolytic Capacitors

MUL Series

EATURES

•

PCB Mounting

Long life and excellent stability

No derating at high temperature

For industrial and commercial application

Load life of 5,000 hours at 105

PECIFICATIONS

Item

Operating Temp Range

Rated Working Voltage

Capacitance Tolerance

Leakage Current

(20 C)

Dissipation Factor

Tanδ (120Hz, 20 C)

Low Temperature

Characteristics

Load Life

Characteristic

160V-250V: -40

C to +105

400V-450V: -25

C to +105

160 to 450VDC

±20% (M)

I≤0.02CV or 2mA, whichever is less (at 20

C after 5 minutes)

I= Leakage current (μA) C= Nominal capacitance (μF) V= Rated voltage (VDC)

Tanδ (120Hz,

20 C)

160 to 250

0.10

400 to 450

0.20

Impedance ratio at 120 Hz

160 to 250

400 to 450

Z -25

C/Z 20

Z -40

C/Z 20

After applying rated working voltage for 5000 hours at 105

C and then being stabilized

+20

C, capacitors shall meet following limits.

Capacitance change

Within ±20% of the initial value

Tanδ

Shelf Life

≤

±300% of the initial specified value

Leakage current

≤

The initial specified value

After storage for 1000 hours at 105

C with no voltage applied and then being stabilized

+20

C, capacitors shall meet following limits.

Capacitance change

Within ±20% of the initial value

Tanδ

Leakage current

≤

150% of the initial specified value

≤

The initial specified value

ART

UMBERING

YSTEM

MUL

Meritek Series

Voltage

Capacitance

CODE

μF

222

2200

562

5600

160V

222

22X25

IMENSIONS

153

15000

473

47000

Tolerance -

M= ±20%

Case size

(diameter X length, in mm)

IPPLE

URRENT

OEFFICIENT

Frequency

Freq (Hz)

WV (V)

160 to 250

400 to 450

0.80

0.82

120

1.0

1.25

1.15

10K

1.40

1.20

100K

1.50

1.32

Temperature

Factor

≤

45 C

2.40

60 C

2.20

85 C

1.65

105 C

1.00

rev.7a
