Data Sheet
P61 Pressure Sensor
Product Overview

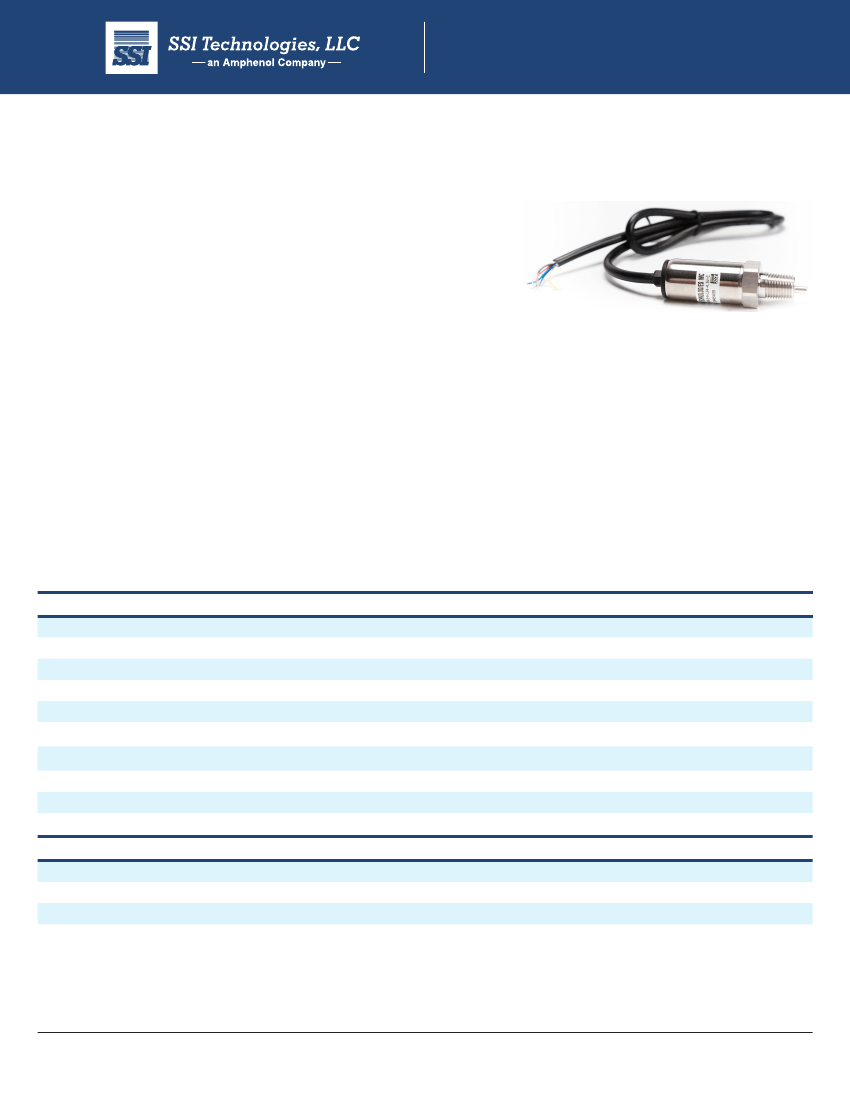

The Pressure/Temperature MediaSensor
TM
(P61) family of bulk
micromachined, absolute, and sealed pressure transducers and
transmitters are for both harsh and benign media with superior
accuracy.
Typical Applications
• Refrigeration
• Hydraulics
• HVAC
• Pneumatics
• Fuel Cells
• Process Controls
• Agriculture
• Pumps
Technical Specifications
Maximum Pressure
Accuracy
Maximum Operating Temp.
3,000 PSI
Output Type
Accuracy 100-750 PSI
(at 22 °C)
Accuracy 751-3,000 PSI
(at 22 °C)
Temperature Error (-40 °C to 105 °C)
Zero Pressure Offset
Full Scale Output (at Pressure FS)
Operating Temperature
Storage Temperature
Proof Pressure
Burst Pressure
(lesser of the two)
Output Type
Supply Voltage
Current Draw
Output Type
Response Time (Pressure/Output)
< ± 1.00% FS
0.5 - 4.5 V
< ± 0.50% FS
< ± 1.00% FS
< ± 1.00% FS
0.50 V
4.50 V
-40
°C
to 105
°C
-40
°C
to 105
°C
3X FS
10X FS or 15,000 PSI
0.5 - 4.5 V
5 ± 0.5 Volts
< 6 mA
0.45 mA max (sink or source)
< 1 ms
1-5V
< ± 0.50% FS
< ± 1.00% FS
< ± 1.00% FS
1.0 V
5.0 V
-40
°C
to 105
°C
-40
°C
to 105
°C
3X FS
10X FS or 15,000 PSI
1-5V
8 to 30 Volts
< 3 mA
105 °C
4 - 20 mA
< ± 0.50% FS
< ± 1.00% FS
< ± 1.00% FS
4.0 mA
20.0 mA
-40
°C
to 105
°C
-40
°C
to 105
°C
3X FS
10X FS or 15,000 PSI
4 - 20 mA
8 to 30 Volts
Not Applicable
Not Applicable
< 1 ms
0.45 mA max (sink or source)
< 1 ms
Copyright © 2019, SSI Technologies, LLC
1
Doc. P61-DS — Rev. 01
ssi-sensors.com
Parameter
Pressure/Temperature Cycles
Thermal Shock
Vibration
EMC Compatibility
Humidity
Weight
Value
> 10 x 10
6
250
4
10
250
≤ 0.3
Units
Cycles
Cycles
Hours
V/m
Hours
Grams
Chemical Compatibilities
Any gas or liquid compatible with 304L and 316L stainless steel. (Including but not limited to motor oil,
diesel, hydraulic fluid, brake fluid, water, wastewater, hydrogen, nitrogen, and air.) Designed to be used
in media isolated mediums.
Agency Approvals & Certifications

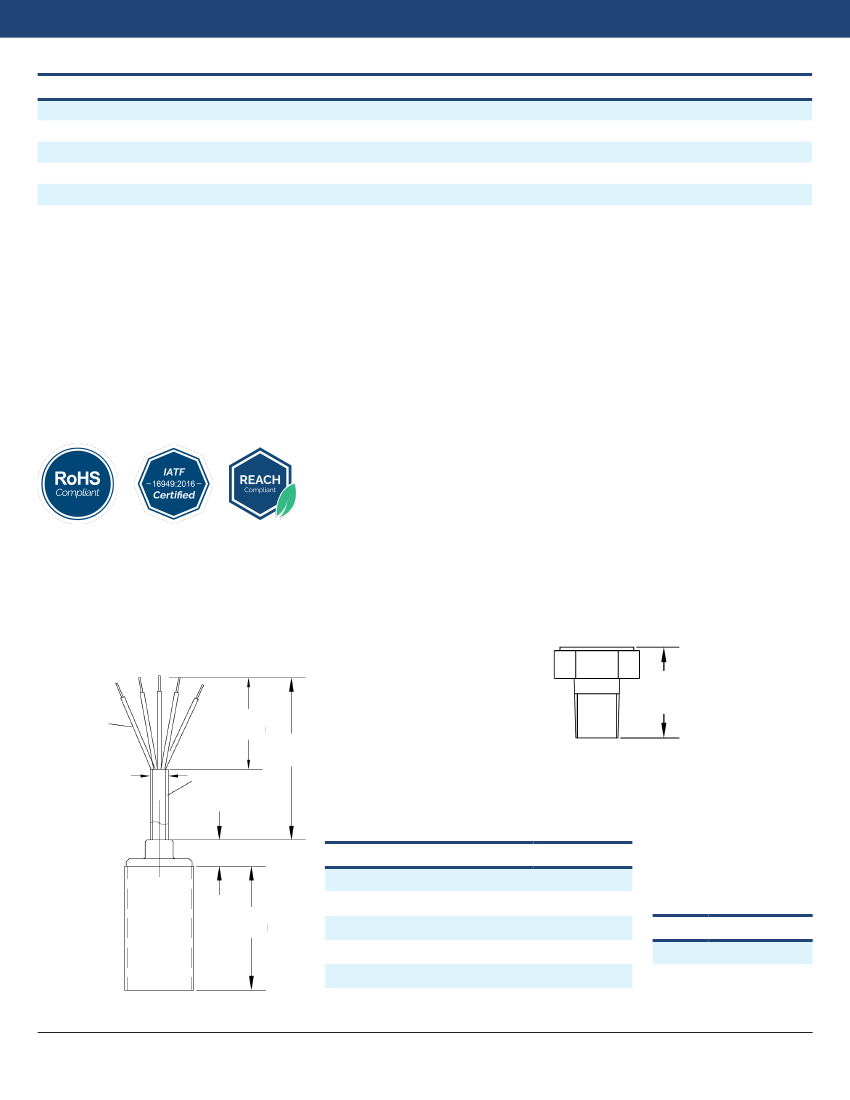

Dimensional Drawings
Harness
Yellow
White
Black
Blue
Ports
7/8 HEX
Red
1.08
[27.5]
9 mil
PVC
1.2
[29.6]
Harness
Length
0.23
[5.8]
24 mil
PVC
A
0.33
[8.5]
Wire Color
Red
1.57
[40.0]
0.5-4.5 V
V
in
(5+/-0.1)
GND
V
out
Thermistor
Thermistor
20 mA
V
in
(8-30)
NA
GND
Thermistor
Thermistor
Measurement Units
0.00
[00.0]
=
=
Inches
Millimeters
Black
White
Yellow
Blue
Copyright © 2019, SSI Technologies, LLC
2
Doc. P61-DS — Rev. 01
ssi-sensors.com
P61 MediaSensor
TM
Ordering System
P61
Family
Full Scale
Pressure (100 - 3,000 PSI)
-
500
-
A
-
A
-
I6
-
4.5 V - A
Pressure Type
A
= Absolute (100 - 3,000 PSI)
S
= Sealed Gauge (100 - 3,000 PSI)
Port Configuration
304L
A
Hex
7/8"
Port
1/4 NPT
Harness
24 Gauge Harness
(Inner PVC: 16 mil)
• I12
= 12"
• I18
= 18"
• I24
= 24"
• I36
= 36"
• I72
= 72"
*Other lengths available - contact factory.
MOQ's will apply.
Output Options
4.5 V
= 0.5 - 4.5 V (5 V input only)
5 V
= 1 - 5 V (8 to 30 V input only)
20 mA
= 4 - 20 mA (8 to 30 V input only)
Temperature Options
A
B
C
(NTC Thermistor)
= 10 kohm at 25 °C
= 100 kohm at 25 °C
= 5 kohm at 25 °C
Copyright © 2019, SSI Technologies, LLC
3
Doc. P61-DS — Rev. 01
ssi-sensors.com
Contact
SSI Technologies, LLC
3200 Palmer Drive, Janesville, WI 53546
ssi-sensors.com
1 (608) 757-2000
Made In USA
SSI Technologies, LLC is an Amphenol Advanced Sensors company.
Warranty
LIMITED WARRANTY:
All SSI products are warranted against defective materials and workmanship for a period of one (1)
year from the date of delivery to the original purchaser. Any product that is found to be defective within the one year period will
be replaced at the discretion of SSI.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE.
SSI is not an ex-
pert in the customer's technical field and therefore does not warrant the suitability of its products for the applications selected
by the customer. SSI accepts no responsibility for misuse, misapplication or unauthorized modification of its products.
LIMITATION OF LIABILITY:
SSI's obligation under this limited warranty is strictly and exclusively limited to the repair or
replacement free of charge of such articles as are found to be defective in material or workmanship on the condition that the
purchaser gives prompt written notice to SSI of any claim to breach of warranty within the warranty period, and, if
requested, returns the defective articles to SSI. SSI will not assume any expenses or liability for repairs made to its articles
outside of its plant, without its prior written consent. SSI reserves the right to satisfy its warranty obligation in full, with respect
to defective articles, by the payment to the purchaser of all sums paid by the purchaser to SSI for such articles.
IN NO
EVENT SHALL SSI BE LIABLE FOR CLAIMS (BASED UPON BREACH OF EXPRESS OR IMPLIED WARRANTY, NEG-
LIGENCE OR OTHERWISE) FOR ANY DAMAGES, WHETHER DIRECT, IMMEDIATE, INCIDENTAL, FORESEEABLE,
CONSEQUENTIAL, OR SPECIAL.
Terms & Conditions
Please visit [https://www.ssi-sensors.com/contact/supplier-portal] for information regarding the SSI Technologies, LLC Terms &
Conditions.
Note:
Specs are subject to change without notice.
Copyright © 2019, SSI Technologies, LLC
4
Doc. P61-DS — Rev. 01 — 02/01/2019
