NSMR-15P2-32E1-180 datasheet, PDF

NSMR-15P2-32E1-180: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, 0.025 inch Pitch, Crimp Terminal, Guide Slot, Receptacle; CategoryThe connector The connector; File Size183KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

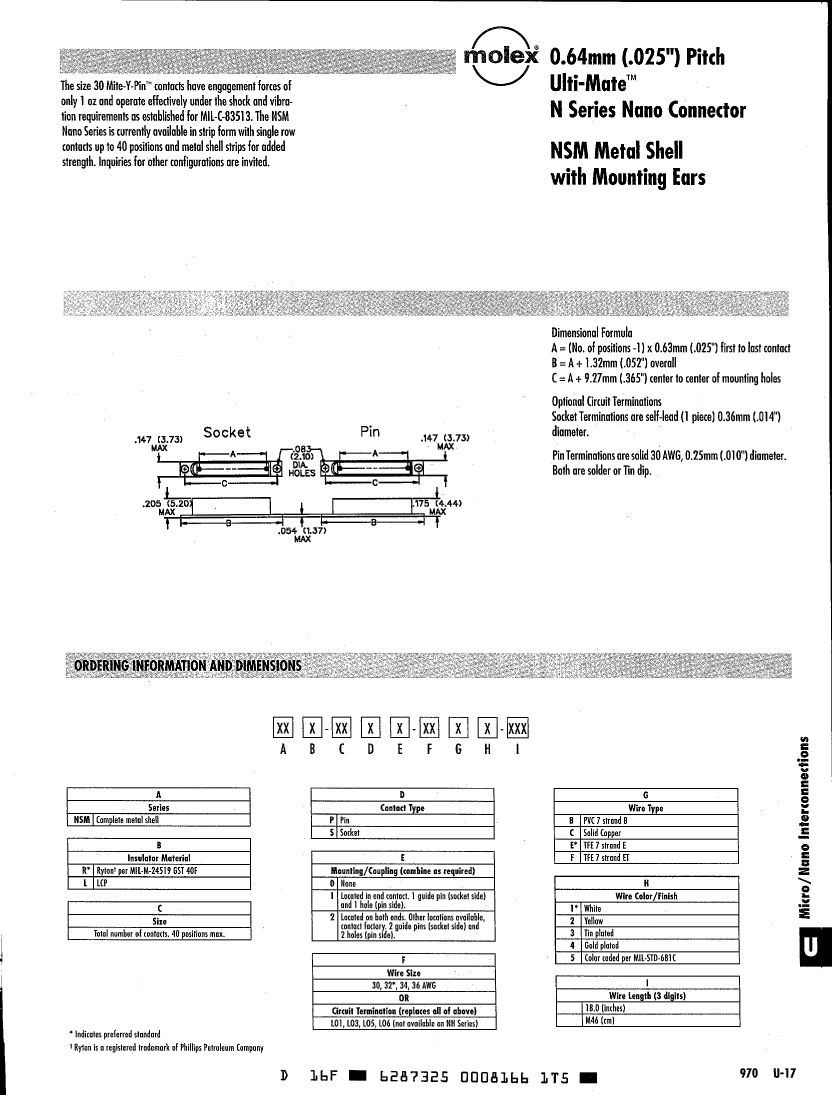

NSMR-15P2-32E1-180 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, 0.025 inch Pitch, Crimp Terminal, Guide Slot, Receptacle

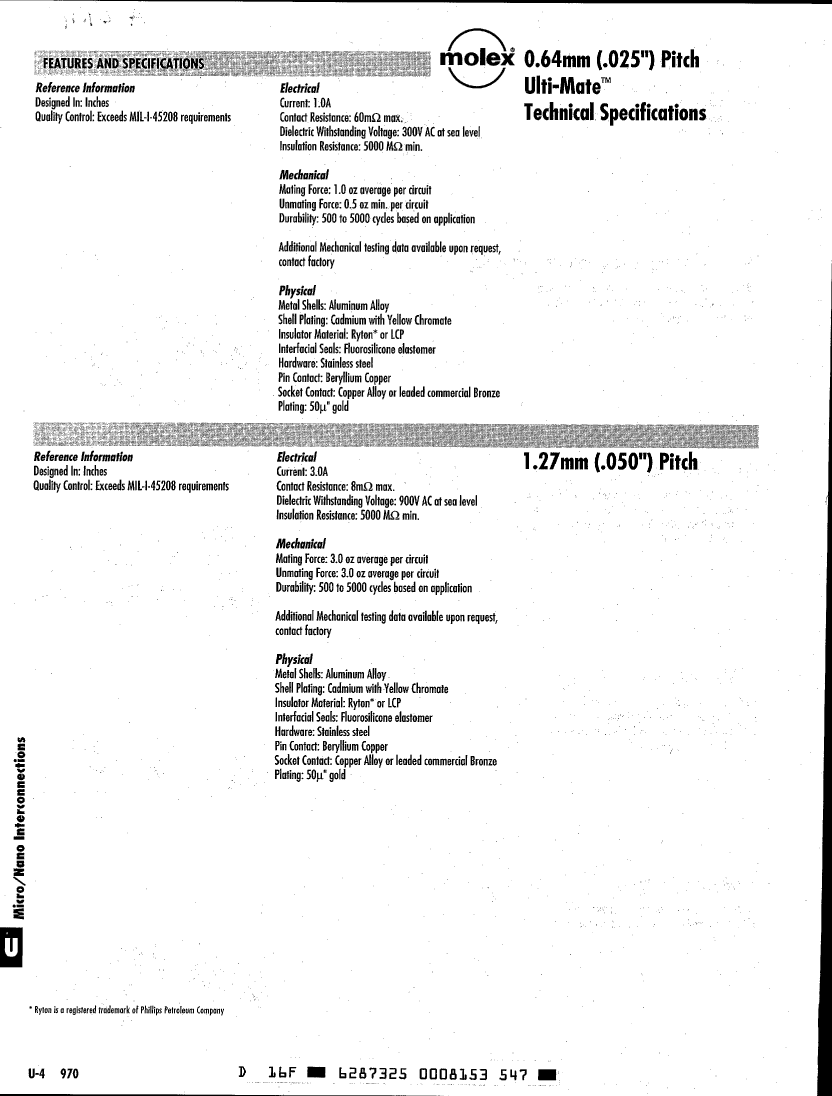

Parameter Name	Attribute value
Objectid	1149766848
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	METAL SHELL, STRIP FORM
body width	0.147 inch
subject depth	0.175 inch
body length	0.402 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	500 Cycles
maximum insertion force	.278 N
Insulation resistance	5000000000 Ω
insulator material	RYTON
Manufacturer's serial number	NSM
Plug contact pitch	0.025 inch
Installation option 1	GUIDE SLOT
Installation type	CABLE
Number of rows loaded	1
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	18 inch
Termination type	CRIMP
Total number of contacts	15
Maximum wire diameter	32 AWG
Minimum wire diameter	32 AWG
Evacuation force-minimum value	.139 N
