BAUTEILE / FERTIGUNGSHINWEISE

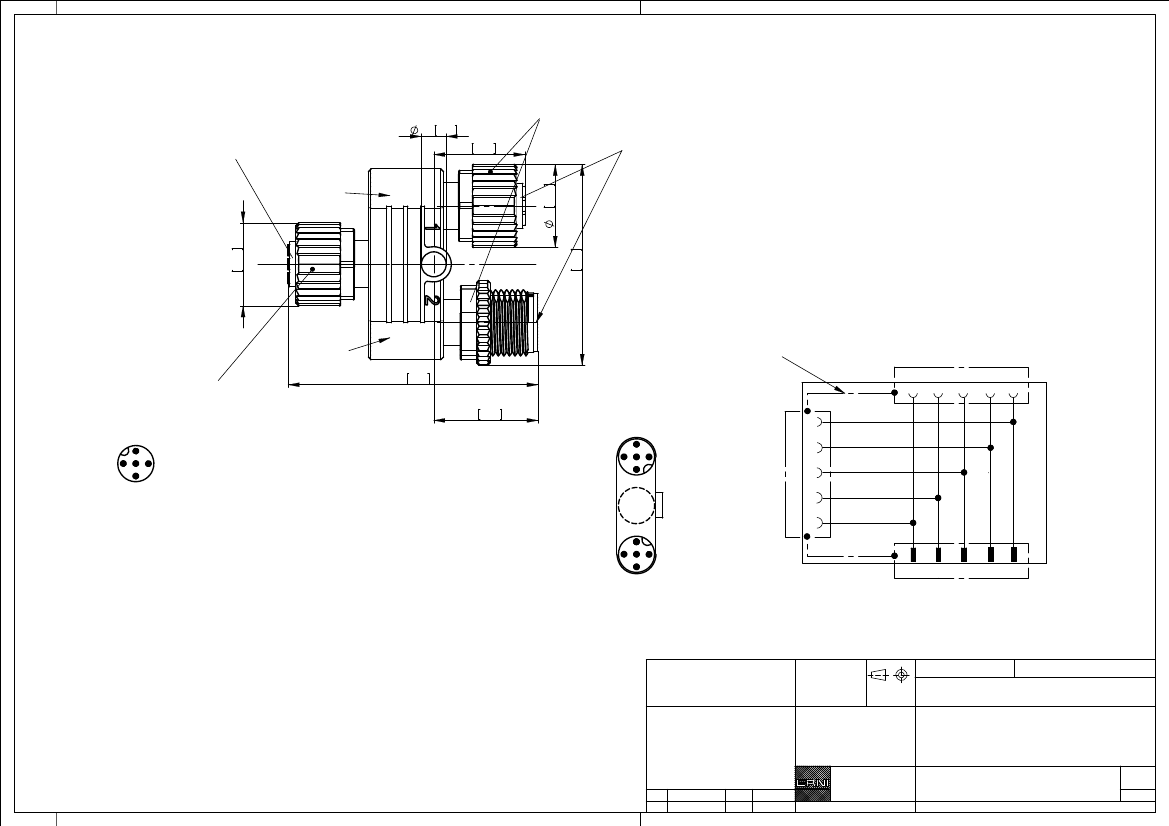

TECHNISCHE SKIZZE /
Technical sketch
4,5 0,18
Isolierkörper grün zulässig
vernickelt 4-6
μm
Piece parts / Manufacturing notices
Imprint see technical sketch
- Aufdruck mittels Tampondruck entspr. techn. Skizze
Nickel Plating 4-6
μm
16 0,64
Isolierkörper grün zulässig
- Gute Chemikalien- und Ölbeständigkeit. Beim Einsatz aggressiver Medien ist die
Materialbeständigkeit applikationsbezogen zu überprüfen.
insulation body green allowed
ERNI-Art.- Nr.
insulation body green allowed
XXXXXX
15 0,59
Part No.
ERNI
Good chemical and oil resistance. When using agressive media, material
resistance based on application must be checked.
Buchse M12 /
M12 female
5-polig / 5
pin
15 0,59
36 1,42
Buchse M12 /
M12 female
5-polig / 5
pin
Production date
e.g.: KW07 2010
vernickelt 4-6
μm
072010
Stecker M12 /
M12 male
5-polig /
5 pin
STROMLAUFPLAN /
Schematic diagram
shield
1. Buchse M12 /
1. female M12
5
4
3
2
1
Nickel Plating 4-6
μm
45 1,77
19 0,74
2
1
5
4
3
1
Ansicht: Steckgesicht; Kontaktbelegung /
3
2
5
1
Buchse M12 /
2
4
View: mating face; pin assignment
female M12
3
4
2
3
5
4
El e ctri cal Data
Rated (nominal) voltage; max.
Rated current; per contact, max.
Rated impulse voltage
Stand ard ap p l i c.
IEC 61-076-2-101
IEC 61-076-2-101
IEC 61-076-2-101
Val ue
60 V AC/DC
4A
0,8 kV
Information:
5
1
5
4
3
2
1
2. Stecker M12 /
male M12
Artikel-Nr. /
Part No.
SPECIFICATIONS Circular Connector
T e chn i cal Sp e ci fi cati o ns
Type:
Pin assignment:
Coding:
Connection:
Temperature range:
Packaging:
Mate ri al s & F i ni sh
Contact material:
a) male
b) female
Contact finish, mating zone:
a) male
b) female
Insulation material:
Stand ard ap p l i c.
Val ue
T-coupler M12 male -
2 x M12 female, black
5 pin / 5 pin
A-coding
Screw locking
M12x1 (0,6 Nm)
-25
…
+85°C
1 piece per bag
CAN/DeviceNet 394892
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
A p p ro val s
Protection class
(mated and locked) IEC 60529
Pollution degree
Insulation category
IEC 60664-1
RoHS compliant
Tolerances
All Dimensions
in mm [in]
Scale
2:1
IP67
3
I
Yes
Standard description CuZn39Pb3F50
Standard description CuNi2Si HV160U
Thickness of plating 0,5 µm Au over 2 µm Ni
Thickness of plating 0,8 µm Au (partial)
Standard description Elastollan R 3000 A
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
26.07.2010
Index
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
CCA M12, 5 pin/2 x M12, 5 pin
A-coding
www.ERNI.com
Class
394893
CCA
I (1/1)
