DIP162-DNLED

Description
LCD-MODULE 2x16 - 6.68mm
File Size282KB,6 Pages
ManufacturerETC2
Download Datasheet Compare View All

DIP162-DNLED Overview

LCD-MODULE 2x16 - 6.68mm

LCD-MODULE 2x16 - 6.68mm
INCL. CONTROLLER HD44780
g
tin
n
mou ed
no quir
re

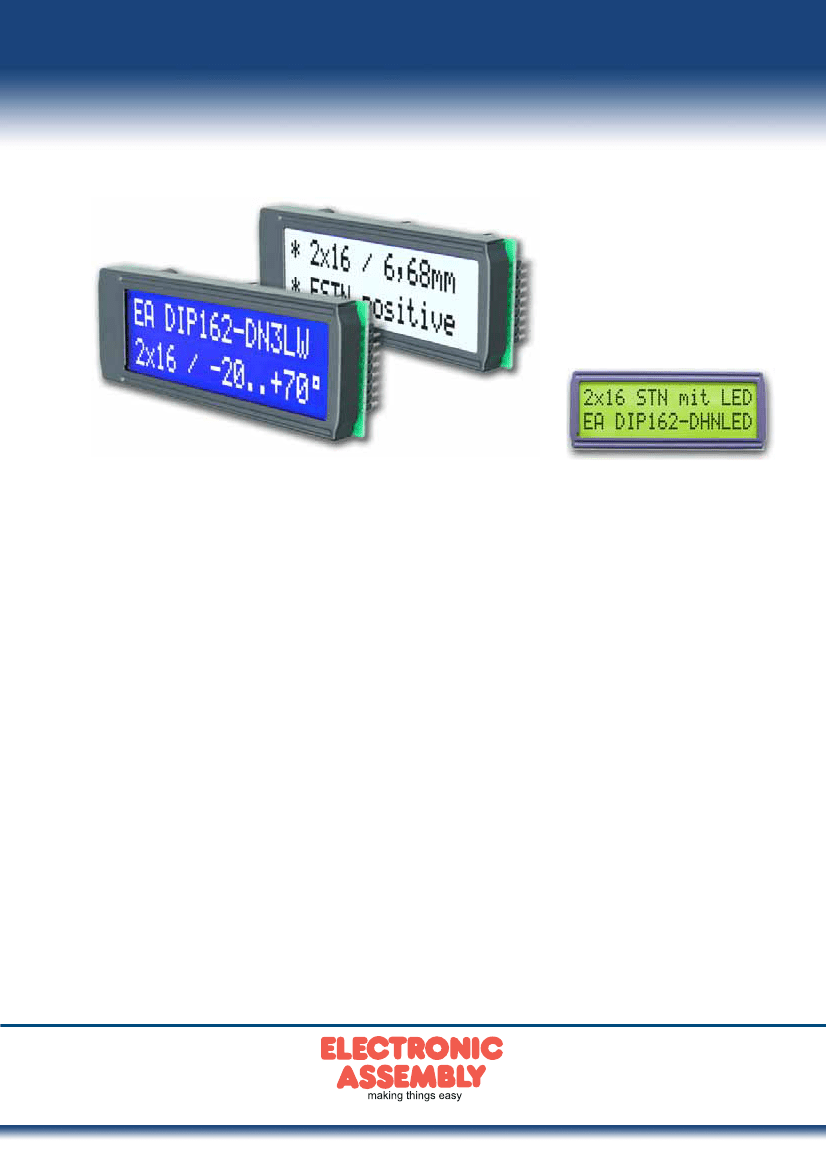

EA DIP162J-DN3LW
75 x 27 x 11 mm
3.2008
EA DIP162-DN3LW
75 x 27 x 11 mm
EA DIP162-DHNLED
68 x 27 x 11 mm
FEATURES
HIGH CONTRAST LCD SUPERTWIST DISPLAY
EA DIP162-DNLED: YELLOW/GREEN WITH LED BACKLIGHT
EA DIP162-DN3LW AND DIP162J-DN3LW WITH WHITE LED B/L., LOW POWER

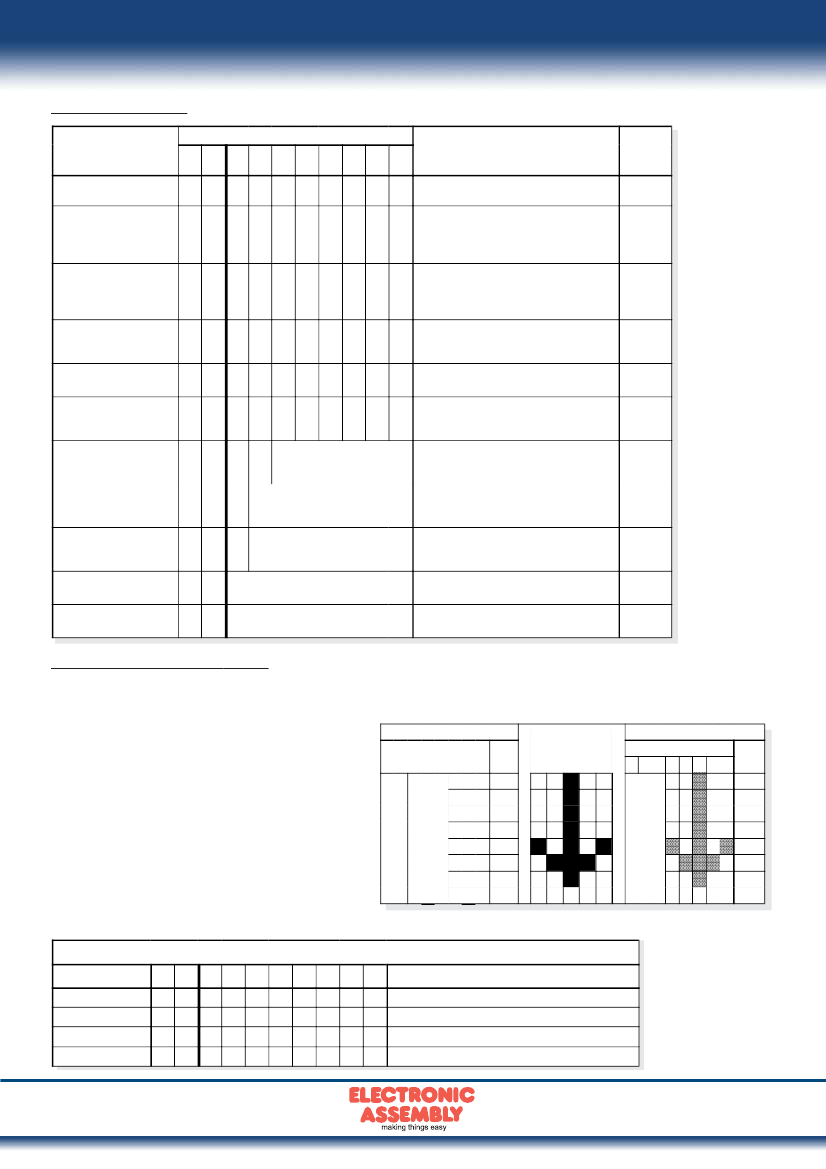

INCL. HD 44780 OR COMPATIBLE CONTROLLER
INTERFACE FOR 4- AND 8-BIT DATA BUS

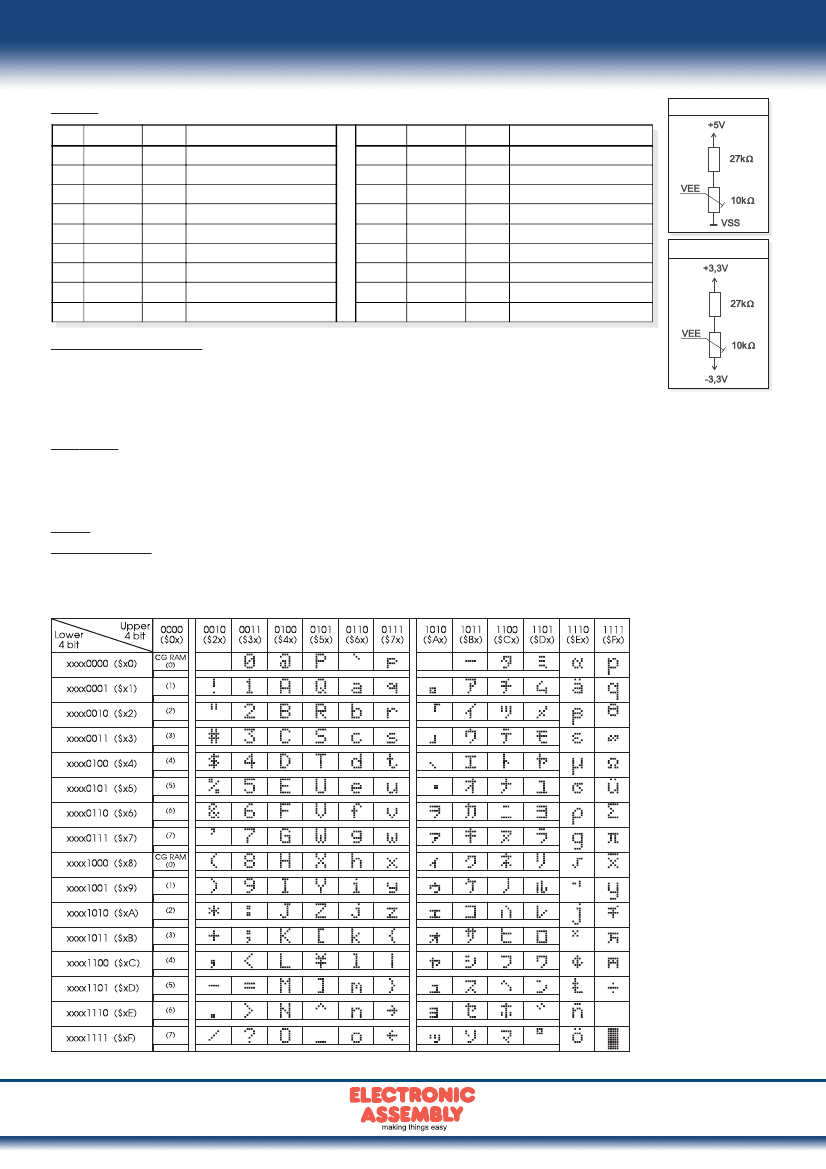

POWER SUPPLY
+5V
OR ±2.7V OR ±3.3V
OPERATING TEMPERATURE 0~+50°C (-DN3LW, -DHNLED: -20~+70°C)
LED BACKLIGHT Y/G max. 150mA@+25°C
LED BACKLIGHT WHITE max. 45mA@+25°C

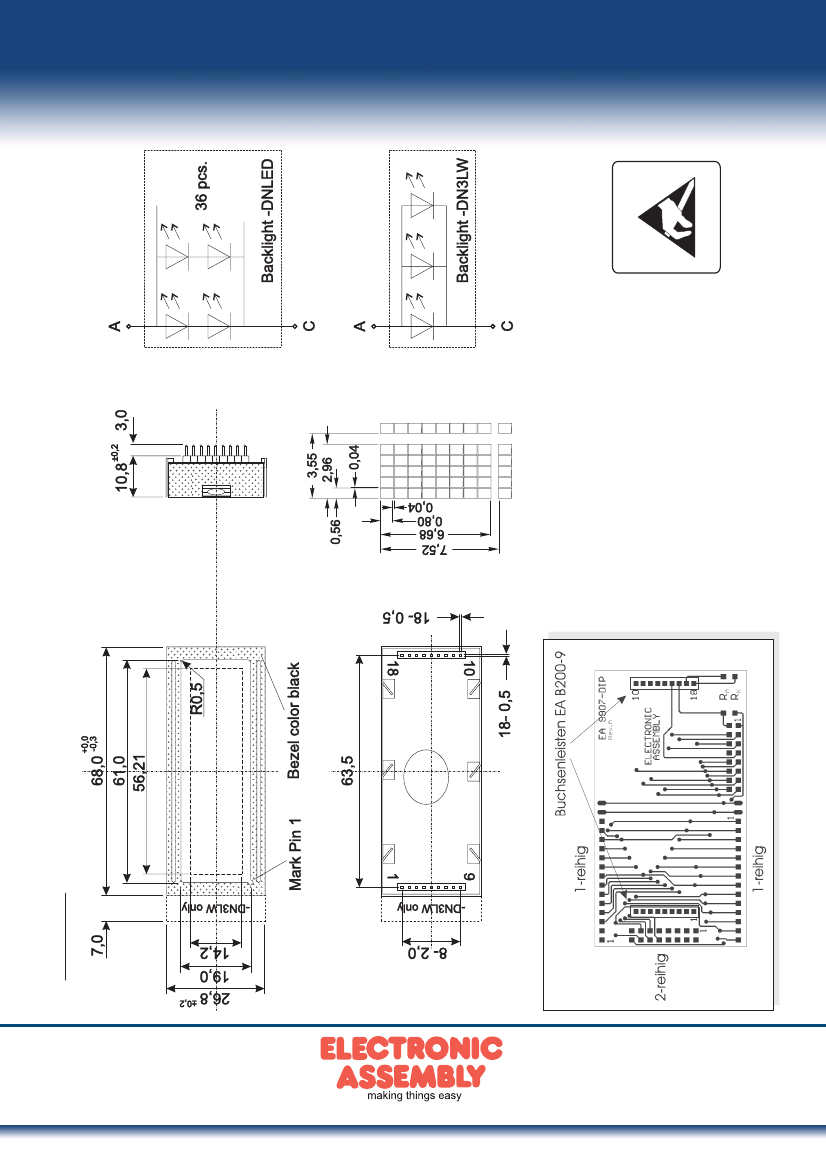

SOME MORE MODULES WITH SAME MECHANIC AND SAME PINOUT:
-DOTMATRIX 1x8, 4x20
-GRAPHIC 122x32
*
NO SCREWS REQUIRED: SOLDER ON IN PCB ONLY
*
DETACHABLE VIA 9-PIN SOCKET EA B200-9 (2 PCS. REQUIRED)
*
*
*
*
*
*
*
*
*
*
ORDERING INFORMATION
LCD MODULE 2x16 - 6.68mm WITH BACKLIGHT Y/G
SAME BUT WITH T
OP.
-20..+70°C INCL. TEMP. COMPENSATION
SAME IN BLUE-WHITE OPTIC, T
OP.
-20..+70°C INCL. TEMP. COMP.
SAME IN BLACK&WHITE, T
OP.
-20..+70°C INCL. TEMP. COMP.
9-PIN SOCKET, HEIGHT 4.3mm (1 PC.)
SUITABLE BEZEL (WINDOW 60.0x14.8 mm)
ADAPTOR PCB WITH STANDARD PINOUT PITCH 2.54mm
EA DIP162-DNLED
EA DIP162-DHNLED
EA DIP162-DN3LW
EA DIP162J-DN3LW
EA B200-9
EA 017-2UKE
EA 9907-DIP
Zeppelinstraße 19 · D-82205 Gilching · Phone +49-(0)8105-778090 · Fax +49-(0)8105-778099 · www.lcd-module.de · info@lcd-module.de
