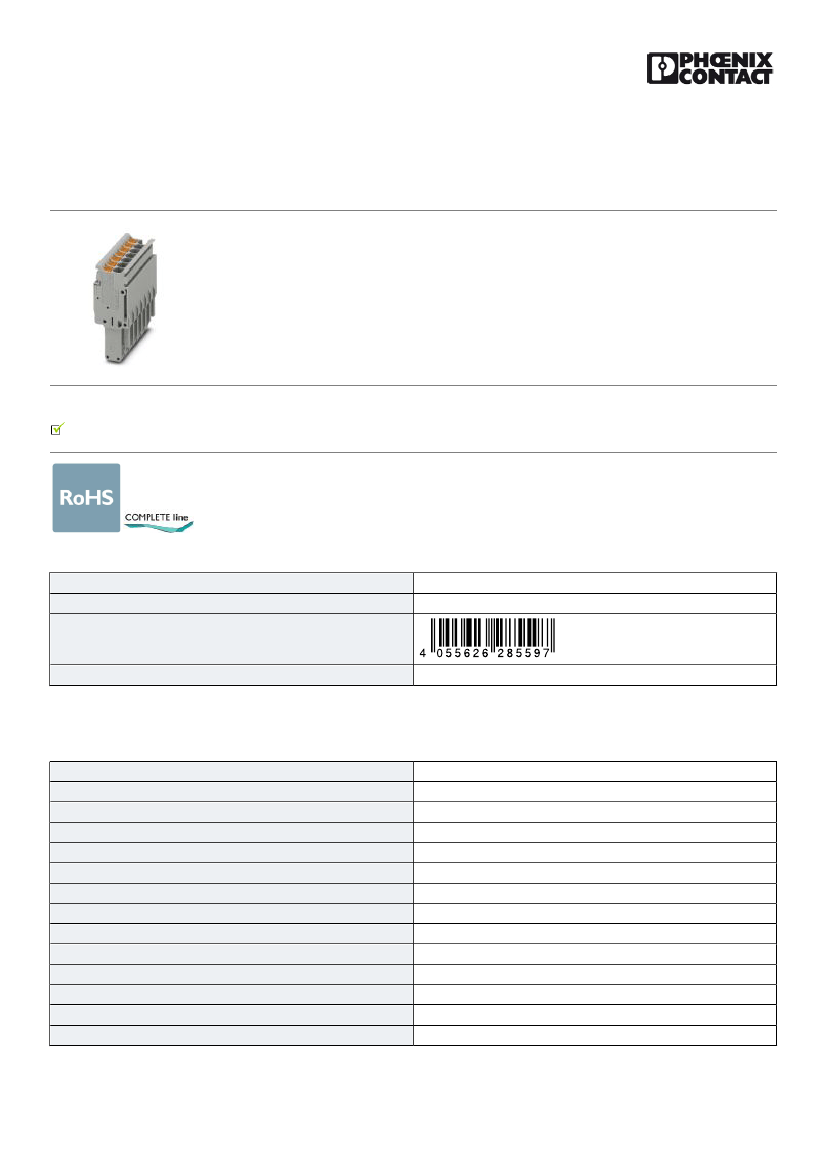

Plug - PP 2,5/ 7 - 3211286
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, nom. voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, number of
connections: 7, number of positions: 7, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 36.4 mm,
height: 41.2 mm, color: gray
Your advantages
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626285597
25 pc
25 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
7
1
7
7
2.5 mm²
gray
PA
V0
Machine building
Plant engineering
6 kV
3
III
I
10/09/2020 Page 1 / 8
https://www.phoenixcontact.com/pi/products/3211286
Plug - PP 2,5/ 7 - 3211286
Technical data
General
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
0.77 W (the value is based on one connection block and is multiplied
according to the pin assignment)
24 A (with 4 mm² conductor cross section)
24 A
800 V
No
Dimensions
Width
Length
Height
Pitch
36.4 mm
16 mm
41.2 mm
25.6 mm
5.2 mm
Connection data
Connection
Connection method
Stripping length
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Two conductors with the same cross section, flexible, with TWIN
ferrules, with plastic sleeve, maximum
Connection cross sections directly pluggable
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Internal cylindrical gage
1 level
Push-in connection
8 mm ... 10 mm
IEC 61984
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
26
14
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
0.34 mm² 4 mm²
0.34 mm²
4 mm²
0.34 mm²
0.34 mm²
2.5 mm²
A3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
10/09/2020 Page 2 / 8
https://www.phoenixcontact.com/pi/products/3211286
Plug - PP 2,5/ 7 - 3211286
Technical data
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 61984
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 10.0.1
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141151
272607xx
27260701
27260701
27260701
27141100
27141151
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
ETIM 7.0
EC000897
EC000897
EC002021
EC002021
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
10/09/2020 Page 3 / 8
https://www.phoenixcontact.com/pi/products/3211286
Plug - PP 2,5/ 7 - 3211286
Classifications
UNSPSC
UNSPSC 18.0
UNSPSC 19.0
UNSPSC 20.0
UNSPSC 21.0
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
600 V
20 A
26-12
http://www.csagroup.org/services-industries/product-listing/
C
600 V
20 A
26-12
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
20 A
26-12
FILE E 60425
600 V
20 A
26-12
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
20 A
26-12
FILE E 60425
600 V
20 A
26-12
10/09/2020 Page 4 / 8
https://www.phoenixcontact.com/pi/products/3211286
Plug - PP 2,5/ 7 - 3211286
Approvals
EAC
RU C-
DE.A*30.B.01742
EAC
RU C-
DE.BL08.B.00511
cULus Recognized

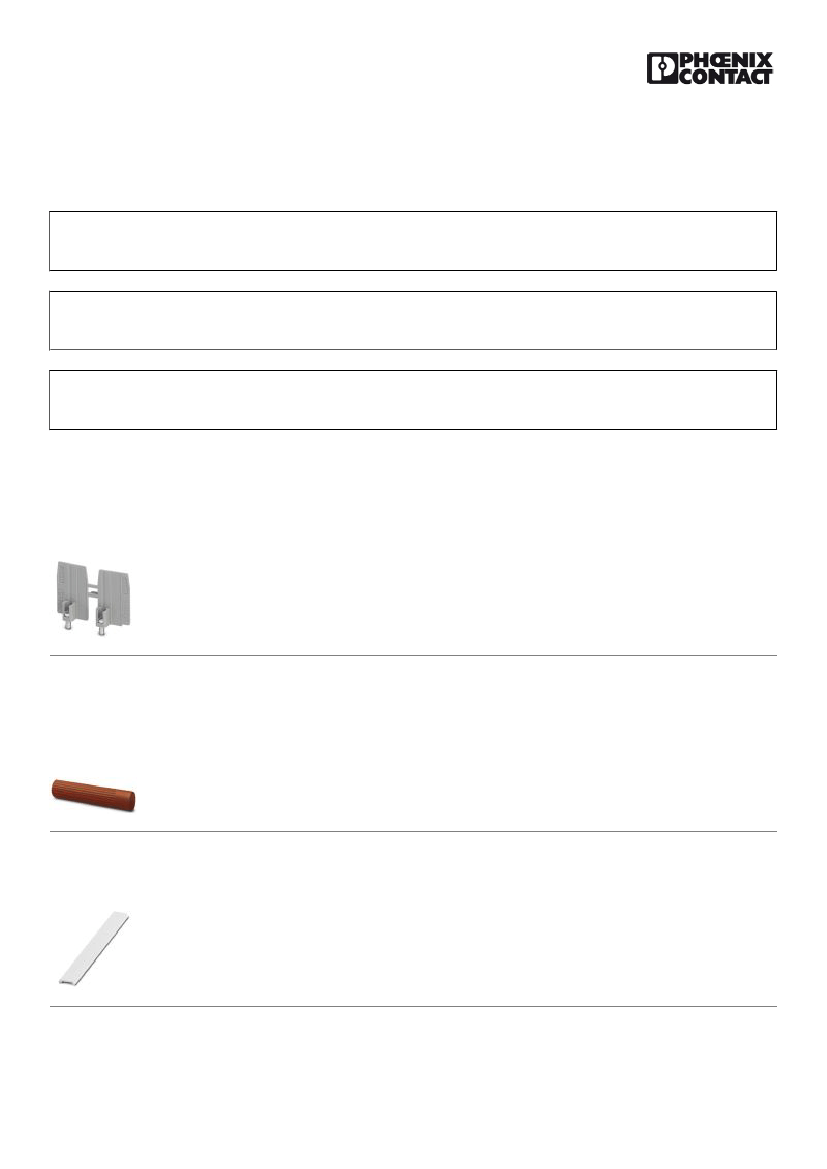

Accessories
Accessories
End cover
Flange cover - DF-SP-H 2,5 - 3209824
Flange cover, length: 35.8 mm, width: 4.5 mm, height: 24.7 mm, color: gray
Insulating sleeve
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, color: red
Labeled terminal marker
Zack Marker strip, flat - ZBF 5 CUS - 0825025
Zack Marker strip, flat, can be ordered: Strip, white, labeled according to customer specifications, mounting type:
snap into flat marker groove, for terminal block width: 5 mm, lettering field size: 5.15 x 5.15 mm, Number of individual
labels: 10
10/09/2020 Page 5 / 8
