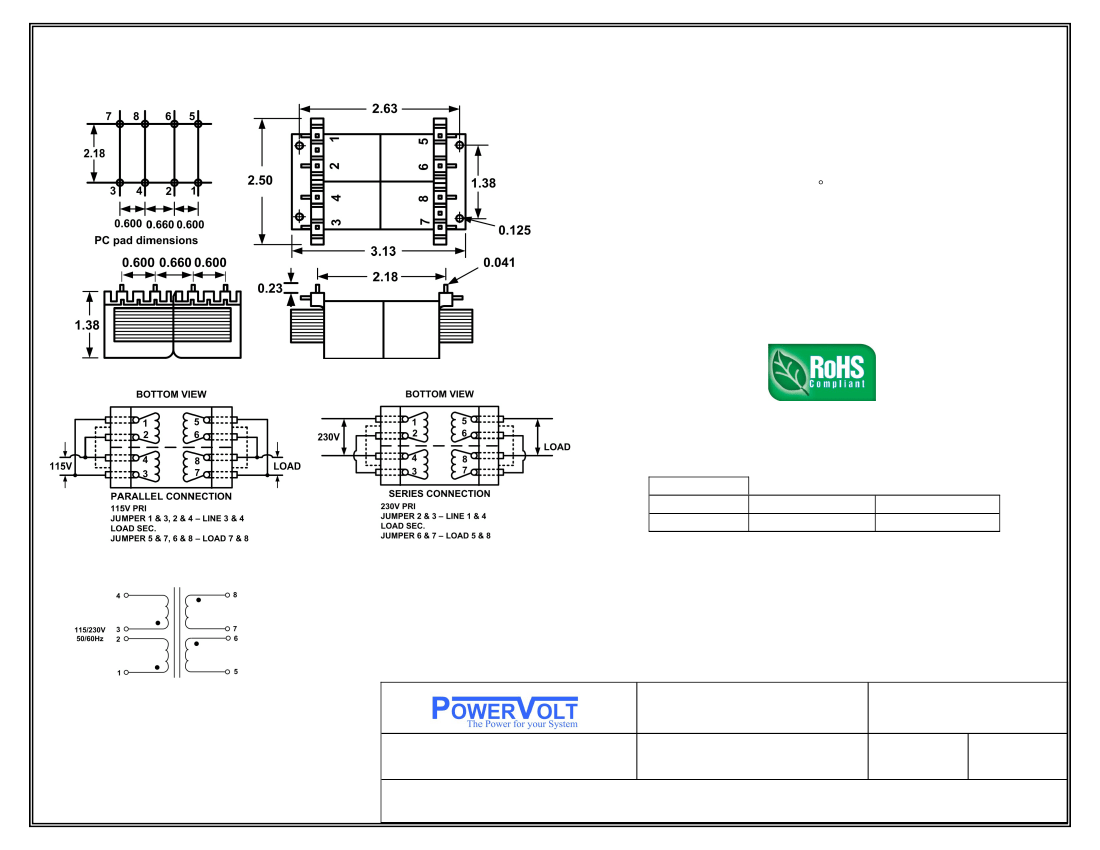

FZ -

PRINTED CIRCUIT MOUNT, LOW PROFILE POWER TRANSFORMER

Electrical Specifications

A. Maximum Power: 48VA

B. Input Voltage and Frequency: 115/230V, 50/60Hz

C. Voltage Regulation: 18% TYP, Full Load to No Load

Temperature Rise: 50 C TYP

Insulation Resistance: < 1 MEG ohm

Hi-Pot: 2500 Vrms 1 minute @ Pri to Sec

2500 Vrms 1 minute @ Pri to Core

1500 Vrms 1 minute @ Sec to Core

Marking: Powervolt, part number (see table), date code, terminal

numbers

Part No.

115/230V

FZ24-2000

Series Connection

24VCT @ 2.00A

Parallel Connection

12V @ 4.00A

Dual Primary

●

Indicates Like Polarity

POWER TRANSFORMER

FZ24-2000

Dim: Inches

Sheet 1 of 1

CONTENTS OF THIS DRAWING ARE SUBJECT TO

CHANGE WITHOUT PRIOR NOTICE

Powervolt, Inc.

300 W Factory Road, Addison, IL 60101

PROPRIETARY NOTICE: THIS DRAWING PRINT OR DOCUMENT AND SUBJECT MATTER DISCLOSED HEREIN ARE PROPRIETARY ITEMS TO WHICH

POWERVOLT, INC. RETAINS THE EXCLUSIVE RIGHT OF DISSEMINATION, MANUFACTURE AND SALE. THIS DRAWING, PRINT OR DOCUMENT IS SUBMITTED IN

CONFIDENCE FOR CONSIDERATION BY THE RECIPIENT ALONE UNLESS PERMISSION FOR FURTHER DISCLOSURE IS EXPRESSLY GRANTED IN WRITING
