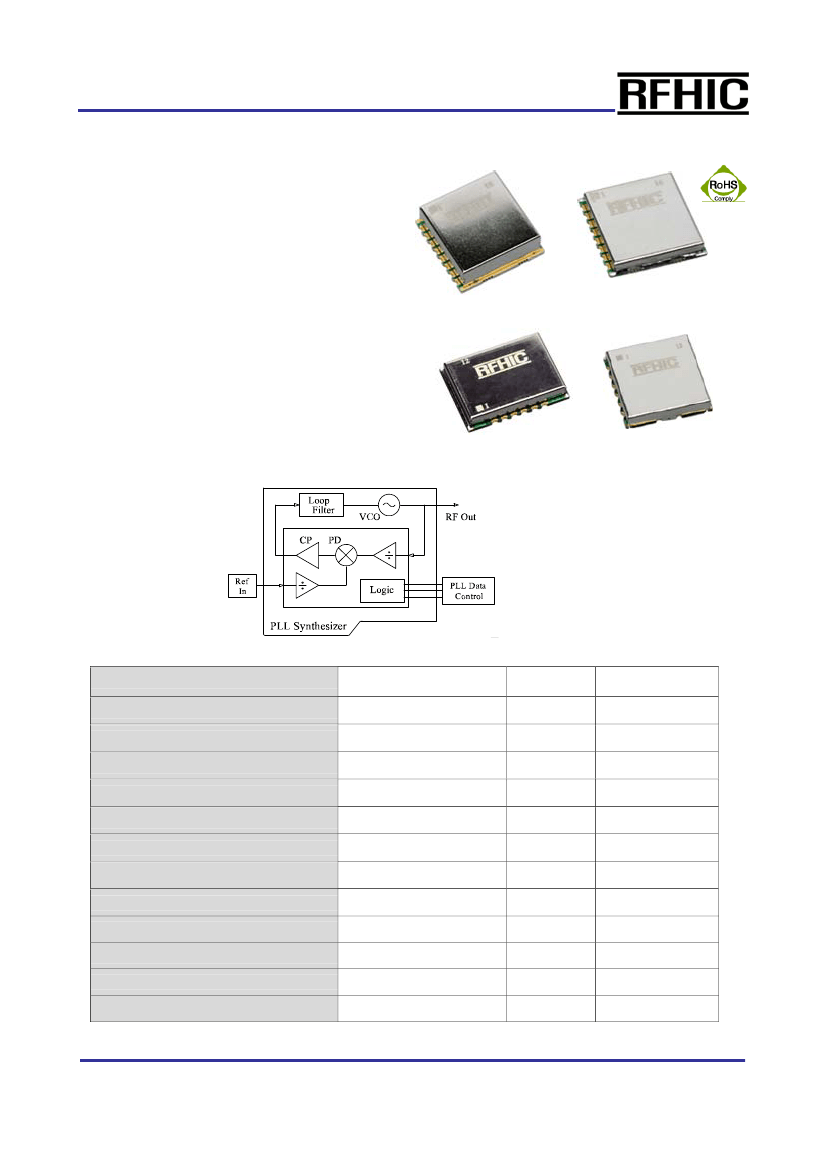

PLL Synthesizer
Product Features
• PLL + VCO Type
• Excellent Phase Noise
• Low Spurious
• Surface Mount Package
• RF Frequency up to 5.8GHz
• 5.0V DC Power Supply
• Pb Free / RoHS Compliant
PLV Series
Package Type : PS-16 / PS-26
Application
• Wireless Communication System
• Base Station
• Cable Telephone, TV
• Others Wireless Communication System
PS-32 / PS-42
Series View
V : VCO Frequency Variable
Test Configuration
Specifications
PARAMETER
Storage Temperature
Operating Temperature
Frequency
Supply Voltage VCC (PLL) / VCC (VCO)
Reference Frequency
Channel Step
Output Power
Current Consumption
Spurious
Lock Time
Phase Noise
Output Impedance
(Operating Temperature:-30°C~+80°C)
SPECIFICATION
-40 ~ +85
-30 ~ +80
10 ~ 5800
3~5
5 ~ 100
10 ~ 10000
-3 ~ +7
40
-70
0.1 ~ 30
-105
50
UNIT
°C
°C
MHz
V
MHz
KHz
dBm
mA / Max
dBc / Max
ms
dBc/Hz
Ω
CONDITION
@ 10 KHz Offset

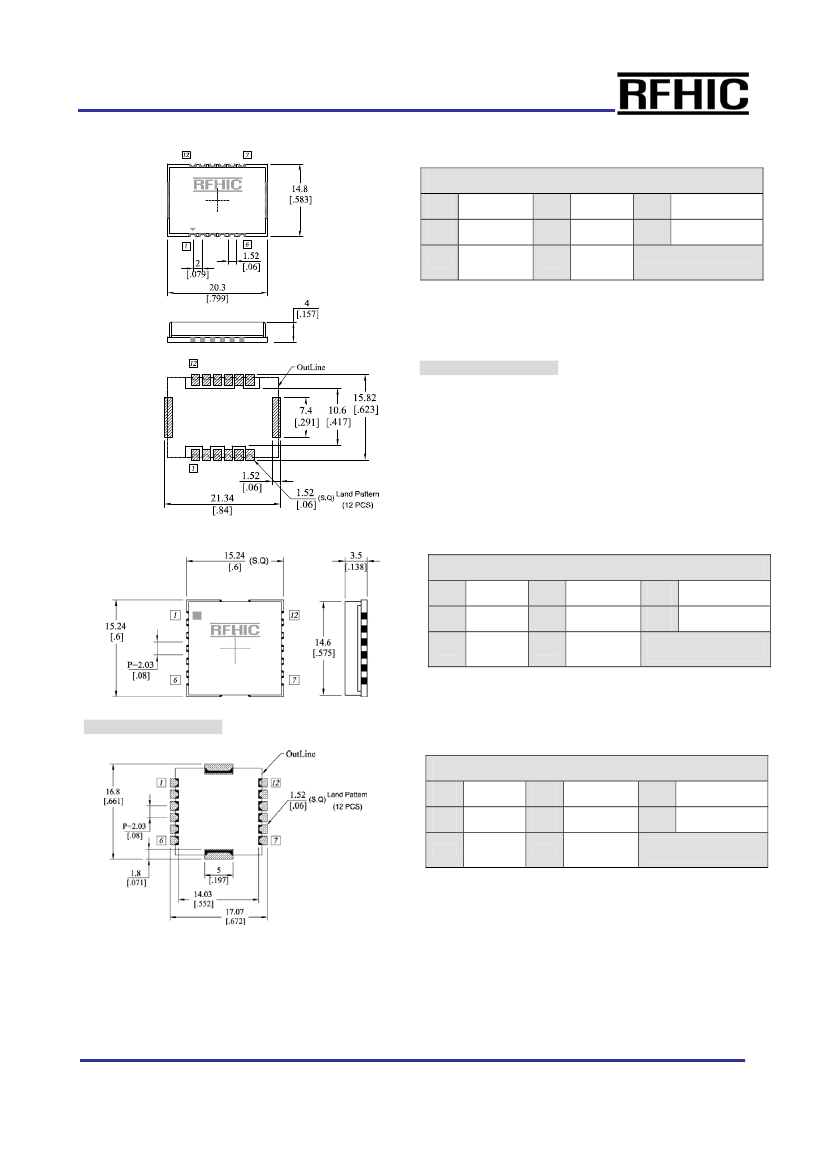

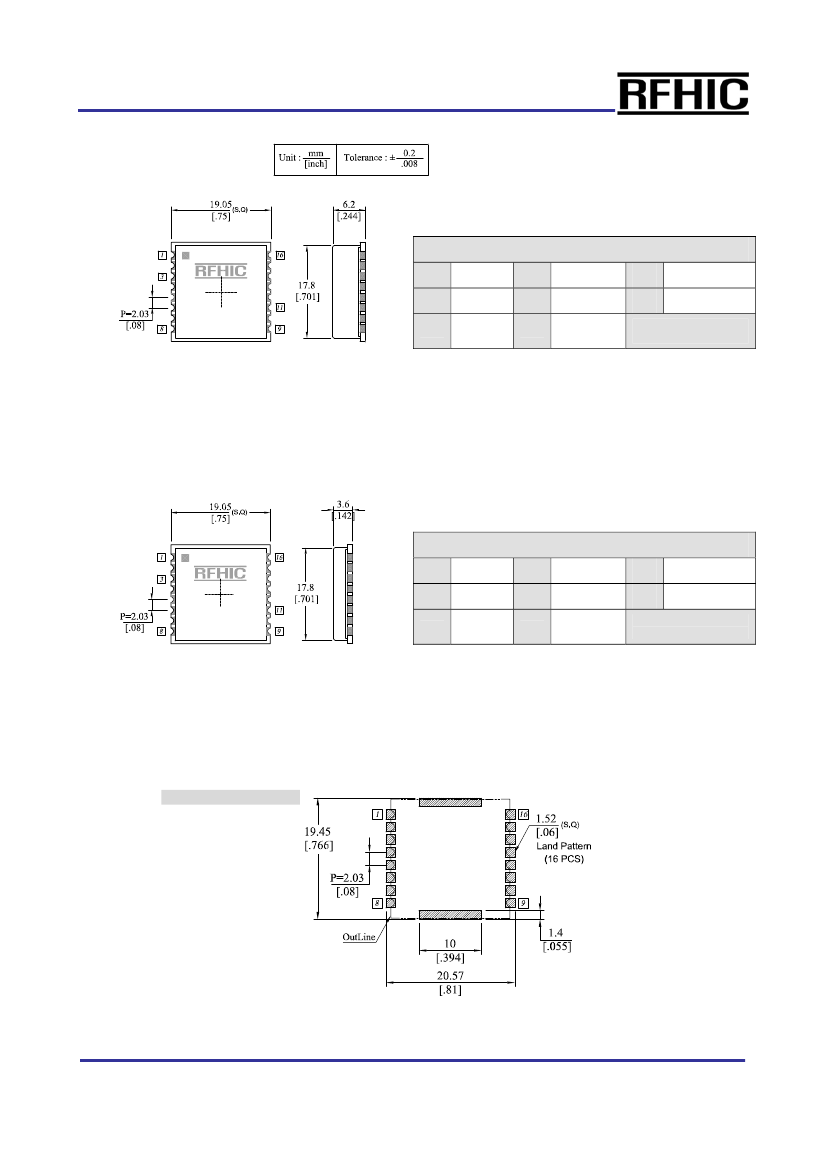

Package Dimensions
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.2
PLL Synthesizer
PS-16 type
PLV Series
PLV Series Pin Assignment
1
4
15
Clock
Ref. IN
VCC
(PLL)
2
9
16
Data
VCC(VCO)
Lock
Detect
3
13
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
PS-26 Type
PLV Series Pin Assignment
1
4
15
Clock
Ref. IN
VCC
(PLL)
2
9
16
Data
VCC(VCO)
Lock
Detect
3
13
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
Recommended Pattern
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 5.2
PLL Synthesizer
PS-32 type
PLV Series
PLV Series Pin Assignment
1
7
11
VCC(PLL)
RF Out
Data
3
9
12
Ref. IN
LD
Enable
5
10
VCC(VCO)
Clock
All other pins
are GND
Recommended Pattern
PS-42 type
PLV-K Series Pin Assignment
1
4
11
Clock
Ref. IN
VCC
(PLL)
2
7
12
Data
VCC(VCO)
Lock
Detect
3
10
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
Recommended Pattern
PLA series : 1,2,3pin GND & 4pin N.C
PLV-S Series Pin Assignment
1
4
11
Clock
Ref. IN
Lock
Detect
2
7
12
Data
VCC(VCO)
VCC(PLL)
3
9
Enable
RF Out
All other pins
are GND
PLT Series : 4pin N.C
PLF Series : 1,2,3pin GND
PLA series : 1,2,3pin GND & 4pin N.C
