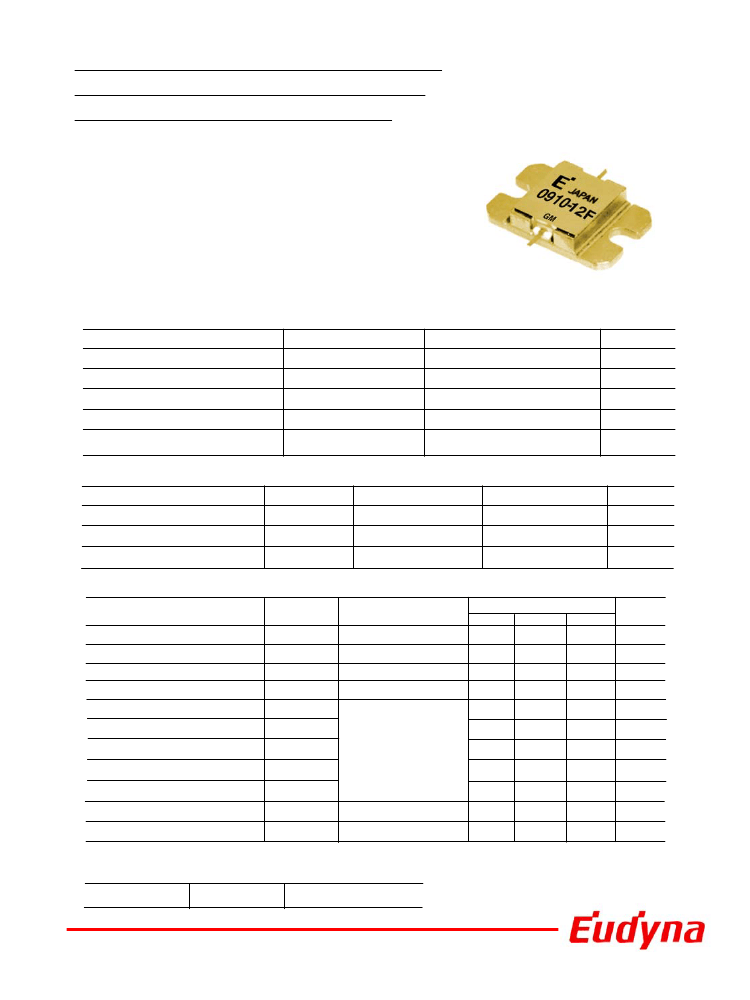

FLM0910-12F
X-Band Internally Matched FET
FEATURES
・High
Output Power: P1dB=40.5dBm(Typ.)
・High
Gain: G1dB=7.0dB(Typ.)
・High
PAE:
ηadd=25%(Typ.)
・Broad
Band: 9.5~10.5GHz
・Impedance
Matched Zin/Zout = 50Ω
・Hermetically
Sealed Package
DESCRIPTION
The FLM0910-12F is a power GaAs FET that is internally matched
for standard communication and radar bands to provide optimum
power and gain in a 50Ω system.
ABSOLUTE MAXIMUM RATINGS (Case Temperature Tc=25
°
C)
Item
Drain-Source Voltage
Gate-Source Voltage
Total Power Dissipation
Storage Temperature
Channel Temperature
Symbol
V
DS
V
GS
PTot
T
stg
T
ch
Rating
15
-5
57.6
-65 to +175
175
Unit
V
V
W
o
C
o
C
RECOMMENDED OPERATING CONDITION (Case Temperature Tc=25
°
C)
Item
DC Input Voltage
Gate Current
Gate Current
Symbol
V
DS
I
GS
I
GR
R
G
=50Ω
R
G
=50Ω
Condition
Limit
Unit
V
mA
mA
≤
10
≤
32.0
≥
-5.6
ELECTRICAL CHARACTERISTICS (Case Temperature Tc=25
°
C)
Item
Drain Current
Transconductance
Pinch-off Voltage
Gate-Source Breakdown Voltage
Symbol
I
DSS
g
m
V
p
V
GSO
P
1dB
G
1dB
I
dsr
Test Conditions
V
DS
=5V, V
GS
=0V
V
DS
=5V, I
DS
=3.6A
V
DS
=5V, I
DS
=300mA
I
GS
=-340uA
V
DS
=10V
f=9.5 - 10.5 GHz
I
DS
=0.5Idss (typ.)
Zs=Z
L
=50
Ω
Min.
-
-
-0.5
-5.0
39.5
6.0
-
-
-
Limit
Typ.
6.0
5000
-1.5
-
40.5
7.0
3.5
25
-
2.3
-
Max.
9.0
-
-3.0
-
-
-
4.5
-
1.2
2.6
80
Unit
A
mS
V
V
dBm
dB
A
%
dB
o
Output Power at 1dB G.C.P.
Power Gain at 1dB G.C.P.
Drain Current
Power-added Efficiency
Gain Flatness
Thermal Resistance
Channel Temperature Rise
η
add
∆G
R
th
∆T
ch
Channel to Case
10V X Idsr X Rth
-
-
C/W
o
C

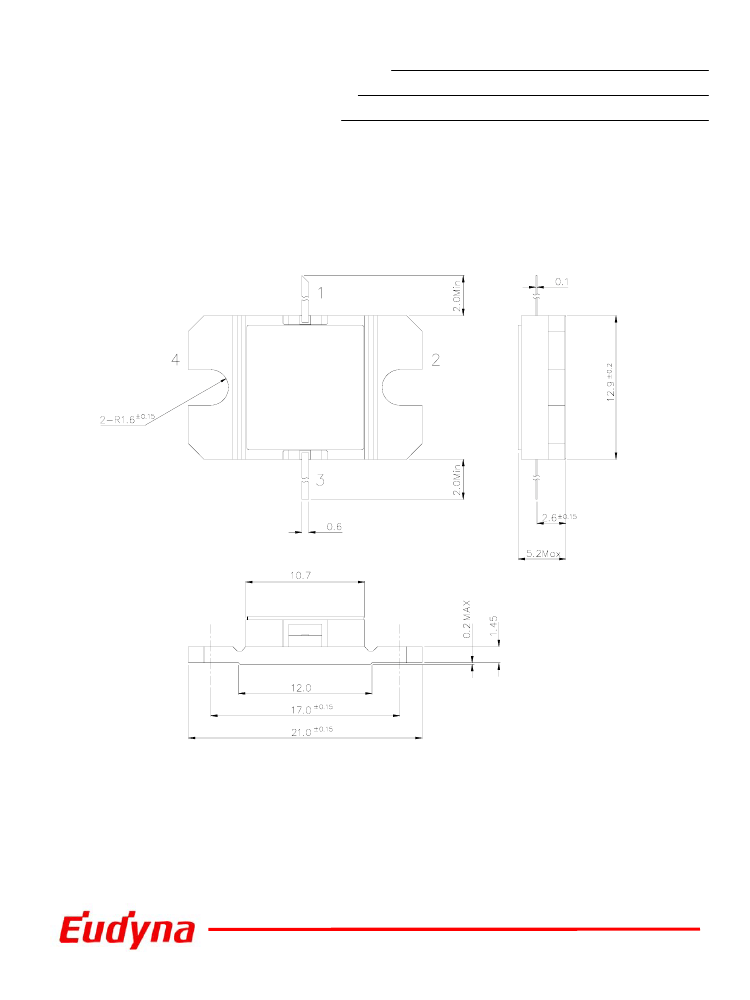

CASE STYLE: IB
G.C.P.:Gain Compression Point, S.C.L.:Single Carrier Level
Note:RF-Test is measured with Vgs-Constant Circuit.
ESD
Edition 1.2
September 2004
Class
Ⅲ
2000V ~
Note : Based on EIAJ ED-4701 C-111A(C=100pF, R=1.5kΩ)
1
FLM0910-12F
X-Band Internally Matched FET

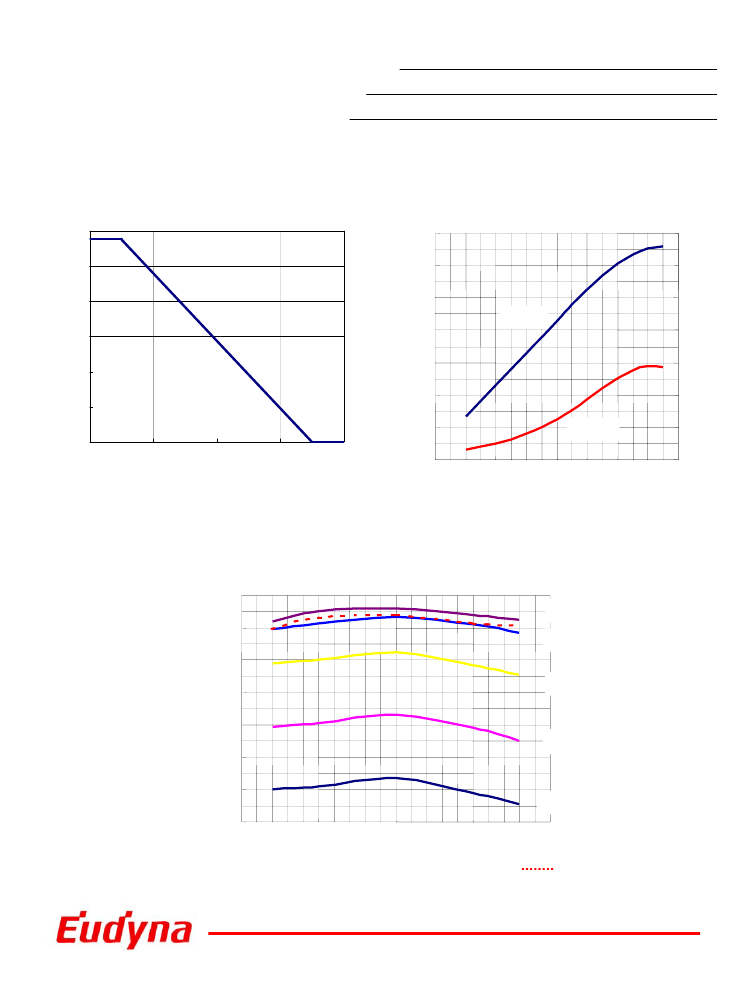

POWER DERATING CURVE
OUTPUT POWER , POWER ADDED EFFICIENCY
vs. INPUT POWER
Vds=10V, Ids=0.5IDSS
60
Total Power Dissipation [W]
50
42
40
Output power [dBm]
38
36
34
32
30
P.A.E.
Pout
70
Power Added Efficiency [%}
60
50
40
30
20
10
0
20
22
24
26
28
30
32
34
36
Input power [dBm]
40
30
20
10
0
0
50
100
150
200
28
Case Temperature [degree C]
OUTPUT POWER vs. INPUT POWER
Vds=10V, Ids=0.5IDSS
42
Pin=35dBm
40
Output power [dBm]
38
36
34
Pin=33dBm
Pin=30dBm
Pin=
26dBm
32
30
Pin=22dBm
28
9
9.5
10
Input power[dBm]
10.5
11
P1dB
2

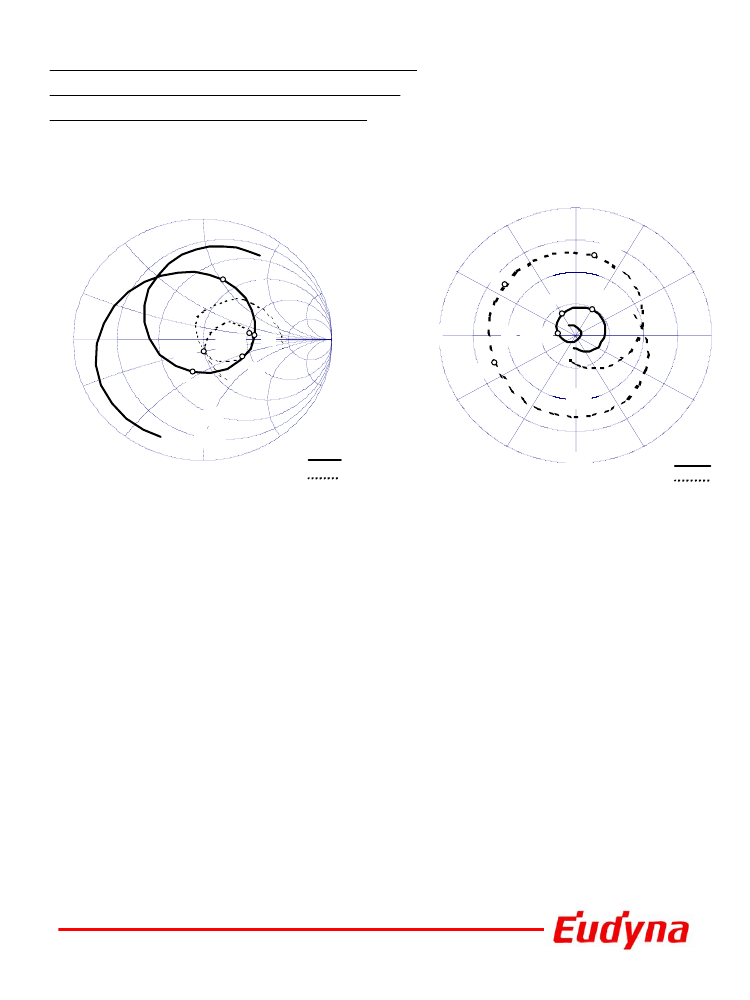

FLM0910-12F
X-Band Internally Matched FET
