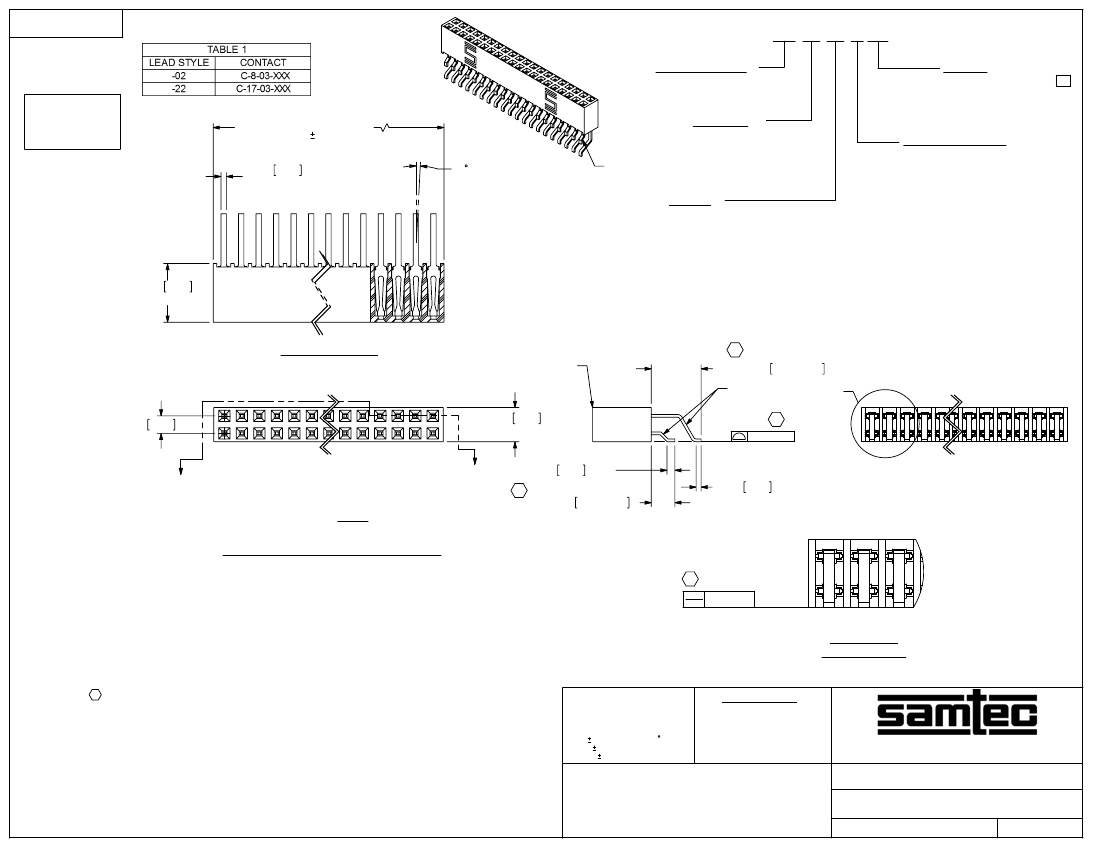

REVISION AE
SMH-1XX-XX-XX-X-XX
NO. OF POSITIONS
-02 THRU -36
(PER ROW)
OPTIONS
-XX: INDICATES POSITION
Z
POLARIZED (USE PK-06-N)
-TR: TAPE & REEL PACKAGING
(2 - 29 POSITIONS ONLY)
ROW SPECIFICATION
-D: DOUBLE ROW (USE SMH-50-D)
(SEE FIG 1)
-S: SINGLE ROW (USE SSW-50-S)
(SEE FIG 2, SHT 2)
DO NOT
SCALE FROM
THIS PRINT
((No OF POS x .100[2.54]
) + .020[.51]) .010[.25]
.031 0.79 x .016[.41]
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
POSITION 01
LEAD STYLE
-02: SURFACE MOUNT
(USE C-8-03-X)
-22: LOW INSERTION FORCE
(USE C-17-03-X)
.335 8.51
REF
PLATING
-G: 20µ" OVER IN CONTACT AREA, FLASH GOLD ON TAIL
-T: TIN OVER, MATTE TIN ON TAIL
-S: 30µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" OVER IN CONTACT AREA, FLASH GOLD ON TAIL
-L: 10µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-TM: TIN OVER, MATTE TIN ON TAIL
-SM: 30µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" OVER IN CONTACT AREA, MATTE TIN ON TAIL
SECTION "A"-"A"
SMH-50-D
02
C3
.285±.010 7.24±0.25
SEE TABLE 1
'C'
.100 2.54 REF
01
.195 4.95
REF
"A"
C2
C1
SEE NOTE 2
"A"
.045 1.15 REF
.028 0.72 REF
.135±.010 3.43±0.25
SMH-120-XX-XX-D SHOWN
FIG 1

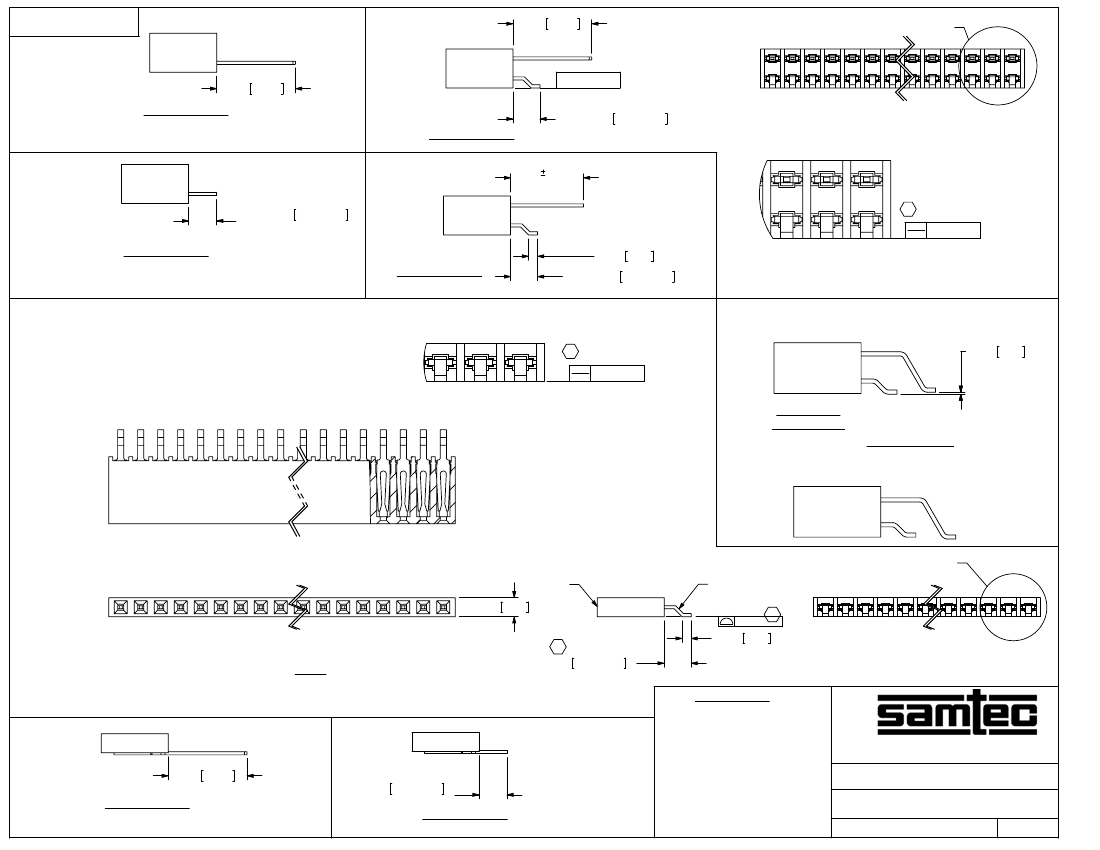

SEE SHEET 2 FOR IN-PROCESS VIEWS
C6
.006 [.15
TAILS ONLY, SEE NOTE 12
DETAIL 'C'
SCALE 3.5 : 1
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: POSITIONS 02-24= .006[.15], POSITIONS 25-36= .008[.20].
3. BURR ALLOWANCE: .003[.08] MAX.
4. ONE POSITION WILL BE LOST FOR EVERY CUT MADE ON A SOCKET
STRIP: CUT FLASH TO BE .010 [.25] MAX WITH NO FLASH ALLOWED IN
HOLES OR EXTENDING BELOW LEADS
5. MINIMUM PUSHOUT FORCE: 1.5 LB.
6. MAXIMUM ALLOWABLE BOW: .003[.08] INCH/INCH AFTER ASSEMBLY.
7. ENDWALLS AFTER CUTTING: .045 +/-.003.
8. SHEAR TAILS TO DIMENSION SHOWN.
9. CONTACT TAILS TO BE FLUSH TO .003[.08] ABOVE OR BELOW A DATUM LINE
MADE BY THE INSULATOR. (-DH ONLY)
10. NOTE DELETED.
11. POSITIONS 4 OR LESS SHOULD BE LAYER PACKAGED UNLESS OTHERWISE NOTED IN THE PART CALLOUT.
12. STRAIGHTNESS APPLIES TO FULL STRIPS ONLY.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOSPHOR BRONZE
.100 [2.54] HORIZONTAL SMT SOCKET ASSEMBLY
SMH-1XX-XX-XX-X-XX
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SMH-1XX-XX-XX-X-XX-MKT.SLDDRW
BY:
BRATCHER 2/5/99
REVISION AE
.394 10.01
'D'
.394 10.01
IN-PROCESS 1
MUST FILL WITH DIE SIDE OF PIN FACING DOWN, PINS ARE
STAMPED WITH A SQUARE INDICATOR MARK ON DIE SIDE
SEE NOTE 9
(-DH ONLY)
IN-PROCESS 3
.135±.010 3.43±0.25
.350 .010
(SEE NOTE 8)
.145±.010 3.68±0.25
(SEE NOTE 8)
C7
IN-PROCESS 2
MUST FILL WITH DIE SIDE OF PIN FACING DOWN, PINS ARE
STAMPED WITH A SQUARE INDICATOR MARK ON DIE SIDE
IN-PROCESS 4
.045 1.15 REF
.135±.010 3.43±0.25
.006 [.15]
TAILS ONLY, SEE NOTE 12
C8
.003 0.08
.006 [.15]
TAILS ONLY, SEE NOTE 12
DETAIL 'E'
SCALE 4 : 1
TAILS MUST BE WITHIN +/-.003 WITH RESPECT TO
EACH OTHER.
IN-PROCESS 5
'E'
SSW-50-S
.095 2.41 REF
01
C5
SEE TABLE 1
C4
SEE NOTE 2
.045 1.15 REF
FIG 2
SMH-120-XX-XX-S SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
.135±.010 3.43±0.25
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
.394 10.01
IN-PROCESS 1
.140±.010 3.56±0.25
(SEE NOTE 8)
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100 [2.54] HORIZONTAL SMT SOCKET ASSEMBLY
IN-PROCESS 2
F:\DWG\MISC\MKTG\SMH-1XX-XX-XX-X-XX-MKT.SLDDRW
SMH-1XX-XX-XX-X-XX
SHEET
2
OF
3
BY:
BRATCHER 2/5/99
REVISION AE
POSITION 01
USER DIRECTION OF REELING
POCKET NOT DETAILED
-TR PACKAGING VIEW
ALL POCKETS DESIGNED PRIOR TO REVISION T, PART ORIENTATION SHOULD FOLLOW EXISTING POCKET
DESIGN.
AFTER REVISION T, ALL POCKETS ARE TO FOLLOW STANDARD ORIENTATION:
PIN #1 CLOSEST TO THE ROUND SPROCKET HOLES.
PT-1-24-03-29
TUBE PACKAGING
PT-1-24-01-30
SEE NOTE 11
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.100 [2.54] HORIZONTAL SMT SOCKET ASSEMBLY
SMH-1XX-XX-XX-X-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\SMH-1XX-XX-XX-X-XX-MKT.SLDDRW
BY:
BRATCHER 2/5/99
