Raychem
Overvoltage Devices
ROV14, ROV14H, ROV14E
14mm Series Metal Oxide Varistors
GENERAL DESCRIPTION
The ROV14-XXX (Radial-leaded Metal
Oxide Varistor)
products are 14mm radial leaded varistor devices
suitable for protection of overvoltage transients.
ROV devices can provide protection for a wide variety
of power systems against overvoltage faults such as
lightning, power contact and power induction. Suitable
for a broad range of applications including, but not
limited to security, power supplies, surge strips, etc.,
the ROV device helps to protect valuable equipment
from potential power surge damage by clamping high
energy, short duration impulses. The ROV devices
have high current handling and energy absorption
capability and fast response times to help protect
against transient faults.
www.tycopowercomponents.com
Document: SCD 25483
Status: Released
Rev.: A June 30, 2003
FEATURES
•
•
•
•
•
•
•
•
Radial leaded
Broad Varistor voltage and V
rms
range
Varistor voltage : 18V - 1800V
V
rms
voltage
: 11V - 1000V
Three surge capability series
Standard series, High surge series,
Extra high surge Series
Various lead types
Straight, Kinked, Other
Various packaging options
Bulk, Tape & Reel, Ammo Pack
Helps designers meet the following standards
UL, CSA, VDE
Fast response time
High current and energy absorption capability
APPLICATIONS
•
•
•
•
•
Power supplies and power systems
Line voltage
Telecommunications systems
Automotive systems
Appliances
TYPICAL APPLICATION SCHEMATIC
*
Protected
device
*In some applications, a polymeric PTC device such as a Tyco Electronics PolySwitch device may be used instead of a
fuse to provide a preferred solution.
Tyco Electronics Corporation 308 Constitution Drive, Menlo Park, CA 94025 Tel: (800) 227-4856 Fax: (800) 227-4866
1 of 11
Raychem
Overvoltage Devices
ROV14, ROV14H, ROV14E
14mm Series Metal Oxide Varistors

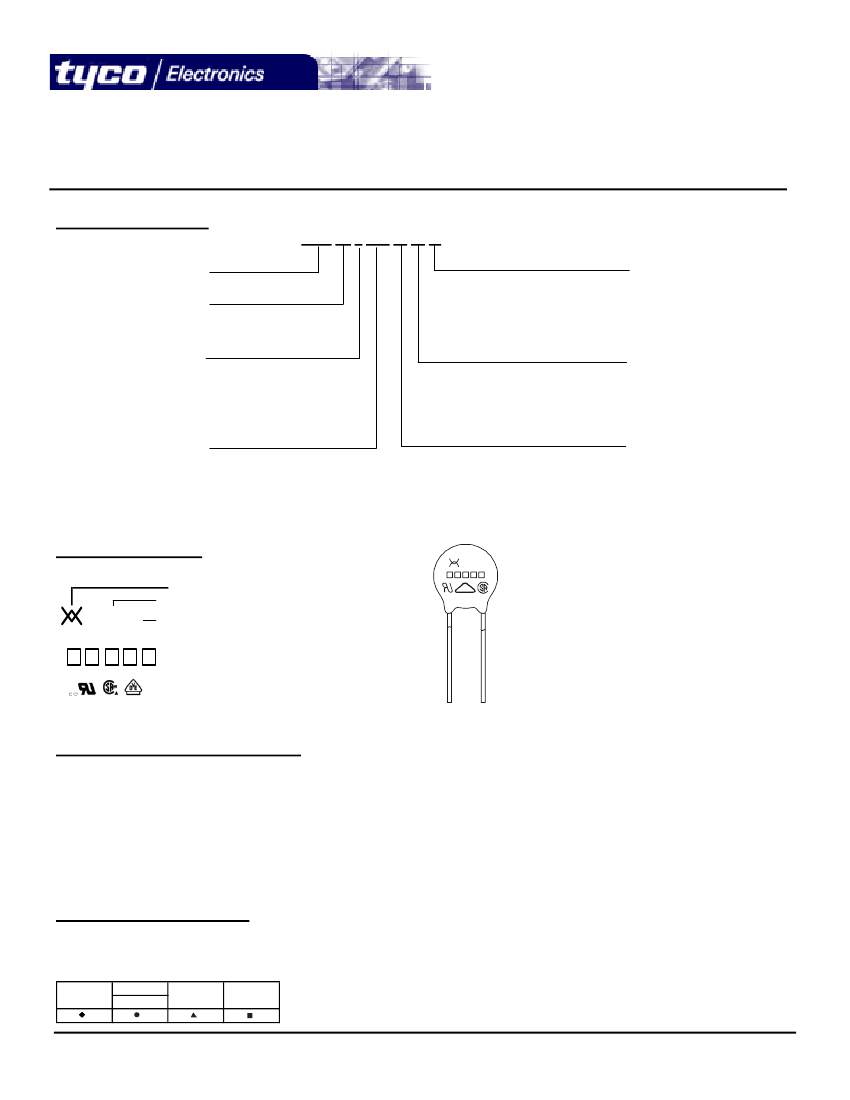

PART NUMBERING
ROV 14 – 241 K -S -2
Raychem ROV series
Disk Diameter
14mm
Surge Series
- : Standard series
H : High surge series
E : Extra high surge series
Varistor Voltage
241 = 24 x 10^1 = 240V
www.tycopowercomponents.com
Document: SCD 25483
Status: Released
Rev.: A June 30, 2003
Packaging
: Bulk
-2 : Tape & Reel
-AP : Ammo Pack
Lead Type
: Kinked Lead
-S : Straight Lead
Tolerance
K : ±10%
L : ±15%
M : ±20%
DEVICE MARKING
Raychem Logo
Voltage Designator
Tolerance (± 10%)
- Lot Identification
- Agency Marking
471K
VDE
471 K
GENERAL CHARACTERISTICS
Storage temperature:
Maximum operating temperature:
Maximum working surface temperature:
Temperature coefficient of voltage:
Insulation resistance of coating (@ 500 VDC):
Maximum response time:
Lead Material:
-40°C … +125°C
-40°C … +125°C
+115°C
0….+0.05% / °C max.
Over 1000MΩ
25ns
22 AWG Sn/Pb Plated Copper
AGENCY RECOGNITION
Device Ratings and Characteristics Tables contain specific recognition information for each individual part. The table below details
marking symbols for each agency recognition type.
UL1414
UL1449
(2nd Edition)
CSA
VDE
Tyco Electronics Corporation 308 Constitution Drive, Menlo Park, CA 94025 Tel: (800) 227-4856 Fax: (800) 227-4866
2 of 11
Raychem
Overvoltage Devices
ROV14, ROV14H, ROV14E
14mm Series Metal Oxide Varistors
DEVICE RATINGS AND CHARACTERISTICS
STANDARD SERIES
Varistor Voltage
V@1.0mA
Part Number
V
rms
(V
AC
)
11
14
17
20
25
30
35
40
50
60
75
95
115
130
140
150
175
± 10%
195
210
230
250
275
300
320
350
385
420
460
485
510
550
625
680
1000
Maximum
Allowable
Voltage
Maximum
Clamping
Voltage
V@50A
Maximum
Surge Current
(8x20us)
1
Time
(A)
1)
1)
1)
1)
1)
1)
1)
1)
www.tycopowercomponents.com
Document: SCD 25483
Status: Released
Rev.: A June 30, 2003
Rated
Wattage
Energy
(10x1000us)
Capacitance
(Typical)
Certifications
(V
DC
)
ROV14-180M
ROV14-220L
ROV14-270K
ROV14-330K
ROV14-390K
ROV14-470K
ROV14-560K
ROV14-680K
ROV14-820K
ROV14-101K
ROV14-121K
ROV14-151K
ROV14-181K
ROV14-201K
ROV14-221K
ROV14-241K
ROV14-271K
ROV14-301K
ROV14-331K
ROV14-361K
ROV14-391K
ROV14-431K
ROV14-471K
ROV14-511K
ROV14-561K
ROV14-621K
ROV14-681K
ROV14-751K
ROV14-781K
ROV14-821K
ROV14-911K
ROV14-102K
ROV14-112K
ROV14-182K
18
22
27
33
39
47
56
68
82
100
120
150
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
780
820
910
1000
1100
1800
Tolerance
± 20%
± 15%
(V
DC
)
14
18
22
26
31
38
45
56
65
85
100
125
150
170
180
200
225
250
275
300
320
350
385
418
460
505
560
615
640
670
745
825
895
1465
(V
DC
)
36
43
53
65
77
93
110
135
2
Times
(A)
(W)
(J)
4.7
5.4
6.9
8.8
9.4
12.0
14.0
17.0
22.0
28.0
32.0
44.0
52.0
57.0
62.0
67.0
79.0
84.0
92.0
104.0
120.0
132.0
140.0
148.0
156.0
164.0
172.0
180.0
184.0
188.0
204.0
224.0
248.0
348.0
@1kHz
(pF)
14898
11957
9731
7704
7622
6417
5184
5099
2965
2221
1742
1510
922
845
713
769
655
650
613
465
458
454
413
374
398
305
312
270
252
265
240
200
180
118
1000
500
0.10
135
165
200
250
300
340
360
395
455
505
550
595
650
710
775
842
920
1025
1120
1240
1290
1355
1500
1650
1815
2970
4500
2500
0.60
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
1). The clamping voltage for devices ROV14-180M to ROV14-680K is tested with 10A current.
Tyco Electronics Corporation 308 Constitution Drive, Menlo Park, CA 94025 Tel: (800) 227-4856 Fax: (800) 227-4866
3 of 11
Raychem
Overvoltage Devices
ROV14, ROV14H, ROV14E
14mm Series Metal Oxide Varistors

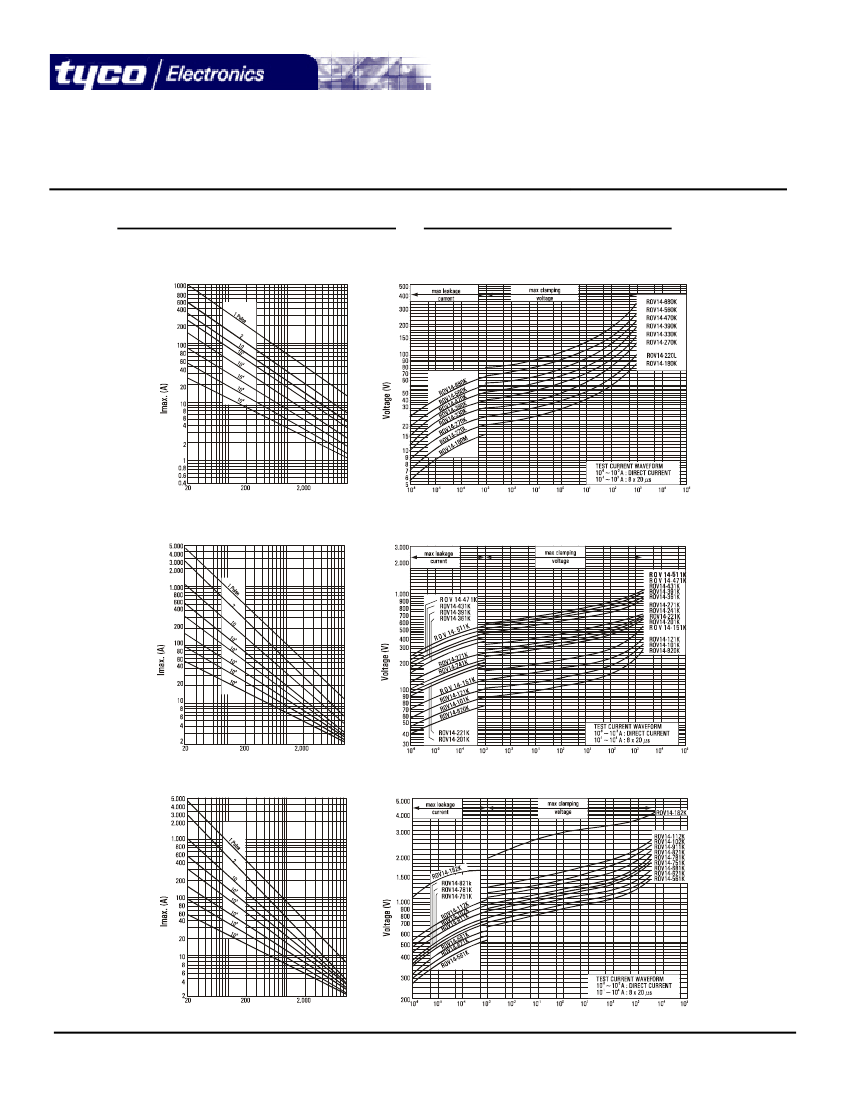

PULSE LIFETIME RATING CURVES
STANDARD SERIES
ROV14-180M – ROV14-680K
www.tycopowercomponents.com
Document: SCD 25483
Status: Released
Rev.: A June 30, 2003
V-I CHARACTERISTIC CURVES
STANDARD SERIES
ROV14-180M – ROV14-680K
Rectangular Wave (µs)
Current (A)
ROV14-820K – ROV14-511K
ROV14-820K – ROV14-511K
Rectangular Wave (µs)
Current (A)
ROV14-561K – ROV14-182K
ROV14-561K – ROV14-182K
Rectangular Wave (µs)
Current (A)
Tyco Electronics Corporation 308 Constitution Drive, Menlo Park, CA 94025 Tel: (800) 227-4856 Fax: (800) 227-4866
4 of 11
Raychem
Overvoltage Devices
ROV14, ROV14H, ROV14E
14mm Series Metal Oxide Varistors
DEVICE RATINGS AND CHARACTERISTICS
HIGH SURGE SERIES
Varistor Voltage
V@1.0mA
Part Number
V
rms
(V
AC
)
11
14
17
20
25
30
35
40
50
60
75
95
115
130
140
150
175
± 10%
195
210
230
250
275
300
320
350
385
420
460
485
510
550
625
680
Maximum
Allowable
Voltage
Maximum
Clamping
Voltage
V@50A
Maximum
Surge Current
(8x20us)
1
Time
(A)
1)
1)
1)
1)
1)
1)
1)
1)
www.tycopowercomponents.com
Document: SCD 25483
Status: Released
Rev.: A June 30, 2003
Rated
Wattage
Energy
(10x1000us)
Capacitance
(Typical)
Certifications
(V
DC
)
ROV14H180M
ROV14H220L
ROV14H270K
ROV14H330K
ROV14H390K
ROV14H470K
ROV14H560K
ROV14H680K
ROV14H820K
ROV14H101K
ROV14H121K
ROV14H151K
ROV14H181K
ROV14H201K
ROV14H221K
ROV14H241K
ROV14H271K
ROV14H301K
ROV14H331K
ROV14H361K
ROV14H391K
ROV14H431K
ROV14H471K
ROV14H511K
ROV14H561K
ROV14H621K
ROV14H681K
ROV14H751K
ROV14H781K
ROV14H821K
ROV14H911K
ROV14H102K
ROV14H112K
18
22
27
33
39
47
56
68
82
100
120
150
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
780
820
910
1000
1100
Tolerance
± 20%
± 15%
(V
DC
)
14
18
22
26
31
38
45
56
65
85
100
125
150
170
180
200
225
250
275
300
320
350
385
418
460
505
560
615
640
670
745
825
895
(V
DC
)
36
43
53
65
77
93
110
135
2
Times
(A)
(W)
(J)
5.2
6.3
7.8
9.5
11.0
14.0
16.0
20.0
28.0
36.0
44.0
53.0
65.0
70.0
78.0
84.0
99.0
105.0
115.0
130.0
@1kHz
(pF)
14890
11960
9730
7700
7620
6420
5180
5100
2970
2220
1740
1510
920
840
710
770
650
650
610
470
460
450
420
370
400
300
310
270
250
260
240
200
180
2000
1000
0.10
135
165
200
250
300
340
360
395
455
505
550
595
650
710
775
842
920
1025
1120
1240
1290
1355
1500
1650
1815
6000
4500
0.60
140.0
155.0
175.0
190.0
205.0
215.0
225.0
230.0
233.0
235.0
255.0
283.0
310.0
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
▲
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
1). The clamping voltage for devices ROV14H180M to ROV14H680K is tested with 10A current.
