LFV310-XXCAPX8TX
LFV300
LEVEL SENSORS
Online data sheet
LFV310-XXCAPX8TX | LFV300
LEVEL SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Ordering information
Type
LFV310-XXCAPX8TX
Other models and accessories
www.sick.com/LFV300
Part no.
6058968
Illustration may differ
Detailed technical data
Features
Medium
Measurement
Probe length
Process pressure
Process temperature
Fill material density
GOST approval
Fluids
Switch
66 mm
–1 bar ... 64 bar
–50 °C ... +150 °C
0.5 g/cm³ ... 2.5 g/cm³
✔
Performance
Accuracy of sensor element
Repeatability
Viscosity
Response time
± 2 mm
≤ 1 mm
0.1 mPas ... 10,000 mPas
500 ms
Electronics
Residual ripple
Power consumption
Initialization time
VDE protection class 2
Electrical connection
Supply voltage
Hysteresis
Signal voltage HIGH
Signal voltage LOW
Output current
Inductive load
Capacitive load
≤ 5 V
pp
< 10 mA
< 2 s
✔
M20 x 1.5
Volt-free transistor output PNP/ NPN: 10 V DC ... 55 V DC
2 mm
Uv –3 V
< 1 V
< 300 mA
1 H
100 nF
2
FLUID SENSORS | SICK
Online data sheet | 2016-05-17 16:55:06
Subject to change without notice
LFV310-XXCAPX8TX | LFV300
LEVEL SENSORS
Enclosure rating
Temperature drift
IP 66 / IP 67
0,03 mm/K
Mechanics
Wetted parts
Process connection
Housing material
Sensor material
Stainless steel 316L (optional Ra ≤ 0.8 μm)
Triclamp 2'' (PN 16, 316L, Ra < 0.8μm)
Stainless steel (electropolished)
Stainless steel 1.4404
Ambient data
Ambient operating temperature
Ambient storage temperature
–40 °C ... +70 °C
–40 °C ... +80 °C
Classifications
ECl@ss 5.0
ECl@ss 5.1.4
ECl@ss 6.0
ECl@ss 6.2
ECl@ss 7.0
ECl@ss 8.0
ECl@ss 8.1
ECl@ss 9.0
ETIM 5.0
ETIM 6.0
UNSPSC 16.0901
27273202
27273202
27273202
27273202
27273202
27273202
27273202
27273202
EC002654
EC002654
41111938
2016-05-17 16:55:06 | Online data sheet
Subject to change without notice
FLUID SENSORS | SICK
3
LFV310-XXCAPX8TX | LFV300
LEVEL SENSORS
H
I
J
K
L
M
N
O
P
Q
R
S
T
50 mm
(1.97)
ø 33,7 mm
(1.33)
53 mm
(2.09)
4
53 mm
(2.09)
19 mm
(0.75)
5
34 mm
(1.34)
6
178 mm
(7.01)
A
B
C
D
E
F

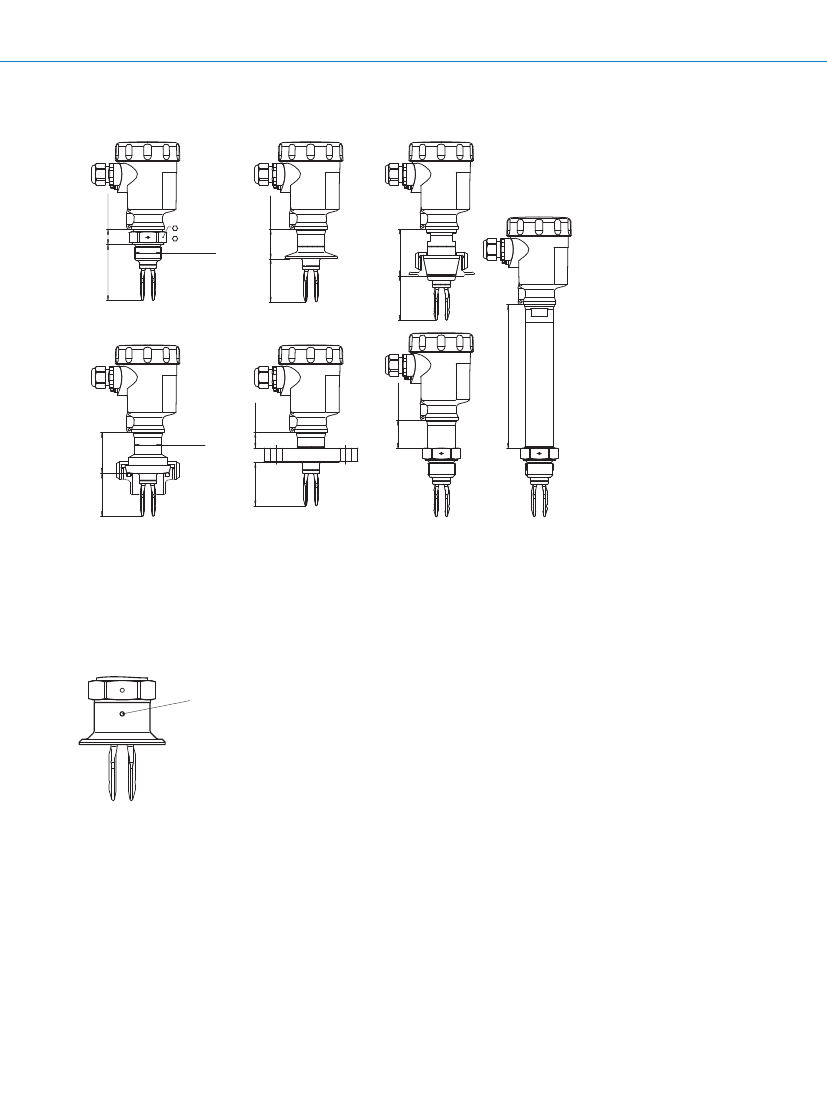

Dimensional drawing
(Dimensions in mm (inch))
LFV310
18,5 mm
(0.73)
G¾=66 mm (2.6)
G1=69 mm (2.72)
53 mm
(2.09)
G¾A, ¾"NPT
G1A, 1"NPT
1
2
55 mm
(2.17)
57 mm
(2.24)
32 (G¾A, ¾"NPT)
41 (G1A, 1"NPT)
36 mm
(1.42)
3
7
① Thread
② Tri-Clamp
③ DN
25 cone
④ Bolting
D 40
⑤ Flange
⑥ Gas-tight
leadthrough
⑦ Temperature
adapter
Marking on the welded flange
1
① Marking
4
FLUID SENSORS | SICK
Online data sheet | 2016-05-17 16:55:06
Subject to change without notice
LFV310-XXCAPX8TX | LFV300
LEVEL SENSORS
Connection diagram
Transistor - electronic module
1
2
3
① Signal
lamp (LED)
② DIL
switch for mode adjustment
③ DIL-switch
for sensitivity adjustment
PNP action
1
2
3
4
1 2 3 4
+
-
NPN action
-
+
1 2 3 4
+
-
Instruction for installation
Inflowing medium
2016-05-17 16:55:06 | Online data sheet
Subject to change without notice
-
FLUID SENSORS | SICK
5
+
