ACT24MB02AC [V001]
Standard Circular Connectors, Cable-to-Panel, 2 Position, Sealable, Wire & Cable,
Power, Panel Mount, DEUTSCH 38999 Series III Composite Connectors
ACT24MB02AC [V001]
ACTIVE
DEUTSCH
|
DEUTSCH 38999 Series III Composite Connectors

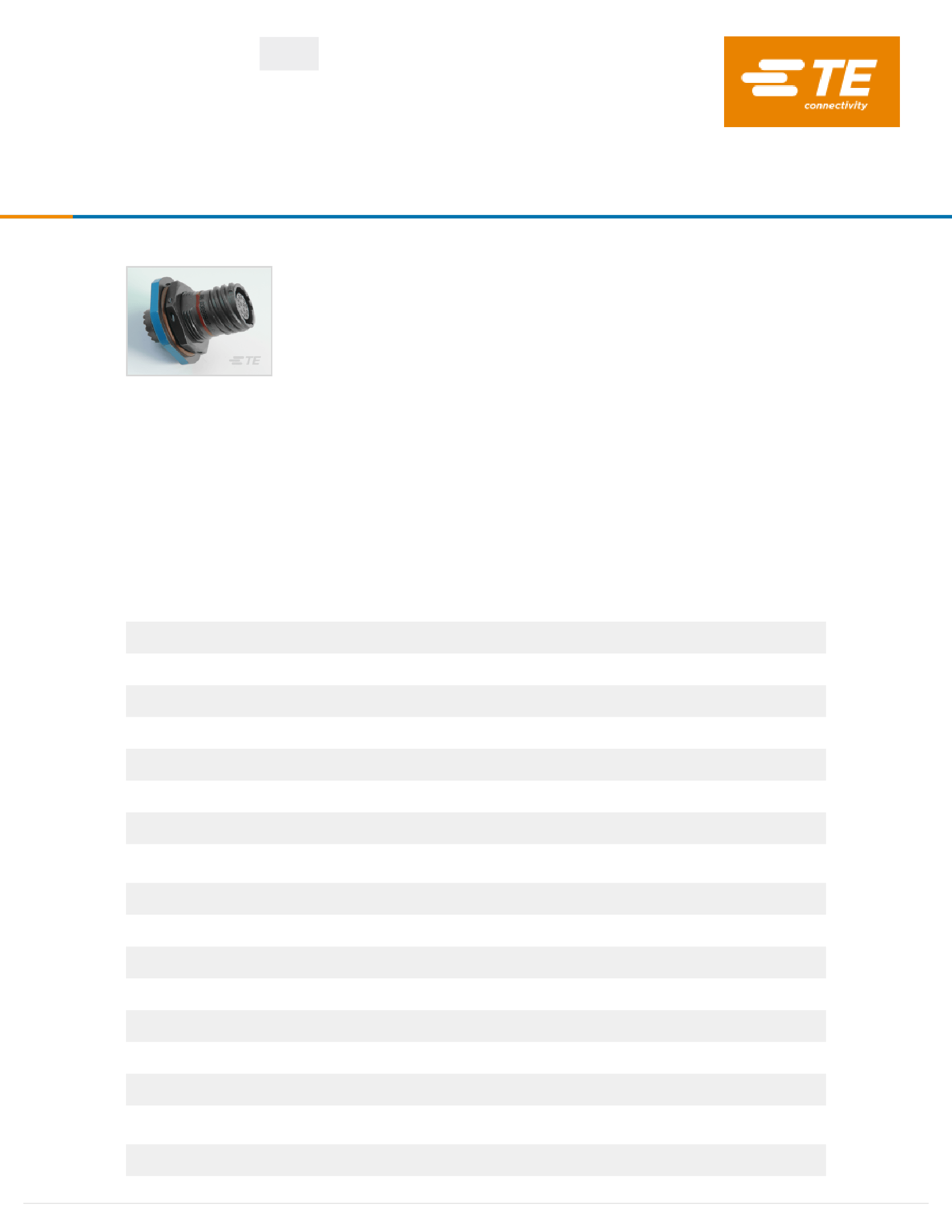

TE Internal #: YACT24MB02ACV00100
Standard Circular Connectors, Cable-to-Panel, 2 Position, Sealable,
Wire & Cable, Power, Panel Mount, DEUTSCH 38999 Series III
Composite Connectors
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Connector System:
Cable-to-Panel
Number of Positions:
2
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Contact Current Rating (Max):
13 A
Features
Product Type Features
Product Type
Assembly Type
Connector System
Sealable
Connector & Contact Terminates To
Circular Connector Type
Shell Type
Configuration Features
Keying & Polarized Position Locations
Factory Installed Backshell
Keying
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Electrical Characteristics
Voltage
Operating Voltage
1800 Vrms
600 VAC
C
No
Keyway Polarization C
2
2
0
No
Connector
Electrical Connector
Cable-to-Panel
Yes
Wire & Cable
Receptacle
Jam Nut Receptacle
For support call+1 800 522 6752
07/15/2022 02:15AM | Page 1
ACT24MB02AC [V001]
Standard Circular Connectors, Cable-to-Panel, 2 Position, Sealable, Wire & Cable,
Power, Panel Mount, DEUTSCH 38999 Series III Composite Connectors
Operating Voltage
Body Features
Feedthrough Type
Environmental Protection Type
Entry Style
Peripheral Seal Material
Environmental Protection
Weight
O-Ring Material
Fluid Type
600 VAC
No
Elastomer Sealed
Rear Insertion
Silicone
Yes
12 g[.0265 lb]
Silicone
Coolanol 25, M2-V, MIL-DTL-5624 (JP-4,JP-
5), MIL-DTL-83133 (JP-8), MIL-PRF-23699,
MIL-PRF-5606, MIL-PRF-7808, SEA-
AMS1424 Type I
Shell Plating Material
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Contact Features
Contact Quantity (Size 16)
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Mating Retention Type
Panel Mount Feature
Panel Mount Feature Type
Connector Mounting Type
Polarization Code
Mating Alignment Type
Mating Retention
Housing Features
Circular Connector Shell Size
Alignment Keyed
Electroless Nickel
Composite
Hard Dielectric/Silicone
No
2
13 A
No
B02
Less Pin
Triple Start Threaded
With
Jam Nut
Panel Mount
C
Keyed
With
11
Clocking
07/15/2022 02:15AM | Page 2
For support call+1 800 522 6752
ACT24MB02AC [V001]
Standard Circular Connectors, Cable-to-Panel, 2 Position, Sealable, Wire & Cable,
Power, Panel Mount, DEUTSCH 38999 Series III Composite Connectors
Alignment Keyed
Dimensions
Panel Thickness
Accepts Wire Insulation Diameter Range
Assembly Length
Wire Size
Usage Conditions
Fluid Resistance
Operating Temperature Range
Operation/Application
Durability Rating
Circuit Application
Shielded
Packaging Features
Packaging Quantity
Other
Position Locations Omitted
Clocking
1.58 – 3.2 mm[.062 – .126 in]
1.65 – 2.77 mm[.065 – .109 in]
33 mm[1.3 in]
.52 – 1.31 mm²
Yes
-65 – 200 °C[-85 – 392 °F]
500 Cycles
Power
Yes
1
All
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2021
(211)
SVHC > Threshold:
Decamethylcyclopentasiloxane (D5) (5% in
Insert Subassembly)
Article Safe Usage Statements:
Wash thoroughly after handling. Recycle if possible and dispose of the article by
following all applicable governmental regulations relevant to your geographic
location.
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Product Compliance Disclaimer
For support call+1 800 522 6752
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
07/15/2022 02:15AM | Page 3
ACT24MB02AC [V001]
Standard Circular Connectors, Cable-to-Panel, 2 Position, Sealable, Wire & Cable,
Power, Panel Mount, DEUTSCH 38999 Series III Composite Connectors
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach
Compatible Parts
TE Part # YACT26MB02BCV00100
STRAIGHT PLUG
Also in the Series
DEUTSCH 38999 Series III Composite Connectors
Standard Circular Connectors(12022)
Customers Also Bought
TE Part #1617807-5
FC-335-SY8= RELAY, 3PST
TE Part #1616058-6
A703CD (FAA/PMA)=RELAY
TE Part #ZPF000000000001261
097-0267-16 A1267
TE Part #1617147-5
JMGAP-26P = M39016/17-030P
