Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Key Features:
Input
Parameter
•
Constant Current Output
Input Voltage Range
•
Wide 7V to 16V Input Range
Maximum Input Voltage
Input Filter
•
93% Efficiency
Output
•
Miniature MiniDIP Case
Parameter
Output Voltage Range
•
300 mA to 1A Output
Output Current
•
Meets EN 60950
Output Current Accuracy
Output Power
•
3.3 MHrs MTBF
Efficiency
•
Digital & Analog Dimming!
Capacitive Load
Operating Frequency
Ripple & Noise (20 MHz)
Temperature Coefficient
Thermal Impedance
Output Short Circuit
Environmental
Parameter
Operating Temperature Range
Storage Temperature Range
Cooling
Humidity
Lead Temperature (Solder)
Physical
Case Size
Case Material
Weight
Remote On/Off Control
Parameter
DC/DC On
DC/DC Off
Remote Pin Drive Current
Quiescent Input Current
(Shutdown Mode)
PWM Dimming
Parameter
Operation Frequency
Switch On Time
Switch Off Time
Analog Dimming
Parameter
Input Voltage Range
Output Current Adjustment
Control Voltage Range Limits
Drive Current
EMC Compliance
EMI/RFI
Electrostatic Discharge (ESD)
RF Field Susceptibility
Electrical Fast Transients/Bursts On Mains
EMS Immunity
Reliability Specifications
Parameter
MTBF
Conditions
Min.
7.0
0.5 Sec
Internal Capacitor
Typ.
12
Max.
16.0
20.0
Units
VDC
VDC
Conditions
Min.
Typ.
V
IN
= 16V
2
See Model Selection Guide
See Model Selection Guide
See Model Selection Guide
See Model Selection Guide
60
See Model Selection Guide
Max.
14
Units
VDC
47
400
±0.03
µF
kHz
%/
º
C
º
C/W
Natural Convection
+35
Regulated At Rated Output Current
Conditions
Ambient
Case
Min.
-40
Typ.
+25
Max.
+85
+105
+125
95
260
Units
º
C
º
C
-40
Free Air Convection
RH, Non-condensing
1.5 mm From Case For 10 Sec
%
ºC
0.50 x 0.40 x 0.27 Inches (12.70 x 10.16 x 6.85 mm)
Non-Conductive Black Plastic (UL94-V0)
0.064 Oz (1.8g)
Conditions
Min.
Typ.
Max.
Units
Open or 0.3V < V
ADJ
<1.25V
V
ADJ
<0.15V
1
mA
25
µA
Typ.
Max.
1.0
Units
kHz
nS
nS
Units
VDC
%
VDC
mA
V
ADJ
= 1.25V
V
IN
= 16V
Conditions
Recommended Maximum
Min.
200
200
Conditions
At V
ADJ
Input (Pin 7)
On
Off
V
ADJ
= 1.25V
Radiated/Conducted
Class A
Class A
Class A
Min.
0.0
25
0.30
0.0
MicroPower Direct
292 Page Street
Suite D
Stoughton, MA 02072
USA
T:
(781) 344-8226
F:
(781) 344-8481
E:
sales@micropowerdirect.com
W:
www.micropowerdirect.com
Typ.
Max.
1.25
100
1.25
0.15
1.0
EN 55015 (CISPR22)
IEC/EN 61000-4-2, -6, -8
IEC/EN 61000-4-3
IEC/EN 61000-4-4
EN61547
Min.
3.3
Typ.
Max.
Units
MHours
Conditions
MIL HDBK 217F, 25
º
C, Gnd Benign
www.micropowerdirect.com
Model Selection Guide
Input
Model
Number
LDM12-04-300
LDM12-05-350
LDM12-07-500
LDM12-08-600
LDM12-10-700
LDM12-14-1000
Voltage
(VDC)
Range
7.0 - 16.0
7.0 - 16.0
7.0 - 16.0
7.0 - 16.0
7.0 - 16.0
7.0 - 16.0
Voltage
(VDC)
Range
2.0 - 14.0
2.0 - 14.0
2.0 - 14.0
2.0 - 14.0
2.0 - 14.0
2.0 - 14.0
Max
(mA)
300
350
500
600
700
1,000
Output
Current
www.micropowerdirect.com
Maximum
Power
(W)
Ripple &
Noise
(mV P-P, Max)
Efficiency
(%, Typ)
Package
Accuracy
(%)
±5
±6
±7
±7
±7
±8
4.2
4.9
7.0
8.4
9.8
14.0
120
150
200
200
250
250
93
93
93
93
93
93
8 -Pin MiniDIP
8 -Pin MiniDIP
8 -Pin MiniDIP
8 -Pin MiniDIP
8 -Pin MiniDIP
8 -Pin MiniDIP
Notes:
1. A reversed power source could damage the unit.
2. No connection should be made between input ground and the output.
3. These are step-down devices, the maximum output open voltage is
equal to the input voltage.
4. The V
ADJ
input should be left open if not used. Grounding V
ADJ
will shut the unit
down. Connecting V
ADJ
to V
IN
may damage the unit.
5. Exceeding the specified maximum output power could cause damage to the unit.

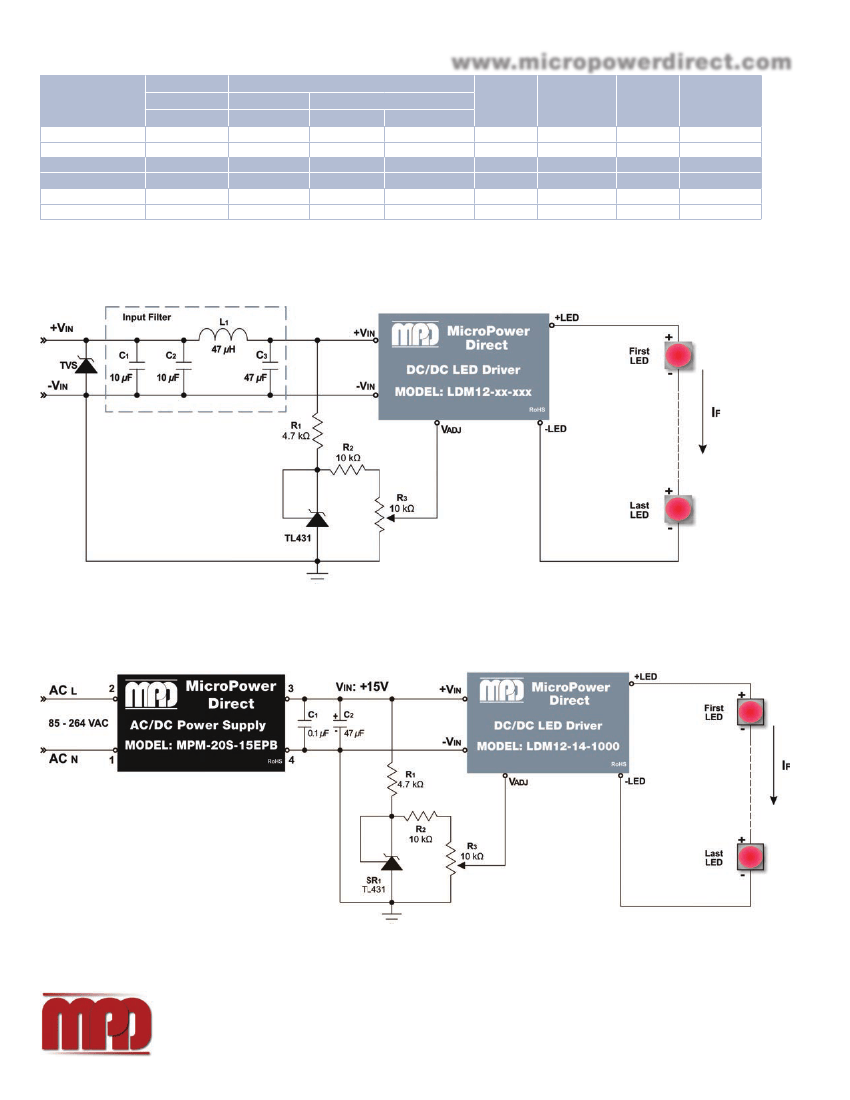

Typical Connection:
DC/DC Input
Connection Notes:
To comply with EN61000-4-5, a TVS should be installed before the input filter components. A 3.0SMCJ15A or SMCJ16A is recommended. The TVS max clamping voltage (@max peak pulse
current V
C
) must be 20V. This will prevent any surge from exceeding the maximum input of the driver (20 VDC). Exceeding the maximum input rating could damage the driver.
The filter shown (C
1
, C
2,
C
3
and L
1
) will help to meet conducted emission requirements. With the addition of the filter, the unit should meet the levels of EN 55015.
Typical Connection:
AC/DC Input
Connection Notes:
This is a distributed (or two-stage) AC connection. In this configuration, the AC line in (85 to 264 VAC) is connected to the
MPM-20S-15EPB,
a compact 20W AC/DC
power supply. The
MPM-20S-15EPB
provides a tightly regulated 15 VDC output at 1,330 mA. The 15 VDC output powers the LED driver.
The two stage approach can simplify the safety approval process (most AC/DC power supplies on the market are approved to EN 60950) and may increase design flex-
ibility. Besides the output voltage/current ratings, other specifications to consider when selecting the input AC/DC supply might include input range, case size, efficiency,
EMI ratings and operating temperature range.
Note: The output current adjustment circuit shown in both connection diagrams is discussed on page 4.
292 Page Street Ste D Stoughton, MA 02072
•
TEL: (781) 344-8226
•
FAX: (781) 344-8481
•
E-Mail: sales@micropowerdirect.com
PWM Output Current Control
www.micropowerdirect.com
An LED operates at its maximum efficiency when
operated at the rated drive current specified by
the manufacturer. Operating an LED at lower than
its rated forward current not only decreases the
system efficiency; but may cause color (or wave-
length) shifting. In illumination applications, this
could cause visible changes to lighting.
A preferred method is using pulse width modula-
tion (PWM). As shown at left, the output current
is adjusted by applying a PWM signal to the V
ADJ
input. By varying the signal duty cycle the average
output current is adjusted up or down. To avoid
visible flicker, the PWM signal should be greater
than 200 Hz.
For duty cycles (DPWM) between 0.1 and 1, the
output current is derived by the formula:
PWM Control Signals
I
NOM
= I
MAX
X D
PWM
The V
ADJ
input may be driven via an open collec-
tor transistor (as shown). The diode and resistor
suppress high amplitude negative spikes that may
be caused by the drain-source capacitance of the
transistor. Negative spikes on the control input of
the unit could cause errors in output current or
erratic operation.
The V
ADJ
input can also be driven by the open drain
output of a microcontroller. Again, any high amplitude
negative spikes that may be caused by the drain-
source capacitance of the FET must be supressed.

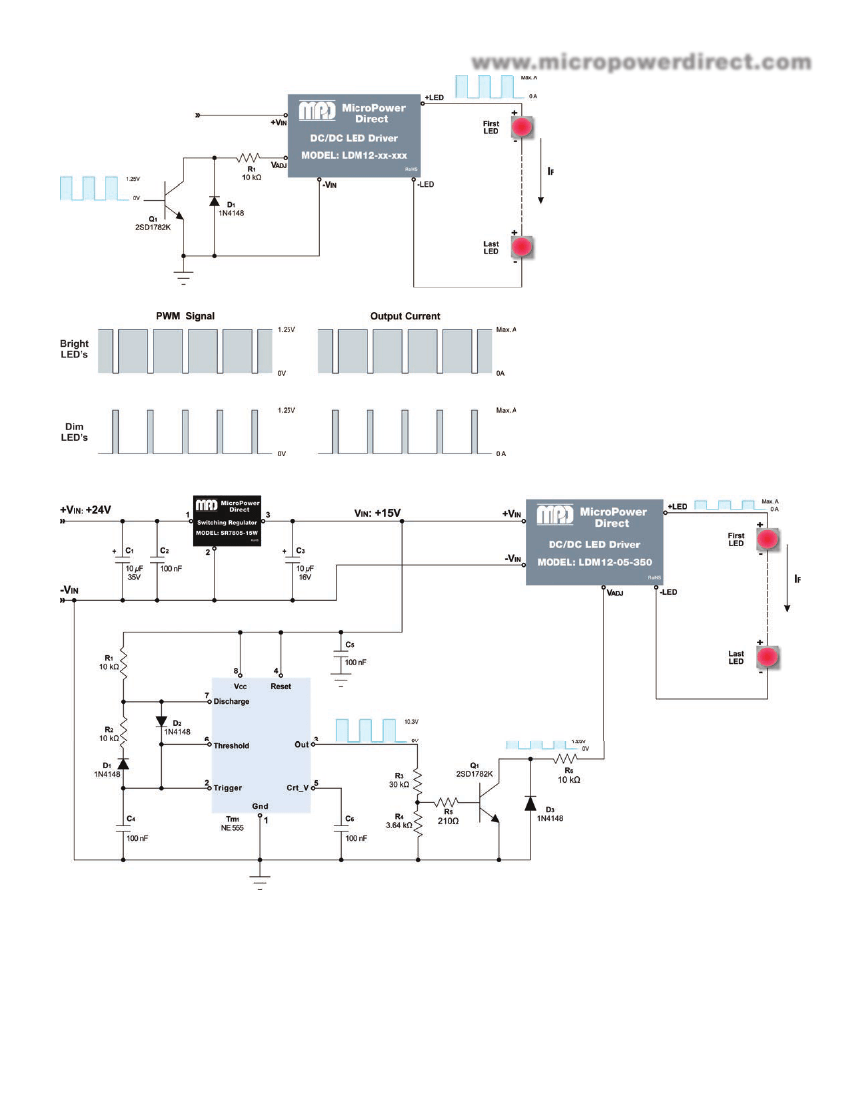

PWM Dimming Application
A simple method of achieving digital (or PWM) dimming is by using a 555 timer
to apply a series of pulses to the V
ADJ
input, as illustrated above. The 555 oper-
ates over a supply voltage range of 4.5 VDC to 18VDC. Here it is connected
to the 15 VDC output of the
SR7805
switching regulator (this is also the V
IN
of the LED driver). Care should be taken to minimize ripple at the V
CC
input.
Excess ripple could cause timing errors.
again. The formulas for calculating the frequency and duty cycle are included
in the MPD application note “Driving
LEDs”.
The diodes (D
1
and D
2
) allow duty cycles below 50% to be set. Diode D
1
bypasses R
2
while C
4
is charging. Diode D
2
is optional (but recommended),
essentially blocking R
2
during the charge period. Theoretically, this circuit will
allow for duty cycles over a range of approximately 5% to 95%. If manual
The timer is connected for astable (free run) operation. The frequency is set adjustment is desired, a potentiometer may be substituted for R
2
(with some
by R
1
, R
2
and C
4
. The timing capacitor (C
4
) charges through R
1
and D
2
. When adjustment of the circuit).
it reaches the level of
2/3
V
CC
, the discharge pin (pin 7) goes low and C
4
will
discharge through D
1
and R
2
to the internal discharge transistor. When the C
4
The size of C
4
is generally not critical, but it should be as low leakage as pos-
voltage drops to
1/3
V
CC
, the discharge pin goes high and C
4
begins to charge sible. In order to avoid excessive current flow through the internal discharge
transistor, it is recommended that R
1
be at least 5 k .
MicroPower Direct
•
292 Page Street Ste D Stoughton, MA 02072
•
TEL: (781) 344-8226
•
FAX: (781) 344-8481
•
E-Mail: sales@micropowerdirect.com
Analog Output Current Control
(V
CNT
= 5V)
www.micropowerdirect.com
The output current of the unit can also
be set by adjusting the voltage level on
the V
ADJ
input to a value between 0.3V to
1.25V (I
OUT
will vary from 25% to 100% of
rated output current). Care must be taken
not to exceed 1.25V on this input, or the
driver may be damaged.
A simple analog circuit using two low
cost, switching regulators is shown at
left. Working from inputs that can range
from 20 to 32 VDC,the top regulator
(SR
1
) keeps the input to the LED driver
at 15 VDC.
The other regulator (SR
2
), driven off the same input line maintains
the control voltage (for the V
ADJ
input) at 5 VDC. The resister
network of R
1
and R
2
can now be used to set the output current
level of the LED driver. This level is equal to:
V
ADJ
=
Analog Output Current Control
(5 - 16 VDC IN)
R
2
X V
CTRL
R
1
+ R
2
In the second circuit, the 5 VDC regulator
(SR
2
) is replaced by the shunt regulator (D
1
)
circuit connected in parallel with the resis-
tor network. The regulator will maintain
the voltage across R
2
and R
3
at 2.5 VDC,
insuring that the 1.25 VDC limit on the V
ADJ
pin will not be exceeded.
When using the analog control input, the
nominal output current is equal to:
I
NOM
= I
MAX
x
V
ADJ
1.25

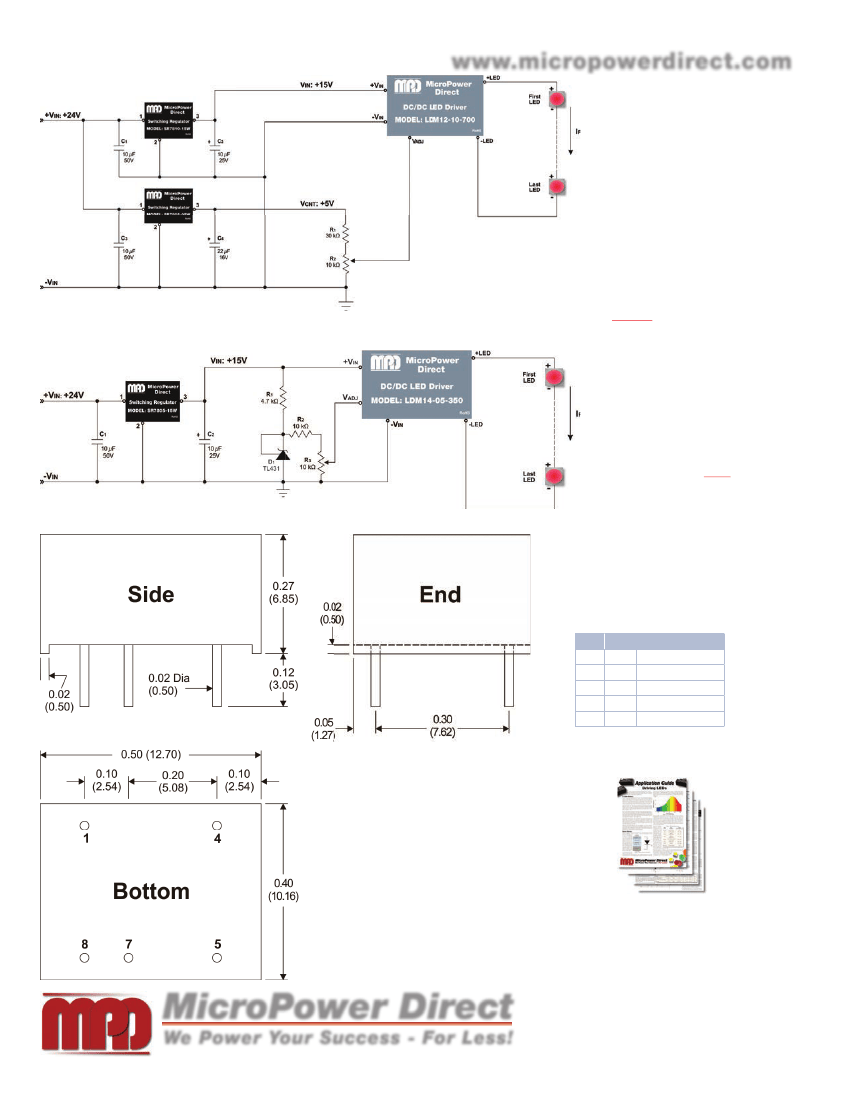

Mechanical Dimensions
The V
ADJ
input should be left open if not
used. Grounding V
ADJ
will shut the unit
down. Connecting V
ADJ
to directly to +V
IN
may damage the unit.
Pin Connections
Pin
1
4
5
7
8
+V
IN
+LED
V
ADJ
-V
IN
Function
+DC Supply
LED Anode Conn.
PWM, On/Off
-DC Supply
-LED LED Cathode Conn.
Notes:
•
All dimensions are typical in inches (mm)
•
Tolerance x.xx = ±0.02 (±0.50)
•
Pin 1 is marked by a “dot” or indentation on the top of the unit
The requirements are as follows: 1. Both temperature and time are displayed by two digital tubes. Temperature is 20-80 degrees, time is 1-60 minutes. 2. 6 buttons, 1 power switch, 2 set temperature. W...
Hello everyone, I wrote a TDI driver, using TCP protocol, the main purpose of this driver is to send data to the server. But I am surprised that the efficiency of send is very low, but the efficiency ...
Does nrf24e1 only have 11 I/O ports? Or does it not include the normal P0, P1, and P2 of the 51 core? I plan to make a simple unlimited ordering system based on nrf24e1. Because I need to use a keyboa...
Summer is here, and the white-collar workers in the office are wearing cooler and cooler clothes. Their small skirts, small tube tops, and exquisite makeup seem to make the atmosphere of the whole off...
It is possible to open the routine directly, but it is not conducive to developing your own project. If you want to develop your own stuff anytime and anywhere. It is very simple to create your own te...
Ever since the Tesla fire incident, electric cars, already known for their poor reputation, have been subjected to even more scathing criticism. Despite this, many people are still willing to buy t...[Details]
On August 22, Lantu Motors officially launched its Lanhai Intelligent Hybrid technology via an online livestream. This intelligent hybrid technology, which integrates a full-range 800V high-voltage...[Details]
Common Mode Semiconductor has officially released its latest generation of power management ICs—the GM6506 series. This fully integrated high-frequency synchronous rectification step-down p...[Details]
When discussing autonomous driving technology, there are often two extremes: on the one hand, there's the vision of "fully autonomous driving," while on the other, there's concern about potential s...[Details]
Have you ever heard stories about "crazy appliances"? Think of microwaves that turn on automatically or ovens that preheat without any human input? With radios and electromagnetic interfaces ubiqui...[Details]
With the rapid development of electric vehicles in my country, people are beginning to pay attention to the issue of radiation from electric vehicles. We all know that mobile phones emit radiation,...[Details]
Magna's integrated in-cabin perception system fuses vision and millimeter-wave radar data to detect the presence of passengers, identify stranded children, monitor driver fatigue and vital signs, a...[Details]
A tubular motor is an electric motor that is typically used to control the movement of machines and equipment. Tubular motors are generally divided into two categories: linear tubular motors and ro...[Details]
A scale, a large, ground-mounted scale, is typically used to measure the tonnage of truck cargo. It's the primary weighing device used in factories, mines, and businesses for bulk cargo measurement...[Details]
Plug-in hybrid vehicles (PHEVs) utilize two powertrains. Their pure electric range is typically inferior to that of pure electric vehicles, often reaching less than half that. Currently, mainstream...[Details]
introduction
In today's busy society, people experience chronic high stress, which in turn poses a significant threat to our health. Therefore, effectively relieving stress has become a pr...[Details]
1. Introduction
In 2015, Apple's new MacBook and Apple Watch both featured force-sensing technology, which Apple calls Force Touch. Each time a user presses the touchpad, the device not only p...[Details]
On August 20, Huawei Device announced that the all-new M7 is the first to feature an in-cabin laser vision solution. This solution offers enhanced active safety capabilities compared to primary vis...[Details]
introduction
The OMAP-L138 dual-core processor is a new generation of low-power single-chip systems (SoCs) from TI. It is widely used in communications, industrial, medical diagnostic, and aud...[Details]
In microwave amplification circuits, the power chip is the core of the entire circuit. A large number of semiconductor devices in the chip will generate a lot of heat when working. If the heat diss...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
