354872 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 354872

354872: DescriptionTWO PART EURO CONNECTOR; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354872 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354872	-	-	View	Buy Now

354872 Overview

TWO PART EURO CONNECTOR

354872 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.638 inch
subject depth	0.892 inch
body length	3.701 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	2200VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	354872
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C,E
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	48
Base Number Matches	1

Preview

Download Datasheet

View All

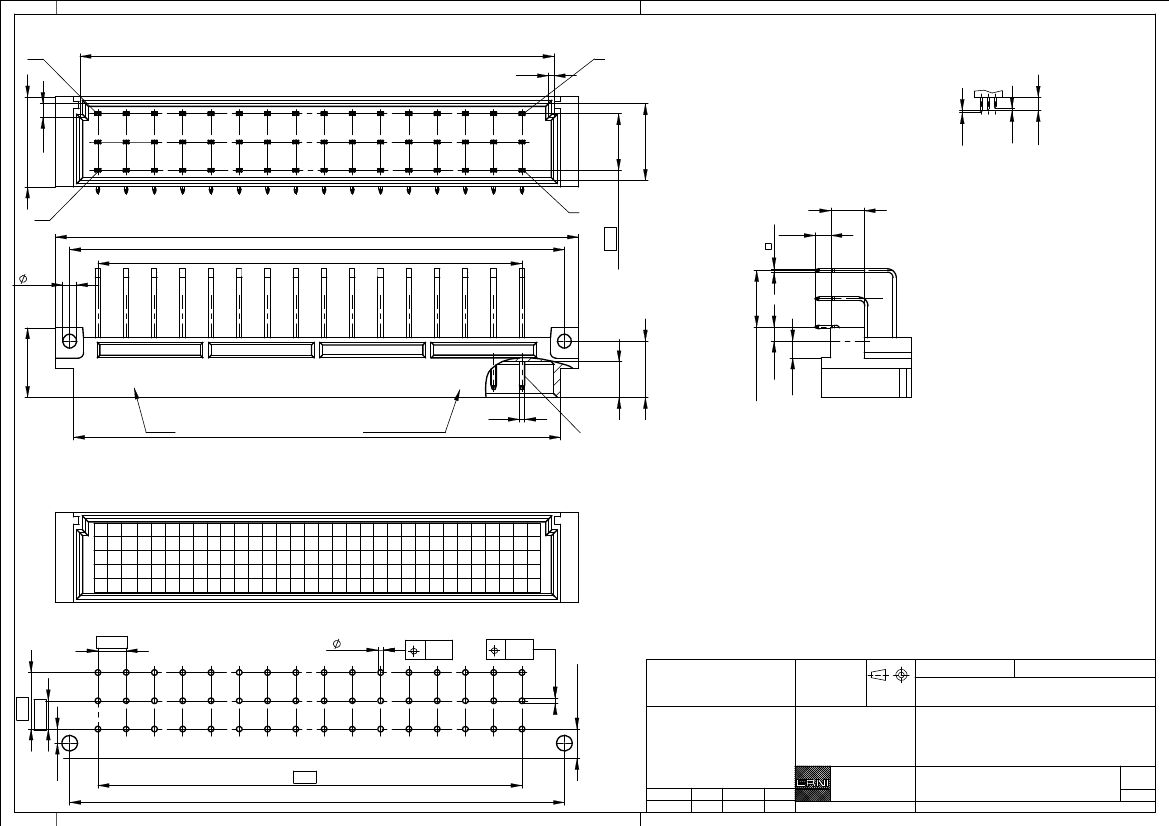

e32

85,2

Stecklänge /

mating length

ESL

0,8

±0,1

16,2 max.

2,5

13,8

E =

early mate, late break

/ voreilend

2 x 5,08 (=10,16)

94 max.

88,9

76,2

2,5

+0,1

a32

±0,1

0,6

-0,4

S = standard

L =

late mate, early break

/ nacheilend

2 x 5,08 =10,16

10,2

-0,2

12,5

6,4

-0,1

2,54

Datum

date

Anforderungsstufe

87,5

Stecklänge

class

mating length

Bestückungsplan /

contact layout

Steckseite ACE / Anschlussseite ACE /

contact side ACE / terminal Side ACE

Lötanschluss 0,6 x 0,6 /

solder terminal 0,6 x 0,6

Isolierwerkstoff /

housing material : PBT GF 30

Bauart 4 /

Type 4

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2= 400 mating cycles

Fehlende Maße und Angaben gemäss IEC 60603-2 / DIN EN 60603-2

Missing information and dimensions according to IEC 60603-2

Bedruckung siehe Zeichnung 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

5,08

2 x 5,08 = 10,16

±0,1

0,05

Alle Löcher/

all holes

Marking see drawing 294905

0,05

5,3

±0,1

Proprietary notice pursuant to ISO 16016 to be observed.

XXXXXXX

ERNI

RC 2

+0,1

5,08

2,54

Information:

Tolerances

All Dimensions

in mm

Scale

15 x 5,08 = 76,2

88,9

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

29.10.2008

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

0,8

±0,1

2:1

Messerleiste E48 Löt

Male Con. E48 Solder

www.ERNI.com

Class

354872

STVE

4,8

±0,2
