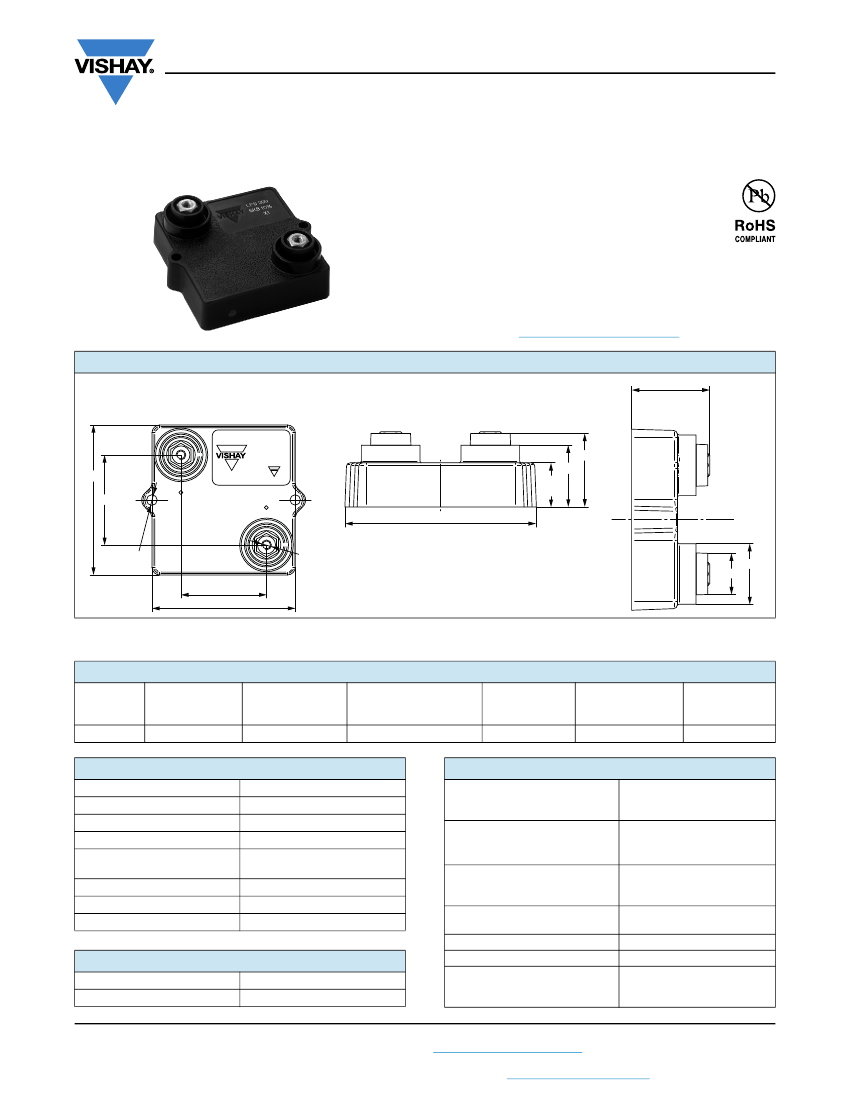

LPS 300

www.vishay.com

Vishay Sfernice

Power Resistor for Mounting onto a Heatsink

Thick Film Technology

FEATURES

• 300 W at 85 °C bottom case temperature

• Wide resistance range: 0.3

to 900 kΩ

E24 series

• Non inductive

• Easy mounting

• Low thermal radiation of the case

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DIMENSIONS

in millimeters

25.8 ± 1

LPS 300

6K8 5 %

25.2

21.2

15.2

± 0.5

64.7

2 x Ø 4.2

2 x M4 useful depth: 8

Ø 20

13.6

Note

• Tolerances unless stated: ± 0.2 mm

STANDARD ELECTRICAL SPECIFICATIONS

MODEL

LPS 300

RESISTANCE

RANGE

0.3 to 900K

RATED POWER

85 °C

300

LIMITING ELEMENT

VOLTAGE U

TOLERANCE

±%

1, 2, 5, 10

TEMPERATURE

COEFFICIENT

± ppm/°C

150, 300, 500

CRITICAL

RESISTANCE

(Ω)

83.33K

MECHANICAL SPECIFICATIONS

Mechanical Protection

Resistive Element

Substrate

End Connections

Tightening Torque

Connections

Tightening Torque Heatsink

Maximum Torque

Weight

Insulated case UL 94 V-0

Thick film

Alumina

Screws M4

2 Nm

2.5 Nm

83 g ± 10 %

TECHNICAL SPECIFICATIONS

Power Rating and

Thermal Resistance

Temperature Coefficient

- 55 °C/120 °C

Standard

IEC 60115-1

Dielectric Strength

IEC 60115-1, 1 min,

10 mA max.

Lightning test 1.2/50 μs

IEC 61000-4-5

Insulation Resistance

Inductance

Partial Discharge

(for LPS 300 D only)

300 W at + 85 °C

bottom case temperature

TH (j - c)

: 0.112 °C/W

≤

Ω:

± 500 ppm/°C

≤

Ω:

± 300 ppm/°C

± 150 ppm/°C

7 kV

RMS

or 12 kV

RMS

Until 12 kV

≥

MΩ

≤

0.1 μH

≤

100 pC/7 kV

≤

10 pC/5 kV

Other cases: Consult us

ENVIRONMENTAL SPECIFICATIONS

Temperature Range

Climatic Category

Revision: 24-Oct-13

- 55 °C to 120 °C

55/120/56

Document Number: 50052

For technical questions, contact:

sferfixedresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice
